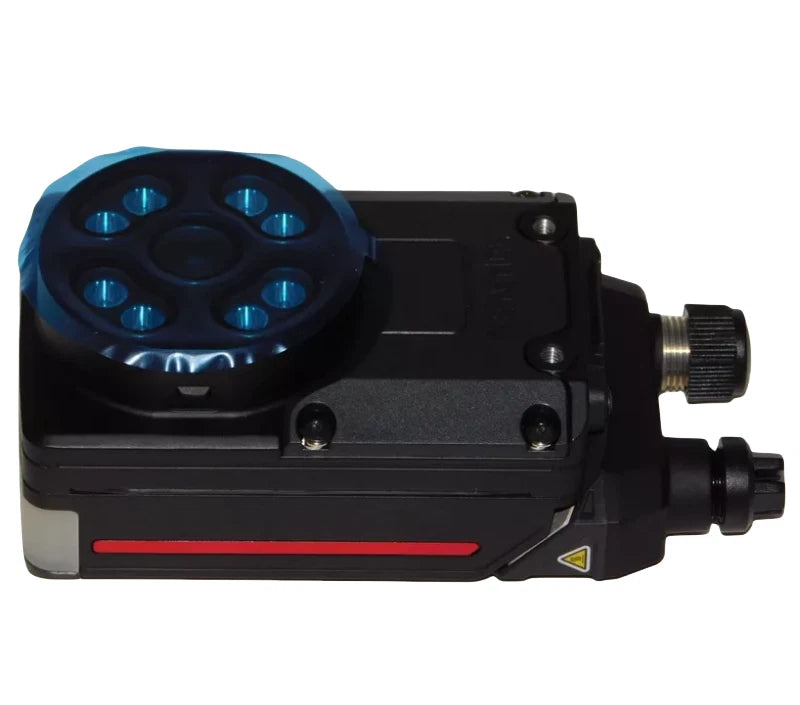

Keyence IV3-500MA Smart Vision Sensor Monochrome AF Industrial Inspection Camera
- Regular price
- $3,897.00
- Sale price
- $3,897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IV3-500MA
Description
The Keyence IV3-500MA is a smart vision sensor designed for high-speed automated inspection using a monochrome camera with autofocus capability. This compact unit combines imaging, processing, and judgment functions into a single device for efficient inline quality control. It is optimized for stable detection, measurement, and sorting tasks in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Machine Vision |
| Part Number | IV3-500MA |
| Subcategory | Vision Sensors |
| Series | IV3 Series |
| Camera Type | Monochrome CMOS |
| Resolution | 1280 x 960 pixels |
| Focus Type | Autofocus |
| Installed Distance | 50 mm or more |
| Field of View | Approx. 22 x 16 mm to 1184 x 888 mm |
| Exposure Time | 12 µs to 10 ms |
| Lighting | Infrared LED, pulse lighting |
| Number of Tools | Up to 65 tools |
| Programs | 128 with SD card / 32 without |
| Image Storage | Up to 100 images |
| Data Transfer | SD card, FTP, SFTP |
| Communication | EtherNet/IP, PROFINET, TCP/IP |
| Inputs/Outputs | 6 inputs / 6 outputs configurable |
| Power Supply | 24 VDC |
| Protection Rating | IP67 |
| Operating Temperature | 0 to 50°C |
| Weight | Approx. 0.66 lbs |
Information About IV3-500MA
The IV3-500MA is part of the Keyence IV3 Series, known for integrating advanced vision capabilities into compact smart camera systems. It features a monochrome CMOS sensor with autofocus, enabling consistent inspection performance across varying distances and target conditions. The device supports multiple inspection tools, including OCR, edge detection, and pattern recognition, making it suitable for diverse manufacturing applications. Designed for easy installation and operation, it integrates seamlessly into automated systems via industrial communication protocols and flexible I/O configurations.
Key Features:
- Monochrome CMOS Sensor: Provides high-contrast image capture for precise inspection tasks
- Autofocus Function: Automatically adjusts focus during setup for optimal image clarity
- High-Speed Processing: Enables rapid inspection and decision-making in production lines
- Multiple Inspection Tools: Supports OCR, edge detection, blob analysis, and measurement functions
- Wide Field of View Range: Adjustable viewing area based on installation distance
- Programmable Inspection Modes: Offers standard and sorting modes for flexible applications
- Integrated Infrared Lighting: Ensures stable illumination for consistent image acquisition
- Flexible Data Storage: Supports SD card, FTP, and SFTP image data transfer
- Industrial Communication Support: Compatible with EtherNet/IP, PROFINET, and TCP/IP
- Rugged IP67 Design: Resistant to dust and water for harsh industrial environments
- Expandable Memory: Supports microSD cards for extended storage and backup
- Versatile I/O Configuration: Configurable inputs and outputs for system integration
The IV3-500MA delivers the reliability and precision required for automated visual inspection and quality assurance processes.
