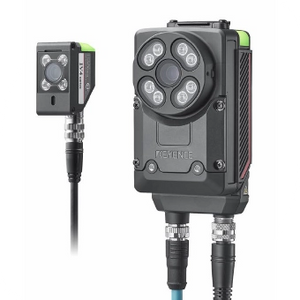

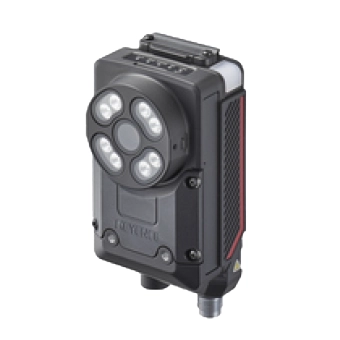

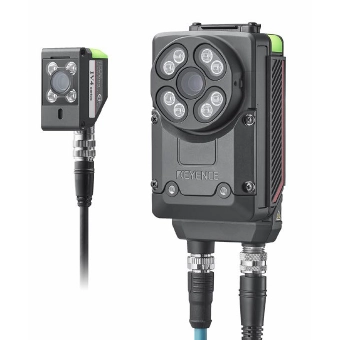

KEYENCE IV4-500CA AI Color Smart Camera for Automated Machine Vision Inspection
- Regular price
- $4,499.00
- Sale price
- $4,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IV4-500CA
Description
The KEYENCE IV4-500CA is a color smart camera with built-in AI, designed for automated visual inspection, object identification, counting, and quality control in industrial production environments. Its 1.2-megapixel CMOS image sensor, automatic focus, and extensive inspection tools enable detection of shape, color, position, dimensions, and printed characters across a wide range of manufacturing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | IV4-500CA |
| Subcategory | Machine Vision Cameras |
| Product Series | IV4 Series |
| Product Type | AI Smart Camera / Vision Sensor |
| Camera Type | Standard Model, Color |
| Image Sensor | 1/2.9-inch Color CMOS |
| Image Resolution | 1280 × 960 pixels |
| Minimum Installation Distance | 50 mm |
| Maximum Reference Installation Distance | 3000 mm |
| Focus Adjustment | Automatic |
| Inspection Tools | 65 tools |
| AI Functions | AI Differentiate, AI Identify, AI Count, AI OCR, AI Trigger |
| Program Storage | 32 programs without SD card; 128 with SD card |
| Image History | Up to 100 images |
| Image Transfer | microSD, FTP, SFTP |
| Lighting | White LED; pulse or continuous lighting |
| Exposure Time | 12 μs to 10 ms |
| Digital Zoom | ×2 and ×4 |
| Input/Output | 6 inputs and 6 outputs; 3 configurable as input or output |
| Output Type | Open collector, selectable NPN/PNP and N.O./N.C. |
| Ethernet Standard | 1000BASE-T / 100BASE-TX |
| Network Compatibility | EtherNet/IP, PROFINET CC-B, TCP/IP |
| Power Supply | 24 VDC (+25% / −20%, including ripple) |
| Average Power Consumption | 9.3 W without AI illumination unit; 12.8 W with unit |
| Protection Rating | IP67 |
| Operating Temperature | 0 to +50 °C, no freezing |
| Housing Material | Aluminum die-cast main case |
| Weight | 370 g |
Information About IV4-500CA
The IV4-500CA belongs to KEYENCE’s IV4 Series of vision sensors with built-in AI and is the standard-distance color smart camera model. It uses a 1/2.9-inch color CMOS sensor with 1280 × 960 pixels and supports automatic focus for installation distances starting at 50 mm. The system offers 65 inspection tools, including AI identification, AI counting, OCR, color-area analysis, edge detection, and position adjustment, with program storage expandable from 32 to 128 programs using a microSD card. Ethernet connectivity and support for EtherNet/IP, PROFINET, and TCP/IP communication allow integration into compatible automation and inspection systems.
Key Feature:
-
AI-Powered Inspection: Supports AI-based identification, differentiation, counting, and optical character recognition for automated quality checks.
-
Color CMOS Imaging: Uses a 1/2.9-inch color CMOS image sensor with 1280 × 960 pixel resolution.
-
Automatic Focus: Automatically adjusts focus during installation for flexible positioning within the supported working range.
-
Multiple Inspection Tools: Provides 65 tools for shape, color, area, edge, width, diameter, pitch, and position analysis.
-
Flexible Program Storage: Stores up to 32 inspection programs without an SD card or 128 programs with a compatible microSD card.
-
Industrial Connectivity: Supports EtherNet/IP, PROFINET CC-B, and TCP/IP communication through its built-in Ethernet interface.
-
Image Logging: Stores up to 100 images internally and supports image transfer to microSD, FTP, or SFTP destinations.
-
Environmental Protection: Features an IP67 enclosure rating and operates at ambient temperatures from 0 to +50°C, without freezing.
The IV4-500CA delivers the processing capability and inspection flexibility required for automated visual inspection, AI-assisted identification, and production quality control.
Description
The KEYENCE IV4-500CA is a color smart camera with built-in AI, designed for automated visual inspection, object identification, counting, and quality control in industrial production environments. Its 1.2-megapixel CMOS image sensor, automatic focus, and extensive inspection tools enable detection of shape, color, position, dimensions, and printed characters across a wide range of manufacturing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | IV4-500CA |
| Subcategory | Machine Vision Cameras |
| Product Series | IV4 Series |
| Product Type | AI Smart Camera / Vision Sensor |
| Camera Type | Standard Model, Color |
| Image Sensor | 1/2.9-inch Color CMOS |
| Image Resolution | 1280 × 960 pixels |
| Minimum Installation Distance | 50 mm |
| Maximum Reference Installation Distance | 3000 mm |
| Focus Adjustment | Automatic |
| Inspection Tools | 65 tools |
| AI Functions | AI Differentiate, AI Identify, AI Count, AI OCR, AI Trigger |
| Program Storage | 32 programs without SD card; 128 with SD card |
| Image History | Up to 100 images |
| Image Transfer | microSD, FTP, SFTP |
| Lighting | White LED; pulse or continuous lighting |
| Exposure Time | 12 μs to 10 ms |
| Digital Zoom | ×2 and ×4 |
| Input/Output | 6 inputs and 6 outputs; 3 configurable as input or output |
| Output Type | Open collector, selectable NPN/PNP and N.O./N.C. |
| Ethernet Standard | 1000BASE-T / 100BASE-TX |
| Network Compatibility | EtherNet/IP, PROFINET CC-B, TCP/IP |
| Power Supply | 24 VDC (+25% / −20%, including ripple) |
| Average Power Consumption | 9.3 W without AI illumination unit; 12.8 W with unit |
| Protection Rating | IP67 |
| Operating Temperature | 0 to +50 °C, no freezing |
| Housing Material | Aluminum die-cast main case |
| Weight | 370 g |
Information About IV4-500CA
The IV4-500CA belongs to KEYENCE’s IV4 Series of vision sensors with built-in AI and is the standard-distance color smart camera model. It uses a 1/2.9-inch color CMOS sensor with 1280 × 960 pixels and supports automatic focus for installation distances starting at 50 mm. The system offers 65 inspection tools, including AI identification, AI counting, OCR, color-area analysis, edge detection, and position adjustment, with program storage expandable from 32 to 128 programs using a microSD card. Ethernet connectivity and support for EtherNet/IP, PROFINET, and TCP/IP communication allow integration into compatible automation and inspection systems.
Key Feature:
-
AI-Powered Inspection: Supports AI-based identification, differentiation, counting, and optical character recognition for automated quality checks.
-
Color CMOS Imaging: Uses a 1/2.9-inch color CMOS image sensor with 1280 × 960 pixel resolution.
-
Automatic Focus: Automatically adjusts focus during installation for flexible positioning within the supported working range.
-
Multiple Inspection Tools: Provides 65 tools for shape, color, area, edge, width, diameter, pitch, and position analysis.
-
Flexible Program Storage: Stores up to 32 inspection programs without an SD card or 128 programs with a compatible microSD card.
-
Industrial Connectivity: Supports EtherNet/IP, PROFINET CC-B, and TCP/IP communication through its built-in Ethernet interface.
-
Image Logging: Stores up to 100 images internally and supports image transfer to microSD, FTP, or SFTP destinations.
-
Environmental Protection: Features an IP67 enclosure rating and operates at ambient temperatures from 0 to +50°C, without freezing.
The IV4-500CA delivers the processing capability and inspection flexibility required for automated visual inspection, AI-assisted identification, and production quality control.
