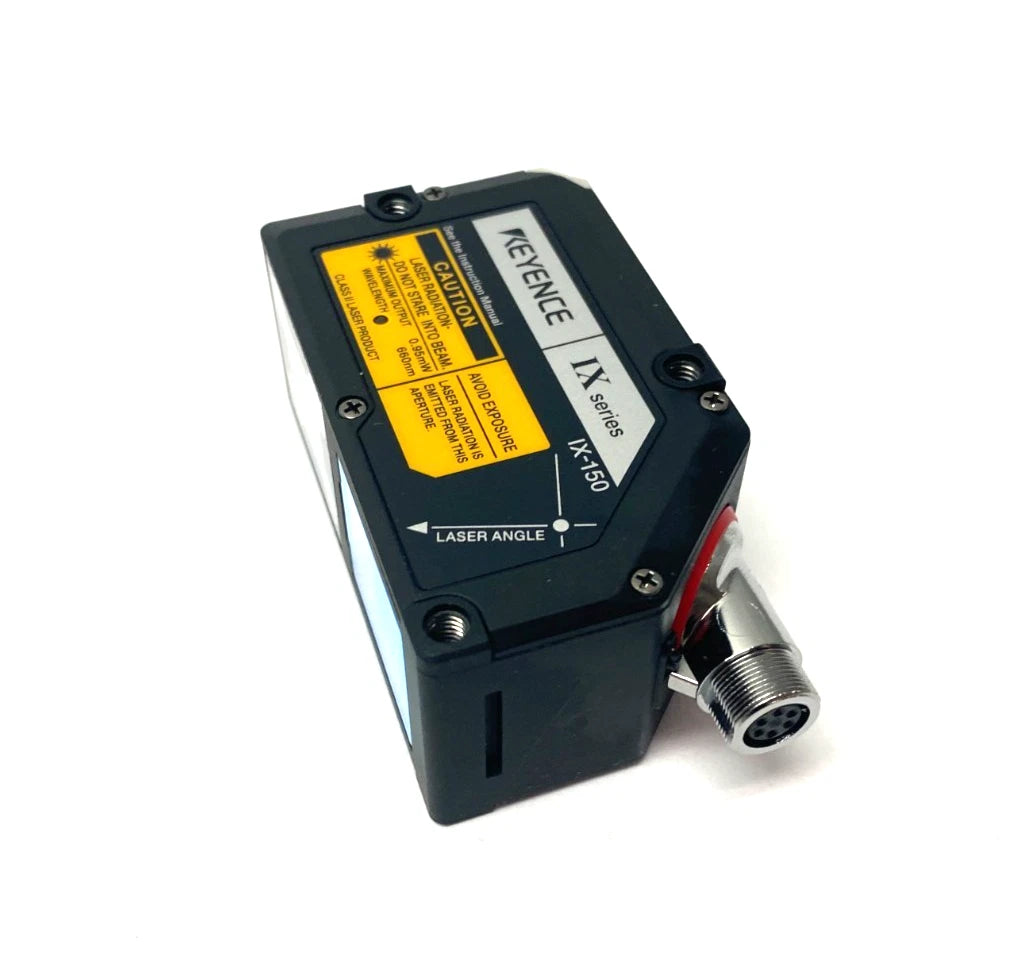

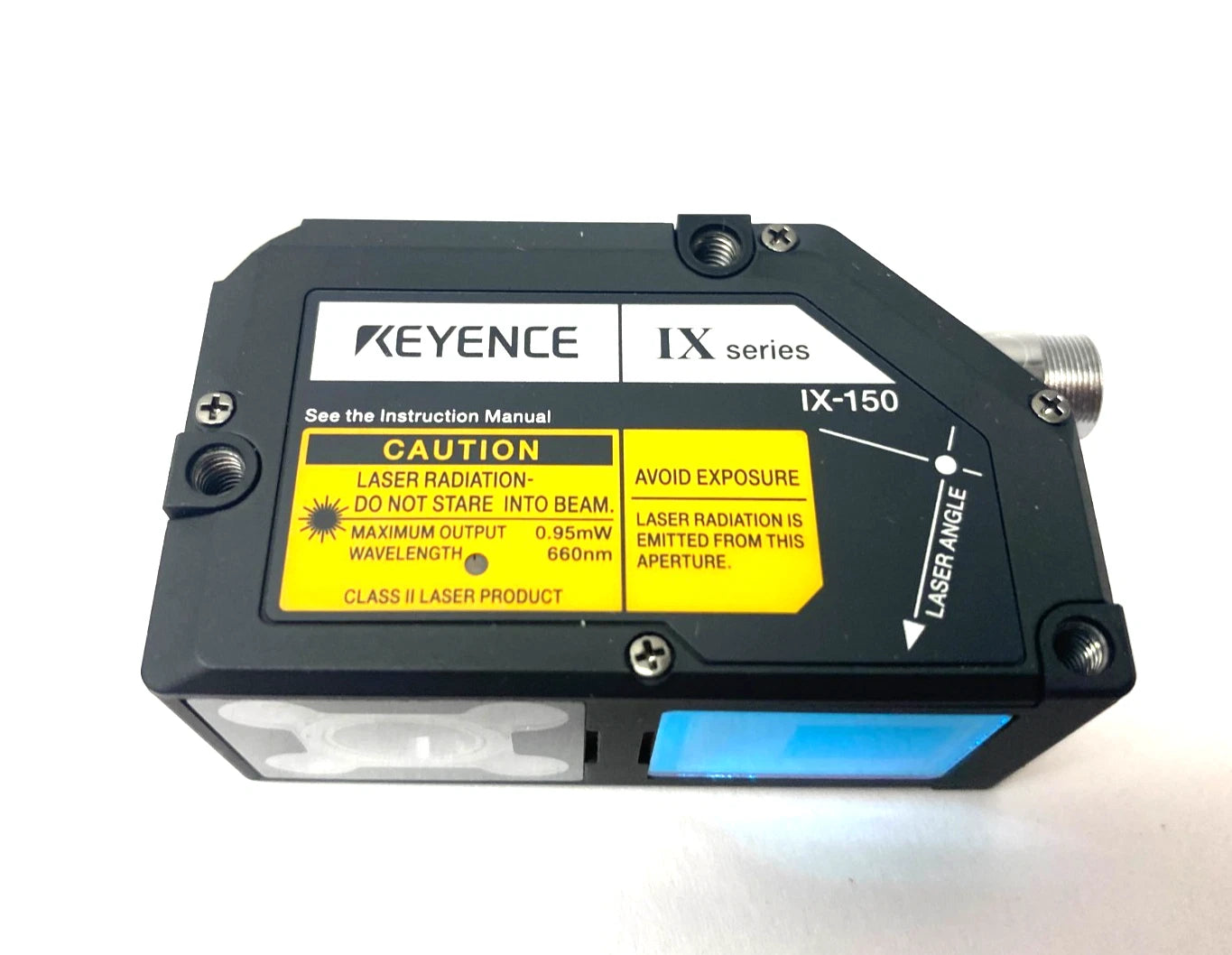

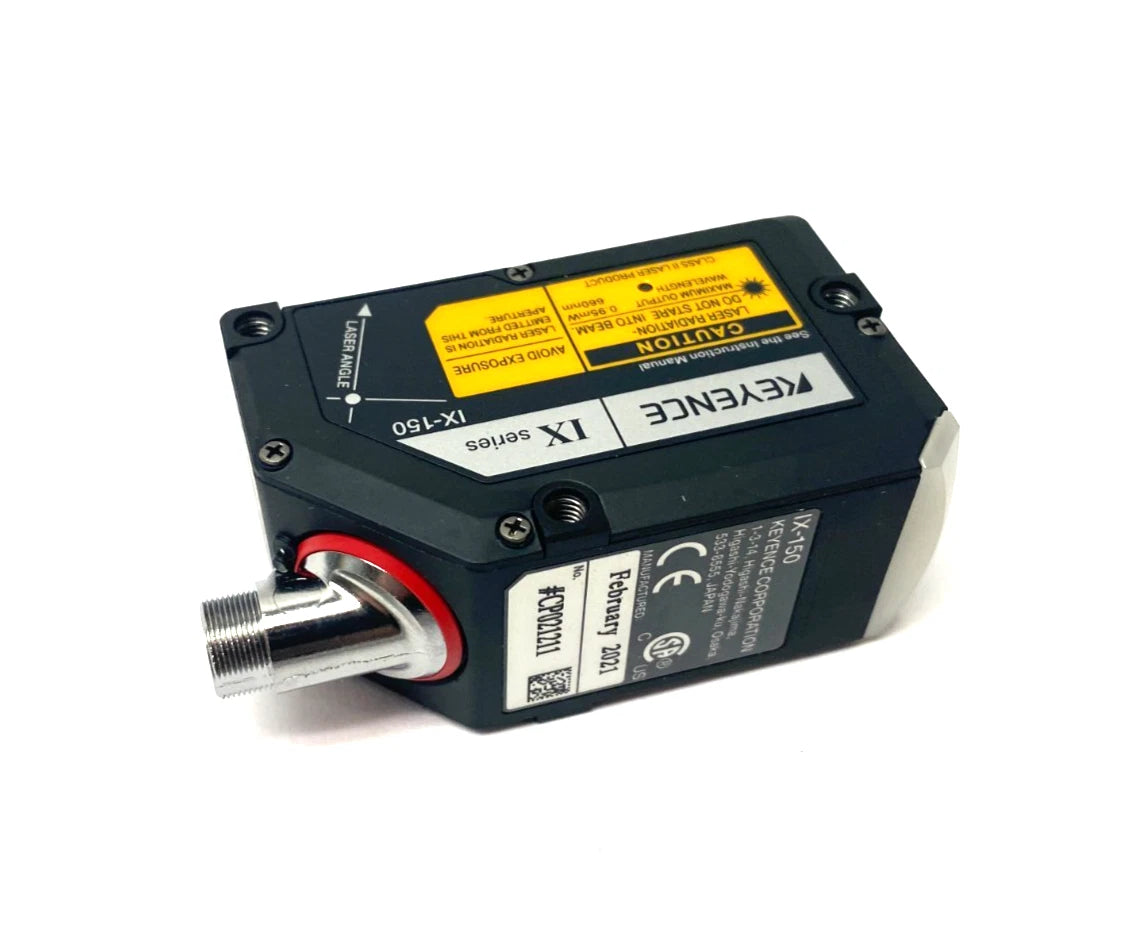

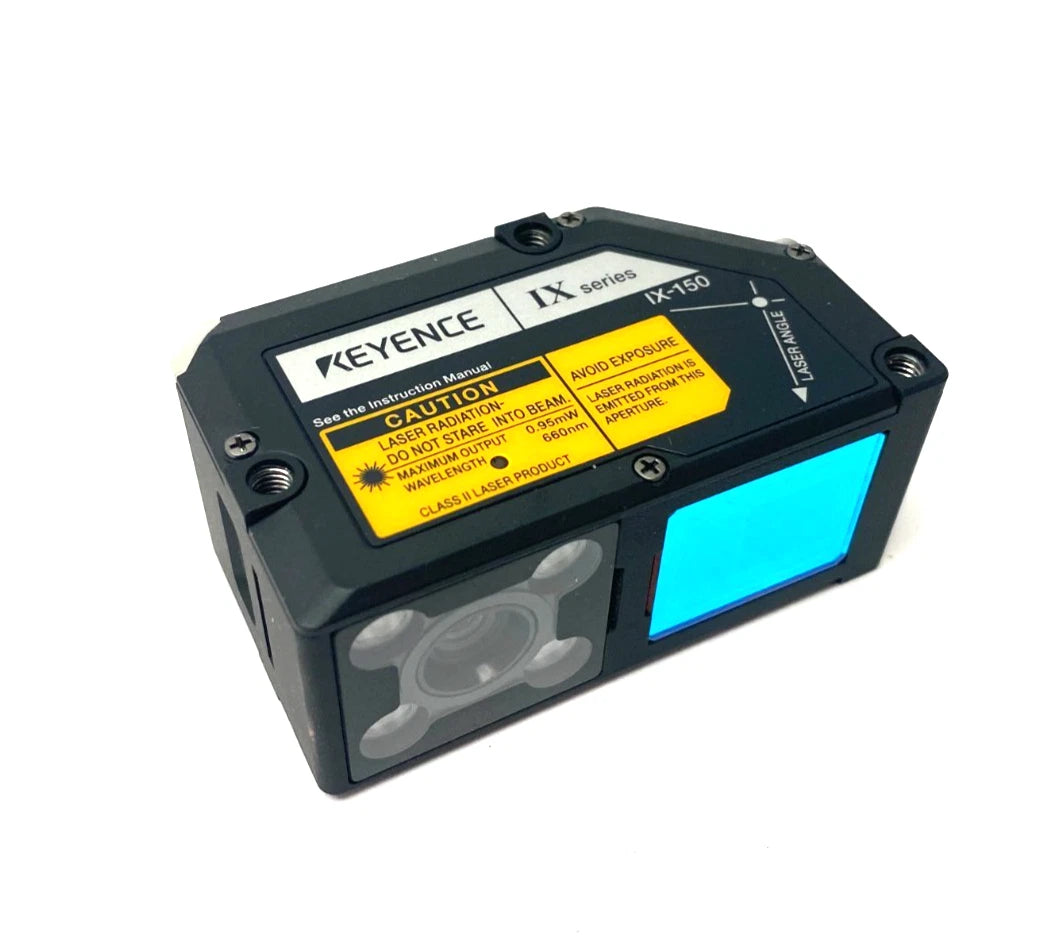

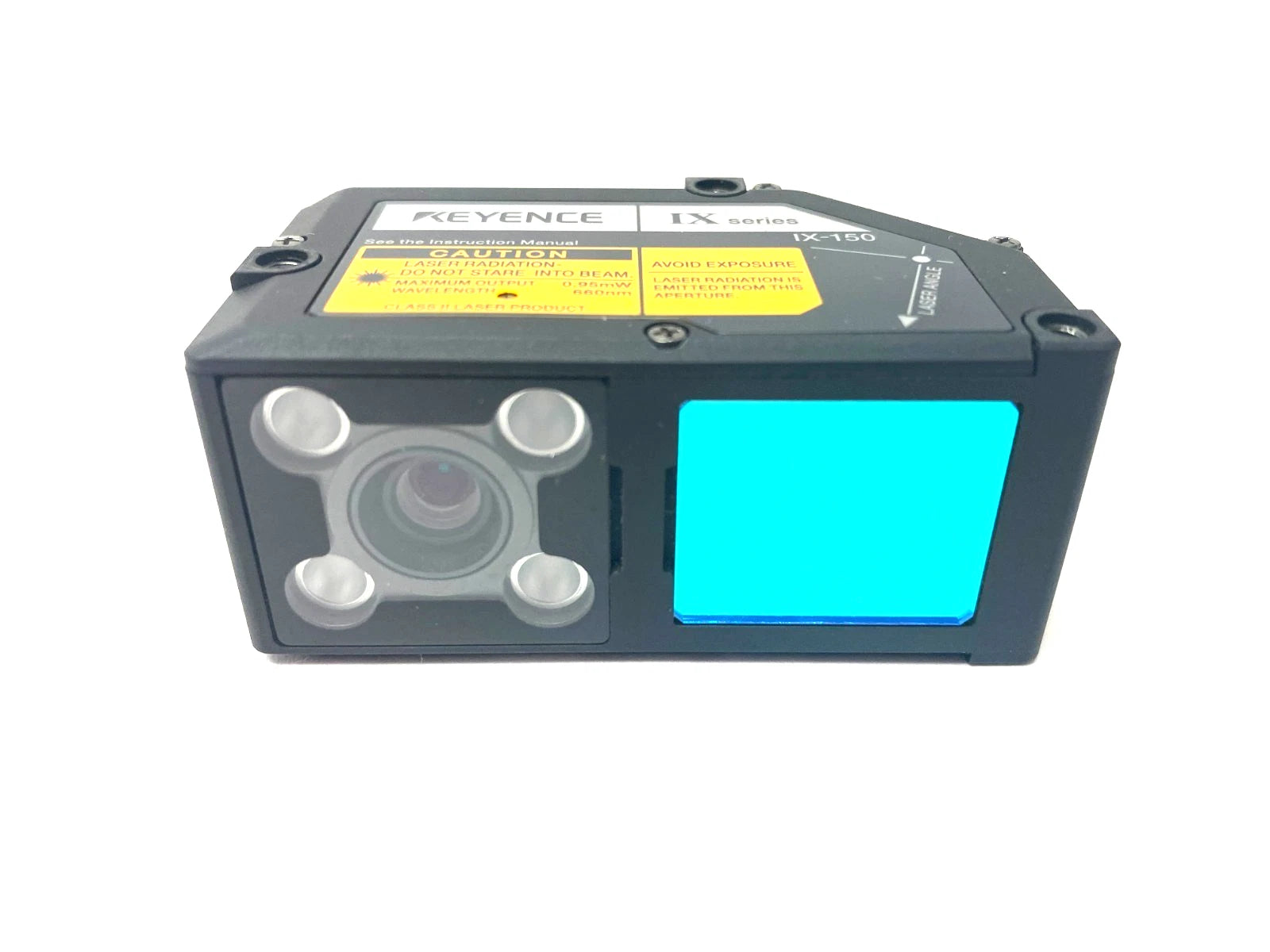

Keyence IX-150 Laser Displacement Sensor Head 150mm High-Precision Measurement
- Regular price
- $947.00
- Sale price
- $947.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IX-150
Description
The Keyence IX-150 is a laser displacement sensor head designed for precise height and profile measurement at a 150 mm reference distance. This sensor utilizes a visible red semiconductor laser to deliver stable and repeatable measurements across a defined range. It is engineered for high-accuracy inspection in industrial automation and quality control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | IX-150 |
| Subcategory | Laser Displacement Sensors |
| Series | IX Series |
| Sensor Type | Laser Displacement Sensor Head |
| Reference Distance | 150 mm |
| Measuring Range | 100 to 200 mm |
| Light Source | Red semiconductor laser, 660 nm |
| Laser Class | Class 2 (IEC 60825-1), Class II (FDA) |
| Output Power | Approx. 0.95 mW / 1.6 mW |
| Repeatability | 50 µm |
| Minimum Detectable Height | Down to approx. 0.8 µm (mode dependent) |
| Sampling Cycle | 120 ms (scan mode), 6/11 ms (line mode selectable) |
| Image Sensor | Monochrome CMOS |
| Detection Modes | Scan mode / Line mode |
| Lighting | Red LED, pulse lighting |
| Protection Rating | IP67 |
| Operating Temperature | 0 to 45°C |
| Material | Zinc die-cast housing with glass/acrylic cover |
| Weight | Approx. 0.42 lbs |
Information About IX-150
The IX-150 is part of the Keyence IX Series, developed for inline height measurement and dimensional inspection applications. It features a compact sensor head design with a built-in monochrome CMOS image sensor for accurate surface profiling. The unit operates within a measuring range of 100 to 200 mm and supports both scan and line measurement modes for flexible inspection tasks. Designed for integration with Keyence controller systems, it provides consistent performance in environments requiring high-speed, non-contact measurement.
Key Features:
- 150 mm Reference Distance: Optimized measurement at a fixed reference point for consistent inspection
- Wide Measurement Range: Operates effectively from 100 mm to 200 mm distances
- Visible Red Laser Source: 660 nm semiconductor laser ensures stable and accurate detection
- Dual Measurement Modes: Supports both scan mode and line mode for versatile applications
- High Repeatability: Provides repeatability of 50 µm for reliable measurement results
- Fine Height Detection: Detects minimal height differences for precision inspection tasks
- Monochrome CMOS Sensor: Enhances measurement accuracy and stability
- Compact Sensor Head Design: Allows easy installation in confined industrial spaces
- Pulse Lighting System: Improves detection accuracy under varying lighting conditions
- IP67 Protection Rating: Resistant to dust and water for harsh environments
- Fast Sampling Cycle: Enables rapid data acquisition for high-speed production lines
The IX-150 delivers the reliability and precision required for non-contact laser displacement measurement and industrial inspection applications.
