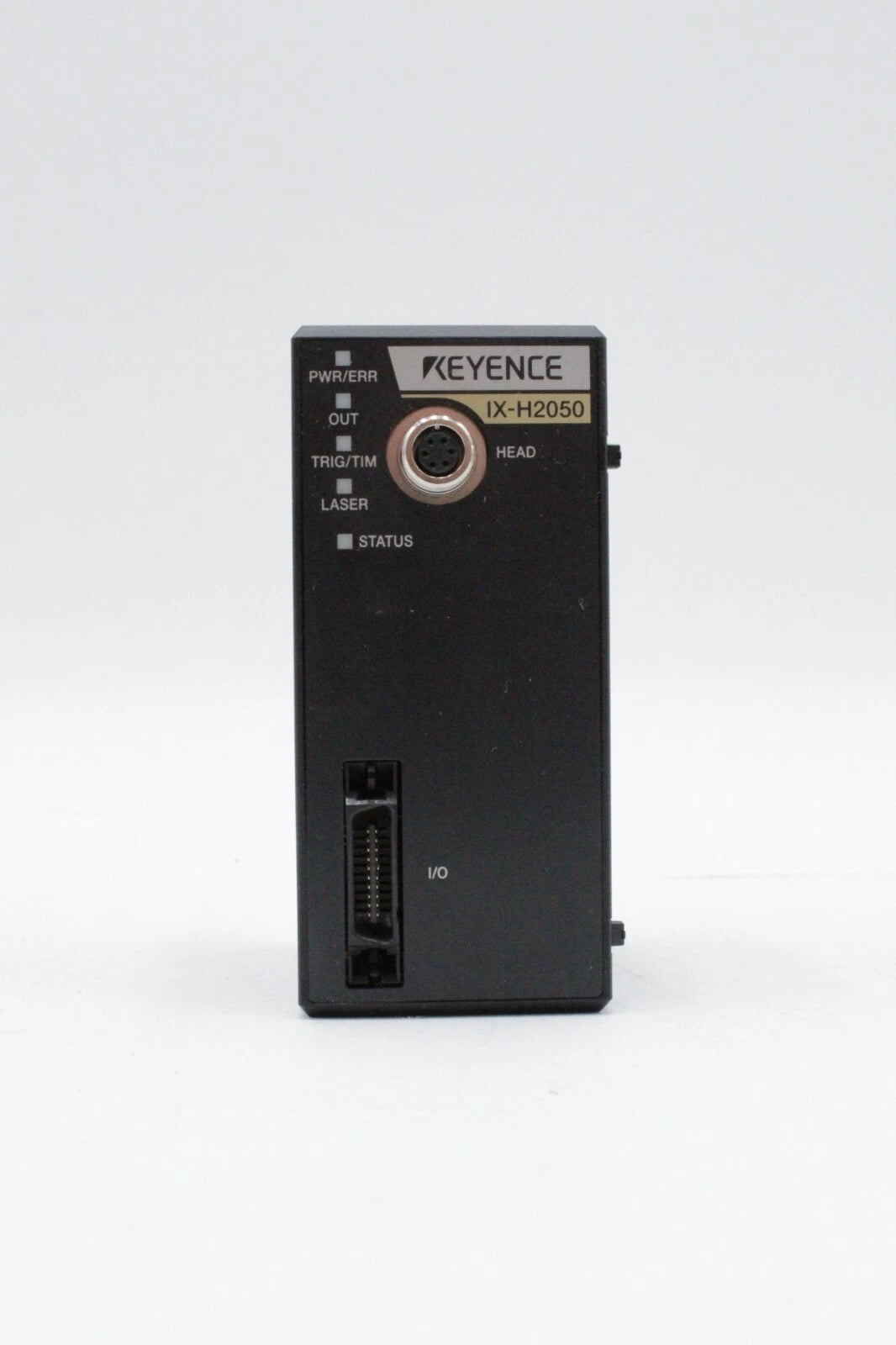

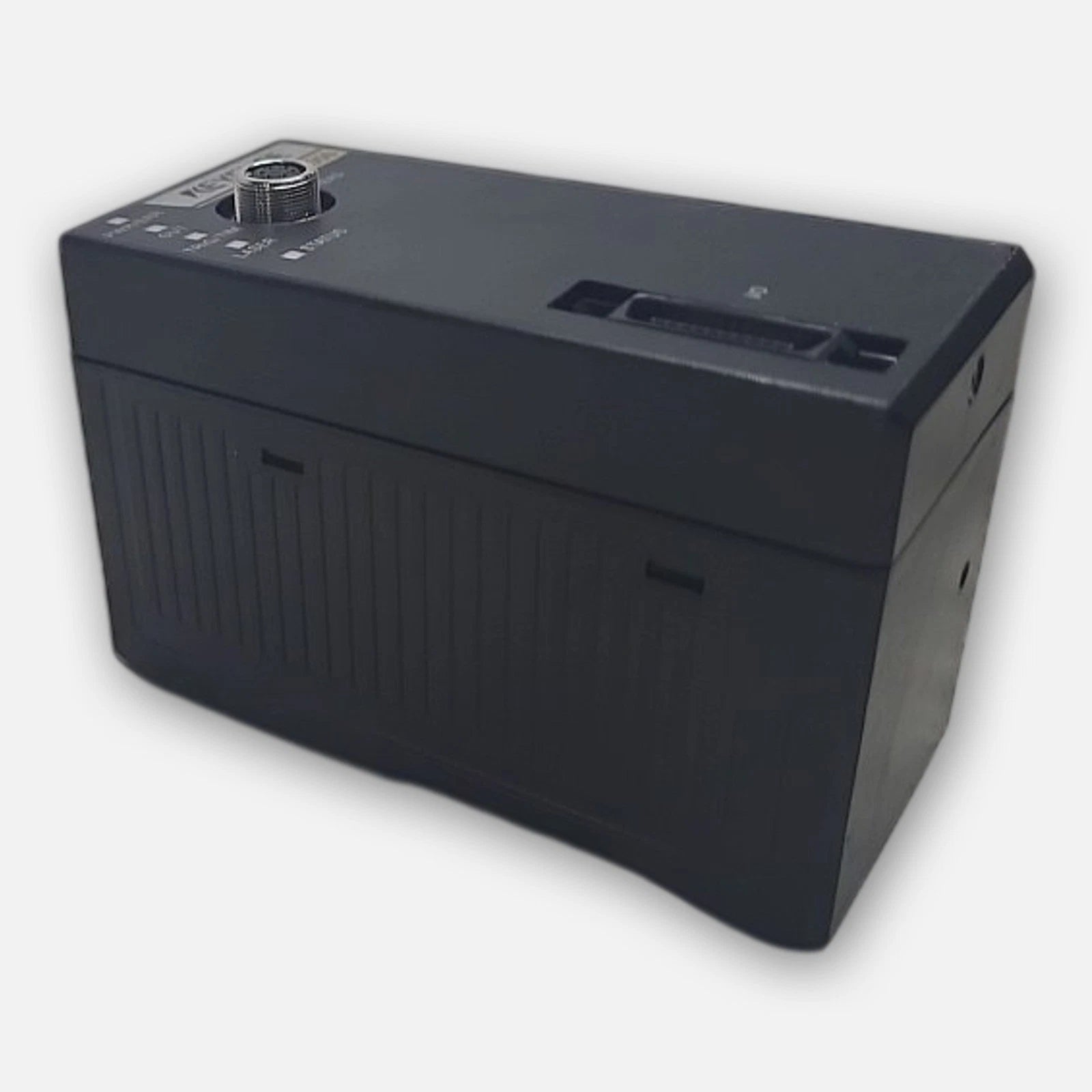

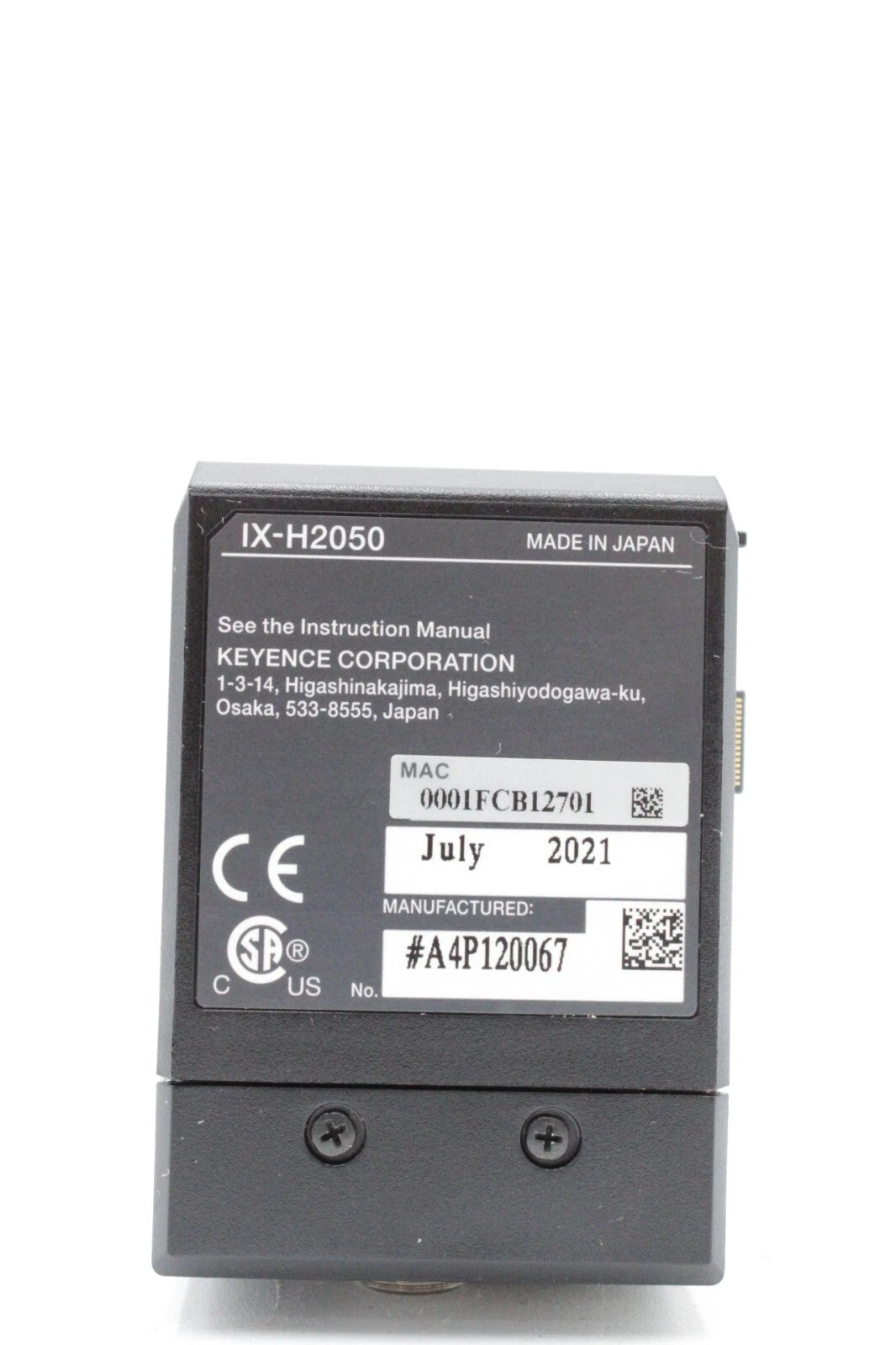

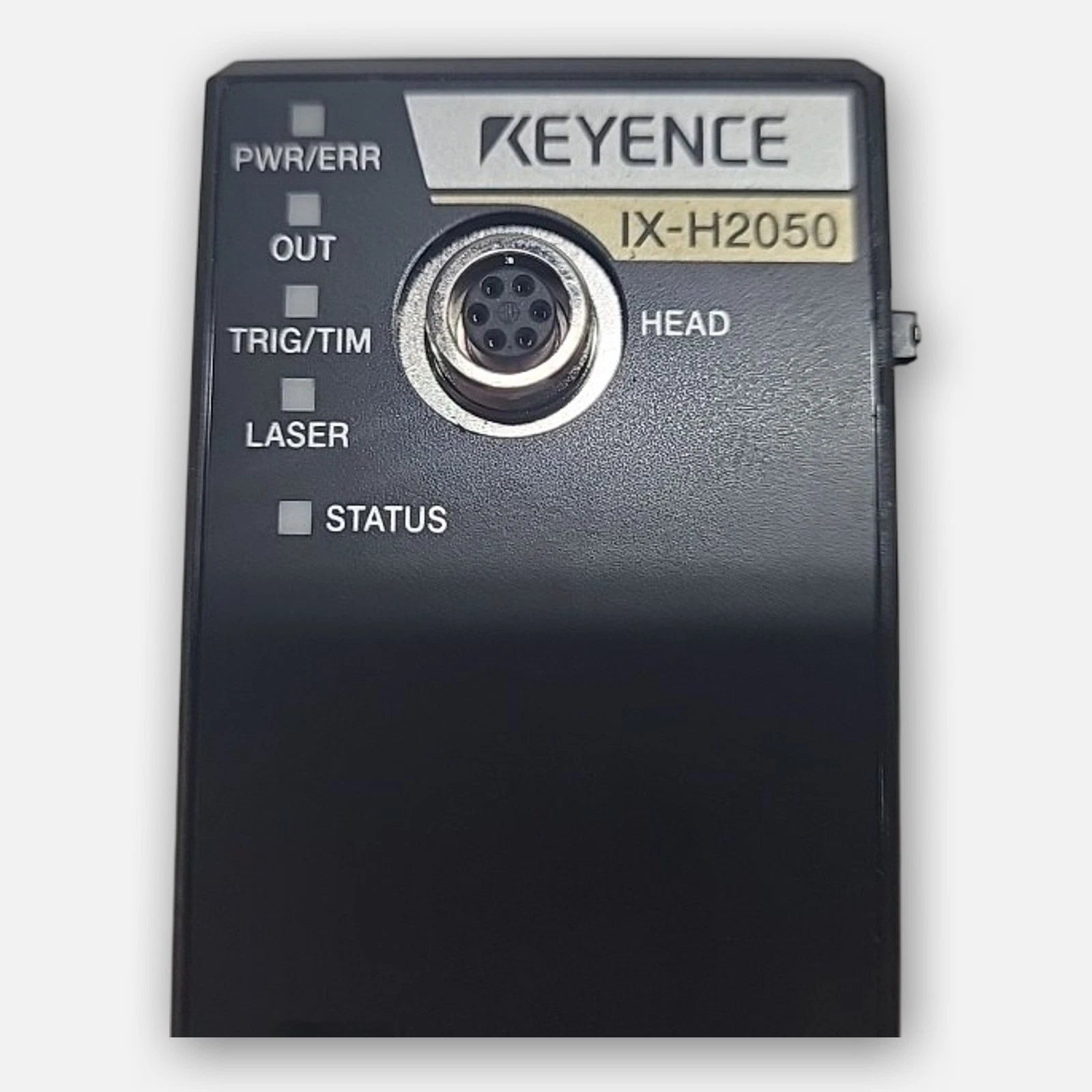

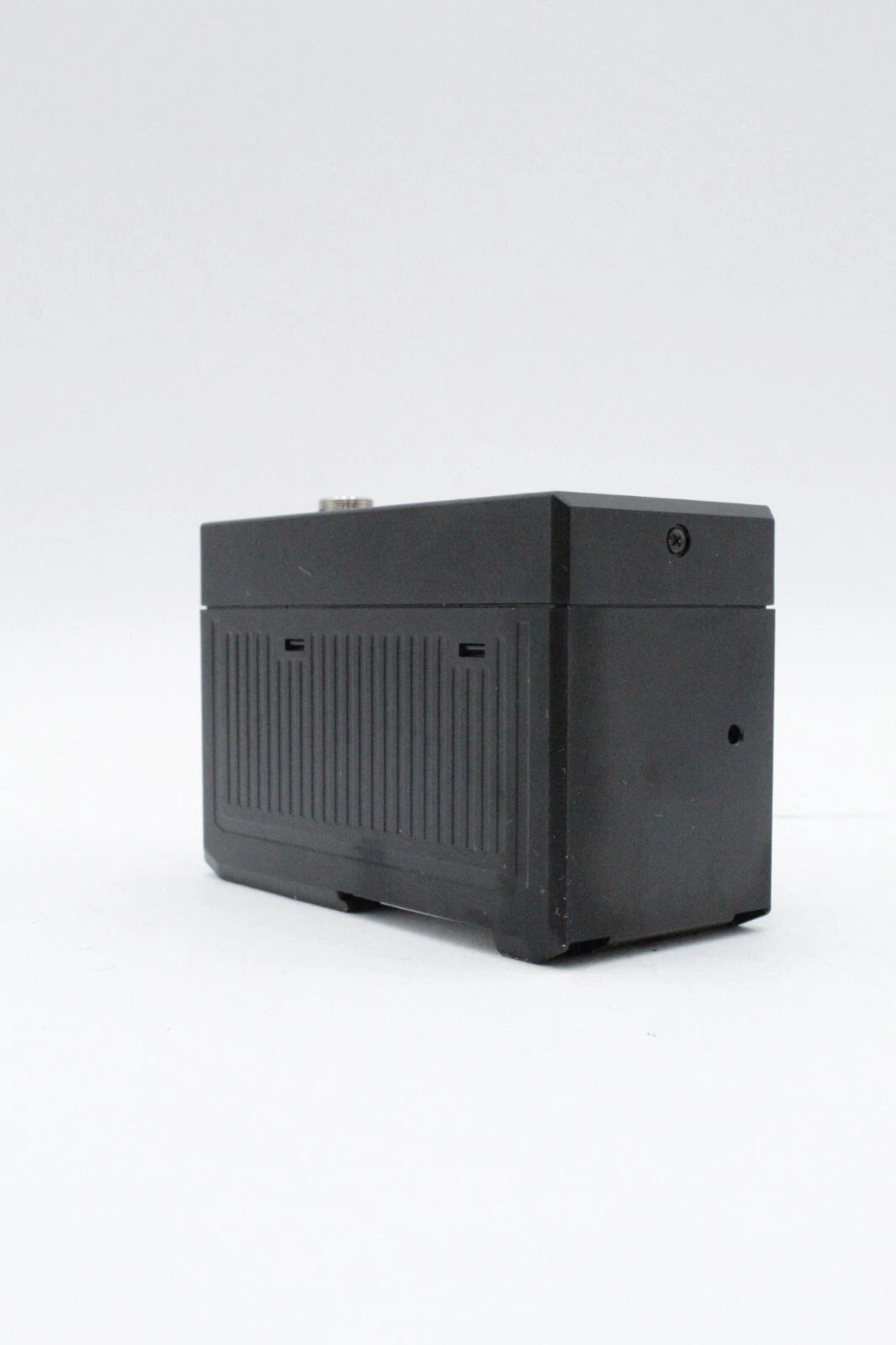

Keyence IX-H2050 Sensor Amplifier Expansion Unit IX Series Vision Controller
- Regular price
- $1,157.00
- Sale price
- $1,157.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IX-H2050
Description
The Keyence IX-H2050 is a sensor amplifier expansion unit designed to extend the functionality of IX series vision sensor systems. It enhances processing capacity, I/O flexibility, and measurement capabilities for complex inspection tasks. The IX-H2050 is optimized for high-speed, multi-point measurement and advanced automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Machine Vision |
| Part Number | IX-H2050 |
| Subcategory | Sensor Controllers |
| Type | Expansion unit |
| Display Resolution (Z-axis) | 10 µm |
| Display Resolution (X-axis) | 50 µm |
| Display Range (Z-axis) | ±999.99 mm |
| Measurement Modes | Scan mode, Line mode |
| Input Type | Switchable voltage / non-voltage input |
| Number of Inputs | 8 |
| Output Type | Open collector (PNP/NPN selectable) |
| Number of Outputs | 10 |
| Analog Output | Not available |
| Program Capacity | 32 programs |
| Communication Interfaces | Ethernet/IP, CC-Link, DeviceNet, RS-232C |
| Power Supply | Supplied from main unit |
| Operating Temperature | 0°C to +50°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Material | PC housing with metal components |
| Weight | Approx. 190 g |
Information About IX-H2050
The IX-H2050 is part of Keyence’s IX series, which integrates vision sensing and measurement capabilities into compact industrial systems. As an expansion unit, it works alongside a main controller to increase the number of inputs, outputs, and processing functions available. It supports advanced measurement tools such as height, width, area, and thickness calculations, enabling detailed inspection and analysis. Designed for seamless integration, it provides enhanced control, data handling, and communication capabilities for demanding production environments.
Key Features:
- Expansion Unit Functionality: Extends system capabilities when connected to a main IX series controller
- Advanced Measurement Tools: Supports height, width, area, thickness, and edge position calculations
- Multi-Mode Operation: Includes scan mode and line mode for flexible inspection applications
- High-Precision Display Units: Measurement resolution down to 10 µm (Z-axis)
- Flexible I/O Configuration: Multiple assignable inputs and outputs for control and automation
- PNP/NPN Output Switching: Compatible with various industrial control systems
- Extensive Output Functions: Supports judgment outputs, alarms, and logic results
- Program Memory: Stores up to 32 programs for different inspection setups
- Statistical Processing: Provides measurement data analysis and trend tracking
- Data Logging Capability: Saves detection history and inspection results
- Communication Compatibility: Supports Ethernet/IP, CC-Link, DeviceNet, RS-232C, and BCD output
- Interference Prevention: Built-in functions for stable multi-sensor operation
- Compact Design: Lightweight and easy to integrate into control panels
The IX-H2050 delivers the reliability and precision required for advanced vision-based measurement, inspection, and industrial automation systems.
