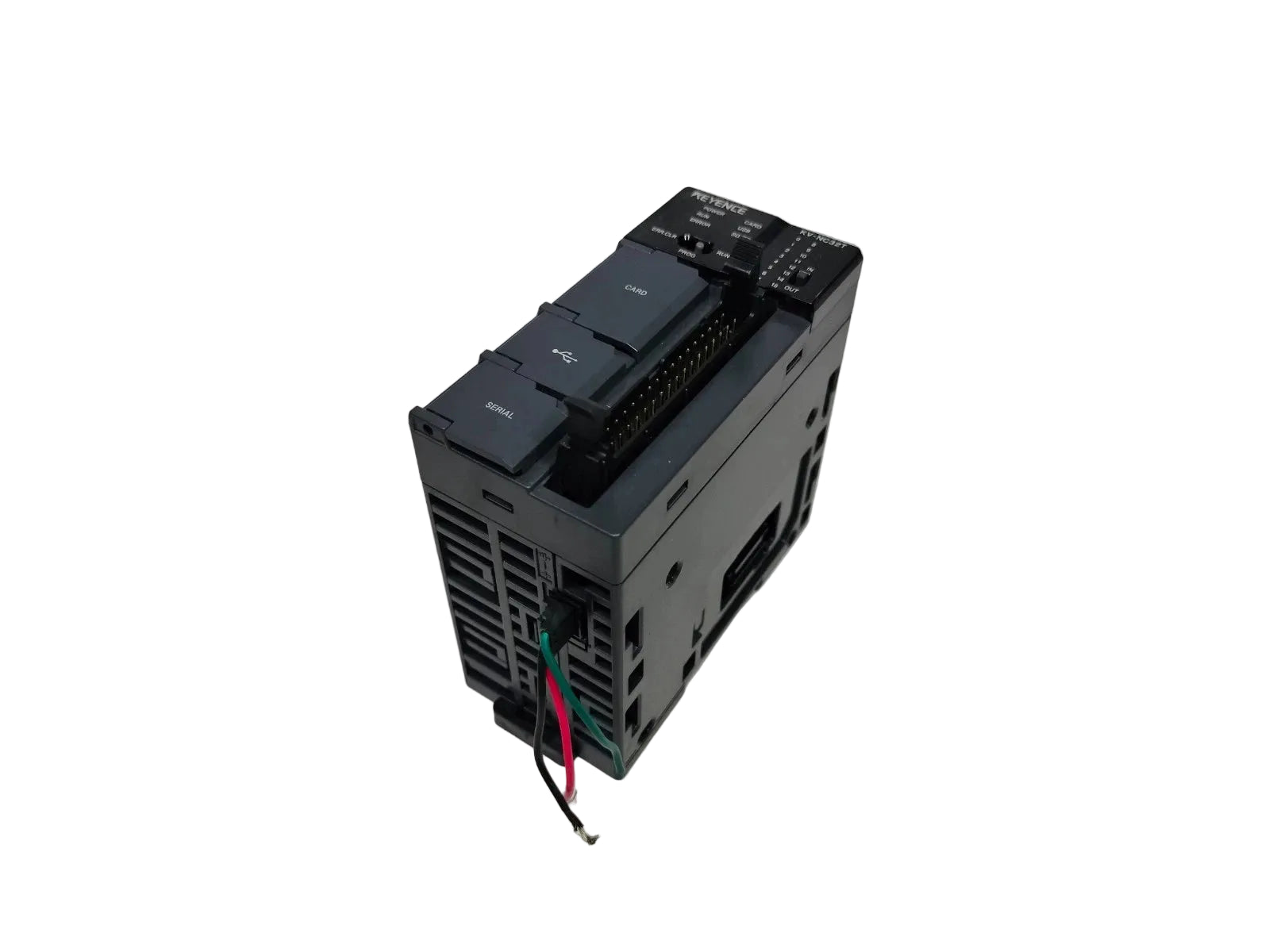

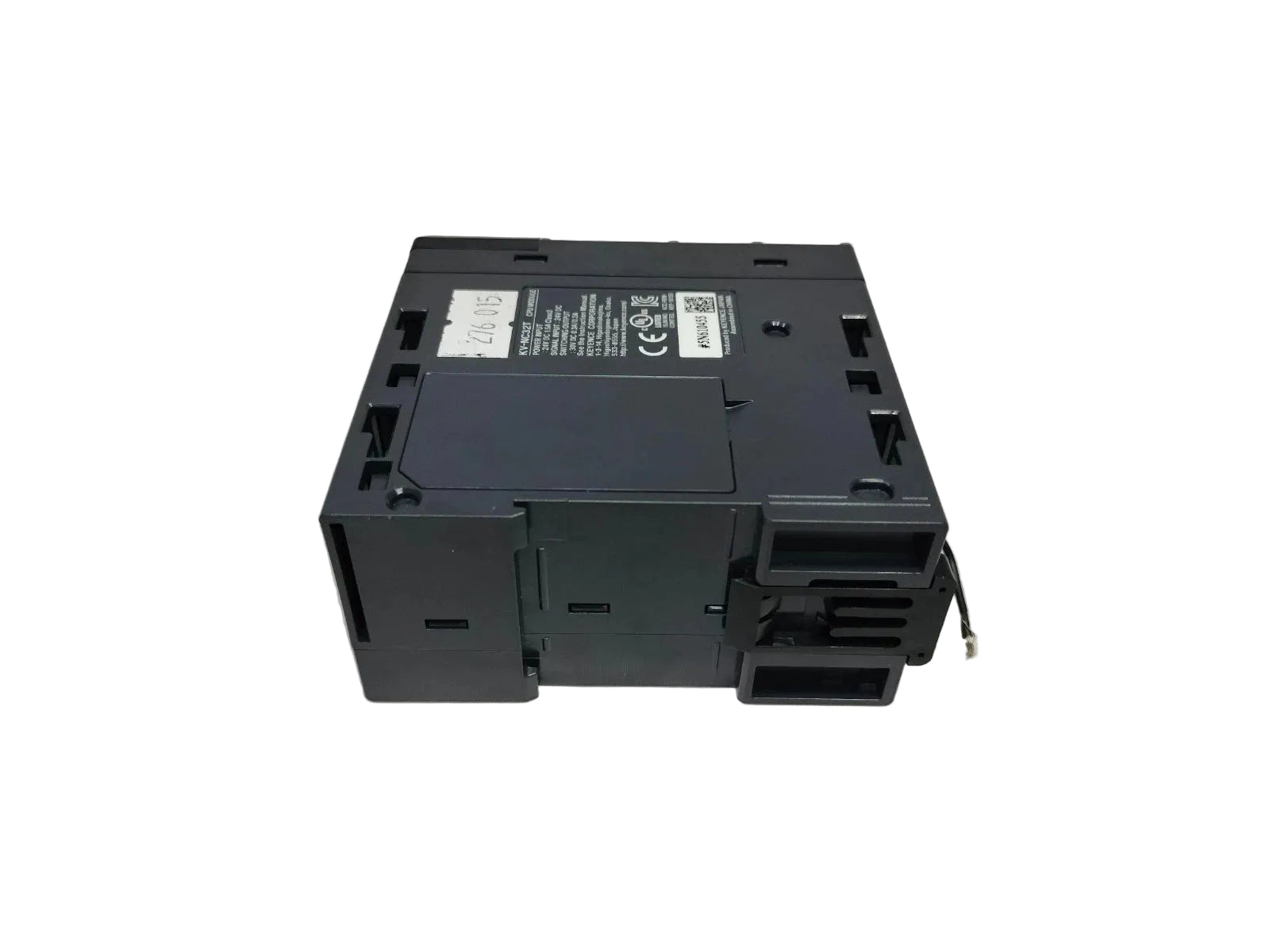

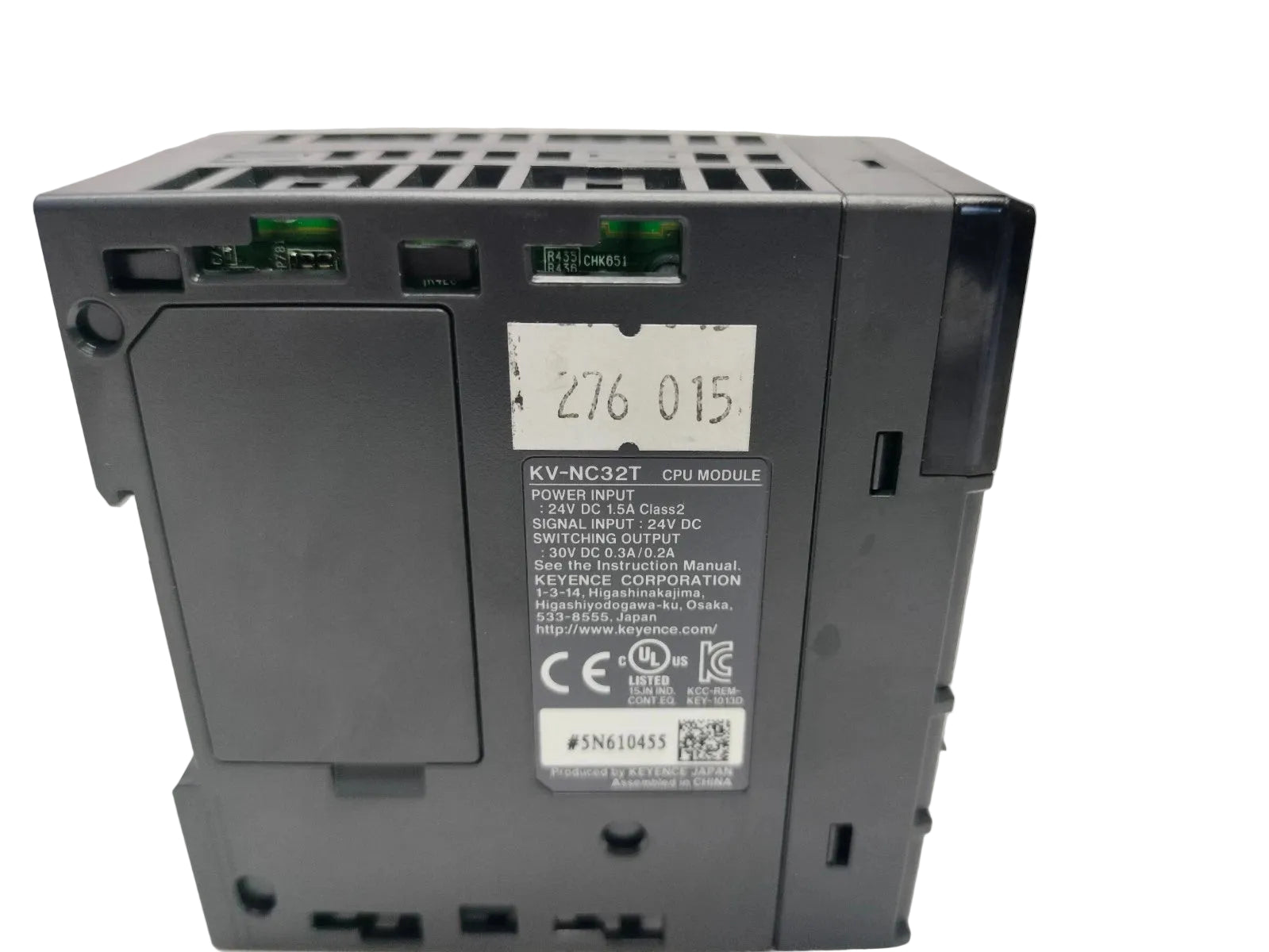

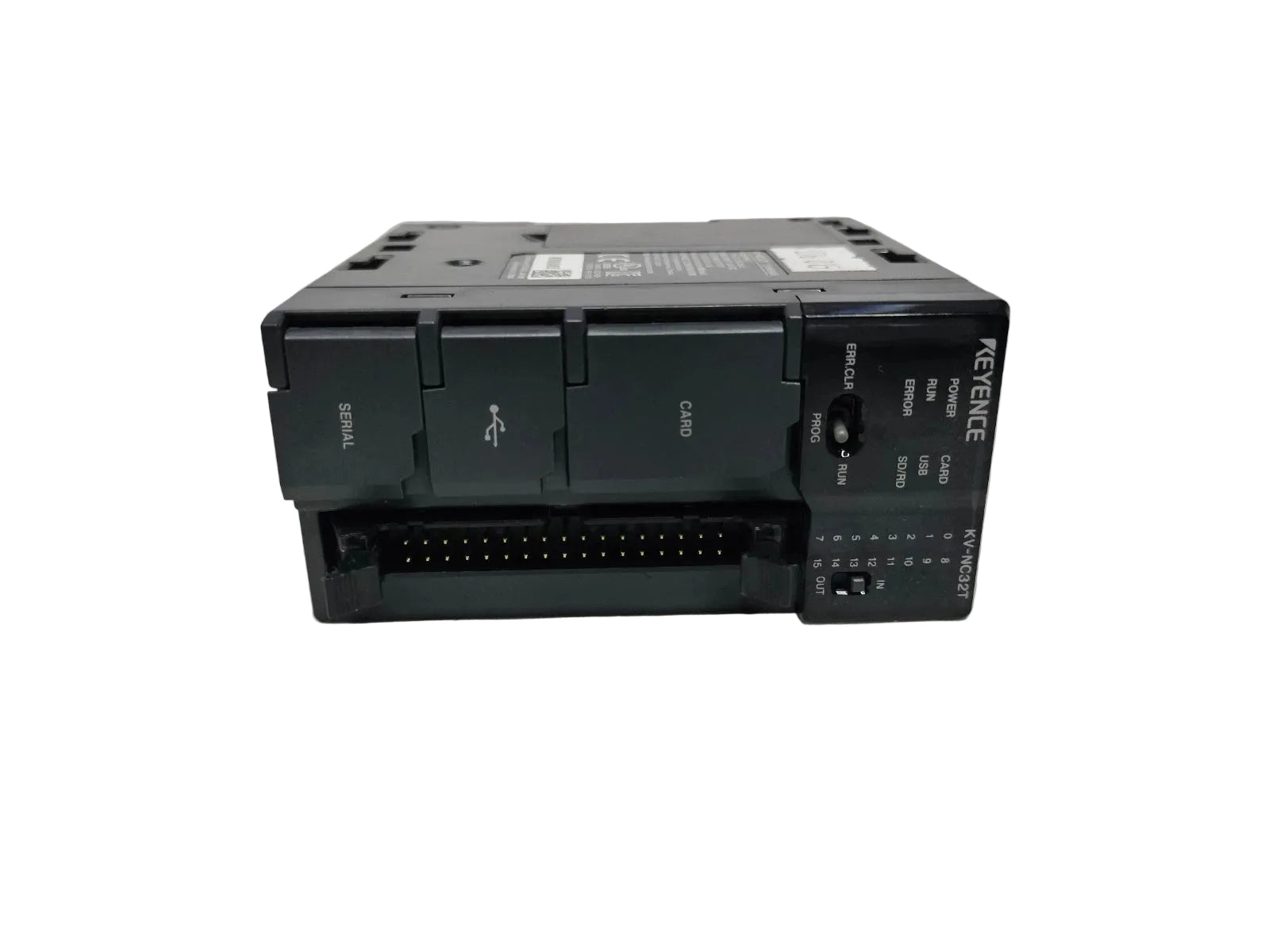

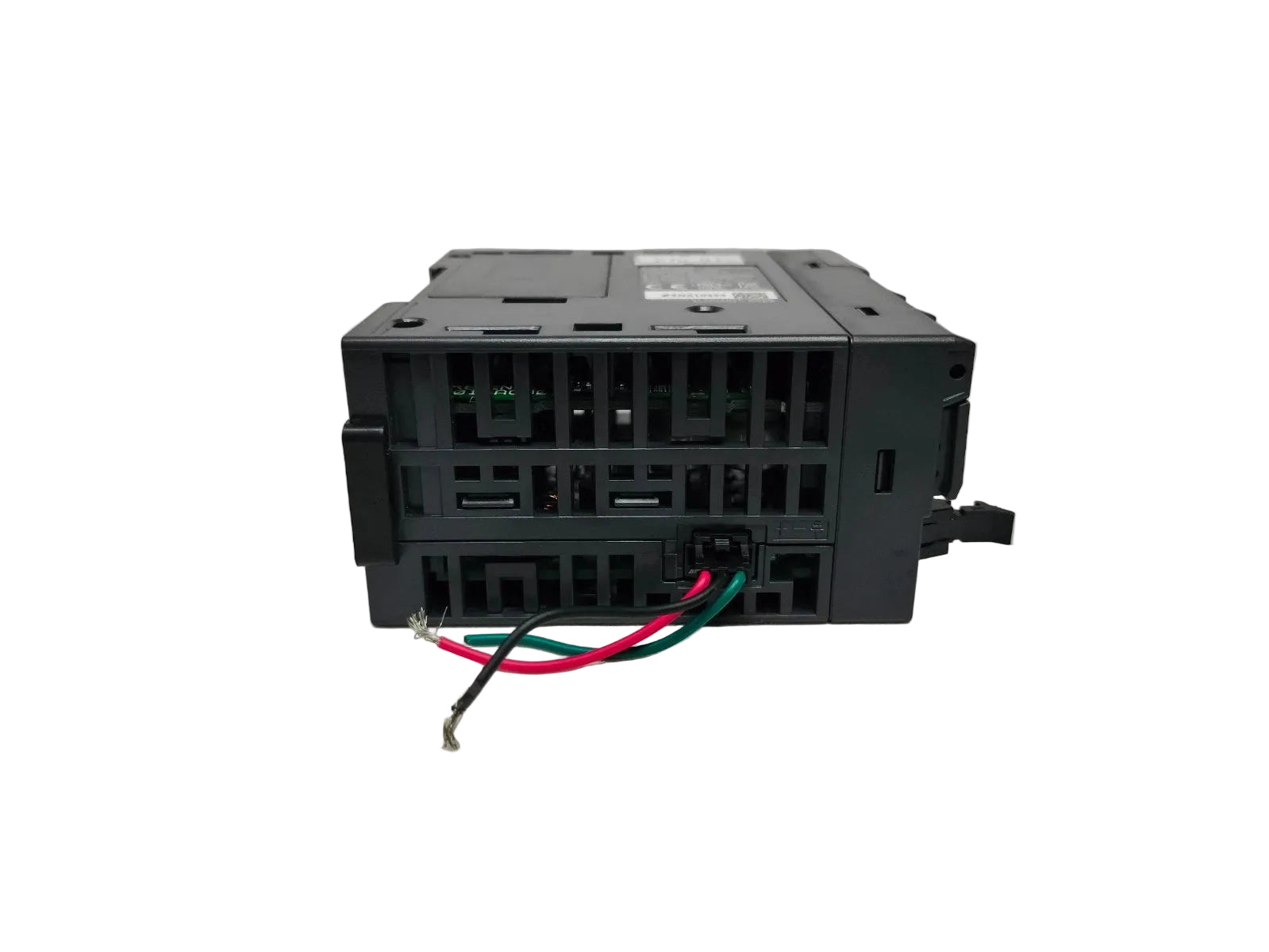

Keyence KV-NC32T KV Nano PLC Base Unit with 32 I/O Points
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KV-NC32T
Description
The Keyence KV-NC32T is a programmable logic controller (PLC) base unit from the KV Nano series, designed to manage machine operations and industrial automation processes. It provides 32 built-in I/O points, consisting of 16 inputs and 16 transistor outputs, along with high-speed counting, positioning pulse outputs, and serial communication capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Programmable Logic Controllers |
| Part Number | KV-NC32T |
| Subcategory | PLC Base Units |
| Series | KV Nano |
| Controller Type | PLC base unit |
| I/O Points | 16 inputs, 16 outputs |
| Power Supply | 24 VDC (+10%/-15%) |
| Program Capacity | 32,000 steps |
| Programming Languages | Ladder, KV Script, mnemonic |
| Input Type | 24 VDC, open collector |
| High-Speed Inputs | 100 kHz single-phase; 50 kHz phase difference |
| Output Type | N-channel MOSFET transistor |
| Output Load | 30 VDC; 0.2 A general, 0.3 A high-speed |
| Positioning Outputs | 3 axes, up to 100 kHz |
| Expansion Capacity | 8 units; up to 256 I/O points |
| Baud Rate | 1,200–115,200 bps |
| Internal Current | 260 mA |
| Operating Temperature | 0 to +55°C |
| Humidity | 5–95% RH, non-condensing |
| Storage Temperature | -25 to +75°C |
| Weight | 220 g |
Information About KV-NC32T
The KV-NC32T is a compact PLC base unit designed for sequence control, machine coordination, and equipment monitoring in industrial environments. Its program storage system supports expanded ladder logic, KV Script, and mnemonic programming, with a program capacity of 32,000 steps. The controller includes a built-in RS-232C serial interface and supports expansion through up to eight attachable I/O units, allowing system configurations of up to 256 I/O points. High-speed inputs, transistor outputs, and three-axis positioning pulse outputs enable integration with sensors, actuators, counters, and motion-related equipment.
Key Features:
- 32-Point I/O: Provides 16 inputs and 16 transistor outputs in one PLC base unit.
- Fast Program Execution: Basic instructions execute in as little as 50 ns.
- Program Capacity: Supports up to 32,000 program steps.
- High-Speed Inputs: Supports single-phase counting up to 100 kHz and phase-difference counting up to 50 kHz.
- Positioning Control: Provides pulse outputs for three axes at frequencies up to 100 kHz.
- Expansion Capability: Supports up to eight I/O expansion units and a maximum of 256 I/O points.
- Nonvolatile Storage: Uses flash ROM for program storage and nonvolatile RAM for device data retention.
The KV-NC32T delivers the reliability and processing speed required for machine sequencing, industrial control, and automated production equipment.
