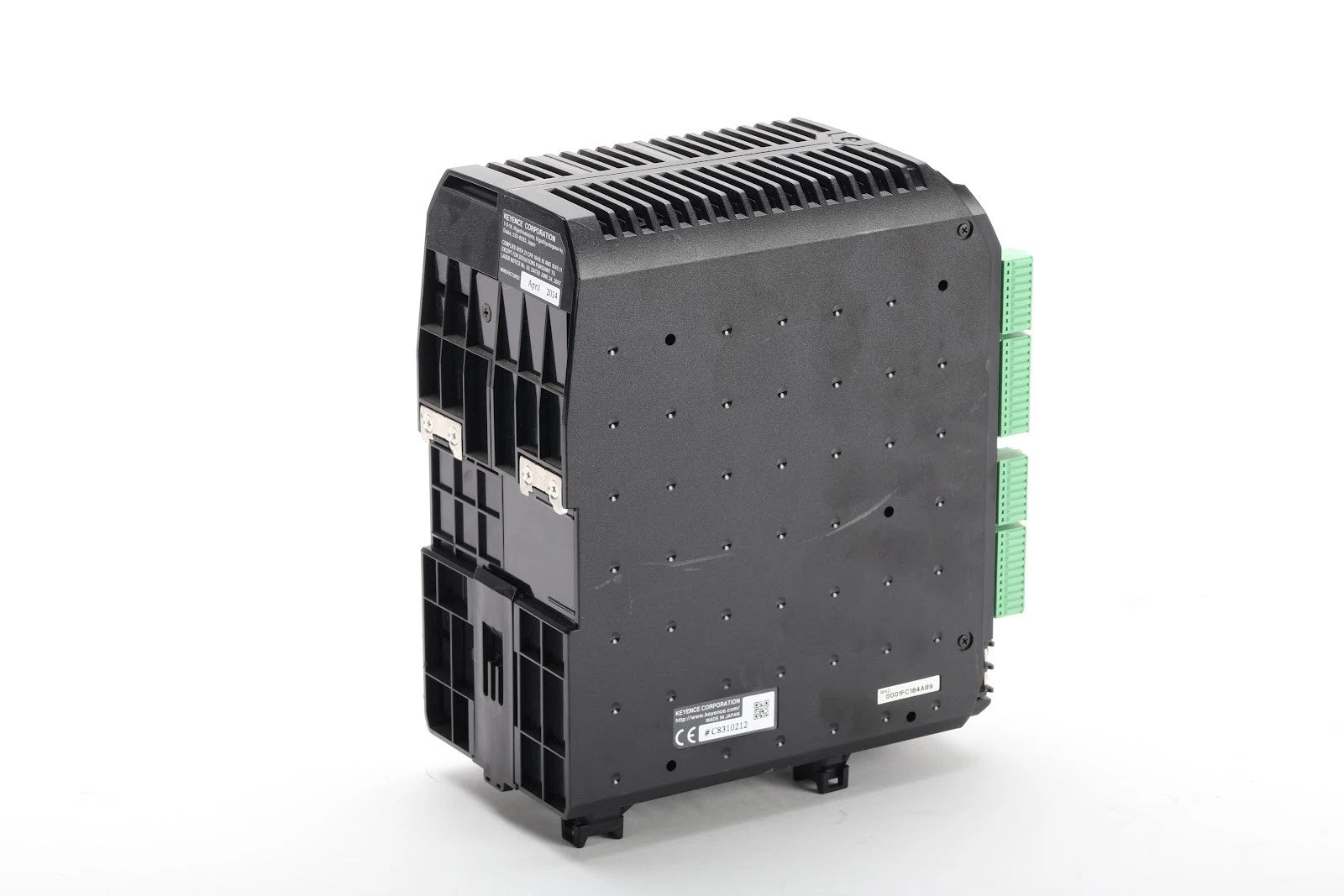

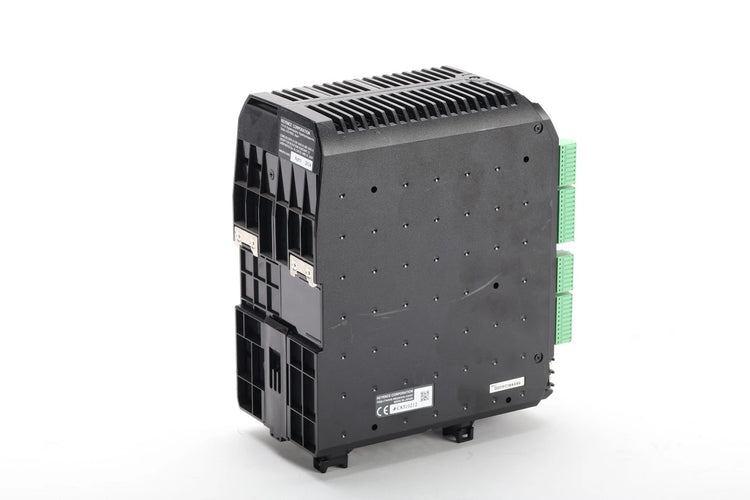

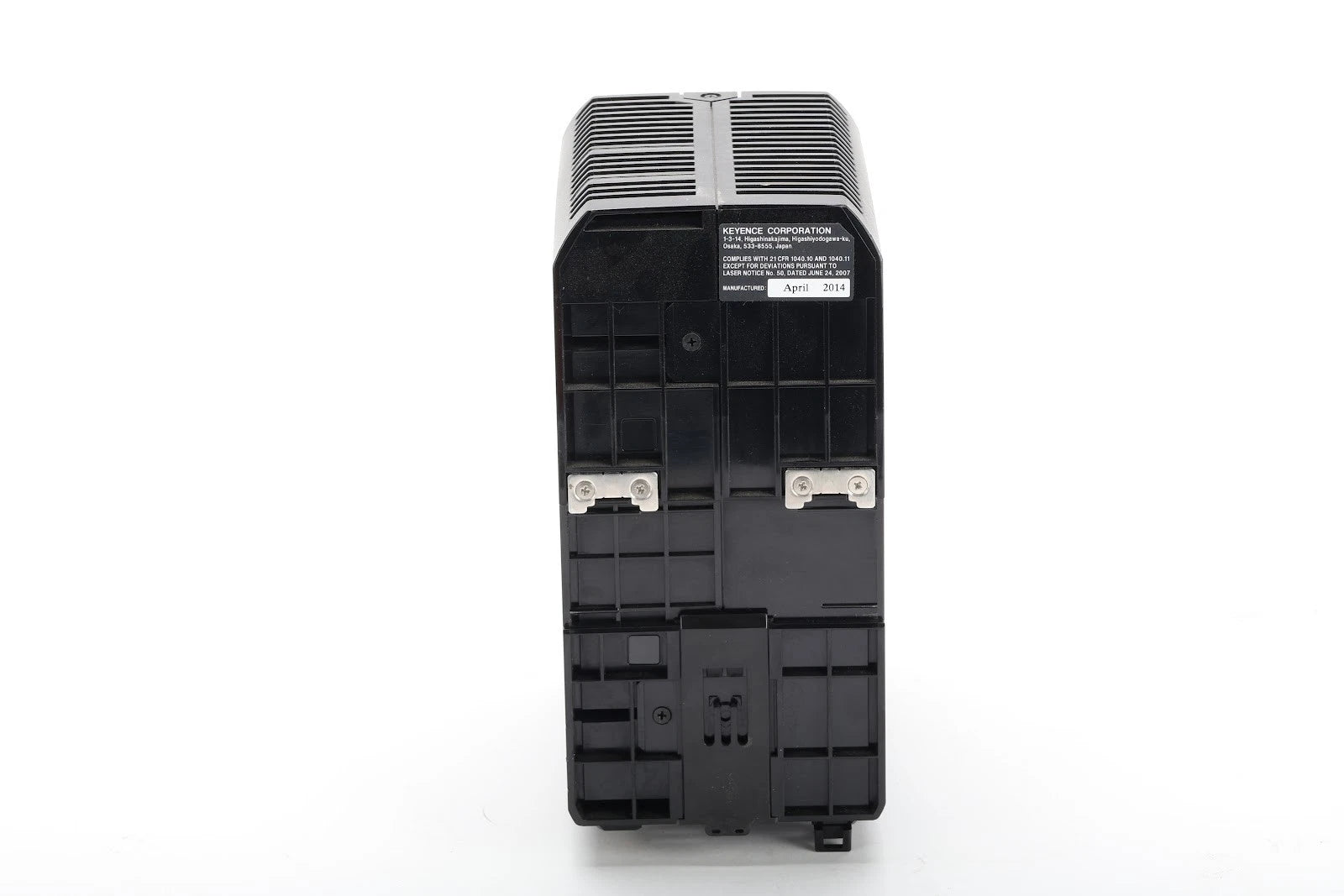

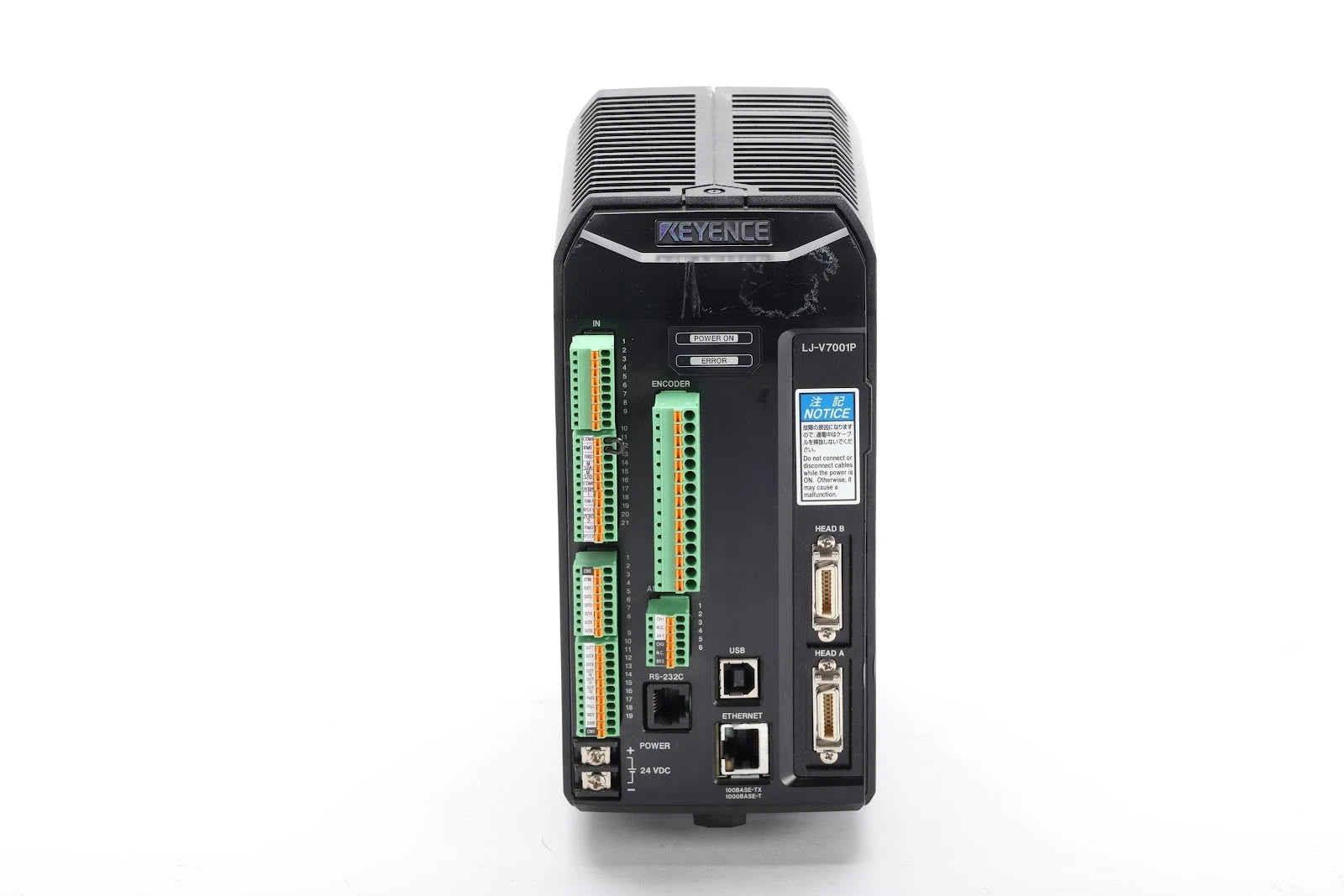

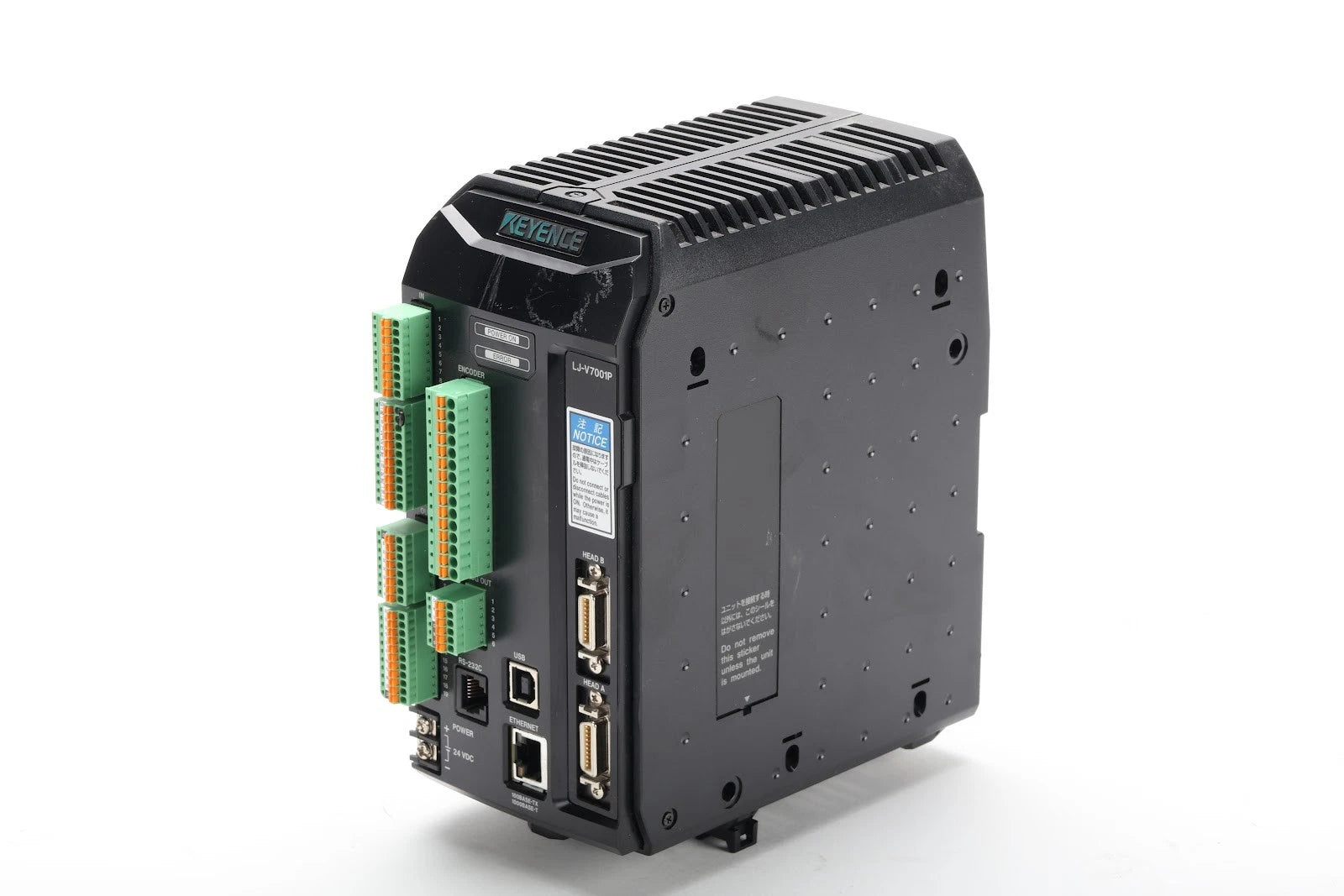

Keyence LJ-V7001P Laser Profiler Controller PNP High-Speed 2D Measurement
- Regular price
- $1,687.00
- Sale price
- $1,687.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LJ-V7001P
Description
The Keyence LJ-V7001P is a high-speed laser profiler controller designed for precise 2D measurement and inspection in industrial applications. As a PNP-type controller, the LJ-V7001P processes data from connected sensor heads to deliver accurate profiling, height measurement, and surface analysis. It is optimized for fast data acquisition and reliable performance in automated production environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Measurement Systems |
| Part Number | LJ-V7001P |
| Subcategory | Laser Profiler Controllers |
| Series | LJ-V7000 Series |
| Output Type | PNP |
| Connectable Sensors | Up to 2 heads |
| Minimum Display Unit | 0.1 µm |
| Display Range | ±9999.99 mm |
| Analog Output | ±10 V (2 channels) |
| Comparator Output | PNP open collector (up to 12 outputs) |
| Communication Interfaces | Ethernet, USB 2.0, RS-232C |
| Ethernet Standard | 1000BASE-T / 100BASE-TX |
| Power Supply | 24 V DC ±10% |
| Current Consumption | Up to 1.9 A (with 2 heads) |
| Operating Temperature | 0°C to +50°C |
| Humidity Range | ≤ 85% RH (non-condensing) |
| Weight | Approx. 1,500 g |
Information About LJ-V7001P
The LJ-V7001P is part of Keyence’s LJ-V7000 series, a line of advanced 2D laser profiling systems used for inline inspection and measurement. It supports connection of up to two sensor heads, enabling flexible multi-point measurement and expanded inspection capabilities. The controller features high-speed processing, multiple input/output configurations, and compatibility with industrial communication protocols for seamless integration. Designed for precision applications, it enables real-time analysis of height, width, and profile data in manufacturing and quality control processes.
Key Features:
- Dual Sensor Support: Connects up to two laser profiler heads for expanded measurement capability
- High-Speed Processing: Enables rapid acquisition and analysis of profile data
- PNP Output Configuration: Supports industrial control systems with PNP open collector outputs
- High-Resolution Display: Minimum display unit of 0.1 µm for precise measurements
- Wide Measurement Range Display: Supports large data ranges for profiling applications
- Flexible I/O Configuration: Multiple input and output terminals for control and synchronization
- Analog Output Capability: ±10 V outputs for integration with external systems
- Ethernet Connectivity: Supports 1000BASE-T/100BASE-TX for high-speed data transfer
- USB and RS-232C Interfaces: Enables data communication and system configuration
- Advanced Output Functions: Comparator outputs, strobe output, and error signaling
- Real-Time Control Inputs: Trigger, reset, timing, and program switching inputs available
- Industrial Reliability: Designed for continuous operation in demanding environments
The LJ-V7001P delivers the reliability and precision required for high-speed 2D profiling, dimensional measurement, and automated inspection systems.
