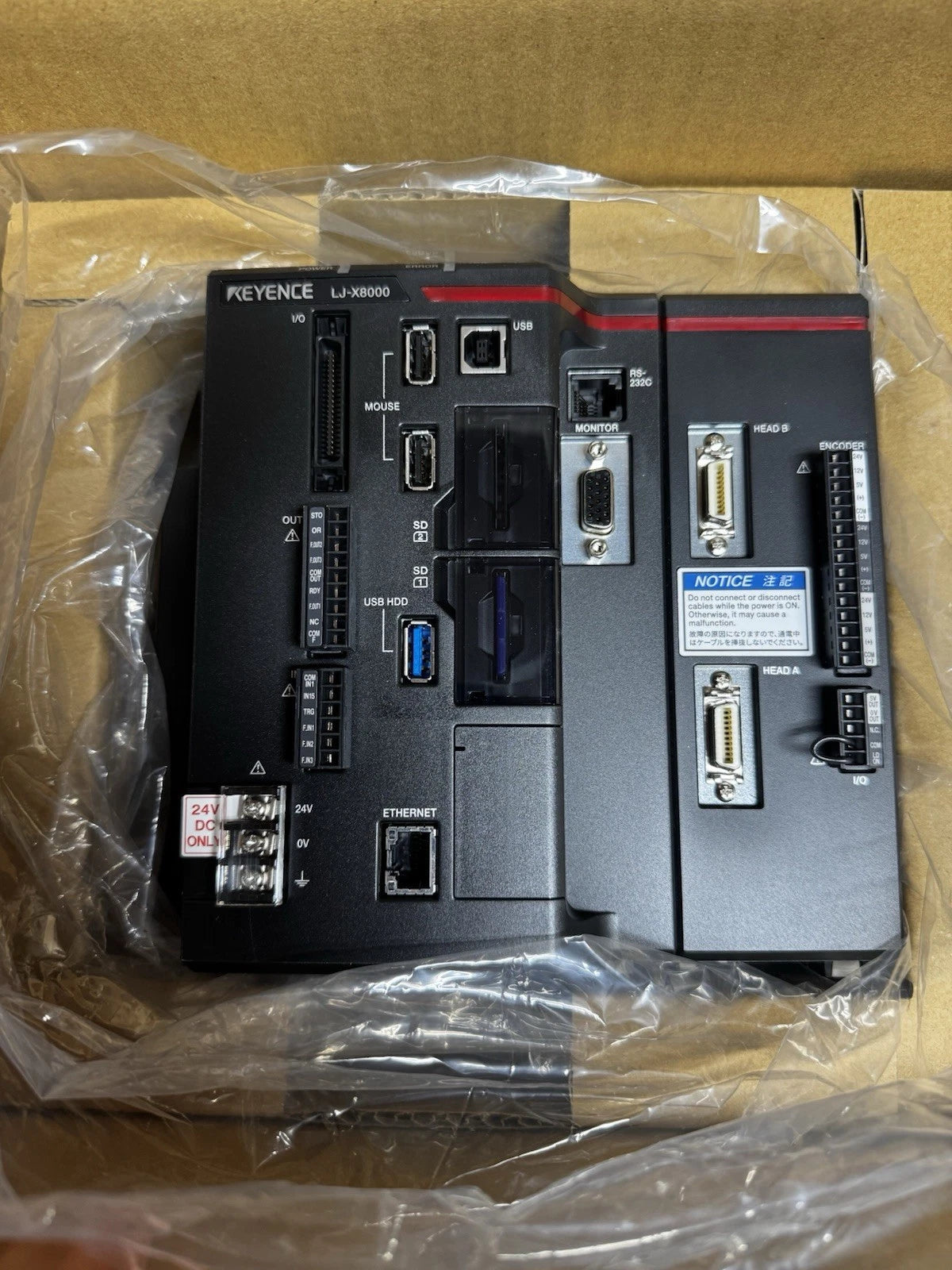

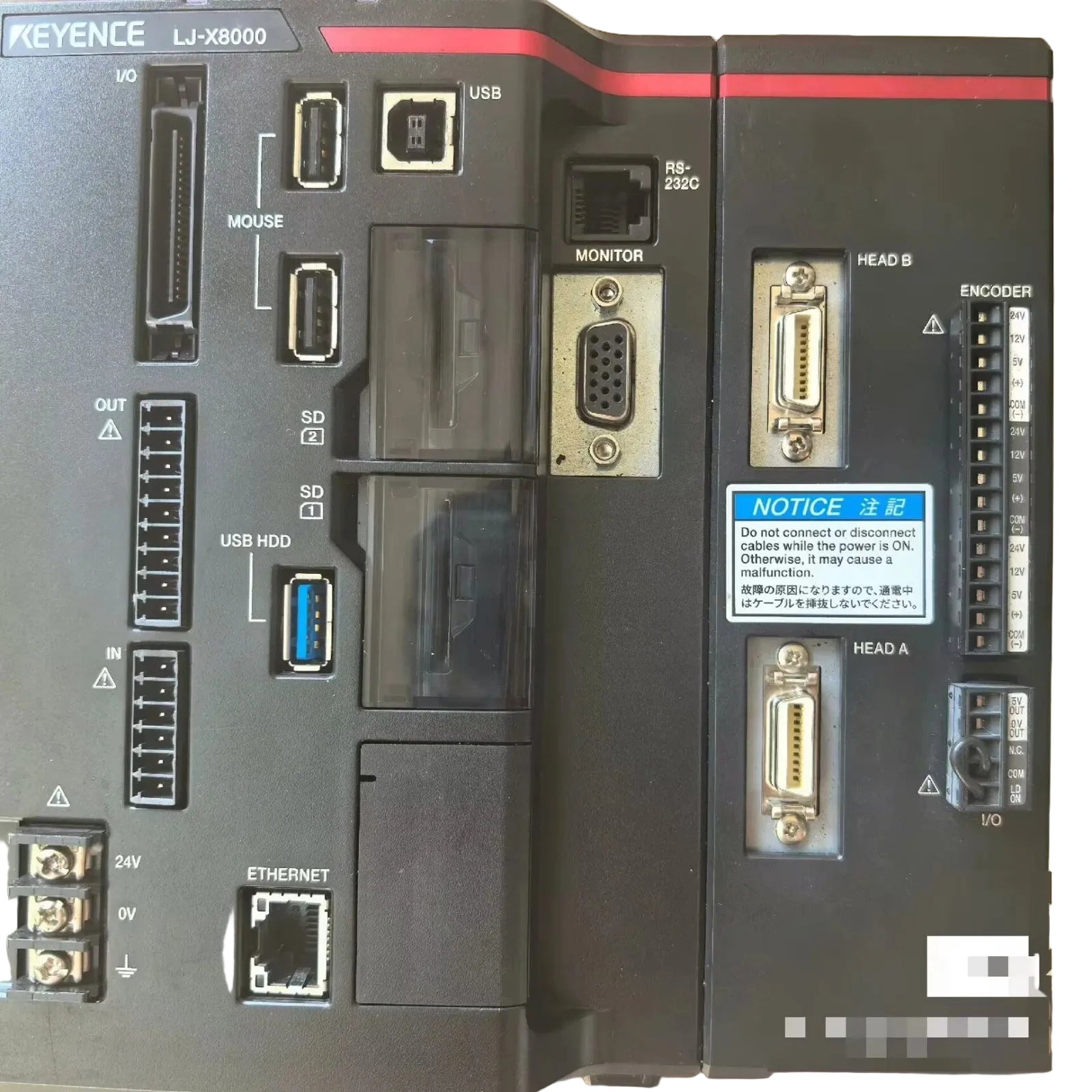

Keyence LJ-X8000 2D/3D Laser Profiler for Inline Measurement
- Regular price
- $3,852.00
- Sale price
- $3,852.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LJ-X8000
Description
The Keyence LJ-X8000 Series is a high-performance 2D/3D laser profiler designed for inline measurement, inspection, and quality control in industrial automation. Featuring up to 3,200 profile points, ultra-high precision, and compatibility with a wide range of materials, it enables fast, high-resolution inspection of complex parts, even under challenging manufacturing conditions.
Technical Specifications
| Condition | New |
| Brand | Keyence |
| Part Number | LJ-X8000 |
| Category | Camera & Vision |
| Subcategory | 2D/3D Laser Profiler |
| Product Type | Laser Profile Sensor System |
| Series | LJ-X8000 |
| Measurement Type | 2D & 3D Inline Laser Profiling |
| Profile Resolution | Up to 3,200 Points/Profile |
| Measurement Technology | Laser Triangulation |
| Maximum Laser Width | Over 720 mm (28 in.) |
| Controller Options | 4 Available |
| Multi-Head Operation | Supported |
| Programming | Three-Step Configuration |
| Applications | Inline Measurement, Surface Inspection, Profile Measurement, Quality Control |
| Weight | Approx. 1.54 lbs |
Information About LJ-X8000
The LJ-X8000 Series is Keyence's most advanced family of laser profile scanners, developed for high-speed inline 2D and 3D measurement. Utilizing an enhanced triangulation optical system, the series provides exceptional accuracy on glossy, reflective, uneven, and freshly welded surfaces. Sensor heads are available with different fields of view and can be paired with one of four controller options to match application requirements. With laser widths exceeding 720 mm and support for synchronized multi-head operation, the LJ-X8000 Series is ideal for dimensional inspection, profile measurement, surface analysis, and process control across numerous manufacturing industries.
Key Features:
- LJ-X8000 Series 2D/3D Laser Profiler
- High-resolution inline 2D and 3D measurement
- Up to 3,200 points per profile
- Ultra-high precision triangulation technology
- Compatible with reflective, dark, and uneven materials
- Laser width exceeding 720 mm (28 in.)
- Supports synchronized multi-head configurations
- Four controller options available
- Simple three-step setup and programming
- Ideal for inspection, metrology, and quality control
The LJ-X8000 Series delivers fast, high-precision laser profiling for demanding industrial inspection applications.
