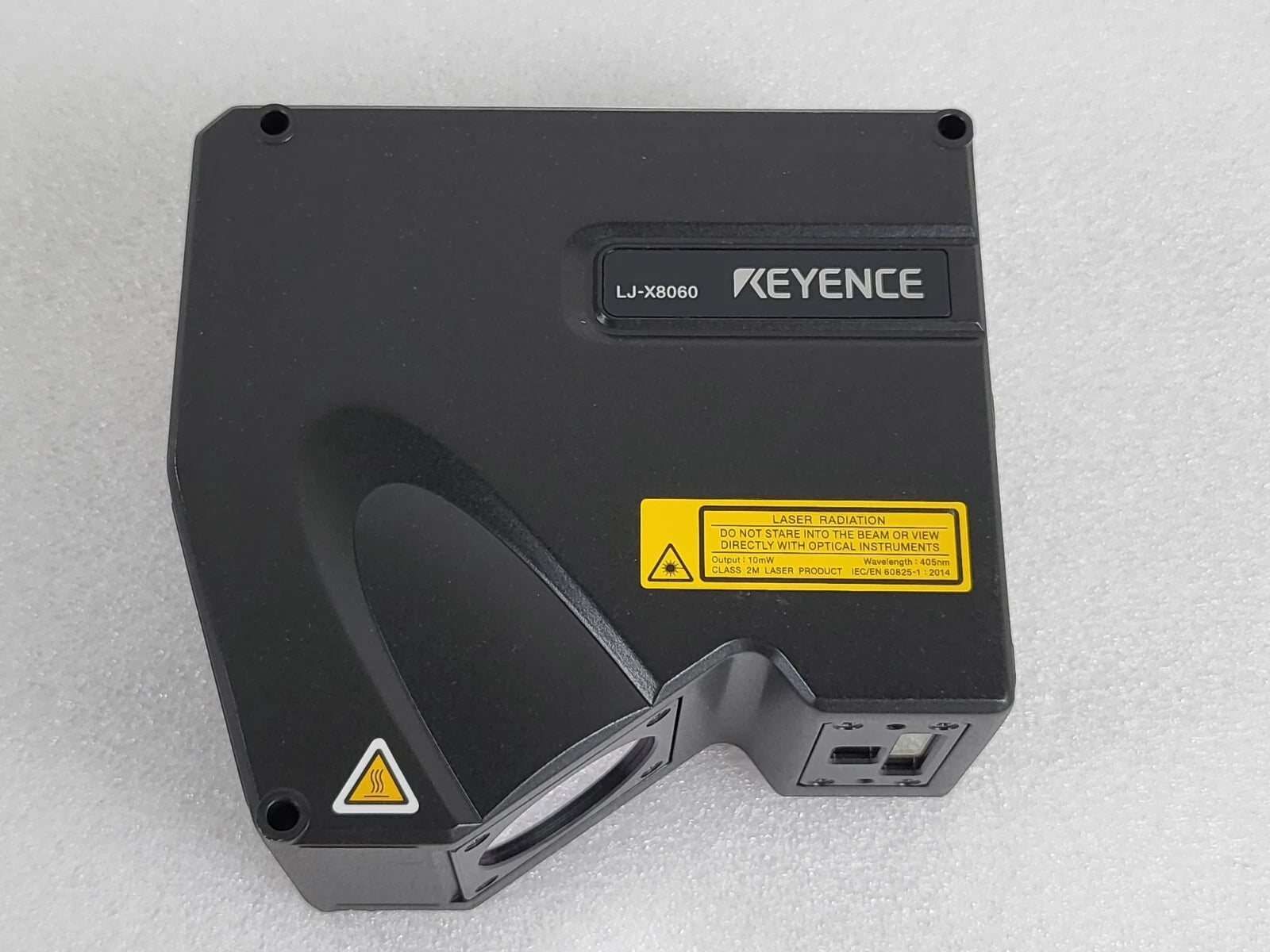

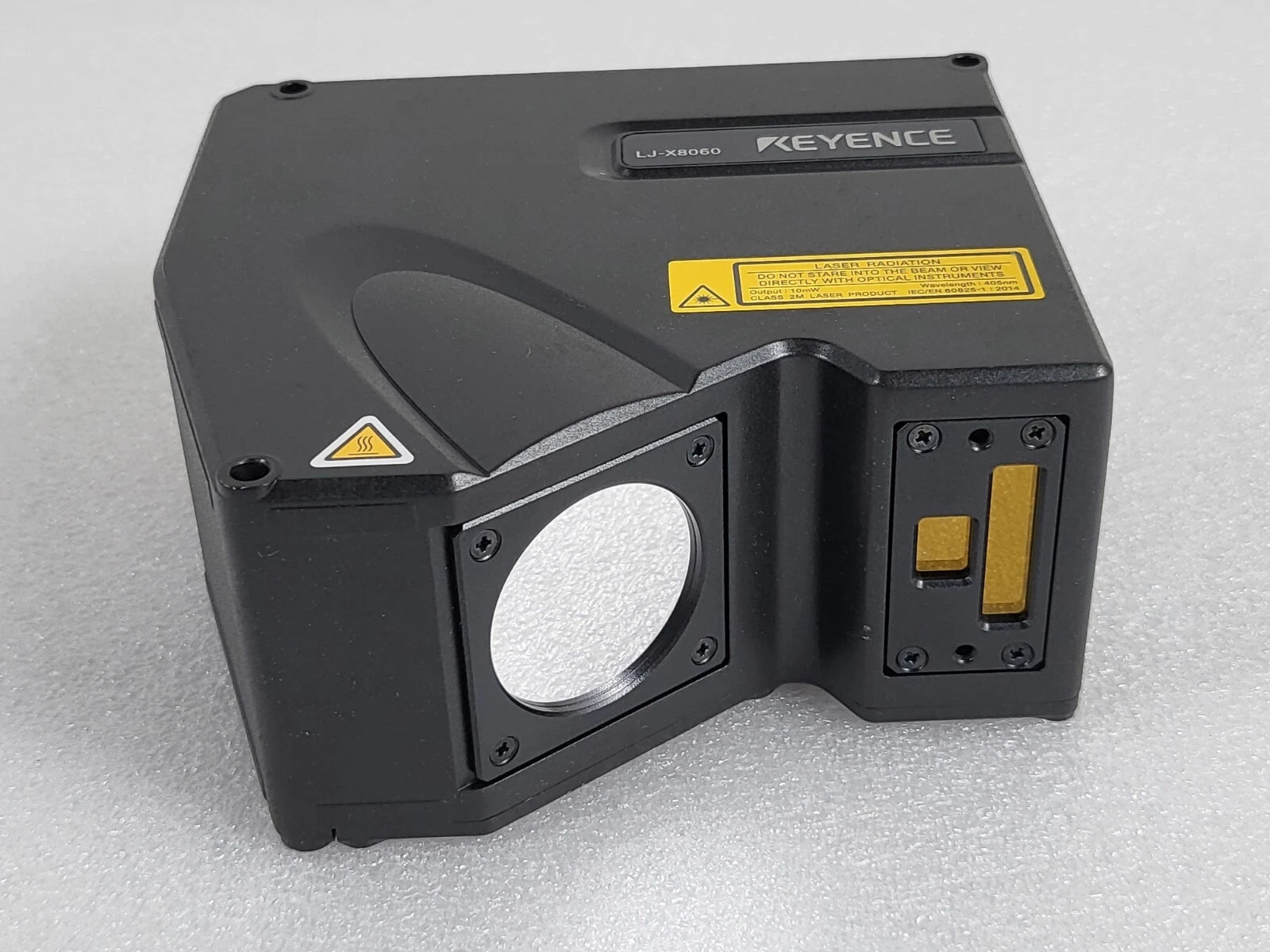

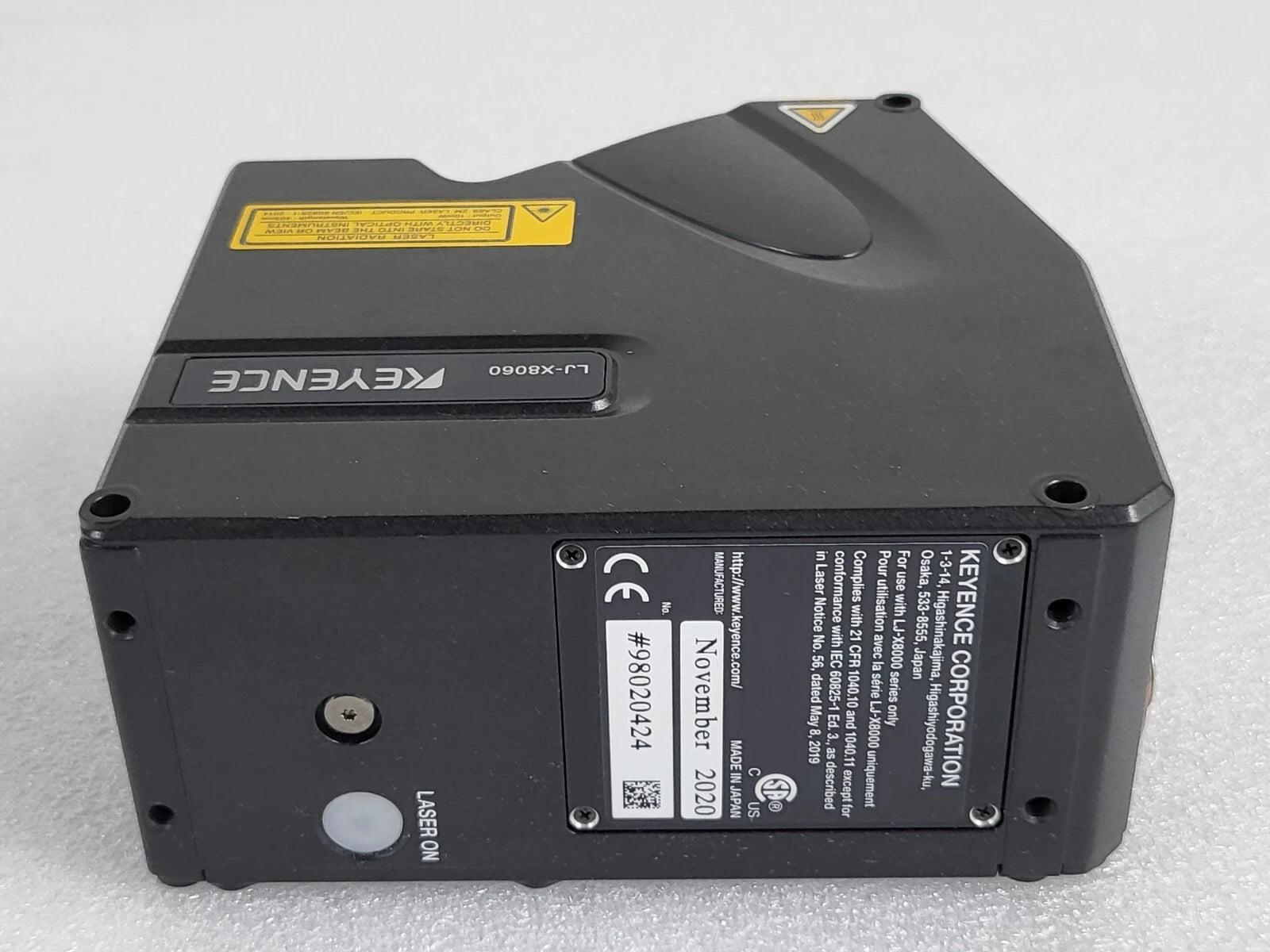

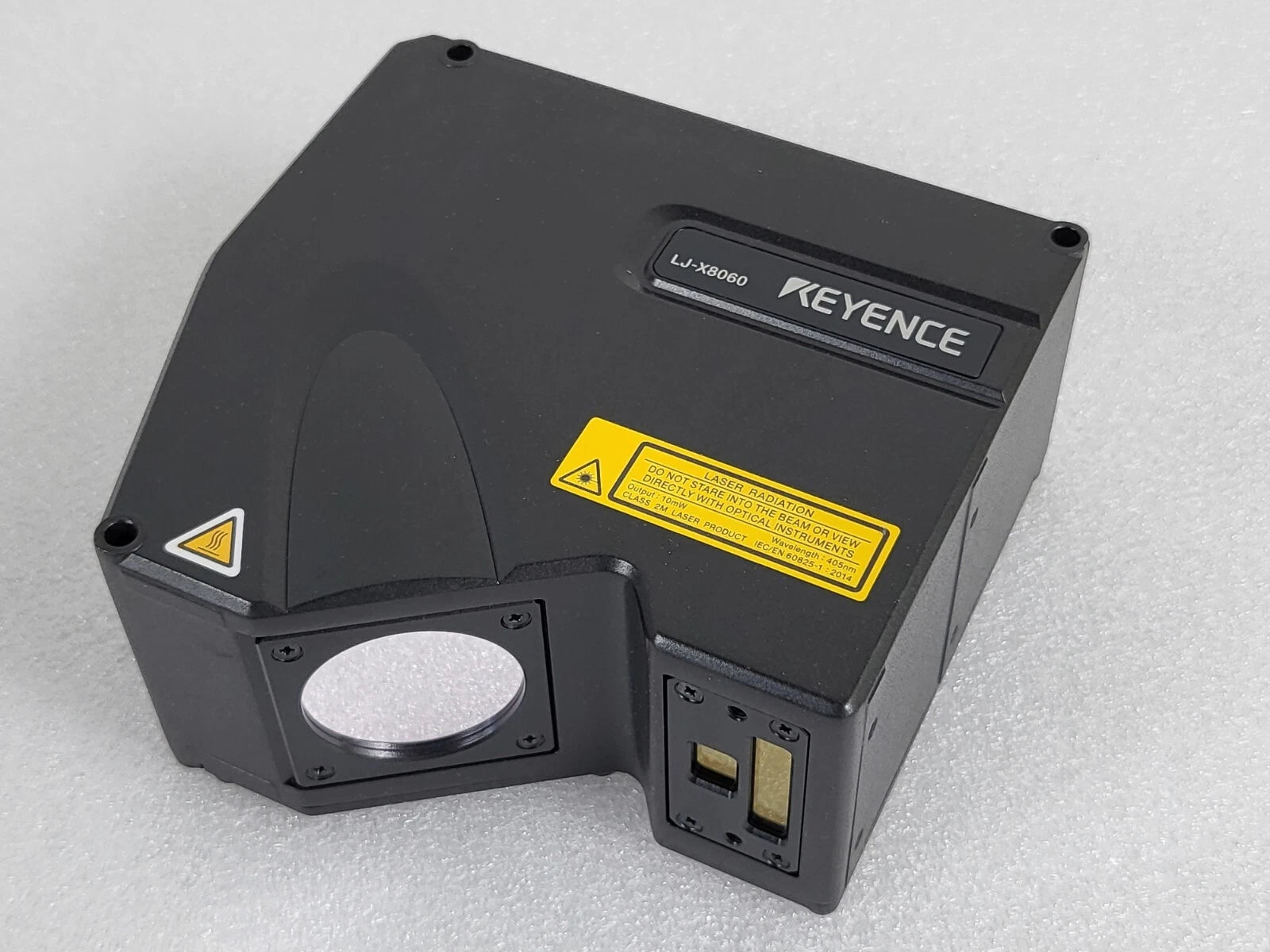

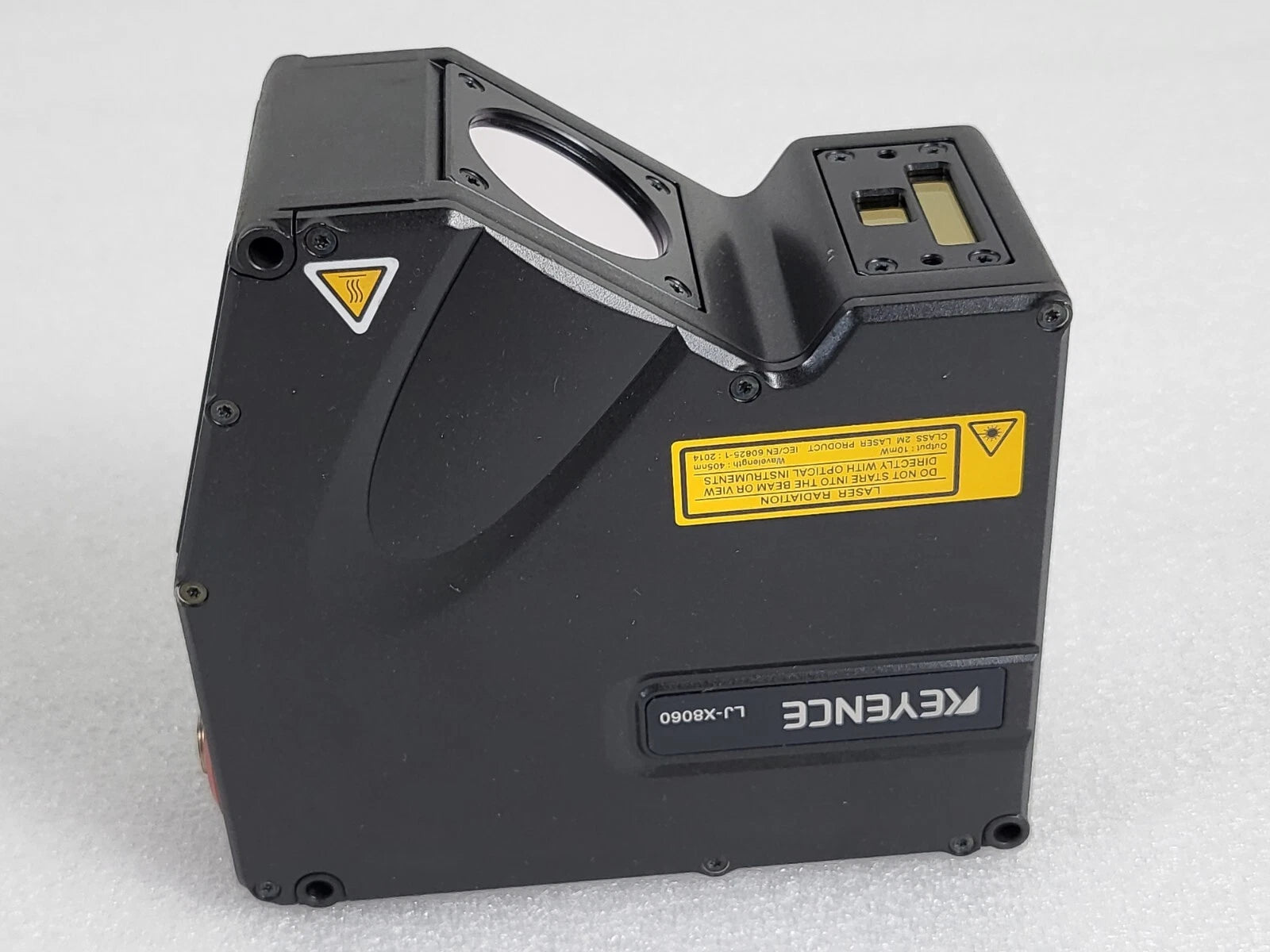

Keyence LJ-X8060 2D Laser Displacement Sensor Head Blue Laser High-Resolution Profiling
- Regular price
- $5,799.00
- Sale price
- $5,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LJ-X8060
Description
The Keyence LJ-X8060 is a high-precision 2D laser displacement sensor head designed for detailed profile measurement at a 64 mm reference distance. It uses a blue semiconductor laser to ensure stable detection on reflective and low-contrast surfaces. This sensor delivers high-resolution data acquisition for advanced surface inspection and dimensional analysis.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | LJ-X8060 |
| Subcategory | Laser Displacement Sensors |
| Series | LJ-X8000 Series |
| Sensor Type | 2D Laser Displacement Sensor Head |
| Reference Distance | 64 mm |
| Measurement Range (Z-axis) | ±7.3 mm |
| Measurement Width (X-axis) | 15 to 16 mm |
| Light Source | Blue semiconductor laser |
| Wavelength | 405 nm |
| Laser Class | Class 2M |
| Output Power | 10 mW |
| Spot Size | Approx. 25 x 49 µm |
| Repeatability (Z-axis) | 0.4 µm |
| Repeatability (X-axis) | 0.5 µm |
| Linearity | ±0.04% of F.S. |
| Profile Data Interval | 5 µm |
| Profile Data Count | 3200 points |
| HDR Function | Single-shot HDR |
| Protection Rating | IP67 |
| Operating Temperature | 0 to 45°C |
| Material | Aluminum housing |
| Weight | Approx. 2.20 lbs |
Information About LJ-X8060
The LJ-X8060 is part of the Keyence LJ-X8000 Series, developed for inline 2D and 3D profile measurement in industrial automation. It features a compact sensor head with advanced optics and a high-density CMOS receiver, enabling accurate capture of complex surface geometries. The unit supports high-speed scanning with up to 3200 profile data points per scan, making it suitable for precision inspection tasks. Designed for integration with LJ-X series controllers, it provides stable measurement performance across varying materials and surface conditions using blue laser and HDR technology.
Key Features:
- Mid-Range Reference Distance: Optimized 64 mm working distance for balanced accuracy and coverage
- Blue Semiconductor Laser: 405 nm wavelength improves measurement on reflective and transparent surfaces
- High-Resolution Profiling: Captures up to 3200 data points per scan for detailed surface analysis
- Single-Shot HDR Technology: Ensures accurate detection across varying reflectivity in one scan
- High Measurement Accuracy: Provides precise height and width measurement with minimal deviation
- Fast Data Acquisition: Supports high-speed scanning for real-time inspection applications
- Fine Profile Interval: Enables detailed surface mapping with micron-level spacing
- Stable Measurement Performance: Maintains consistency across different materials and lighting conditions
- Compact Sensor Head Design: Allows flexible installation in space-constrained systems
- IP67 Protection Rating: Suitable for harsh industrial environments with dust and moisture exposure
- Robust Aluminum Housing: Ensures durability and long-term reliability
The LJ-X8060 delivers the reliability and precision required for high-resolution profile measurement and advanced industrial inspection systems.
