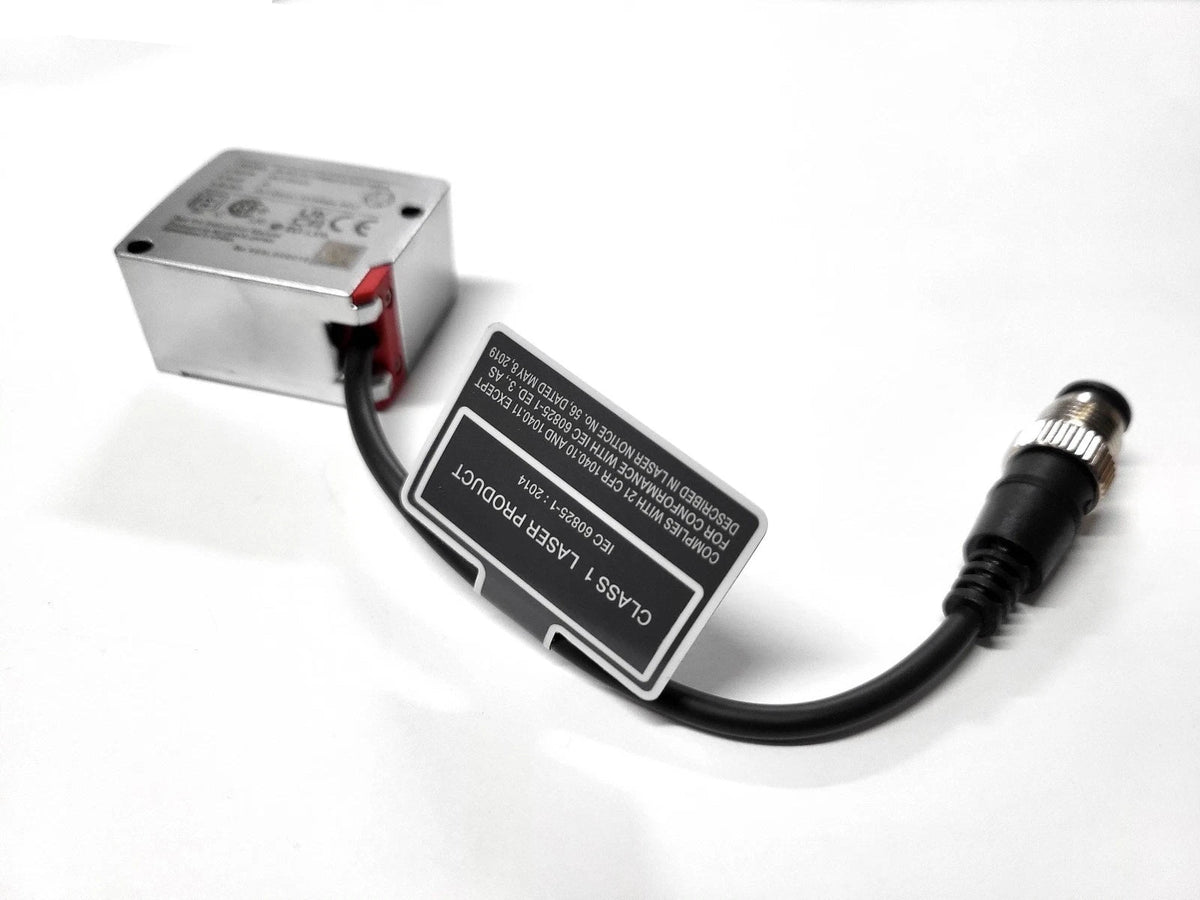

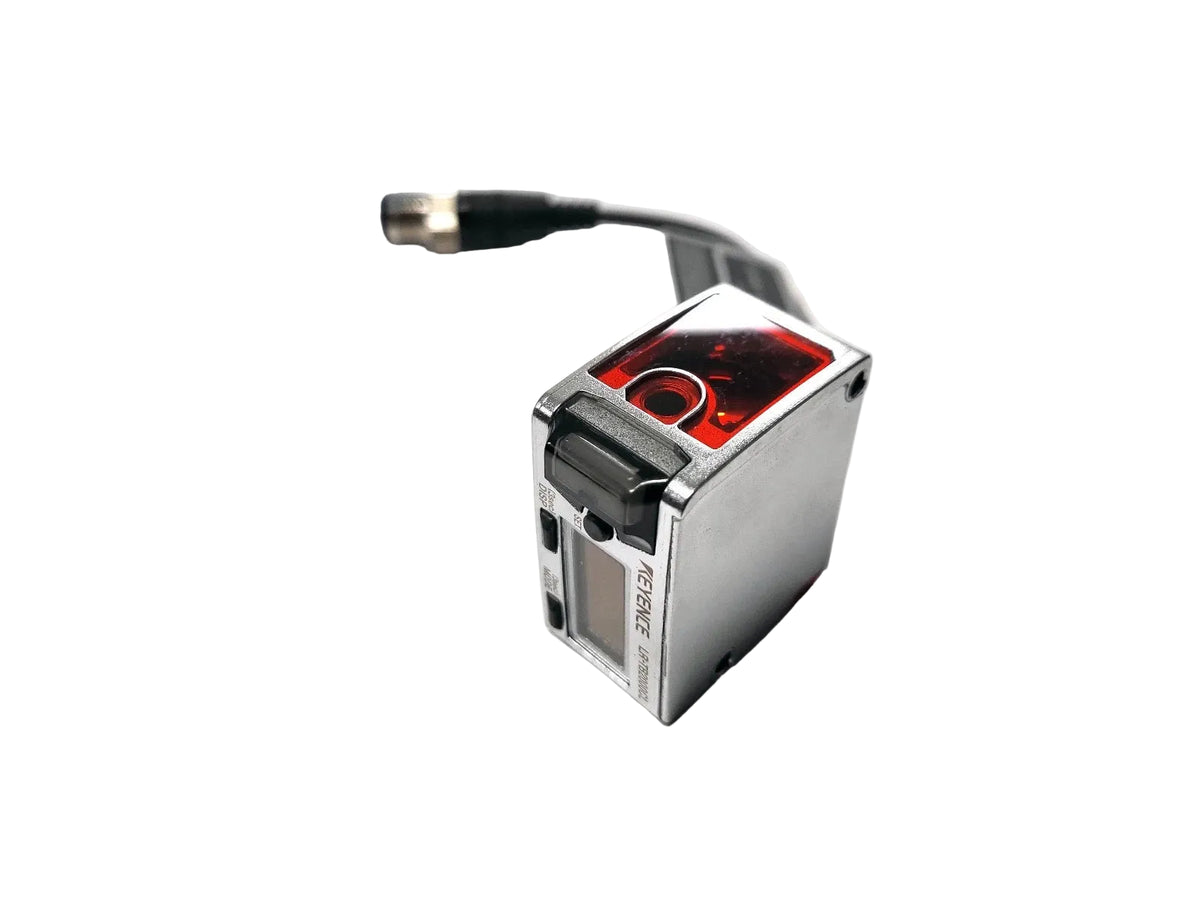

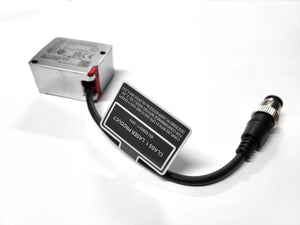

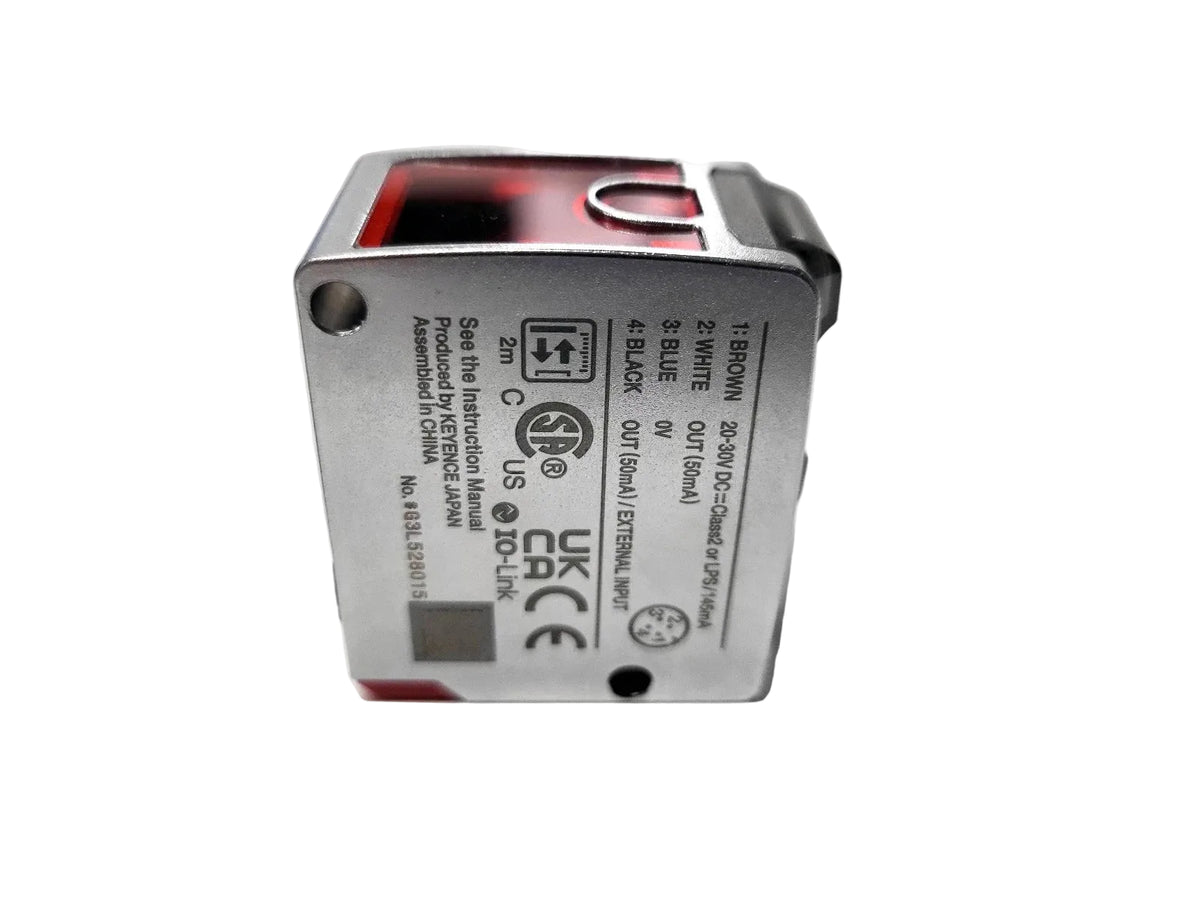

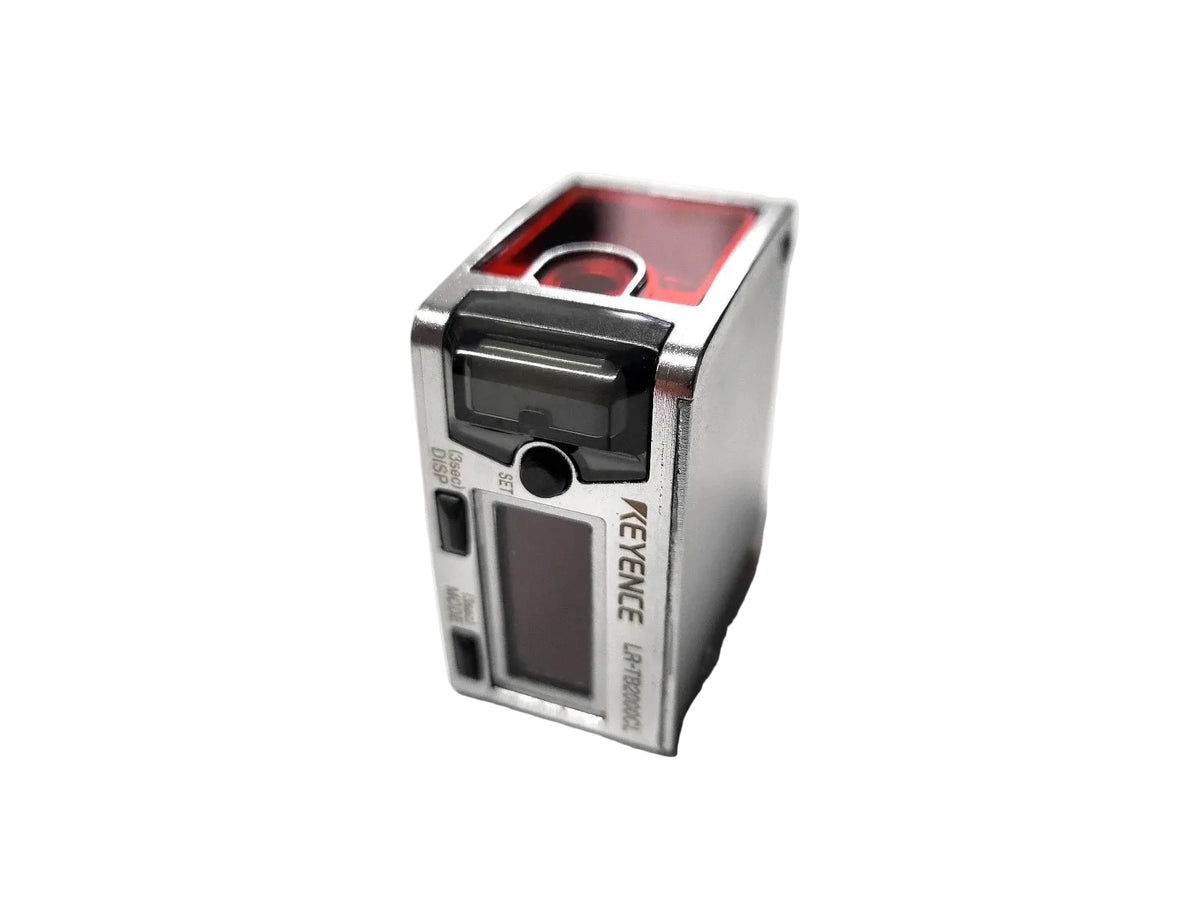

Keyence LR-TB2000CL Laser Distance Sensor 2 m Detection Range with M12 Connect
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LR-TB2000CL
Description
The Keyence LR-TB2000CL is a laser distance sensor designed for reliable object detection and position monitoring at distances of 60 to 2000 mm. It uses a 660 nm red laser and a Class 1 laser source, with an M12 connector for integration into industrial automation, inspection, and material handling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | LR-TB2000CL |
| Subcategory | Laser Sensors |
| Sensor Type | General-purpose laser distance sensor |
| Detection Range | 60–2000 mm |
| Laser Class | Сlass 1 |
| Power Supply | 20–30 VDC, including 10% ripple (P-P) |
| Weight | 85 g |
Information About LR-TB2000CL
The LR-TB2000CL belongs to the Keyence LR-T series of general-purpose laser sensors designed for industrial detection tasks. Its compact housing combines a zinc die-cast case with a protective enclosure rated IP65/IP67 for resistance to dust and water ingress. The sensor provides selectable NPN or PNP open-collector control outputs, configurable normally open or normally closed operation, and an external input for functions such as teaching and emission control. Selectable response times, timer functions, and interference prevention for up to four units support integration into automated production equipment.
Key Features:
- Detection Range: Measures target distances from 60 to 2000 mm.
- Laser Source: Uses a 660 nm red laser with Class 1 laser classification.
- Compact Light Spot: Provides an approximate 4 mm spot diameter.
- M12 Connection: Uses a cable connection with an M12 connector for industrial installation.
- Flexible Outputs: Selectable NPN or PNP open-collector control output.
- Adjustable Response Time: Selectable response times of 2, 20, 50, 200, or 2000 ms.
- Interference Prevention: Supports operation of up to four units using the interference prevention function.
- Environmental Protection: IP65/IP67 enclosure rating and a 20–30 VDC power supply range.
The LR-TB2000CL delivers the reliability and precision required for industrial object detection, positioning, and automated equipment control.
