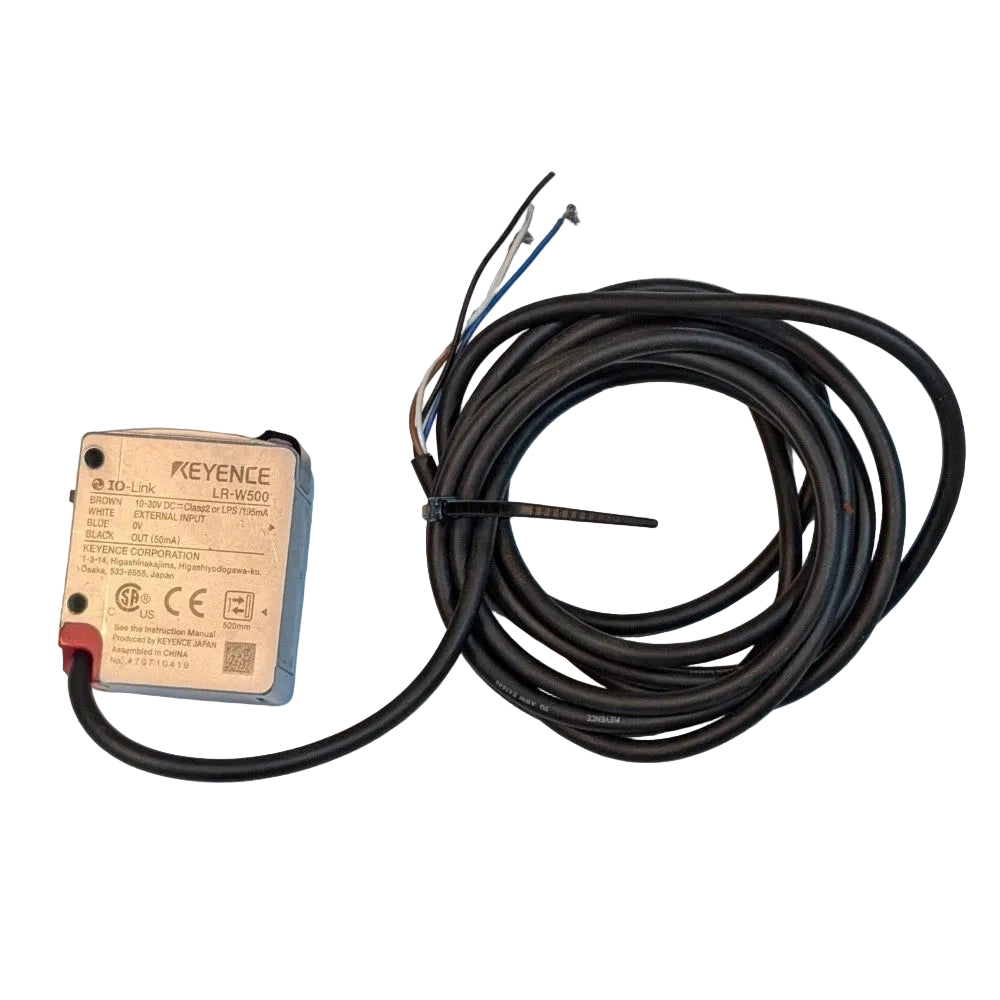

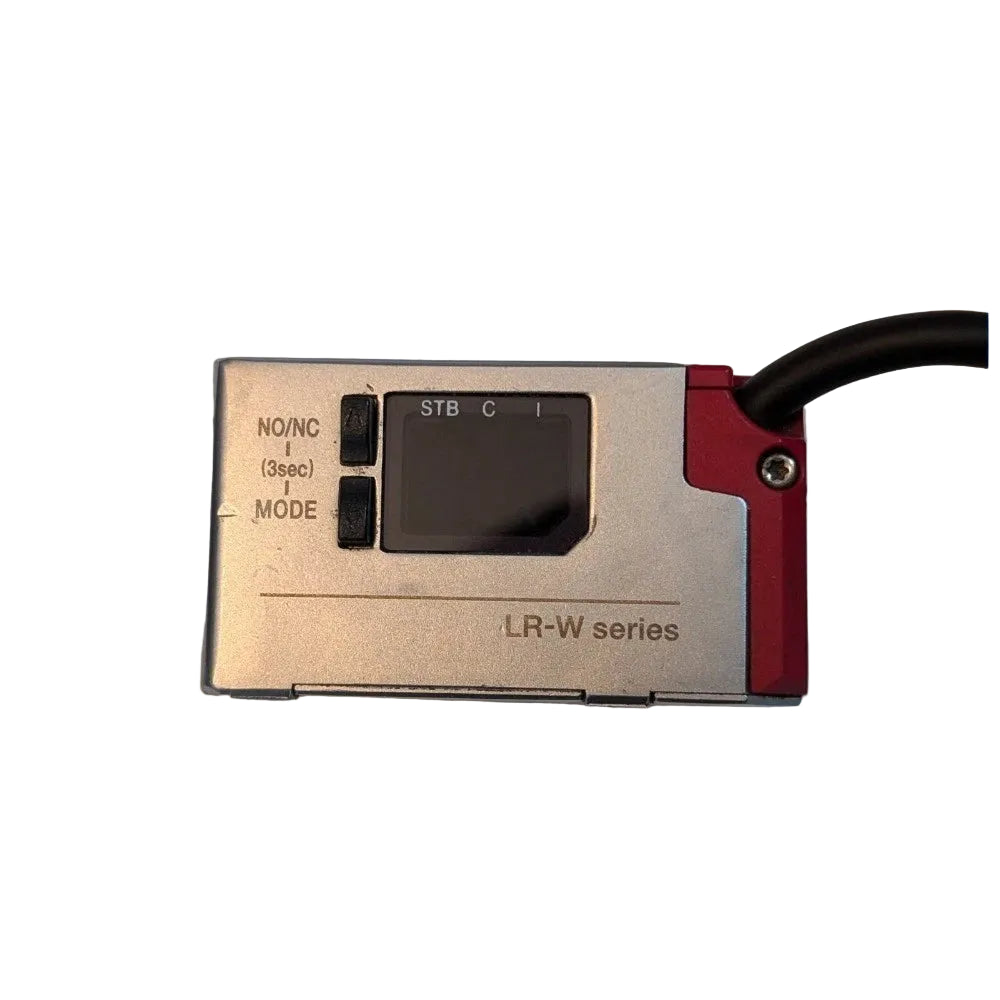

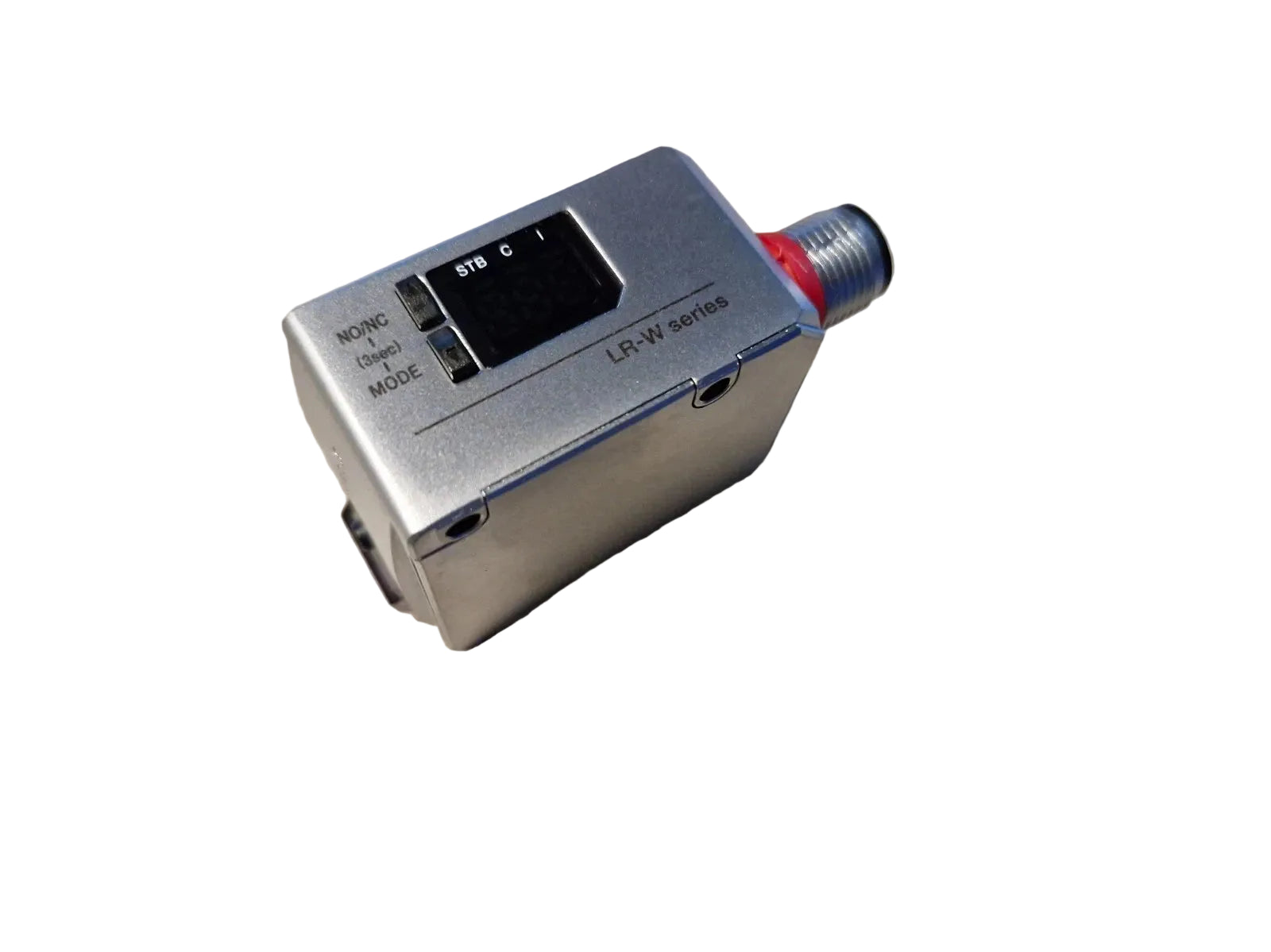

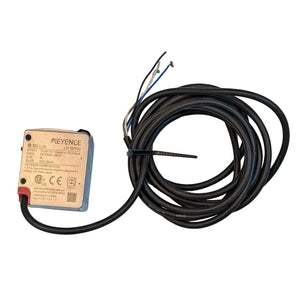

Keyence LR-W500 Full-Spectrum Photoelectric Sensor with 500 mm Detection Range
- Regular price
- $535.00
- Sale price
- $535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LR-W500
Description
The Keyence LR-W500 is a full-spectrum photoelectric sensor designed to detect differences in object appearance, including color and surface characteristics, over distances of 30 to 500 mm. It uses a white LED light source and an adjustable sensing spot to support object detection, sorting, and quality inspection in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | LR-W500 |
| Subcategory | Photoelectric Sensors |
| Series | LR-W |
| Sensor Type | Full-spectrum photoelectric |
| Detection Range | 30–500 mm |
| Light Source | White LED |
| Spot Diameter | 3.5 mm at 100 mm; 9 mm at 250 mm; 18 mm at 500 mm |
| Cable Length | 2 m |
| Output Type | NPN/PNP open collector |
| Output Logic | N.O./N.C. selectable |
| Max. Output Voltage | 30 VDC |
| Max. Output Current | 50 mA |
| Power Supply | 10–30 VDC |
| Current Consumption | 65 mA max. at 24 VDC, no load |
| Response Time | 200 μs, 1, 10, 100, 500 ms |
| Timer Functions | OFF, ON-delay, OFF-delay, one-shot |
| External Input | Tuning, transmission OFF |
| Communication | IO-Link v1.1, COM2 |
| Protection Rating | IP65/IP67 |
| Operating Temperature | -20 to +50°C |
| Humidity | 35–85% RH, non-condensing |
| Housing Material | Zinc die-cast, nickel-chrome plated |
| Weight | 170 g |
Information About LR-W500
The LR-W500 belongs to the Keyence LR-W series of self-contained full-spectrum sensors designed for reliable detection of variations in target appearance. Its 2 m integrated cable supports direct installation in manufacturing equipment, conveyor systems, and automated inspection stations. The sensor features selectable NPN or PNP open-collector outputs, configurable normally open or normally closed logic, and an external input for tuning or transmission control. Adjustable response times, timer functions, and interference reduction for up to two units provide flexibility for different production line requirements.
Key Features:
- Detection Range: Detects target objects at distances from 30 to 500 mm.
- White LED Source: Uses full-spectrum white LED illumination to identify differences in object appearance.
-
Adjustable Spot: Allows adjustment of the sensing spot for different target sizes and distances.
- Integrated Cable: Includes a 2 m cable for direct electrical connection.
- Selectable Outputs: Supports NPN or PNP open-collector output configurations.
- Adjustable Response Time: Selectable response times of 200 μs, 1 ms, 10 ms, 100 ms, or 500 ms.
- Timer Functions: Supports OFF, ON-delay, OFF-delay, and one-shot operation.
- Environmental Protection: IP65/IP67 enclosure rating for industrial environments.
The LR-W500 delivers the reliability and precision required for color-related object detection, product sorting, and automated quality inspection.
