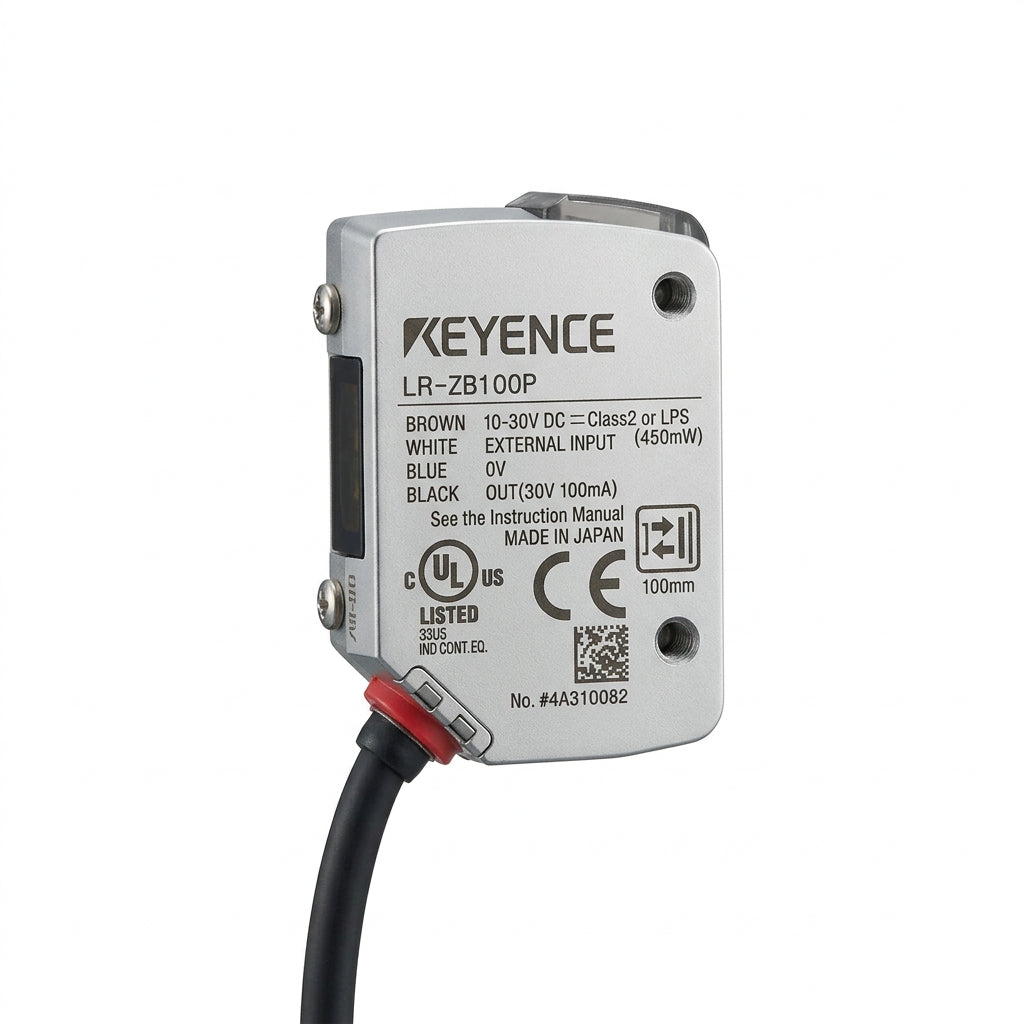

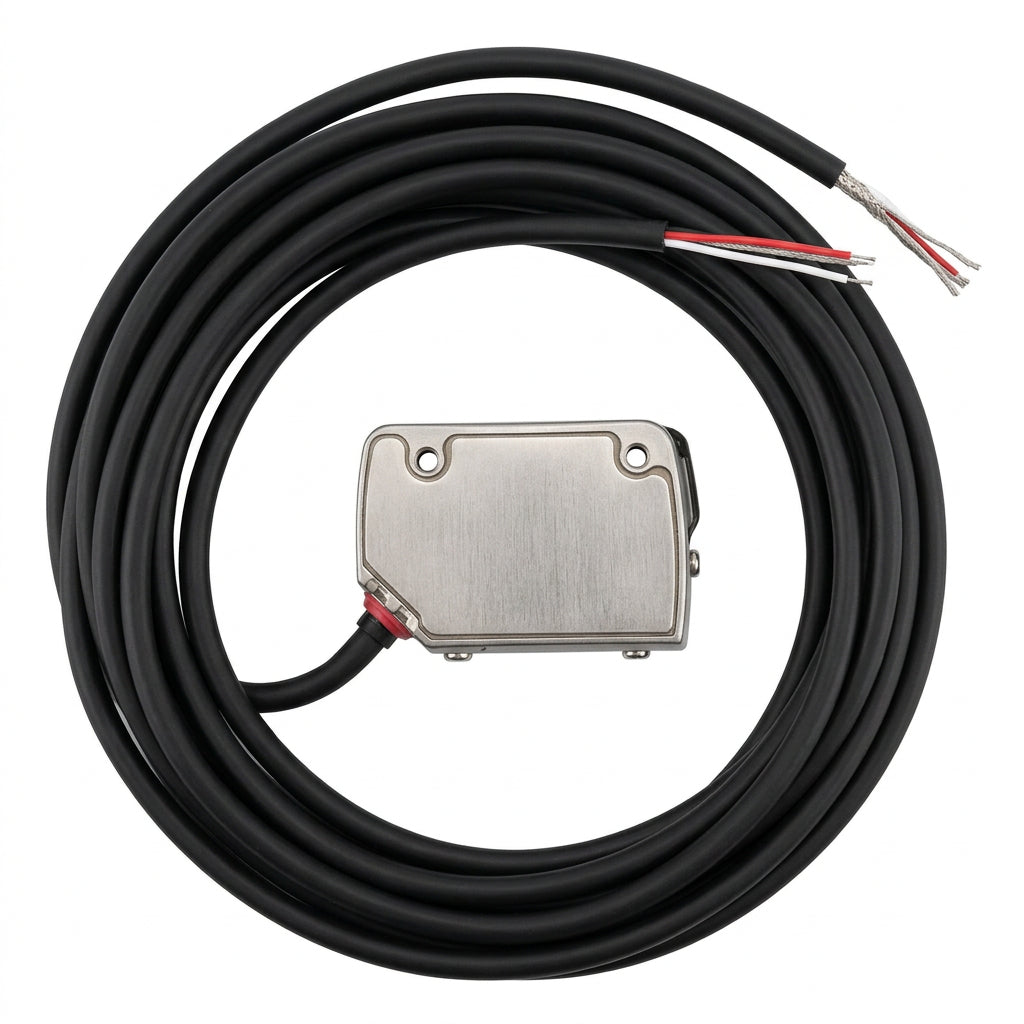

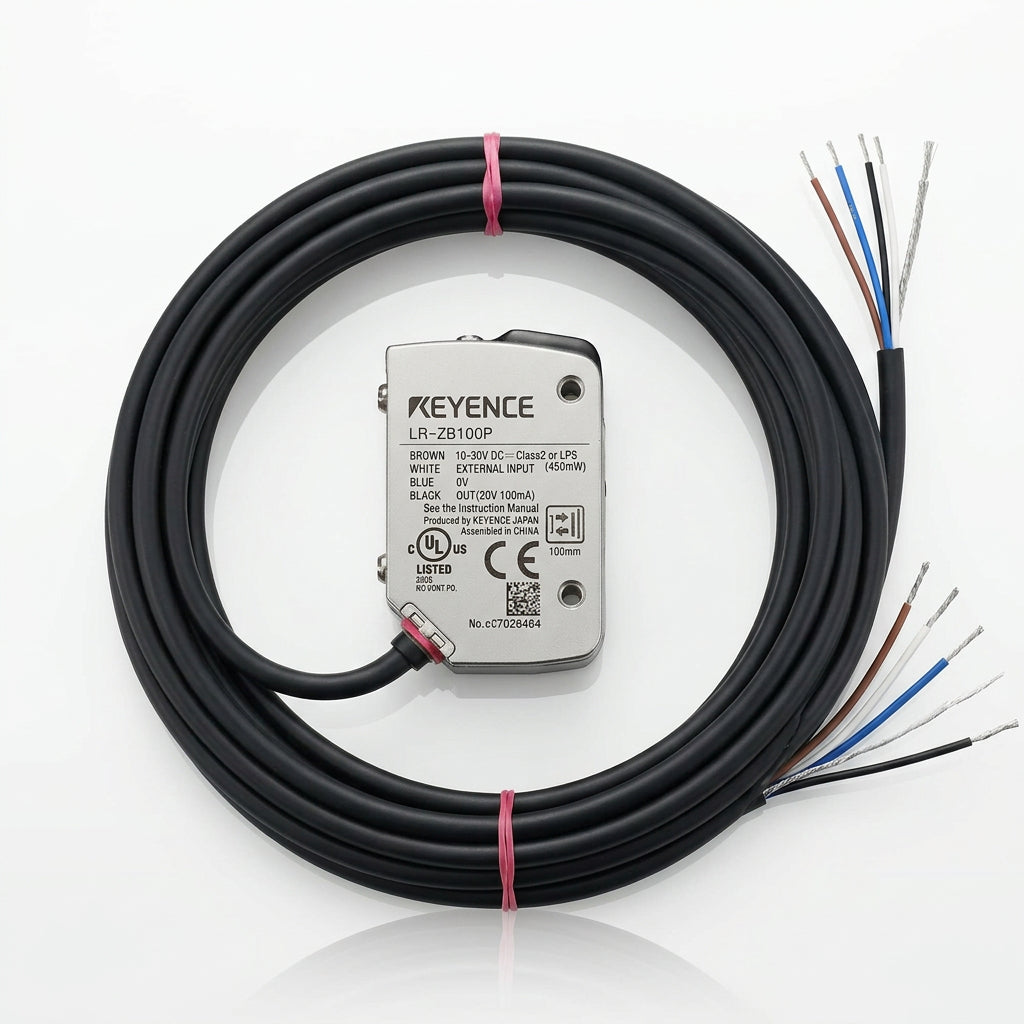

KEYENCE LR-ZB100P CMOS Laser Sensor, 35–100 mm Detection Range, PNP Output
- Regular price
- $252.00
- Sale price
- $252.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LR-ZB100P
Description
The KEYENCE LR-ZB100P is a self-contained CMOS laser sensor designed for reliable distance-based object detection in industrial automation and inspection systems. With a 35–100 mm detection range, PNP open-collector output, and selectable response times as fast as 1.5 ms, it supports high-speed part detection, position verification, and automated equipment control. Its stainless-steel housing and rugged environmental protection make it suitable for demanding manufacturing environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | LR-ZB100P |
| Subcategory | Laser Sensors |
| Product Type | Self-contained CMOS laser sensor |
| Series | LR-Z Series |
| Sensor Type | Distance-based laser sensor |
| Housing Style | Rectangular |
| Detection Range | 35–100 mm |
| Standard Detectable Deviation | 1.5 mm at 35–50 mm; 3 mm at 50–100 mm |
| Display Resolution | 0.2 mm |
| Laser Wavelength | 660 nm, red |
| Laser Classification | Class 1 |
| Output Type | PNP open collector |
| Output Voltage | 30 VDC maximum |
| Control Output Current | 100 mA maximum |
| Cable Connection | Integrated 2 m cable |
| Response Time | Selectable: 1.5 ms, 10 ms, or 50 ms |
| Power Supply | 10–30 VDC, including 10% peak-to-peak ripple |
| Power Consumption | 450 mW maximum |
| Output Operation | Light-ON / Dark-ON selectable |
| Timer Functions | OFF, ON delay, OFF delay, one-shot |
| Spot Size | Approx. 2 × 1 mm at 100 mm |
| Enclosure Protection | IP68, IP69K, NEMA 4X, 6P, 13 |
| Operating Temperature | -10 to +50 °C, non-freezing |
| Relative Humidity | 35–85% RH, non-condensing |
| Housing Material | SUS316L stainless steel |
| Display Material | PES |
| Lens Cover Material | PMMA with scratch-resistant coating |
| Weight | 110 g |
Information About LR-ZB100P
The LR-ZB100P belongs to KEYENCE’s LR-Z series of digital laser sensors and features a rectangular housing with an integrated 2 m cable. It uses a 660 nm red Class 1 laser and CMOS-based sensing technology to detect objects based on distance rather than relying solely on differences in surface color. The sensor provides a three-digit display, status indicators, configurable Light-ON/Dark-ON operation, and selectable timer functions for adapting its output behavior to different applications. Its IP68 and IP69K protection ratings, along with NEMA 4X, 6P, and 13 ratings, support use in environments where dust, moisture, and washdown resistance are important.
Key Feature:
-
35–100 mm Detection Range: Supports distance-based sensing for part presence and position monitoring.
-
CMOS Laser Technology: Provides distance-based object detection for automated inspection tasks.
-
PNP Open-Collector Output: Interfaces with compatible PLCs and industrial control systems.
-
Integrated 2 m Cable: Simplifies installation where a fixed cable connection is preferred.
-
Fast Response Options: Selectable response times of 1.5 ms, 10 ms, or 50 ms support different machine speeds.
-
Class 1 Red Laser: Uses a 660 nm laser source for sensing and alignment.
-
Flexible Output Functions: Offers selectable Light-ON/Dark-ON operation and OFF-delay, ON-delay, and one-shot timer modes.
-
Rugged Environmental Protection: IP68, IP69K, and NEMA-rated protection supports demanding industrial applications.
The LR-ZB100P delivers the reliability and precision required for automated part detection, position verification, and industrial quality-control processes.
