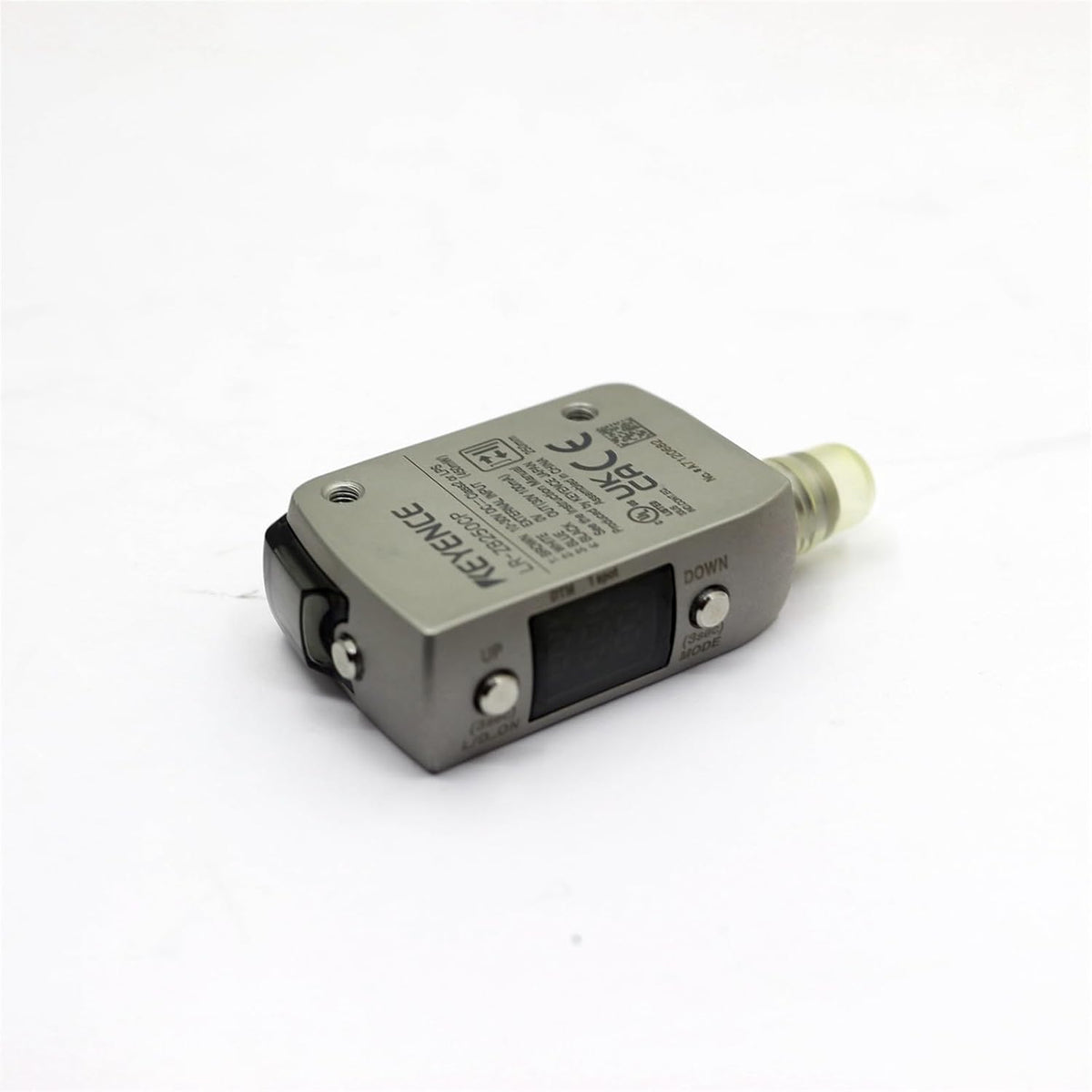

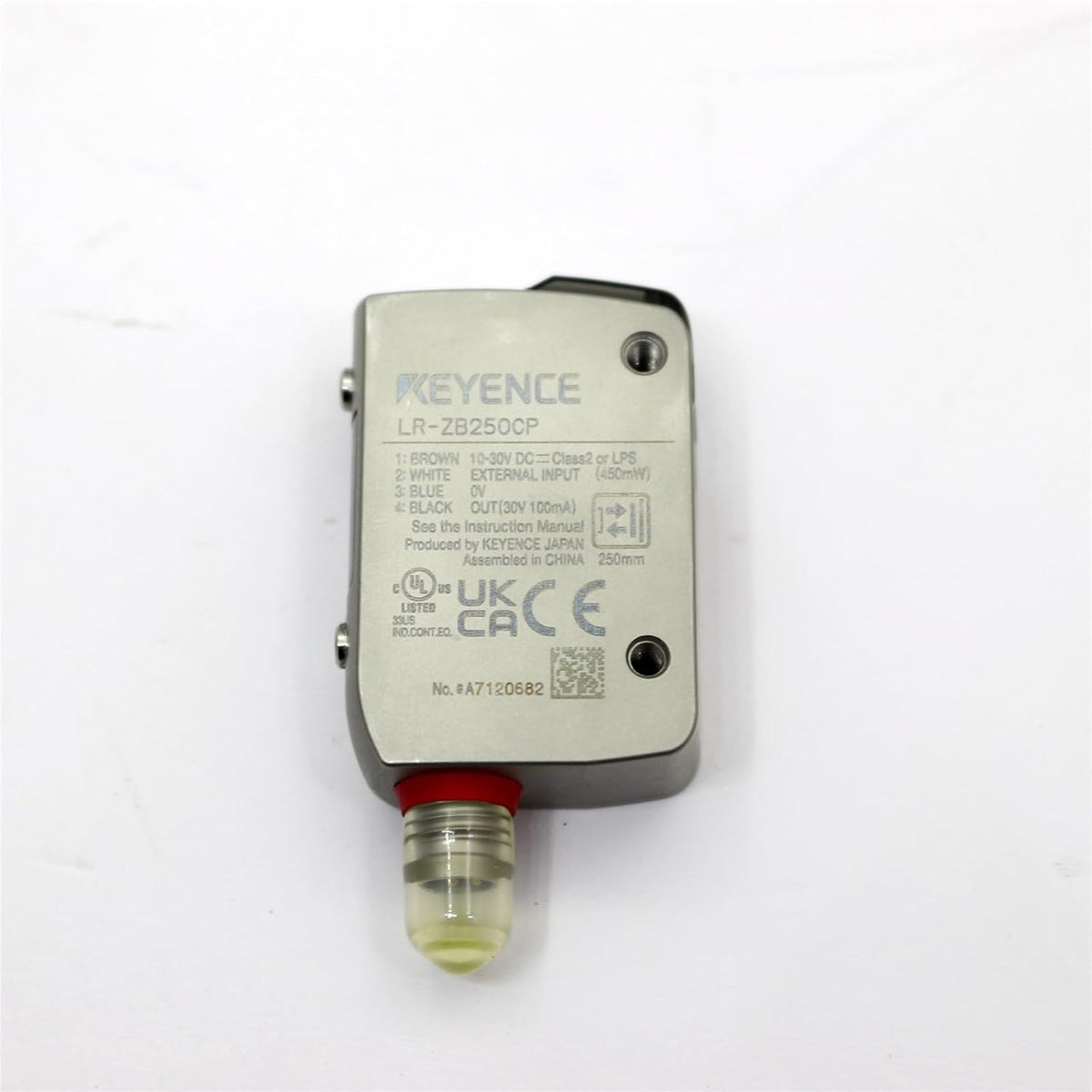

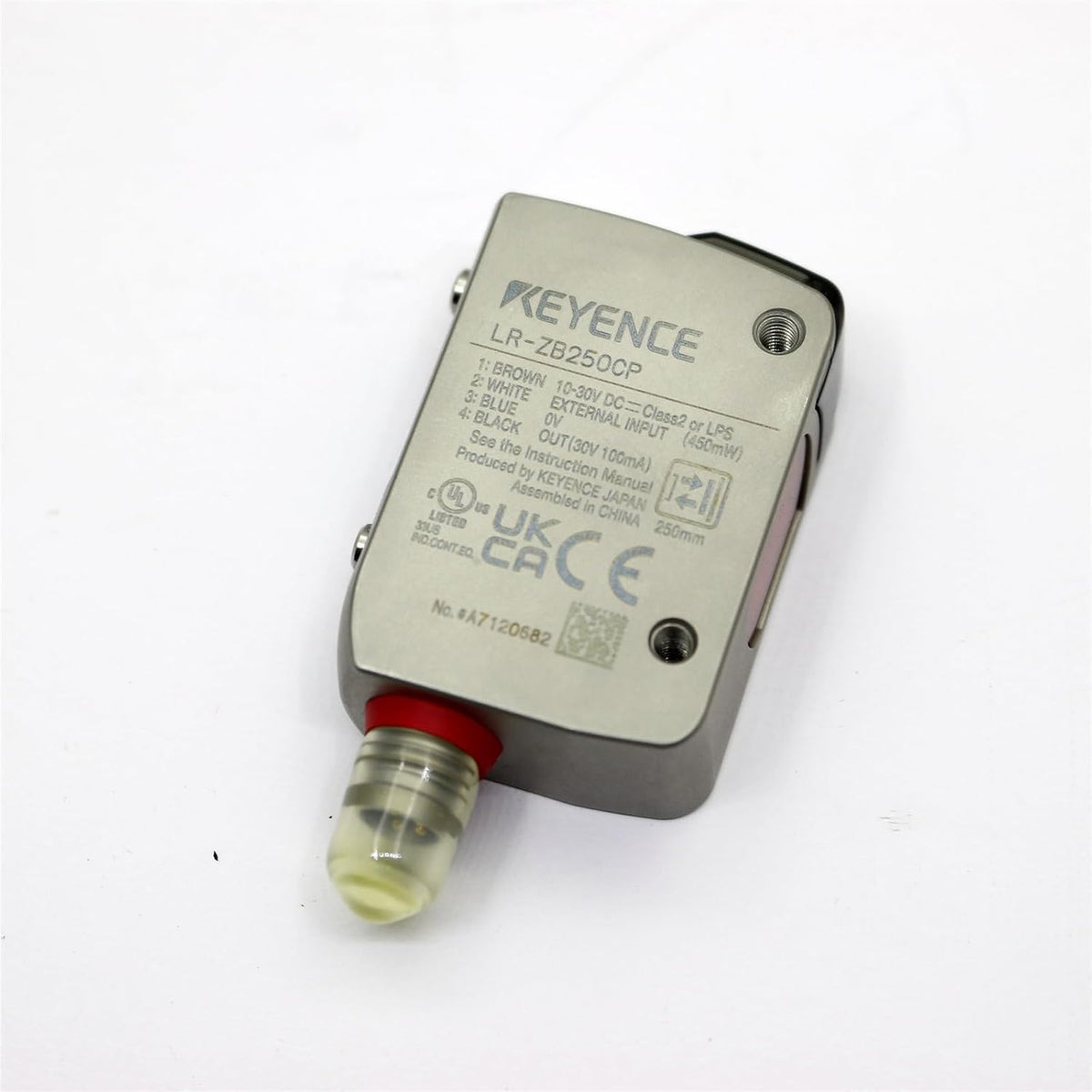

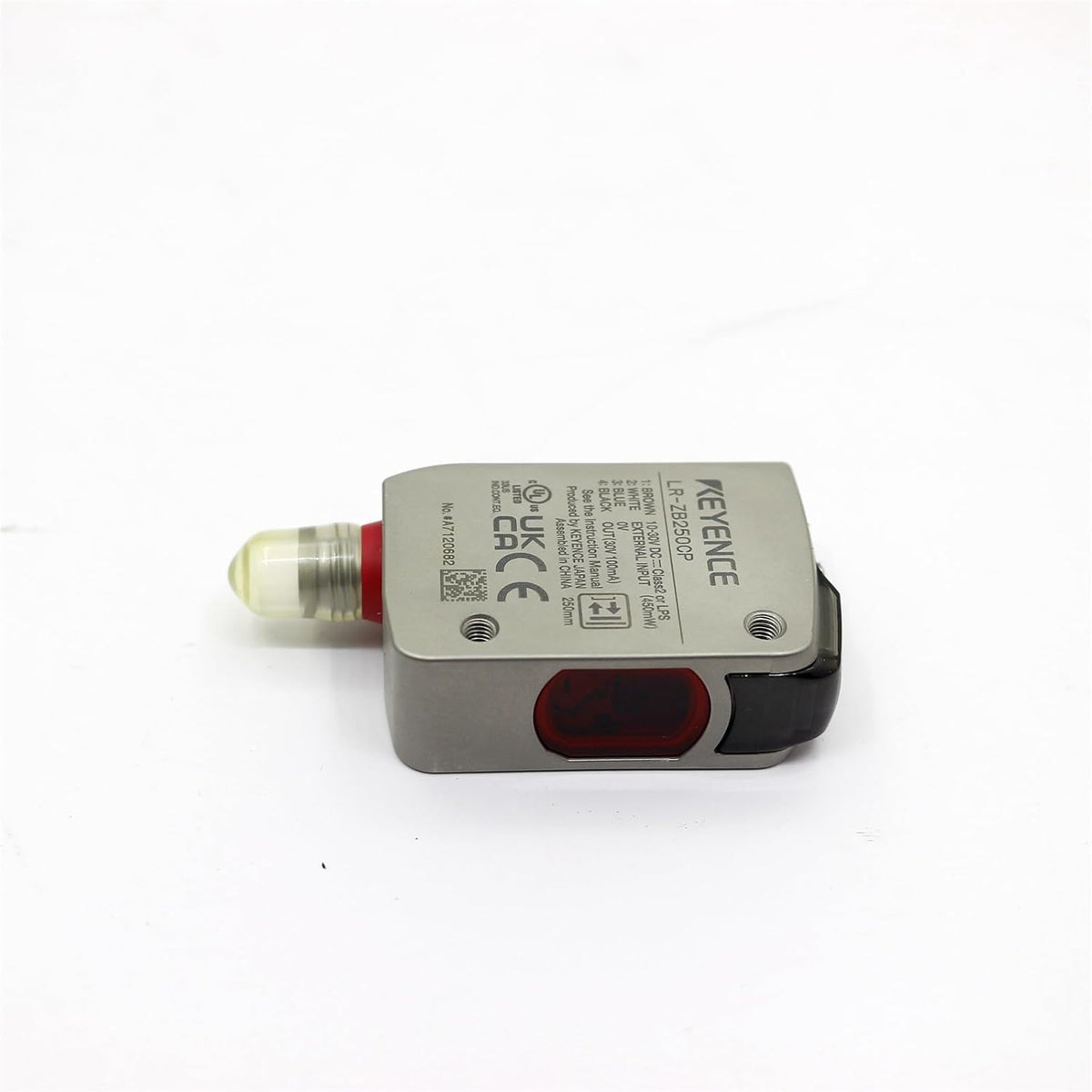

KEYENCE LR-ZB250CP CMOS Laser Sensor with 250 mm Detection Range and PNP Output
- Regular price
- $4,499.00
- Sale price
- $4,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LR-ZB250CP
Description
The KEYENCE LR-ZB250CP is a self-contained CMOS laser sensor designed for distance-based object detection and position monitoring in industrial automation systems. It provides a 35–250 mm detection range, a 660 nm red laser, and a PNP open-collector output for integration with compatible PLCs and automated machinery. Its compact housing and selectable response times support applications requiring consistent detection during high-speed production processes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | LR-ZB250CP |
| Subcategory | Laser Sensors |
| Product Series | LR-Z Series |
| Product Type | Self-Contained CMOS Laser Sensor |
| Sensing Method | Distance-Based Laser Detection |
| Detection Range | 35–250 mm |
| Output Type | PNP Open Collector |
| Connection Type | M8 connector, 4-pin |
| Light Source | Red laser |
| Wavelength | 660 nm |
| Laser Class | Class 1 |
| Display Resolution | 1–3 mm |
| Spot Size | Approx. 2.4 × 1.2 mm at 250 mm |
| Response Time | Selectable: 1.5 / 10 / 50 ms |
| Supply Voltage | 10–30 VDC |
| Power Consumption | 450 mW or less |
| Maximum Control Voltage | 30 VDC |
| Maximum Control Current | 100 mA |
| Output Operation | Selectable Light-ON / Dark-ON |
| Timer Functions | OFF / ON delay / OFF delay / One-shot |
| Protection Rating | IP68 / IP69K; NEMA 4X, 6P, 13 |
| Housing Material | SUS316L stainless steel |
| Operating Temperature | -10 to +50 °C, no freezing |
| Operating Humidity | 35–85% RH, non-condensing |
| Housing Material | Aluminum die-cast main case |
| Weight | 55 g |
Information About LR-ZB250CP
The LR-ZB250CP belongs to KEYENCE’s LR-Z Series of self-contained CMOS laser sensors and features a rectangular body with a four-pin M8 connector. Its distance-based sensing method measures target position relative to a configured reference, helping detect objects without relying solely on changes in surface color or reflectivity. The sensor supports selectable response times of 1.5 ms, 10 ms, or 50 ms, along with configurable Light-ON and Dark-ON output operation. Its SUS316L stainless-steel housing and IP68/IP69K protection ratings make it suitable for industrial installations exposed to moisture and regular cleaning.
Key Feature:
-
Detection Range: Detects targets from 35 to 250 mm for industrial distance-based sensing.
-
CMOS Laser Technology: Uses a 660 nm red laser for consistent distance-based object detection.
-
PNP Output: Provides a PNP open-collector output for compatible automation controllers.
-
M8 Connection: Features a four-pin M8 connector for straightforward system integration.
-
Selectable Response Time: Offers 1.5 ms, 10 ms, and 50 ms response settings.
-
Output Modes: Supports selectable Light-ON and Dark-ON operation with configurable timer functions.
-
Environmental Protection: Rated IP68 and IP69K, with NEMA 4X, 6P, and 13 ratings.
-
Stainless-Steel Housing: Uses a SUS316L case and scratch-resistant lens cover for industrial durability.
The LR-ZB250CP delivers the reliability and precision required for distance-based object detection, positioning, and industrial process automation.
