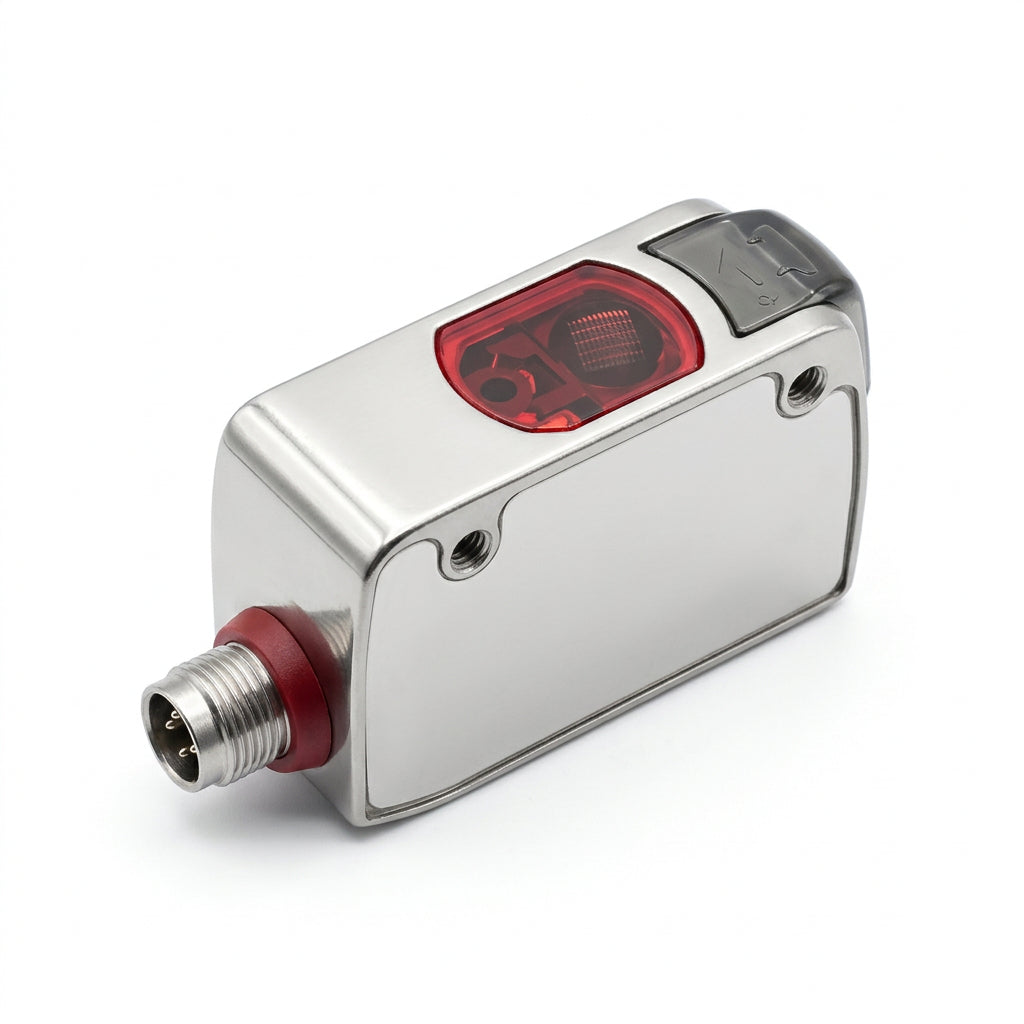

KEYENCE LR-ZH500CP High-Power CMOS Laser Sensor with 500 mm Detection Range
- Regular price
- $535.00
- Sale price
- $535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LR-ZH500CP
Description
The KEYENCE LR-ZH500CP is a high-power, distance-based laser sensor designed for precise object detection and position monitoring in industrial automation systems. With a detection range of 35 to 500 mm, a red 660 nm laser, and selectable response times, it supports inspection, positioning, and presence-detection tasks on automated production lines.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | LR-ZH500CP |
| Subcategory | Laser Sensors |
| Product Series | LR-Z Series |
| Product Type | Self-Contained CMOS Laser Sensor |
| Sensor Function | Distance-Based Detection with Background Tuning |
| Detection Range | 35–500 mm |
| Output Type | PNP Open Collector |
| Connection Type | M8, 4-pin connector |
| Light Source | Red laser |
| Wavelength | 660 nm |
| Laser Class | Class 2 (IEC 60825-1) |
| Spot Diameter | Approx. 3 mm |
| Display Resolution | 1–5 mm |
| Response Time | Selectable: 1.5 / 10 / 50 ms |
| Supply Voltage | 10–30 VDC |
| Power Consumption | 450 mW or less |
| Maximum Control Voltage | 30 VDC |
| Maximum Control Current | 100 mA |
| Communication | IO-Link v1.1, COM2, 38.4 kbps |
| Timer Functions | OFF / ON delay / OFF delay / One-shot |
| Protection Rating | IP68 / IP69K; NEMA 4X, 6P, 13 |
| Housing Material | SUS316L stainless steel |
| Operating Temperature | -10 to +50 °C |
| Operating Humidity | 35–85% RH, non-condensing |
| Weight | 55 g |
Information About LR-ZH500CP
The LR-ZH500CP belongs to KEYENCE’s LR-Z Series of self-contained CMOS laser sensors and features a compact rectangular housing with an integrated sensing system. Its background-tuning function helps distinguish target objects from background surfaces, while the PNP open-collector output supports connection to compatible PLCs and industrial controllers. The sensor uses a four-pin M8 connector and supports IO-Link v1.1, COM2 communication at 38.4 kbps. Its stainless-steel housing and IP68/IP69K protection ratings make it suitable for demanding industrial environments, including applications requiring frequent cleaning.
Key Feature:
-
Detection Range: Detects objects at distances from 35 to 500 mm for flexible industrial sensing.
-
Laser Source: Uses a red 660 nm laser with Class 2 laser classification.
-
PNP Output: Provides a PNP open-collector output for integration with compatible control systems.
-
Background Tuning: Supports distance-based detection designed to distinguish targets from background surfaces.
-
Selectable Response Time: Offers 1.5 ms, 10 ms, and 50 ms response settings.
-
IO-Link Communication: Supports IO-Link v1.1, COM2 at 38.4 kbps.
-
Environmental Protection: Features IP68, IP69K, and NEMA 4X, 6P, and 13 enclosure ratings.
-
Industrial Construction: Uses a SUS316L stainless-steel case with a scratch-resistant lens cover.
The LR-ZH500CP delivers the reliability and precision required for industrial object detection, positioning, and automated inspection.
