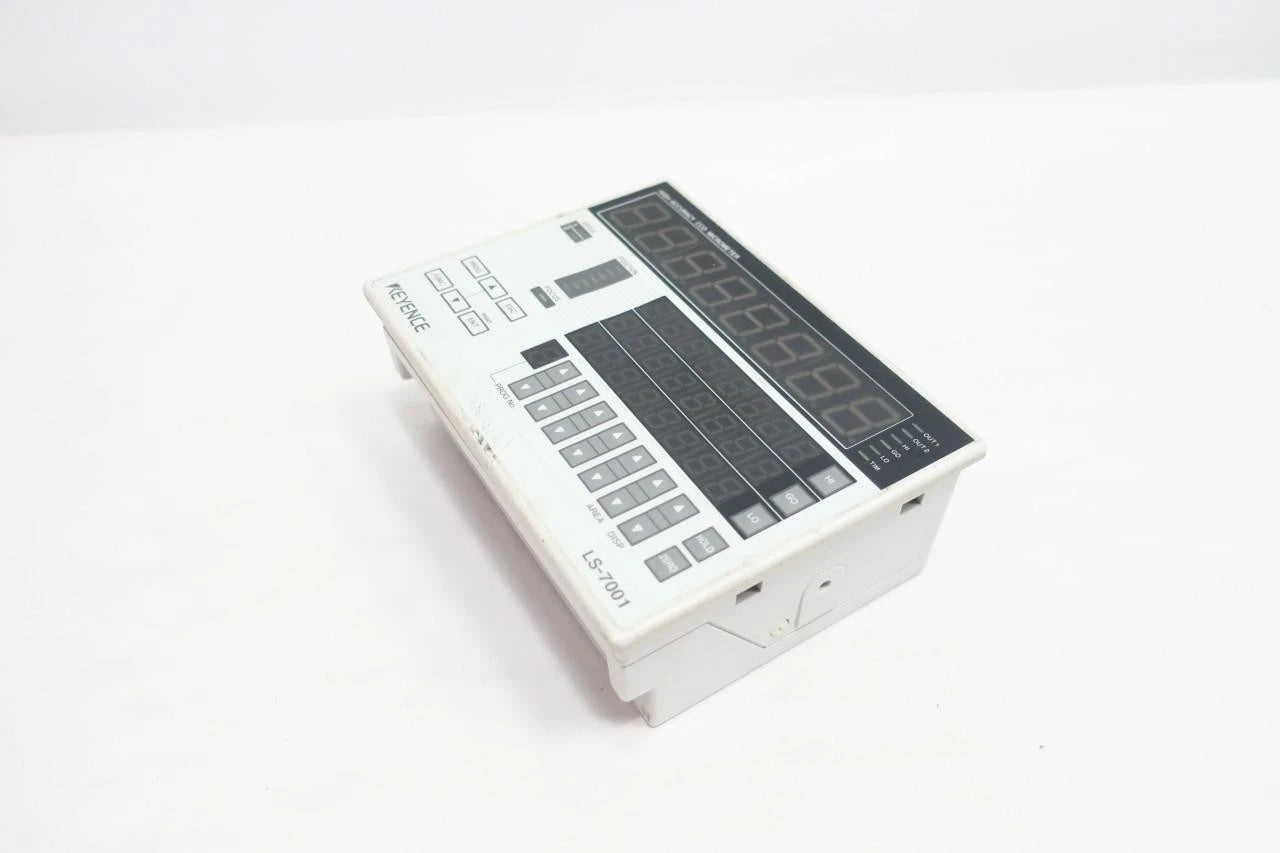

Keyence LS-7001 Digital Micrometer Controller Dual Head CCD Measurement Unit
- Regular price
- $3,199.00
- Sale price
- $3,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LS-7001
Description
The Keyence LS-7001 is a digital micrometer controller designed to process measurement data from compatible CCD micrometer sensor heads. It provides high-precision measurement display and output with dual-channel support for up to two sensor heads. This controller ensures accurate dimensional measurement and real-time monitoring in industrial inspection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | LS-7001 |
| Subcategory | Micrometer Controllers |
| Series | LS Series |
| Controller Type | Digital Micrometer Controller (No Monitor Function) |
| Supported Sensor Heads | 2 |
| Display Type | 7-segment red LED (main and sub displays) |
| Minimum Display Unit | 0.01 µm to 100 µm selectable |
| Display Range | ±99.99999 to ±9999.9 mm |
| Measurement Units | mm, µm, inch, mil |
| Analog Output | ±10 V (2 outputs) |
| Alarm Output | NPN open-collector |
| Communication Interface | RS-232C |
| Program Memory | 16 programs |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Approx. 0.7 A max |
| Protection Rating | IP64 (panel surface) |
| Operating Temperature | 0 to 40°C |
| Relative Humidity | 35 to 85% RH |
| Weight | Approx. 1.81 lbs |
Information About LS-7001
The LS-7001 is part of the Keyence LS Series, engineered for high-accuracy optical micrometer measurement applications. It operates as a controller unit without a built-in monitor function, focusing on precise data processing and output control. The unit supports dual sensor head connections, enabling simultaneous measurement and comparison tasks in automated systems. Designed for integration into production lines, it offers flexible I/O, RS-232C communication, and advanced measurement functions such as averaging, calibration, and tolerance judgment.
Key Features:
- Dual Sensor Head Support: Connects up to two CCD micrometer heads for simultaneous measurement
- High-Precision Display: Provides detailed measurement readout with fine resolution down to 0.01 µm
- Wide Measurement Range: Supports large display ranges for diverse dimensional inspection tasks
- Multi-Unit Measurement: Configurable units including mm, µm, inch, and mil
- 7-Segment LED Display: Clear main and sub displays for real-time monitoring
- Analog Voltage Output: Dual ±10 V outputs for integration with control systems
- NPN Open-Collector Outputs: Supports alarm and judgment output signaling
- RS-232C Communication: Enables data transfer, control I/O, and system integration
- Advanced Measurement Functions: Includes averaging, calibration, auto-zero, and calculation
- Program Memory: Stores up to 16 measurement programs for quick switching
- Comparator and Judgment Functions: Provides multi-level tolerance evaluation
- Industrial Design: Built for panel mounting with stable operation in production environments
The LS-7001 delivers the reliability and precision required for high-accuracy dimensional measurement and industrial quality control systems.
