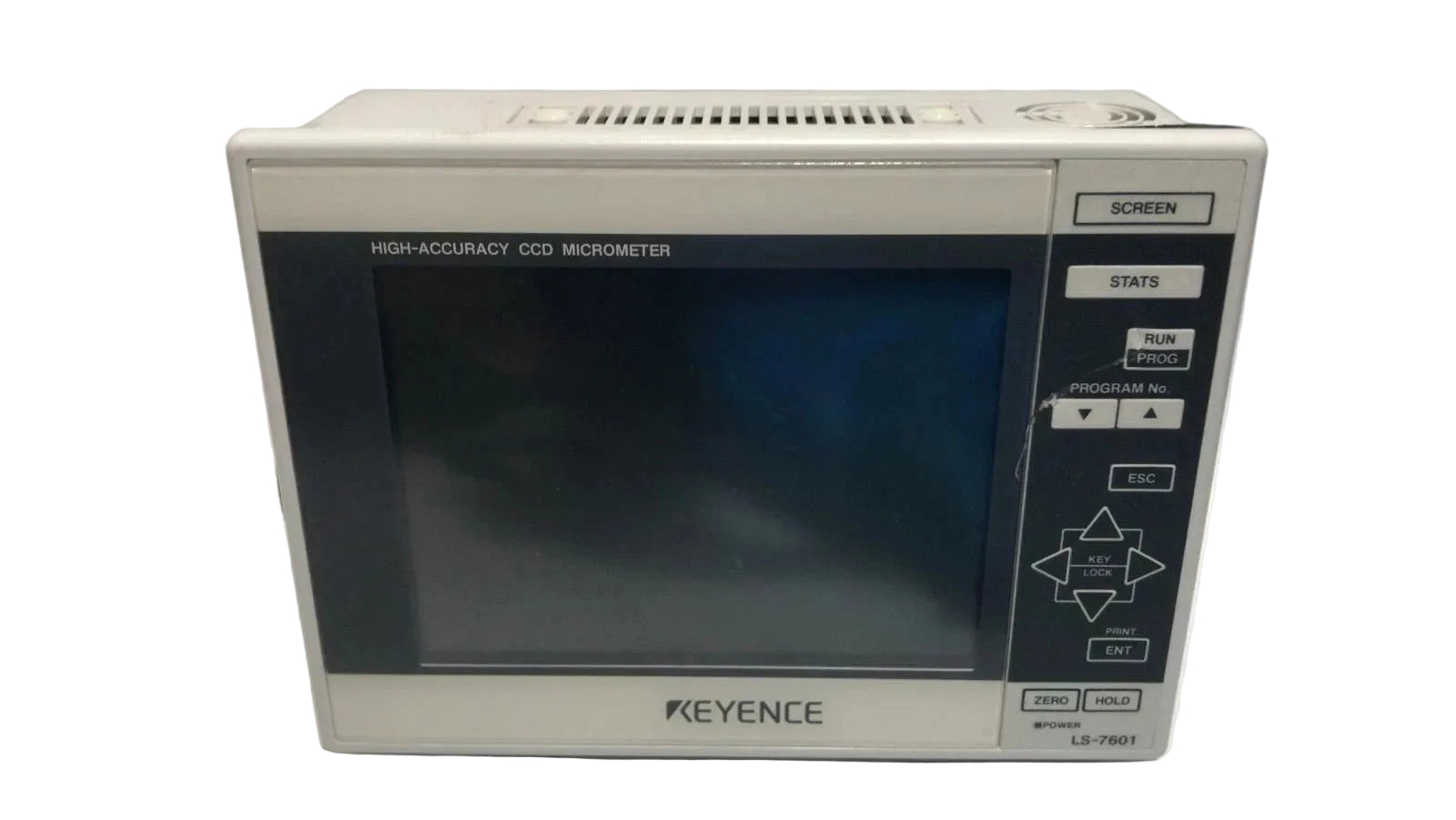

Keyence LS-7601 Laser Micrometer Controller with Monitor TFT Display Dual Head
- Regular price
- $3,122.00
- Sale price
- $3,122.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LS-7601
Description
The Keyence LS-7601 is a high-performance controller with monitor functionality designed for optical and laser micrometer systems. It processes measurement data from connected sensor heads with high precision and displays results on an integrated TFT LCD. The LS-7601 is optimized for real-time dimensional measurement, inspection, and quality control in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Measurement Systems |
| Part Number | LS-7601 |
| Subcategory | Micrometer Controllers |
| Series | LS-7000 Series |
| Display Type | 5.5" TFT LCD |
| Connectable Sensors | Up to 2 heads |
| Minimum Display Unit | 0.01 µm to 100 µm (selectable) |
| Display Range | ±99.99999 to ±9,999.9 mm |
| Analog Output | ±10 V (2 outputs) |
| Digital Outputs | NPN open collector outputs |
| Communication Interface | RS-232C |
| Video Output | NTSC (pin connector) |
| Power Supply | 24 V DC ±10% |
| Power Consumption | Max. 1.2 A |
| Protection Rating | IP64 (panel surface) |
| Operating Temperature | 0°C to +40°C |
| Humidity Range | 35–85% RH (non-condensing) |
| Weight | Approx. 1,010 g |
Information About LS-7601
The LS-7601 is part of Keyence’s LS-7000 series, a family of high-accuracy optical micrometer systems used for non-contact measurement. It supports connection of up to two sensor heads, allowing simultaneous multi-point measurement and advanced analysis. The controller features a built-in 5.5-inch TFT LCD display for real-time monitoring, configuration, and visualization of measurement data. Designed for integration into automated systems, it offers extensive I/O options, statistical processing, and advanced measurement functions for demanding inspection applications.
Key Features:
- Dual Sensor Head Support: Connects up to two micrometer heads for simultaneous measurement
- Integrated TFT Display: 5.5-inch LCD provides real-time visualization and configuration
- High Measurement Resolution: Minimum display unit down to 0.01 µm for precise results
- Wide Display Range: Supports large measurement values with flexible unit selection
- Advanced Measurement Functions: Includes averaging, calibration, and statistical processing
- Multiple Output Options: Analog outputs, comparator outputs, and alarm signals
- High-Speed Processing: Enables real-time measurement and data handling
- Flexible I/O Configuration: Supports trigger, reset, auto-zero, and program selection inputs
- BCD Output Capability: Allows digital data output for external systems
- RS-232C Communication: Enables data transfer and system control
- Monitor Functionality: Displays measurement position and tolerance levels
- Industrial Integration: Designed for automation, inspection, and quality control systems
The LS-7601 delivers the reliability and precision required for high-accuracy dimensional measurement, inspection, and process control applications.
