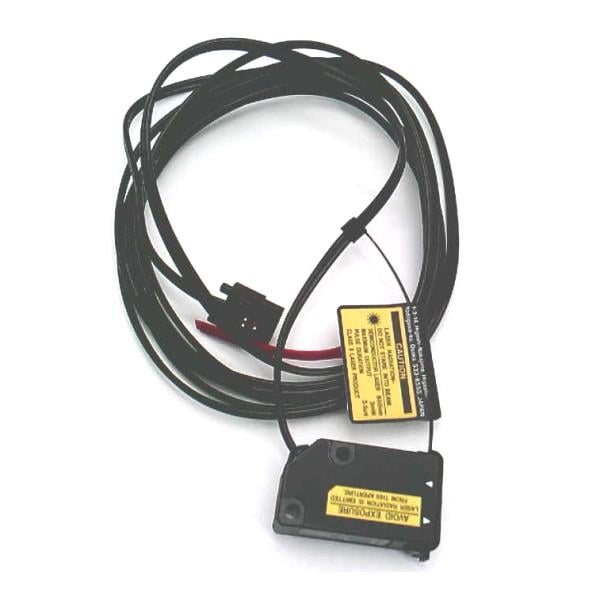

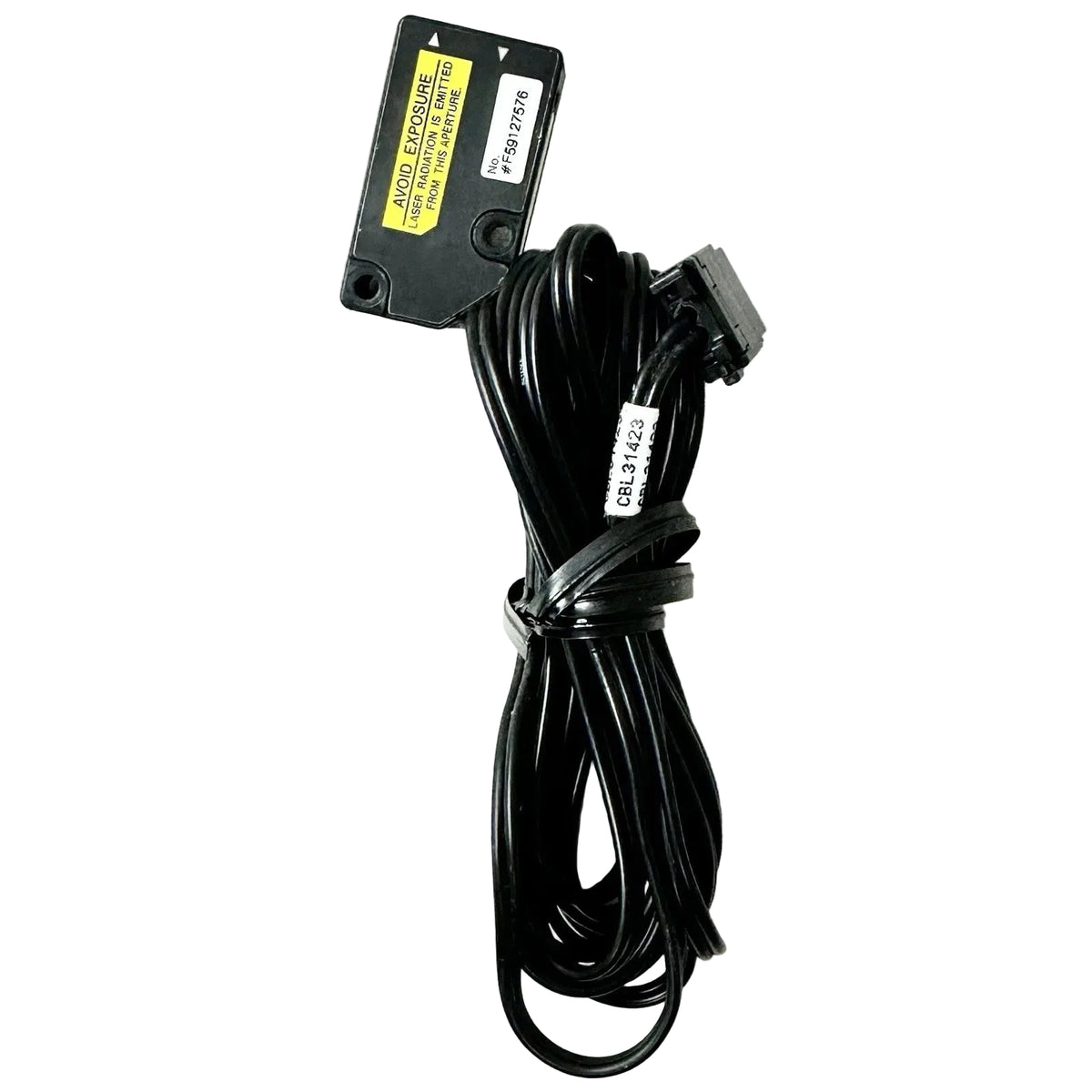

Keyence LV-H42 Long-Distance Area Reflective Laser Sensor Head
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LV-H42
Description
The Keyence LV-H42 is a long-distance, area-type reflective laser sensor head designed for detecting objects across a broad sensing area in industrial automation systems. It uses a visible red 660 nm semiconductor laser and supports detection distances of 250 mm in FINE mode, 500 mm in TURBO mode, and 1000 mm in SUPER mode.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors |
| Part Number | LV-H42 |
| Subcategory | Laser Sensor Heads |
| Sensor Type | Reflective area laser sensor head |
| Detection Mode | Long-distance area |
| Detection Distance | FINE: 250 mm; TURBO: 500 mm; SUPER: 1000 mm |
| Light Source | Red semiconductor laser |
| Wavelength | 660 nm |
| Laser Class | Class 2 |
| Compatible Amplifiers | LV-21A, LV-22A, LV-20A, LV-21AP, LV-22AP |
| Operating Temperature | -10 to +55°C |
| Humidity | 35–85% RH, non-condensing |
| Housing Material | Glass-reinforced plastic |
| Weight | 45 g |
Information About LV-H42
The LV-H42 belongs to the Keyence LV series of digital laser sensors and operates with a compatible LV-series amplifier unit. Its area-beam sensing design supports object detection where target position or orientation may vary within the sensing field. The sensor uses a glass-reinforced plastic housing and a polyarylate lens cover for industrial installation. With selectable sensing modes and a compact sensor-head design, it is suited to presence detection, part positioning, and automated inspection applications.
Key Features:
- Area-Type Detection: Detects targets across a broad sensing area rather than a single narrow point.
- Long Detection Range: Supports distances up to 1000 mm in SUPER mode.
- Visible Laser Source: Uses a red semiconductor laser with a 660 nm wavelength.
- Selectable Sensing Modes: Provides FINE, TURBO, and SUPER operating modes.
- Class 2 Laser: Classified as Class II under FDA CDRH and Class 2 under IEC 60825-1.
- Industrial Construction: Uses a glass-reinforced plastic case and polyarylate lens cover.
- Compact Sensor Head: Weighs approximately 45 g for flexible machine installation.
The LV-H42 delivers the reliability and precision required for long-distance object detection, part positioning, and industrial inspection.
