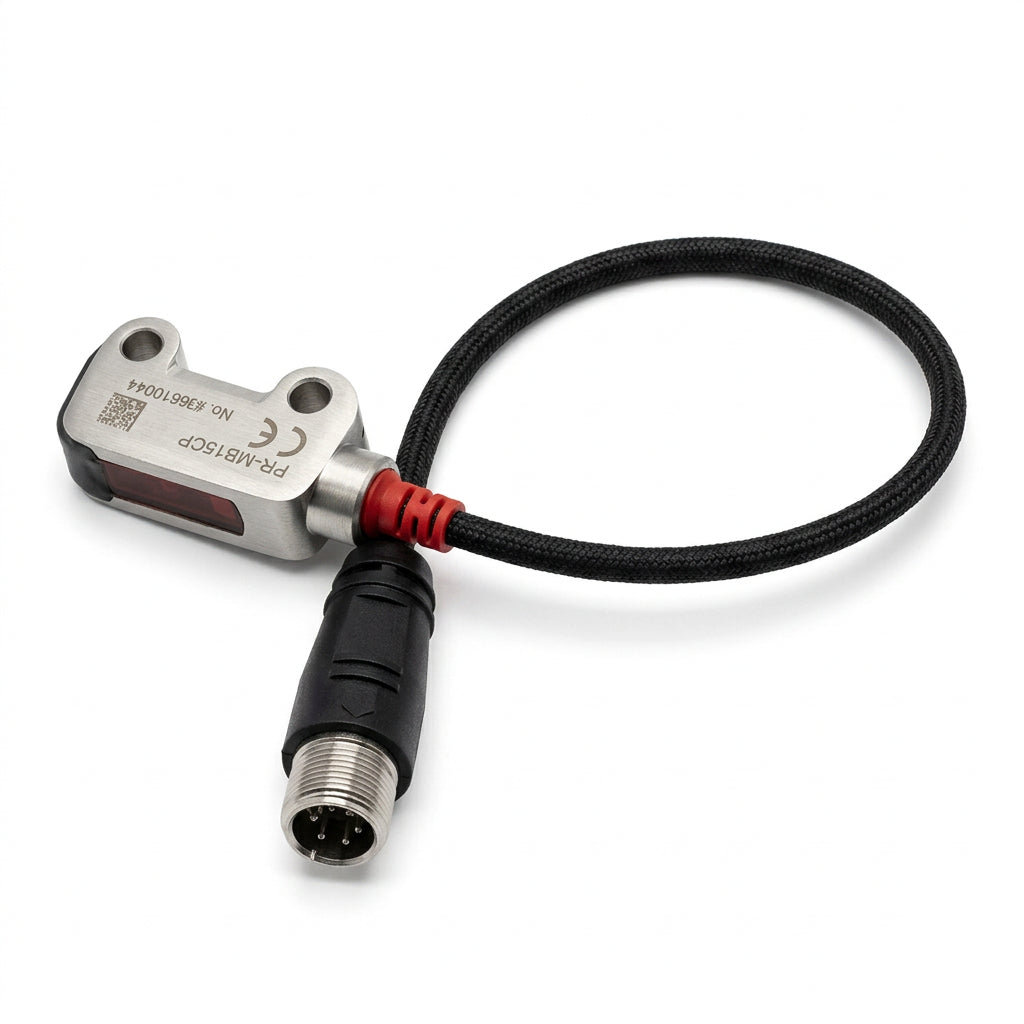

KEYENCE PR-MB15CP Mini-Slim Photoelectric Sensor 15 mm PNP M8 Connector
- Regular price
- $265.00
- Sale price
- $265.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PR-MB15CP
Description
The KEYENCE PR-MB15CP is a compact, mini-slim photoelectric sensor that uses background-suppression reflective detection to identify nearby objects while reducing interference from background surfaces. With a 1–15 mm detection range, fast response, and PNP output, it is designed for precise presence detection and position monitoring in automated machinery and production equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KEYENCE |
| Category | Industrial Automation |
| Part Number | PR-MB15CP |
| Subcategory | Photoelectric Sensors |
| Product Series | PR-M/F Series |
| Product Type | Miniature Reflective Photoelectric Sensor |
| Sensing Method | Reflective with Background Suppression (BGS) |
| Detection Range | 1–15 mm |
| Output Type | PNP Open Collector |
| Number of Control Outputs | 2 |
| Output Operation | Output 1: Light-ON; Output 2: Dark-ON |
| Response Time | Output 1: 0.5 ms; Output 2: 2.7 ms ON-to-OFF / 0.5 ms OFF-to-ON |
| Light Source | Red LED |
| Wavelength | 650 nm |
| Spot Diameter | Approx. 3 mm at 15 mm |
| Connection Type | M8 connector, 4-pin |
| Supply Voltage | 10–30 VDC, including ripple |
| Current Consumption | 19 mA |
| Maximum Control Output | 30 VDC, 50 mA |
| Mutual Interference Prevention | Up to 4 sensors |
| Protection Rating | IP67 / IP69K; NEMA 4X, 6P, 13 |
| Housing Material | SUS316L stainless steel |
| Operating Temperature | -25 to +55 °C, non-freezing |
| Operating Humidity | 35–85% RH, non-condensing |
| Weight | 13 g |
Information About PR-MB15CP
The PR-MB15CP belongs to KEYENCE’s PR-M/F Series of miniature photoelectric sensors and features a reflective sensing design with background suppression (BGS). Its slim housing and four-pin M8 connector allow installation in confined machine spaces and connection to compatible PLCs and industrial control systems. The sensor uses a 650 nm red LED light source and provides two control outputs with separate light-ON and dark-ON operation. Its stainless-steel SUS316L case and IP67/IP69K protection ratings support operation in demanding environments where moisture and frequent cleaning may be present.
Key Feature:
-
Detection Range: Detects objects at distances of 1–15 mm using reflective sensing with background suppression.
-
Sensing Technology: Uses background-suppression technology to distinguish target objects from background surfaces.
-
Light Source: Features a 650 nm red LED with an approximately 3 mm spot diameter at 15 mm.
-
Dual Control Outputs: Provides two PNP outputs with light-ON and dark-ON operation.
-
Fast Response: Output 1 responds in 0.5 ms; Output 2 switches ON-to-OFF in 2.7 ms and OFF-to-ON in 0.5 ms.
-
Compact Connection: Uses a four-pin M8 connector for integration into industrial control systems.
-
Environmental Protection: Features IP67 and IP69K ratings, plus NEMA 4X, 6P, and 13 ratings.
-
Protective Construction: Uses a SUS316L stainless-steel case with protection circuits for reverse polarity, overcurrent, and surges.
The PR-MB15CP delivers the reliability and precision required for close-range object detection and automated positioning in industrial equipment.
