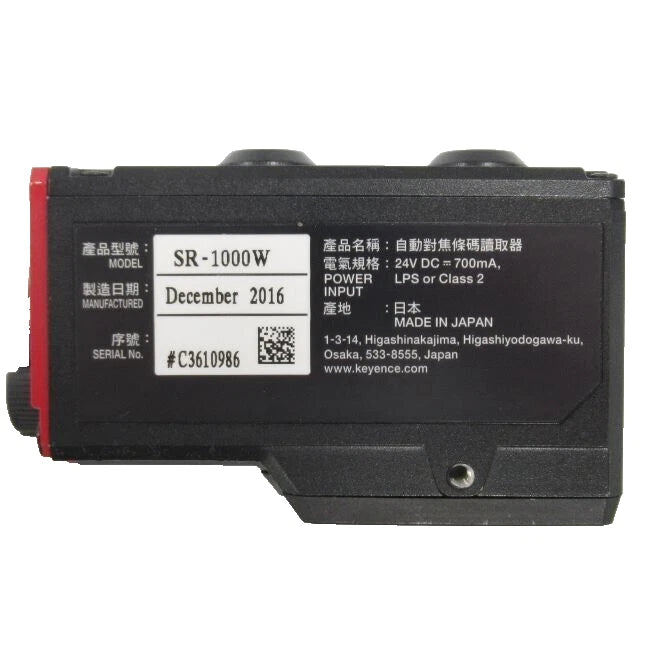

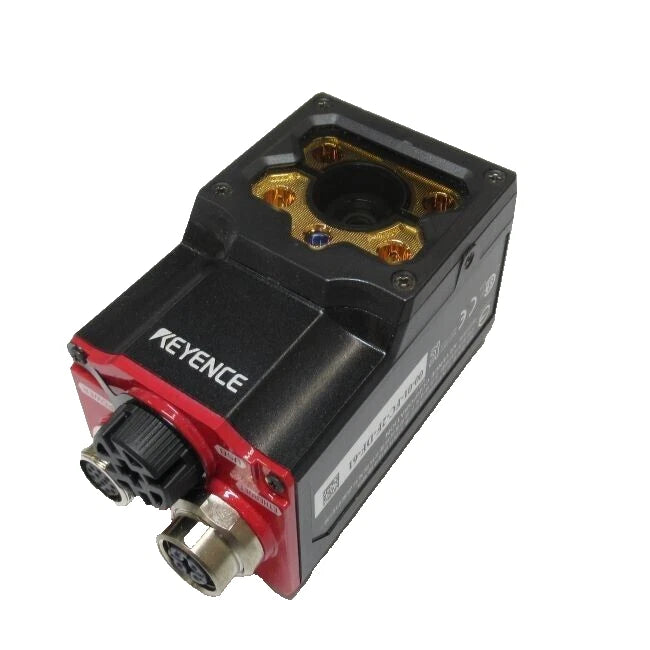

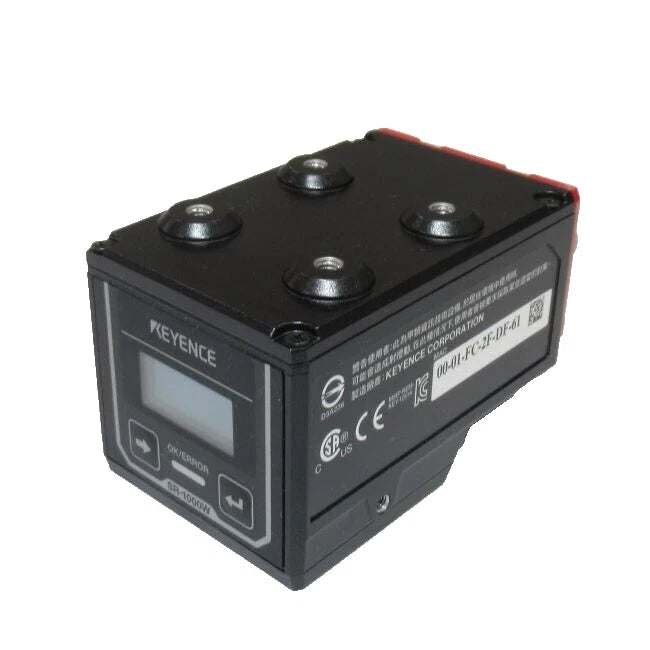

Keyence SR-1000W Autofocus Code Reader Wide Field 2D Barcode Scanner IP65
- Regular price
- $752.00
- Sale price
- $752.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SR-1000W
Description
The Keyence SR-1000W is an automatic focus code reader designed for reliable high-speed decoding of 1D and 2D barcodes in industrial environments. Featuring a wide-field CMOS sensor and autofocus capability, the SR-1000W ensures accurate reading across varying distances and code sizes. It is optimized for stable performance in production lines, logistics, and automated identification systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Data Collection Devices |
| Part Number | SR-1000W |
| Subcategory | Code Readers |
| Sensor Type | CMOS image sensor |
| Resolution | 1280 × 1024 pixels |
| Focus Type | Autofocus |
| Light Source | High-intensity red LED |
| Pointer Light | High-intensity green LED |
| Supported Codes | 1D/2D including QR, DataMatrix, PDF417, CODE128, EAN/UPC |
| Minimum Resolution | 0.082 mm (2D codes) |
| Reading Distance | 50 to 600 mm |
| Field of View | Approx. 257 × 206 mm (at 400 mm) |
| Control Inputs | 2 (bidirectional voltage input) |
| Control Outputs | 3 (photo MOS relay outputs) |
| Communication Interfaces | Ethernet, RS-232C, USB 2.0 |
| Supported Protocols | TCP/IP, FTP, EtherNet/IP, PROFINET |
| Power Supply | 24 V DC ±10% |
| Current Consumption | Approx. 700 mA |
| Protection Rating | IP65 |
| Operating Temperature | 0°C to +45°C |
| Weight | Approx. 200 g |
Information About SR-1000W
The SR-1000W is part of Keyence’s SR-1000 series, developed for advanced barcode reading and data capture in industrial automation. It incorporates a high-resolution CMOS image sensor and integrated illumination to enable consistent decoding under different lighting and surface conditions. The autofocus system allows flexible installation distances without manual adjustment, improving setup efficiency. With multiple communication interfaces and protocol support, the device integrates seamlessly into PLC systems and factory networks for real-time data processing.
Key Features:
- Autofocus Function: Automatically adjusts focus for varying distances and object positions
- Wide-Field Imaging: Captures large reading areas for flexible installation
- High-Resolution Sensor: 1280 × 1024 CMOS sensor for precise code recognition
- Multi-Code Support: Reads QR, DataMatrix, PDF417, MicroQR, and standard barcodes
- High-Speed Decoding: Ensures fast and reliable reading in dynamic production lines
- Integrated Illumination: High-intensity red LED and green pointer for stable operation
- Flexible Reading Distance: Operates effectively from 50 to 600 mm
- Industrial Communication: Supports Ethernet, RS-232C, and USB interfaces
- Multiple Protocol Support: Compatible with TCP/IP, EtherNet/IP, PROFINET, and PLC communication
- Durable Design: IP65-rated enclosure for industrial environments
- Compact and Lightweight: Easy installation in limited spaces
- Stable Performance: Designed for continuous operation under varying ambient light conditions
The SR-1000W delivers the reliability and precision required for automated identification, traceability, and barcode reading in industrial applications.
