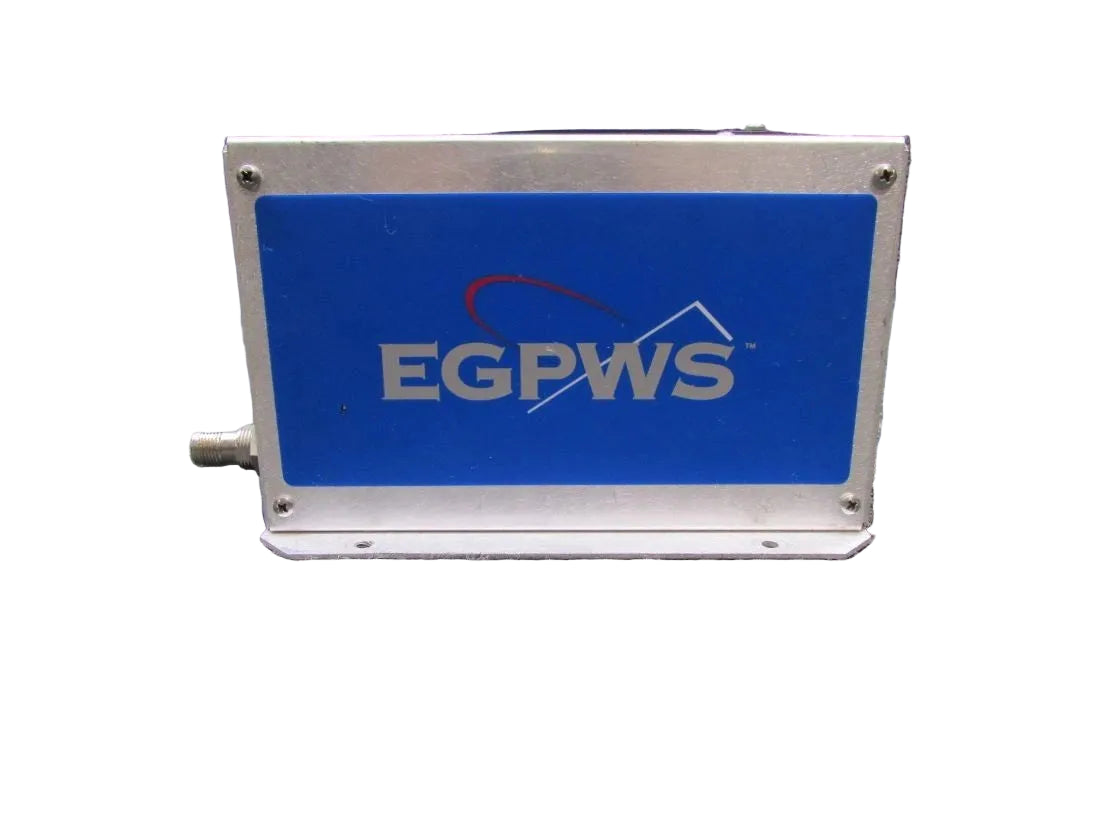

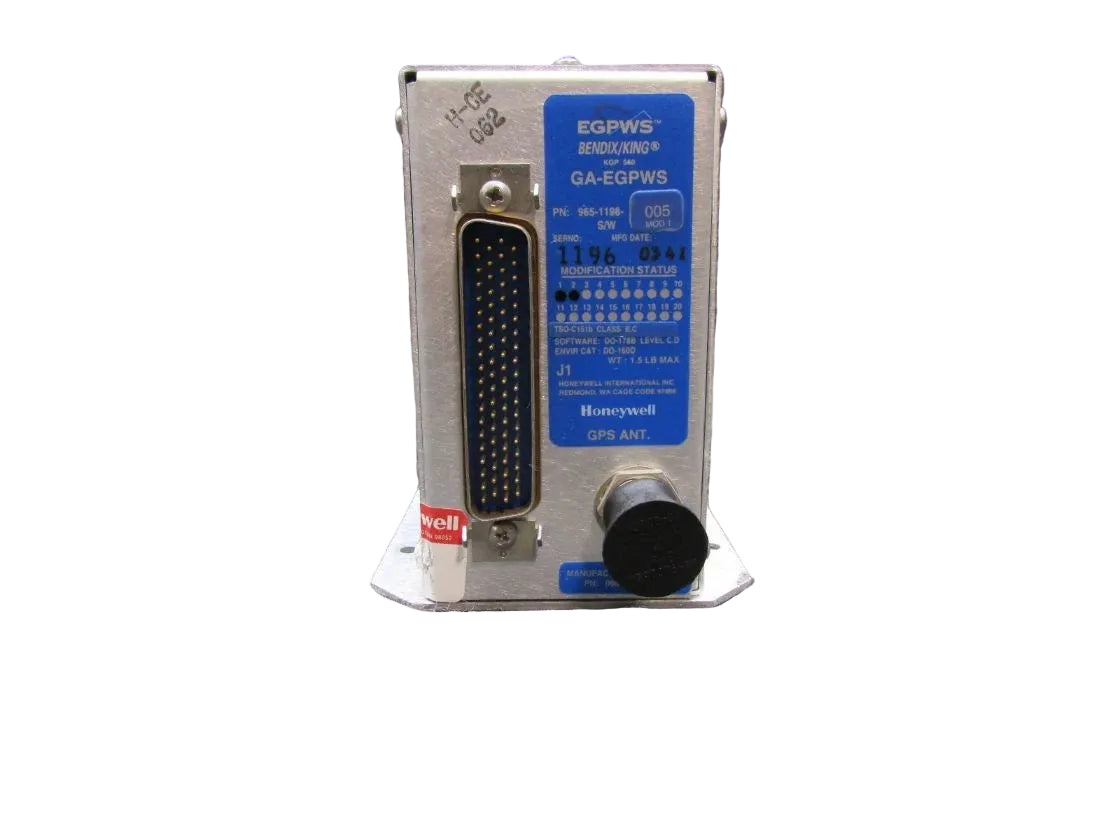

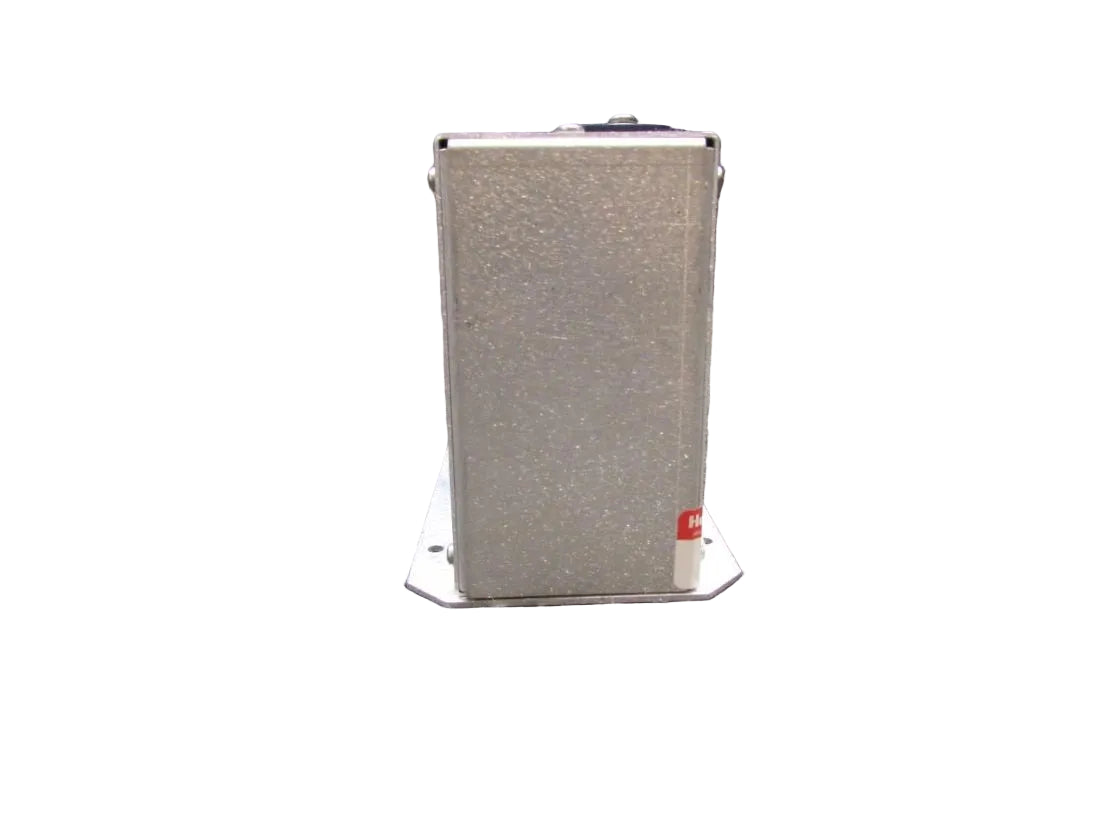

KGP-560 | Honeywell BendixKing TAWS Terrain Awareness Warning System
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KGP-560
Description
The Honeywell BendixKing KGP-560 is a Class B Terrain Awareness and Warning System (TAWS) designed for light turbine and piston aircraft. The KGP-560 provides enhanced ground proximity warning by combining GPS position data with a terrain and obstacle database to alert pilots of potential terrain conflicts. The system enhances situational awareness and helps prevent Controlled Flight Into Terrain (CFIT) incidents by delivering visual and aural alerts based on advanced terrain analysis algorithms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell / BendixKing |
| Model | KGP-560 |
| Product Type | Terrain Awareness and Warning System (TAWS) |
| Application | General Aviation Aircraft |
| Certification | TSO-C151a / C151b Class B TAWS |
| Power Input | 10–32 VDC |
| Temperature Range | -40°C to +55°C |
| Maximum Operating Altitude | 55,000 ft |
| Terrain Display Range | Up to 320 nautical miles |
| Display Outputs | Terrain display, annunciator outputs, aural warnings |
| GPS Interface | Built-in GPS sensor and external GPS input support |
| External Interfaces | RS-232, RS-422, ARINC 743/743A |
| Dimensions | 2.2 in W × 4.15 in H × 6.25 in D |
| Weight | 1.5 lb |
| Database Coverage | Americas, Atlantic, or Pacific regions |
| Installation Type | Aircraft avionics system integration |
Information About KGP-560
The KGP-560 Enhanced Ground Proximity Warning System (EGPWS) incorporates Honeywell’s proven terrain database technology used in commercial aviation systems. It continuously compares aircraft GPS position and altitude with a global terrain database to identify terrain threats and provide early warnings to the pilot.
The unit supports optional terrain display functionality on compatible cockpit displays via KCPB picture bus protocol or ARINC 453/708 interfaces. The system also includes a built-in GPS sensor but can accept external GPS input through RS-232/422 or ARINC 743/743A interfaces.
Additional features include runway field clearance floor protection, altitude monitoring using GPS and barometric altitude comparison, and optional outside air temperature probe integration for improved accuracy in cold weather operations. The system is lightweight, easy to install, and designed specifically for general aviation aircraft.
Key Features:
- Class B TAWS Certification: Meets TSO-C151a and C151b requirements for terrain awareness systems.
- Enhanced Ground Proximity Warning: Provides early terrain and obstacle alerts to prevent CFIT incidents.
- Integrated GPS Receiver: Built-in GPS sensor with support for external GPS data inputs.
- Terrain Display Capability: Supports compatible cockpit displays through KCPB picture bus or ARINC interfaces.
- Worldwide Terrain Database: Updateable terrain database available for multiple global regions.
- Runway Field Clearance Floor (RFCF): Provides terrain and obstacle protection within 5 nm of public runways.
- Multi-Level Alerting: Visual annunciations and aural warnings for terrain caution and warning conditions.
- Six-Color Terrain Display Output: Provides enhanced terrain awareness on compatible displays.
- Altitude Monitoring: Compares GPS and barometric altitude to detect altitude source errors.
- Lightweight and Compact: Designed for easy installation in general aviation aircraft.
