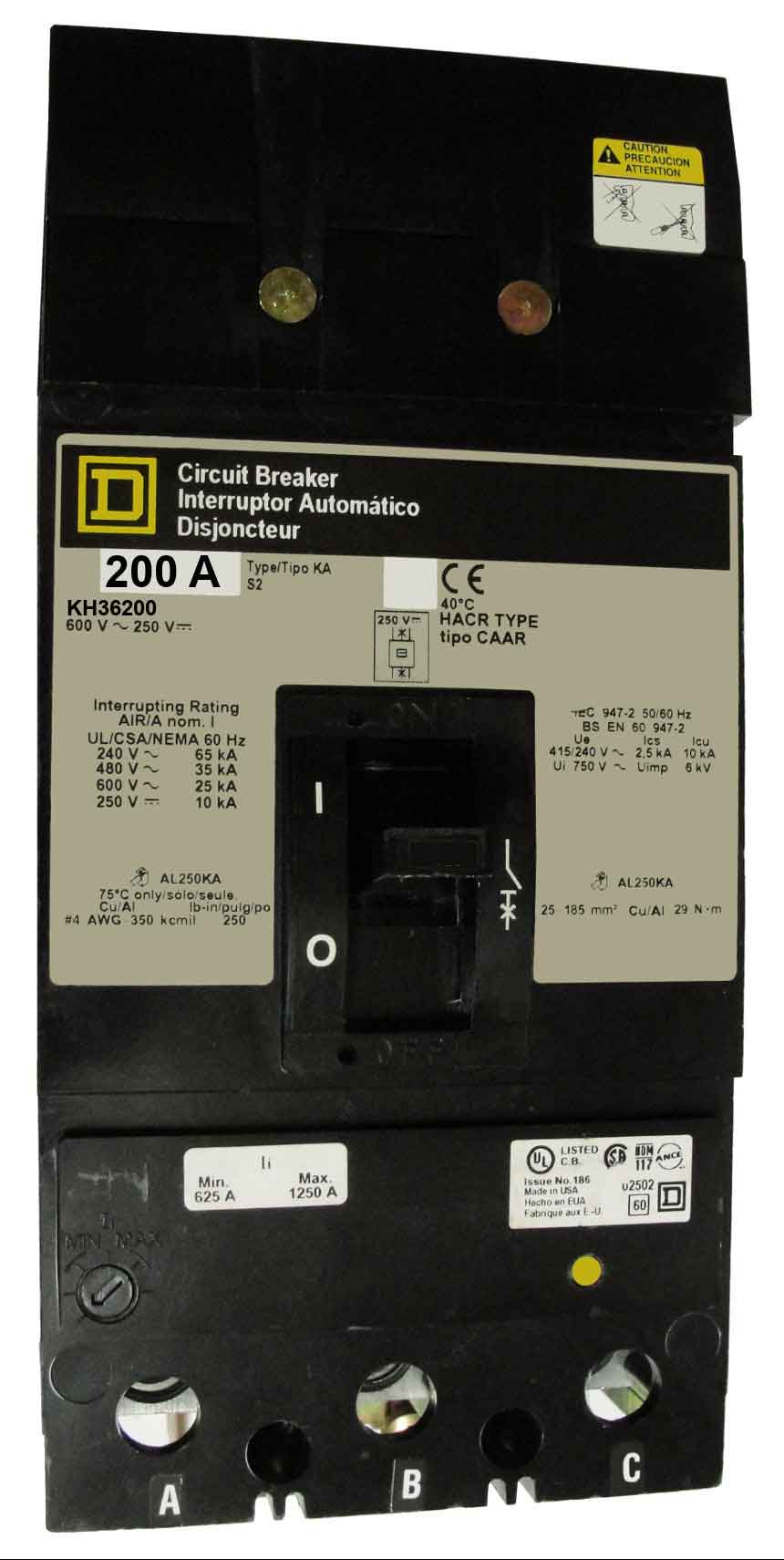

KH36200 | Schneider Electric 200A Three-Pole 600V Thermal Magnetic I-Line Circuit Breaker
- Regular price
- $3,489.00
- Sale price
- $3,489.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KH36200
Description
The Schneider Electric KH36200 is a three-pole thermal magnetic molded case circuit breaker designed for heavy-duty protection in 600V three-phase electrical systems. Its I-Line plug-in design enables quick, secure installation while providing high interrupting capacity for industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | KH36200 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | KH |
| Voltage | 600 V |
| Amperage | 200 A |
| Functions | LI – Long-Time and Instantaneous |
| Connection | I-Line Style Plug-In |
| AIC Rating | 35 kA @ 480 V |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Frame Type | K Frame |
| Phase | 3 |
| Interrupting Capacity | High |
| Mounting Style | Plug-In I-Line Bus Connection |
| Application | Industrial and Commercial Power Distribution |
Information About KH36200
The KH36200 is a molded case circuit breaker within the Schneider Electric I-Line family designed for demanding industrial and commercial electrical systems. Its K-frame construction provides robust mechanical durability and consistent performance during high-load conditions. The breaker features thermal magnetic LI protection, enabling long-time overload response and instantaneous short-circuit tripping to safeguard equipment and distribution infrastructure. With a 200A rating, 600V operational capability, and a 35kA interrupting capacity at 480V, it supports high-fault environments while integrating quickly through the I-Line plug-in mounting interface.
Key Features
- 200A three-pole configuration: Supports balanced protection for 600V three-phase systems.
- Thermal magnetic trip unit: Provides LI long-time and instantaneous fault response for comprehensive circuit protection.
- High interrupting capacity: Rated at 35 kA at 480V, suitable for installations with elevated fault-current levels.
- I-Line plug-in design: Enables fast, secure mounting to I-Line bus bars without traditional bolted connections.
- Durable K-frame construction: Ensures long service life in industrial and commercial environments.
- 600V operating capability: Supports medium-voltage distribution requirements across various applications.
- Three-phase compatibility: Ideal for heavy-load power distribution panels and equipment feeders.
- Molded case protection: Offers strong mechanical integrity and thermal resistance for demanding operating conditions.
The KH36200 delivers the reliability and precision required for high-capacity three-phase protection in industrial and commercial power distribution systems.
