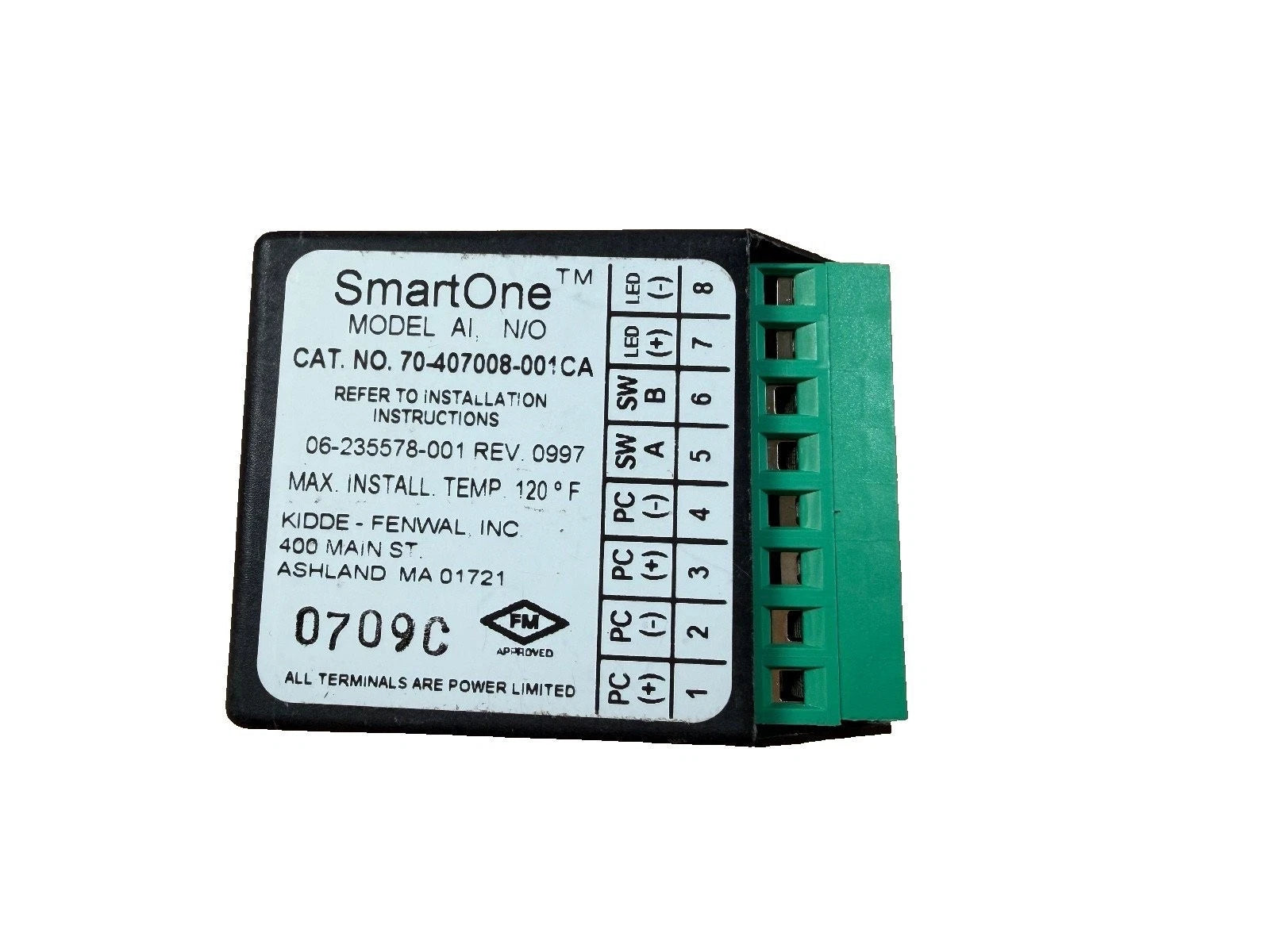

Kidde 70-407008-001 SmartOne AI Normally-Open Addressable Monitor Module
- Regular price
- $772.00
- Sale price
- $772.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 70-407008-001
Description
The Kidde 70-407008-001 is a SmartOne Model AI addressable monitor module designed to connect normally-open, contact-type initiating devices to compatible Kidde intelligent fire alarm systems. It supervises a Class B, Style B initiating device circuit for devices such as manual stations, waterflow switches, and supervisory switches.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Alarm Systems |
| Part Number | 70-407008-001 |
| Subcategory | Addressable Monitor Modules |
| Product Series | SmartOne |
| Model | AI, N/O |
| Product Type | Addressable Monitor Module |
| Input Device Type | Normally-Open Contact Devices |
| Initiating Circuit | Class B, Style B |
| Monitored Devices | Manual Stations, Waterflow Switches, Supervisory Switches |
| End-of-Line Resistor | 10 kΩ |
| Remote LED Support | Yes |
| Remote LED Circuit Rating | 26 VDC Maximum, 7 mA Maximum |
| Maximum Installation Temperature | 120°F |
| Wiring Classification | Power-Limited and Supervised |
| Mounting | Electrical Box of Monitored Device |
| Weight | 5 oz (145 g) |
Information About 70-407008-001
The 70-407008-001 is a Kidde SmartOne Series addressable input module intended for normally-open initiating device applications. Its monitored input interfaces conventional unpowered contact devices with the signaling line circuit of a compatible intelligent control panel. The module is designed for installation inside the electrical box of the device being monitored and provides terminals for the SLC, initiating circuit, and an optional remote LED. Its initiating circuit operates as NFPA Class B/Style B, uses a 10 kΩ end-of-line resistor, and does not support two-wire smoke detectors.
Key Features:
- Normally-Open Monitoring: Interfaces normally-open contact-type initiating devices with an addressable fire alarm system.
- SmartOne Addressability: Provides individually identifiable monitoring through a compatible Kidde SmartOne signaling line circuit.
- Class B Circuit: Supervises an NFPA Class B, Style B initiating device circuit.
- Contact Device Compatibility: Supports devices such as manual stations, waterflow switches, and supervisory switches.
- 10 kΩ EOL Supervision: Uses a 10 kΩ end-of-line resistor to supervise the connected initiating circuit.
- Remote LED Support: Provides dedicated terminals for connection of an optional remote status LED.
- Power-Limited Wiring: All module terminals are designated as power-limited.
- Electrical Box Mounting: Designed to mount in the electrical box associated with the monitored field device.
The 70-407008-001 delivers the reliability and precision required for addressable monitoring of normally-open fire alarm initiating devices.
