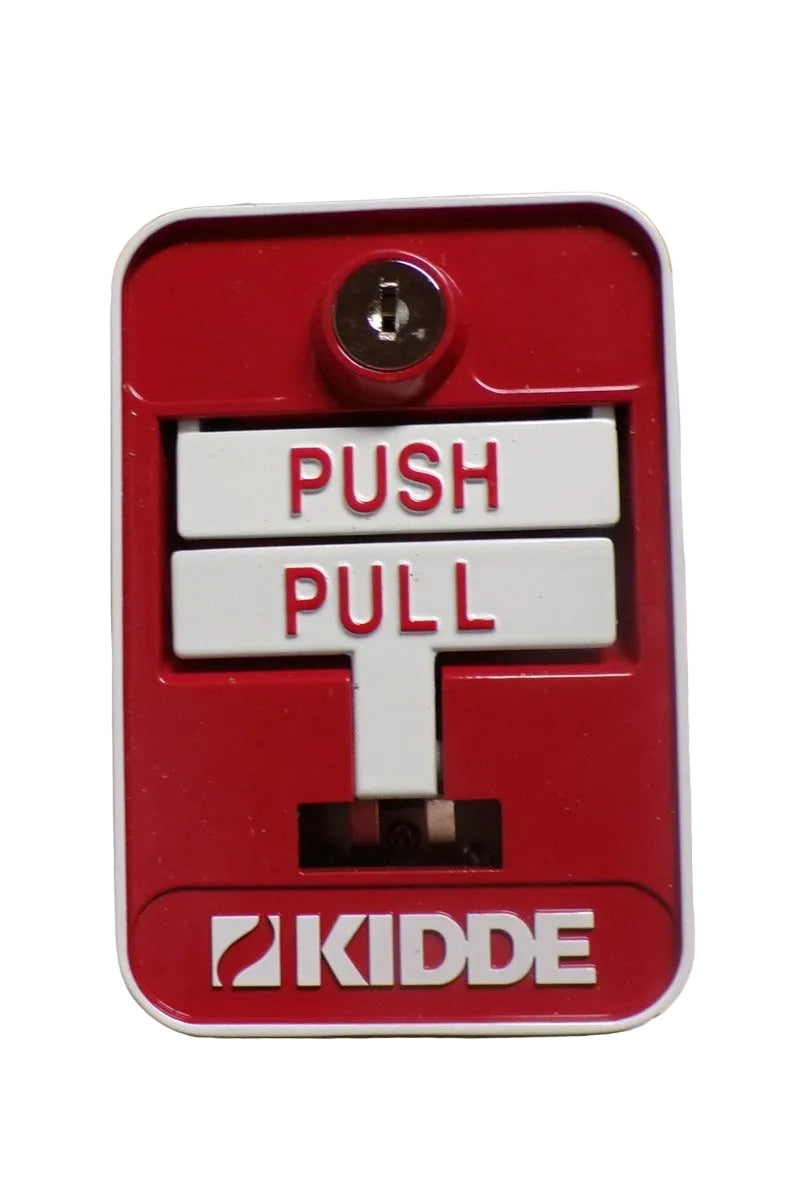

Kidde 84-330001-001 Series 3300 Conventional Dual-Action Pull Station

Description

The Kidde 84-330001-001 is a Series 3300 conventional dual-action manual pull station designed for fire alarm and fire suppression release applications. It uses a toggle-activated SPST switch and includes mounting hardware, two keys, a break rod, and a label set.

Technical Specifications

Information About 84-330001-001

The 84-330001-001 belongs to the Kidde 3300 Series of conventional, non-coded manual stations. The unit uses a single-pole single-throw (SPST) switch rated at 2 A at 240 VAC or 125 VDC. Its die-cast metal housing is designed for use with compatible indoor or outdoor electrical backboxes. The station operates across a -40°F to 150°F temperature range and supports 0–95% relative humidity.

Key Features:

• Dual-Action Operation: Requires two-stage manual operation for activation.
• SPST Switch: Uses a toggle-activated single-pole single-throw switch.
• Switch Rating: Rated at 2 A at 240 VAC or 125 VDC.
• Die-Cast Housing: Provides a durable metal enclosure for the manual station.
• Label Options: Supports Fire Alarm, Fire System Release, Halon 1301, FM-200, FE-13, CO2, and Novec 1230 labels.
• Mounting Hardware: Supplied with hardware for compatible installation.
• Resettable Design: Includes keys for resetting the manual station after activation.
• Environmental Range: Designed for operation from -40°F to 150°F with 0–95% RH.

The 84-330001-001 delivers the reliability and precision required for manual fire alarm and fire suppression system activation.
