Kidde Edwards F-DACT F-Series Dual-Line Fire Alarm Dialer Modem and LCD Module
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F-DACT
Description

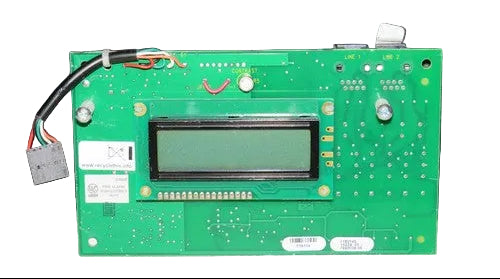

The Kidde Edwards F-DACT is an F-Series multifunction Digital Alarm Communicator Transmitter designed to provide central-station event reporting, modem communications, and LCD display functions for compatible fire alarm control panels. Kidde Edwards part number F-DACT supports single- or dual-line reporting to Digital Alarm Communicator Receivers and enables local or remote computer access for panel programming, status monitoring, and event-history retrieval.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde Edwards |
| Category | Fire Alarm & Life Safety |
| Part Number | F-DACT |
| Subcategory | Digital Alarm Communicators |
| Series | F-Series |
| Product Type | Dual-Line DACT / Dialer / Modem / LCD Module |
| Primary Function | Central-Station Alarm Event Communication |
| Communication Type | Digital Alarm Communicator Transmitter (DACT) |
| Telephone Line Capacity | Dual Line |
| Receiver Reporting | Programmable Single or Dual Reporting to Two DACRs |
| Modem Function | Local and Remote Computer Communications |
| Remote Functions | Configuration Upload/Download, Panel Status and Event History |
| Security Function | Programmable Incoming Access / Callback Security |
| Display | Integrated LCD |
| Operating Modes | DACT/Modem/LCD, Modem/LCD, or LCD Only |
| Operating Voltage | 24 VDC |
| Current Draw | Approx. 65 mA Standby / 107 mA Active |
| Connection | 6-Pin Connector / Telephone Line Interface |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 0–93% RH, Non-Condensing |
| Dimensions | Approx. 4.5 in H × 8 in W × 0.75 in D |
| Primary Application | Fire Alarm Monitoring, Remote Communications and Panel Programming |
| Weight | Approx. 0.8 lb (0.36 kg) |
Information About F-DACT
The F-DACT is an F-Series communications module that combines DACT, modem, and LCD interface capabilities in a compact panel-mounted assembly. As a communicator, it transmits alarm, supervisory, trouble, and other programmed system events over telephone lines to compatible Digital Alarm Communicator Receivers at monitoring facilities, with programmable single or dual reporting to two receivers. Its integrated modem provides local and remote computer connectivity for uploading or downloading panel configuration data and accessing system status and event history, while configurable callback security can restrict unauthorized remote programming. The module can be configured as a DACT/modem/LCD assembly, modem with LCD display, or LCD-only interface depending on the requirements of the compatible F-Series fire alarm installation.
Key Features:
- Digital Alarm Communicator: Transmits programmed fire alarm system events to a compatible Digital Alarm Communicator Receiver at a monitoring facility.
- Dual-Line Capability: Supports two telephone lines for enhanced communications availability and supervised central-station reporting.
- Dual Receiver Reporting: Can be programmed for single or dual reporting to as many as two DACRs.
- Integrated Modem: Provides communications for local and remote computer access to compatible F-Series control panels.
- Upload/Download Support: Allows compatible software to transfer panel configuration and programming data through the modem connection.
- Remote Status Access: Supports retrieval of panel operating status and stored event history from connected computers.
- LCD Display Function: Incorporates an LCD interface for local system information and operation.
- Multiple Operating Modes: Configurable as DACT/modem/LCD, modem/LCD, or LCD-only depending on system requirements.
- Callback Security: Can require communication with a preprogrammed number before remote uploads or downloads are permitted.
- 24 VDC Operation: Designed to operate from the compatible fire alarm panel's nominal 24 VDC power system.
- Compact Panel Module: Measures approximately 4.5 in high by 8 in wide by 0.75 in deep for internal system integration.
- F-Series Integration: Designed as an optional communications and display module for compatible Edwards/Kidde F-Series fire alarm control equipment.
The F-DACT delivers the reliability and precision required for central-station fire alarm reporting, remote panel communications, programming access, and system status monitoring.
