Kidde Edwards WG4WF-SVMHC Genesis WG4 Outdoor High-Output FIRE Speaker-Strobe
- Regular price
- $259.00
- Sale price
- $259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WG4WF-SVMHC
Description
The Kidde Edwards WG4WF-SVMHC is a Genesis WG4 Series outdoor speaker-strobe designed for audible and visual fire alarm notification in indoor, outdoor, wet, and harsh environments. Kidde Edwards part number WG4WF-SVMHC combines a dual-voltage 25/70 V speaker with a high-output clear xenon strobe offering selectable 102, 123, 147, or 161 candela settings for wall or ceiling installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde Edwards |
| Category | Fire Alarm & Life Safety |
| Part Number | WG4WF-SVMHC |
| Subcategory | Speaker Strobes |
| Series | Genesis WG4 Series |
| Product Type | Outdoor Fire Alarm Speaker-Strobe |
| Housing Color | White |
| Marking | FIRE |
| Lens Color | Clear |
| Light Source | Xenon Strobe |
| Strobe Output | High Output, Multi-Candela |
| Selectable Candela | 102 / 123 / 147 / 161 cd |
| Speaker Voltage | 25 V or 70 V, Field Selectable |
| Speaker Power Taps | 1/4 W / 1/2 W / 1 W / 2 W |
| Sound Output Range | Approx. 81–90 dBA at 10 ft, Depending on Tap and Voltage |
| Strobe Voltage | 24 VDC / Compatible FWR Notification Circuit |
| Strobe Current Range | Approx. 324–496 mA VDC; 412–646 mA FWR, Depending on Setting |
| Mounting | Wall or Ceiling |
| Application Rating | Indoor / Outdoor / Wet Location |
| Operating Temperature | -31 to 151 °F (-35 to 66 °C) |
| Wiring Range | 18–12 AWG (0.75–2.5 mm²) |
| Synchronization | Genesis Compatible / UL 1971 Synchronization |
| Approximate Dimensions | 8.6 × 5.6 × 2.3 in |
| Listings | UL / ULC / CSFM |
| Weight | Approx. 1.5 lb (0.68 kg) |
Information About WG4WF-SVMHC

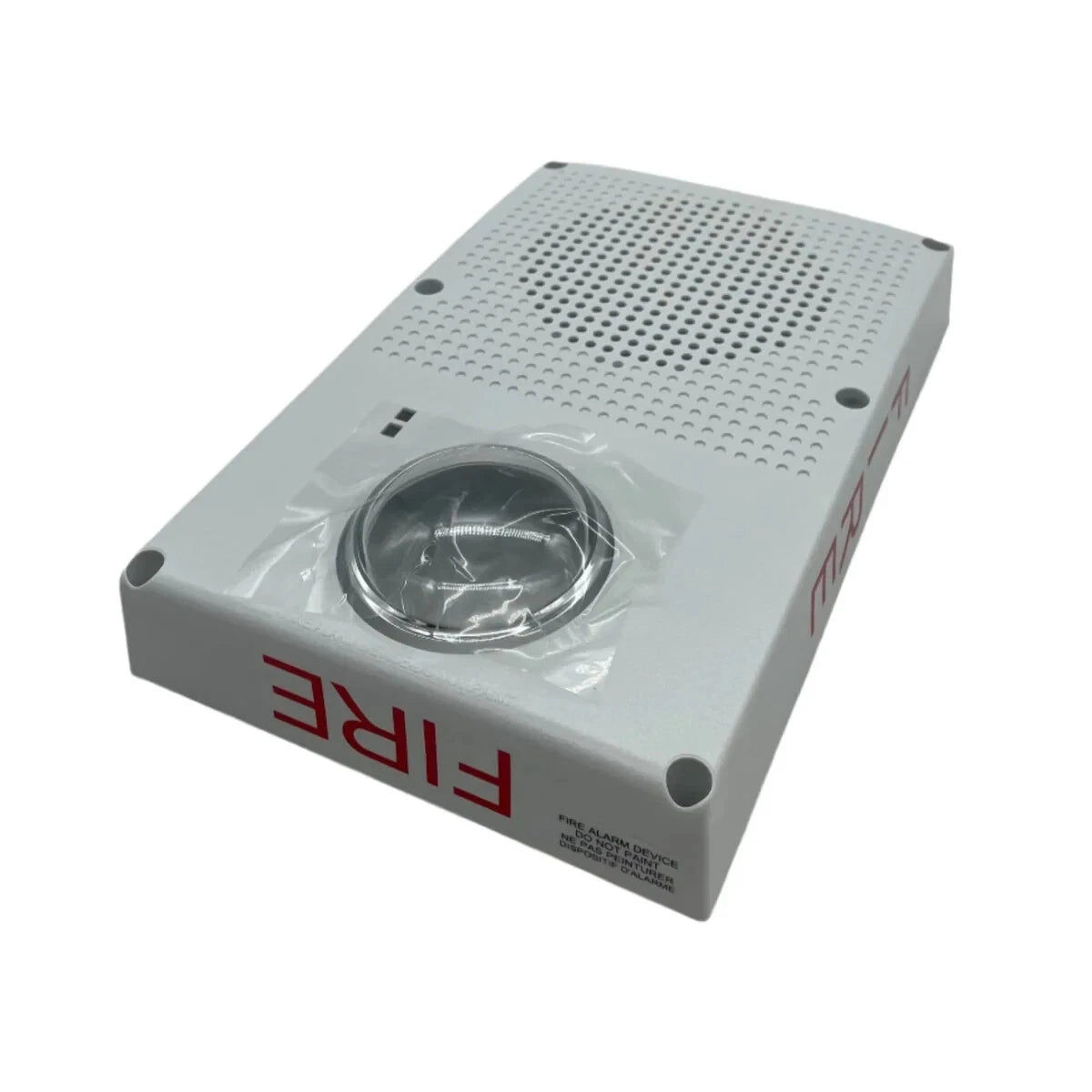

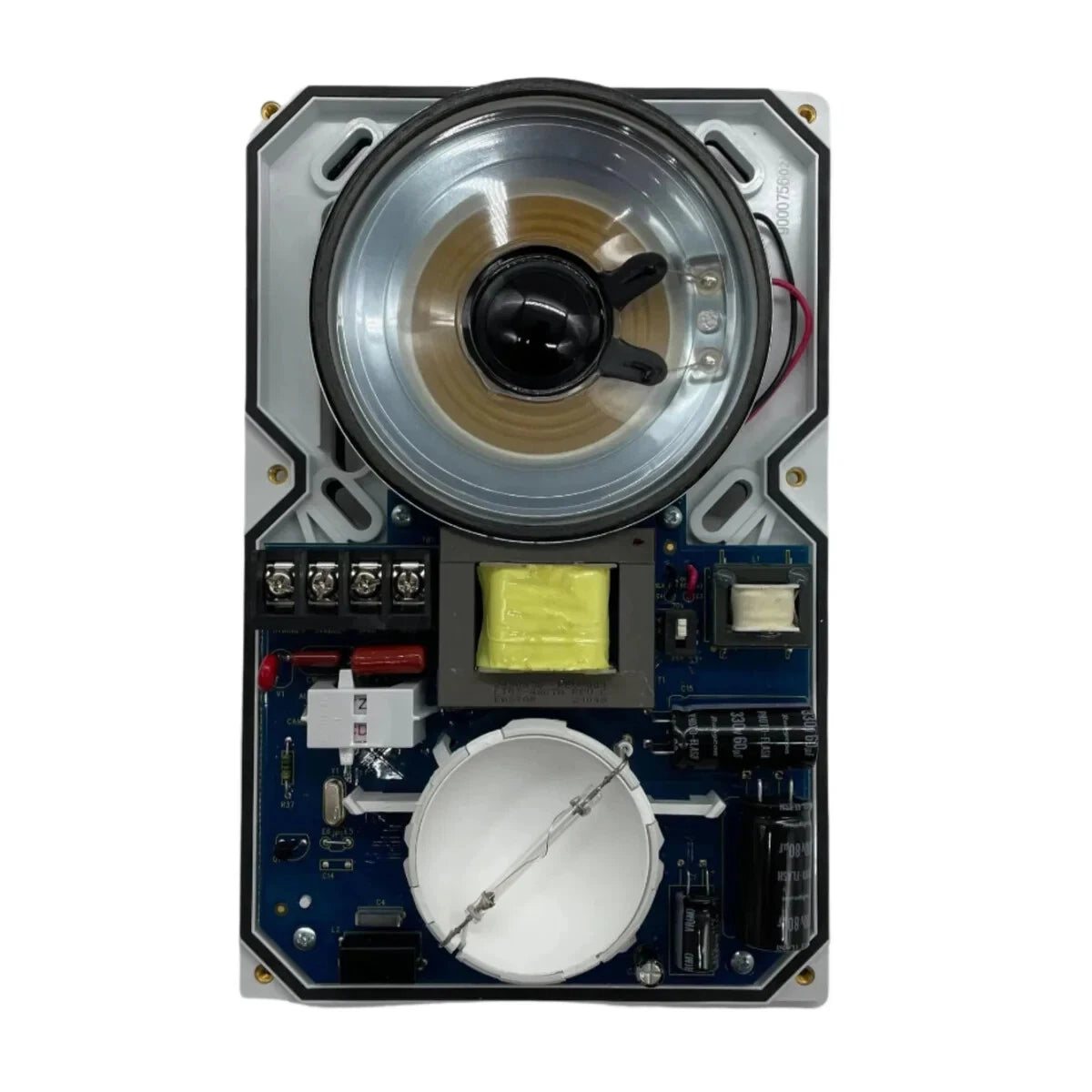

The WG4WF-SVMHC is a Genesis WG4 Series fire alarm speaker-strobe built for life-safety notification applications requiring weather-resistant construction and high visual output. Its white low-profile housing carries a FIRE marking and incorporates a clear-lens xenon strobe, mylar-cone loudspeaker, full backplane sealing gasket, and room-side wiring terminals. The speaker supports field-selectable 25 V or 70 V operation with 1/4, 1/2, 1, and 2 W power taps, while the strobe provides four selectable high-output candela levels and compatibility with Genesis synchronization protocols. The appliance is suitable for wall or ceiling mounting, supports recessed or compatible outdoor surface boxes, and operates across a wide temperature range for locations such as parking structures, industrial process areas, loading facilities, and other demanding fire alarm environments.
Key Features:
- Indoor/Outdoor Construction: Designed for fire alarm signaling in indoor, outdoor, wet, and harsh environmental applications.
- High-Output Strobe: Provides field-selectable 102, 123, 147, or 161 cd UL 1971 equivalent light output with a clear lens.
- Dual-Voltage Speaker: Supports field-selectable 25 V or 70 V speaker circuits for compatibility with common fire alarm voice systems.
- Selectable Power Taps: Speaker output can be configured for 1/4, 1/2, 1, or 2 W operation.
- High-Intelligibility Speaker: Uses an efficient mylar-cone loudspeaker designed for clear emergency voice and audible signaling.
- Genesis Synchronization: Strobe timing is compatible with Genesis synchronization protocols for coordinated visual notification.
- Xenon Light Source: Uses a high-intensity xenon flash tube for visible fire alarm notification.
- Wide Temperature Range: Rated for operation from -31 to 151 °F (-35 to 66 °C).
- Wall or Ceiling Installation: Listed for either wall-mounted or ceiling-mounted applications.

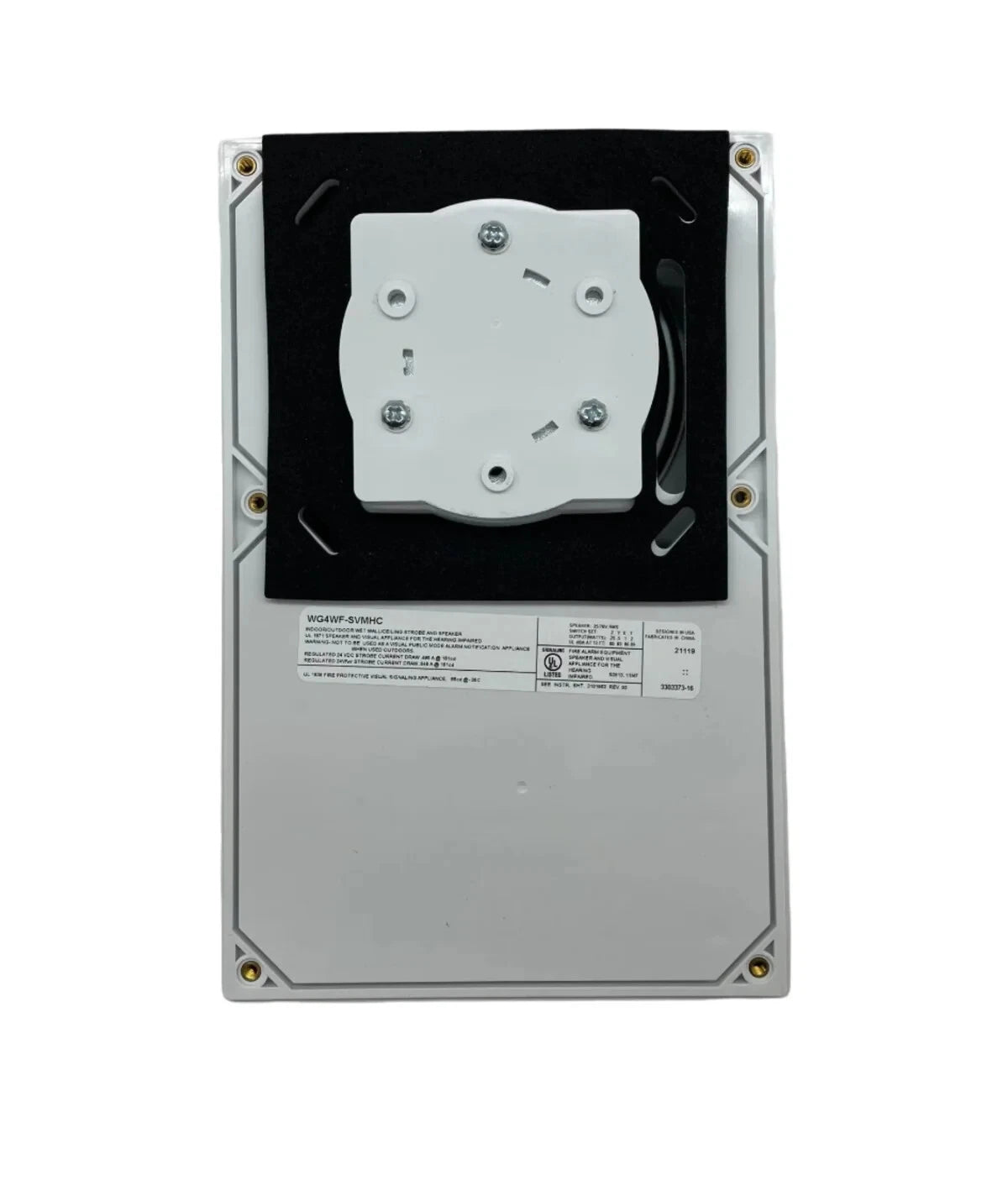

- Sealed Backplane Design: Full backplane gasket supports installation in demanding environments and suitable recessed electrical boxes.
- Room-Side Wiring: Terminals accept 18–12 AWG conductors and allow wiring connections from the front during installation.
- Visible Configuration Settings: Speaker wattage and strobe candela selections can be checked after installation through the sealed viewport.
The WG4WF-SVMHC delivers the reliability and precision required for high-output audible and visual fire alarm notification in indoor, outdoor, and harsh-environment life-safety systems.
