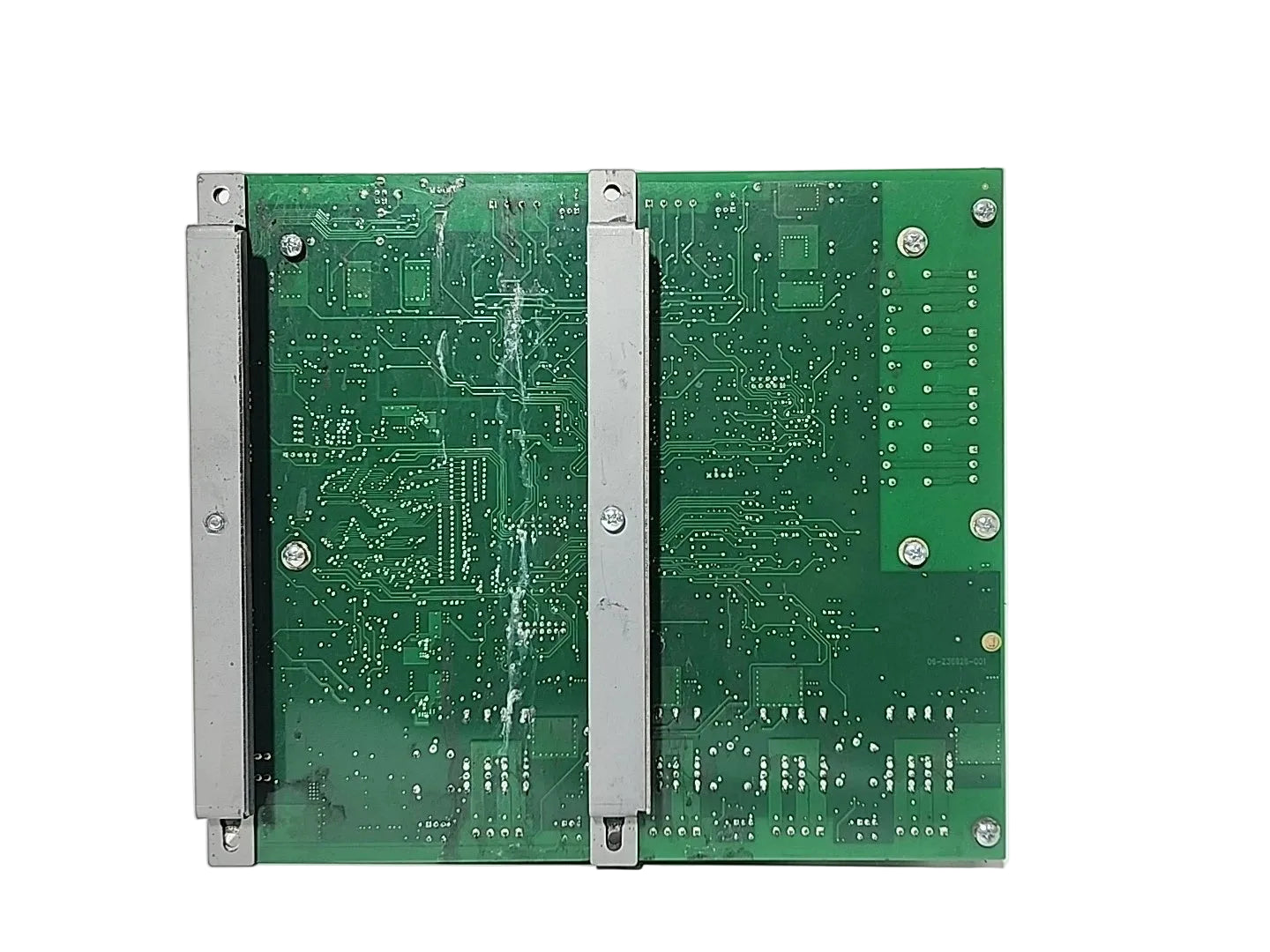

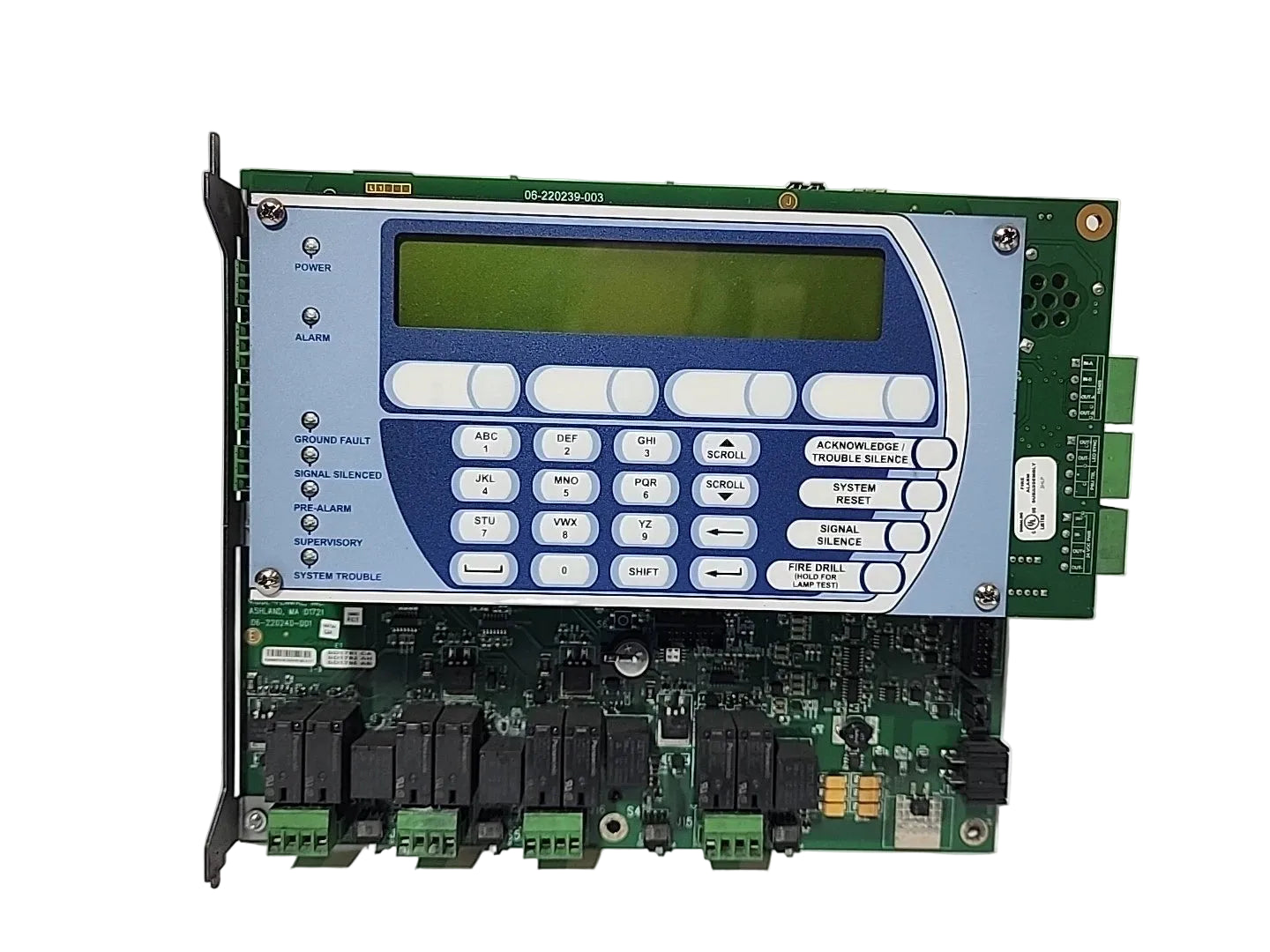

Kidde-Fenwal 06-220240-001 ARIES-NETLink Main Controller Board with LCD
- Regular price
- $447.00
- Sale price
- $447.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 06-220240-001
Description
The Kidde-Fenwal 06-220240-001 is the main controller board with integrated user interface for the ARIES-NETLink fire alarm and suppression control system. It combines CPU processing, primary control circuits, a built-in LCD display and keypad, notification circuits, programmable relays, and communication interfaces on a 24 VDC assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm & Suppression Systems |
| Part Number | 06-220240-001 |
| Subcategory | Main Controller Boards |
| Product Series | ARIES-NETLink |
| Product Type | Main Controller Board with User Interface |
| Controller Function | CPU and Primary Control Circuits |
| Operating Voltage | 24 VDC |
| Operator Interface | Built-In Keypad and LCD Display |
| Signaling / Notification Circuits | 2 |
| Programmable Relays | 3 |
| Trouble Relays | 1 |
| Serial Ports | 2 × RS-232 |
| Annunciator Port | 1 × RS-485 |
| USB Ports | 2 |
| Application | ARIES-NETLink Fire Protection Control System |
| Weight | 2.00 lb (0.91 kg) |
Information About 06-220240-001
The 06-220240-001 is a Kidde-Fenwal ARIES-NETLink main controller board designed to provide central processing and operator-interface functions within a compatible fire protection control system. Its assembly incorporates the CPU and primary circuitry together with an integrated LCD display and keypad, allowing local system status viewing and operator interaction. The board provides two signaling/notification circuits, three programmable relays, one dedicated trouble relay, and multiple serial communication interfaces for connection with compatible system equipment. Communication capabilities include two RS-232 serial ports, one RS-485 annunciator port, and two USB ports for system interfacing and service functions.
Key Features:
- Main Controller Architecture: Houses the CPU and primary control circuitry for the ARIES-NETLink system.
- Integrated User Interface: Includes a built-in keypad and LCD display for local status indication and operator functions.
- 24 VDC Operation: Designed around a 24 VDC fire protection control system architecture.
- Dual Signaling/Notification Circuits: Provides two circuits for compatible signaling and notification functions.
- Programmable Relays: Incorporates three programmable relays for configurable auxiliary control functions.
- Dedicated Trouble Relay: Provides one separate relay for system trouble signaling.
- RS-232 Communications: Includes two serial RS-232 ports for compatible communication and system interfaces.
- RS-485 and USB Connectivity: Provides one RS-485 annunciator port and two USB ports for peripheral and service connectivity.
The 06-220240-001 delivers the reliability and precision required for centralized processing, operator control, notification management, and system communication in compatible fire protection systems.
