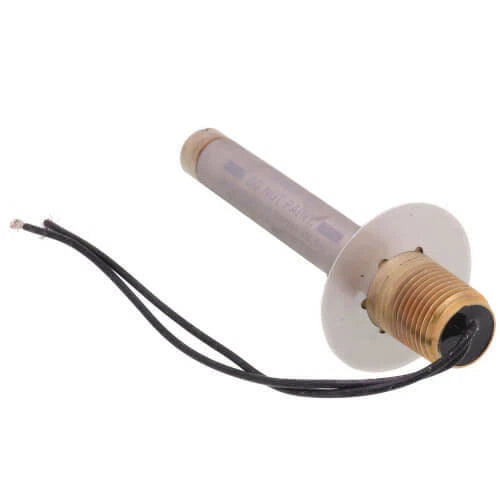

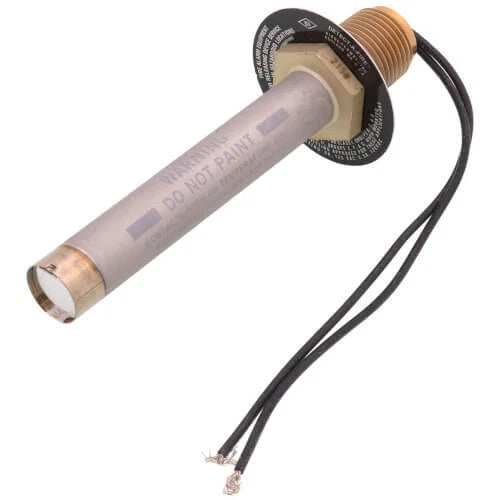

Kidde-Fenwal 12-E27120-000-05 DETECT-A-FIRE 225°F Heat Detector000-05 AEGIS Fire Alarm Control Panel Main PCB Board (Copy)
- Regular price
- $489.00
- Sale price
- $489.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 12-E27120-000-05
Description
The Kidde-Fenwal 12-E27120-000-05 is a DETECT-A-FIRE rate-compensated heat detector with a factory-set 225°F activation temperature and contacts that open on temperature rise. Designed for vertical mounting, it provides temperature-responsive switching for fire detection, alarm initiation, and suppression-system release applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Detection Systems |
| Part Number | 12-E27120-000-05 |
| Subcategory | Heat Detectors |
| Product Series | DETECT-A-FIRE |
| Product Type | Rate-Compensated Heat Detector |
| Temperature Set Point | 225°F |
| Contact Operation | Open on Temperature Rise |
| Contact Configuration | SPST, Normally Closed |
| Mounting Orientation | Vertical |
| Shell Material | 300-Series Stainless Steel |
| Mounting Head | Hex Brass |
| Temperature Tolerance | +7°F / -8°F |
| Contact Rating | 5 A at 125 VAC; 0.5 A at 125 VDC |
| Mounting Connection | 1/2-14 NPT |
| Approximate Dimensions | 4.9 × 0.625 in |
| Application | Fire Detection, Alarm and Suppression Release |
| Weight | 2.00 lb (0.91 kg) |
Information About 12-E27120-000-05
The 12-E27120-000-05 is a Kidde-Fenwal DETECT-A-FIRE thermal detection device designed for fixed-temperature fire protection applications. Its rate-compensated operating principle responds to the surrounding air temperature while reducing the response lag associated with conventional fixed-temperature detectors. The detector uses a 300-series stainless-steel shell, hex brass mounting head, and hermetically sealed internal contact area for operation in demanding installations. This configuration is vertically mounted, factory set at 225°F, and uses normally-closed SPST contacts that open when the activation temperature is reached.
Key Features:
- 225°F Set Point: Factory configured to activate at a nominal temperature of 225°F.
- Open-on-Rise Operation: Normally-closed contacts open when the specified activation temperature is reached.
- Rate-Compensated Detection: Responds according to surrounding temperature while providing fast operation during rapidly developing heat conditions.
- SPST Contact Configuration: Uses a single-pole, single-throw switching arrangement for alarm or suppression control circuits.
- Vertical Mounting: Configured specifically for installation in the vertical orientation.
- Stainless-Steel Shell: Uses a 300-series stainless-steel outer shell for mechanical and environmental protection.
- Brass Mounting Head: Incorporates a hexagonal brass mounting head for secure installation.
- Temperature Tolerance: Specified with a +7°F/-8°F operating tolerance around the nominal set point.
The 12-E27120-000-05 delivers the reliability and precision required for fixed-temperature fire detection and suppression-system initiation.
