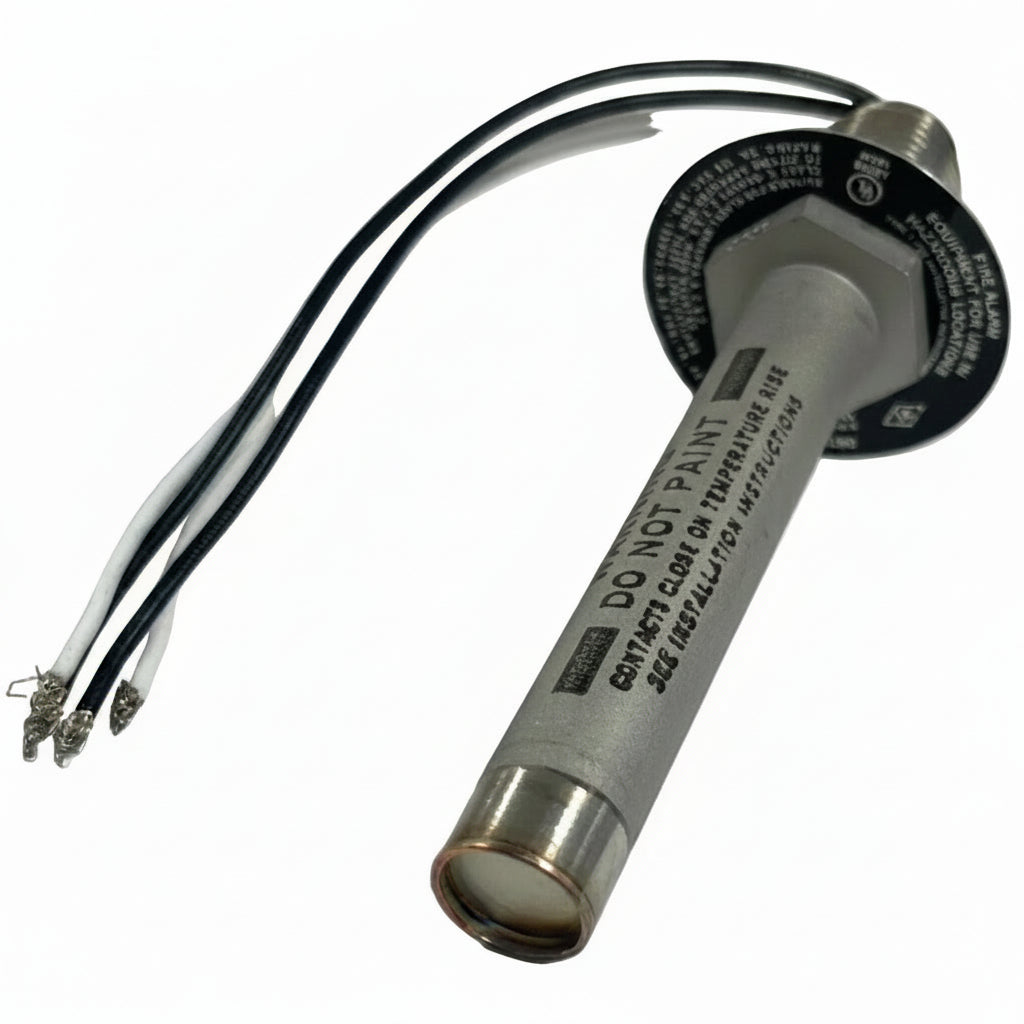

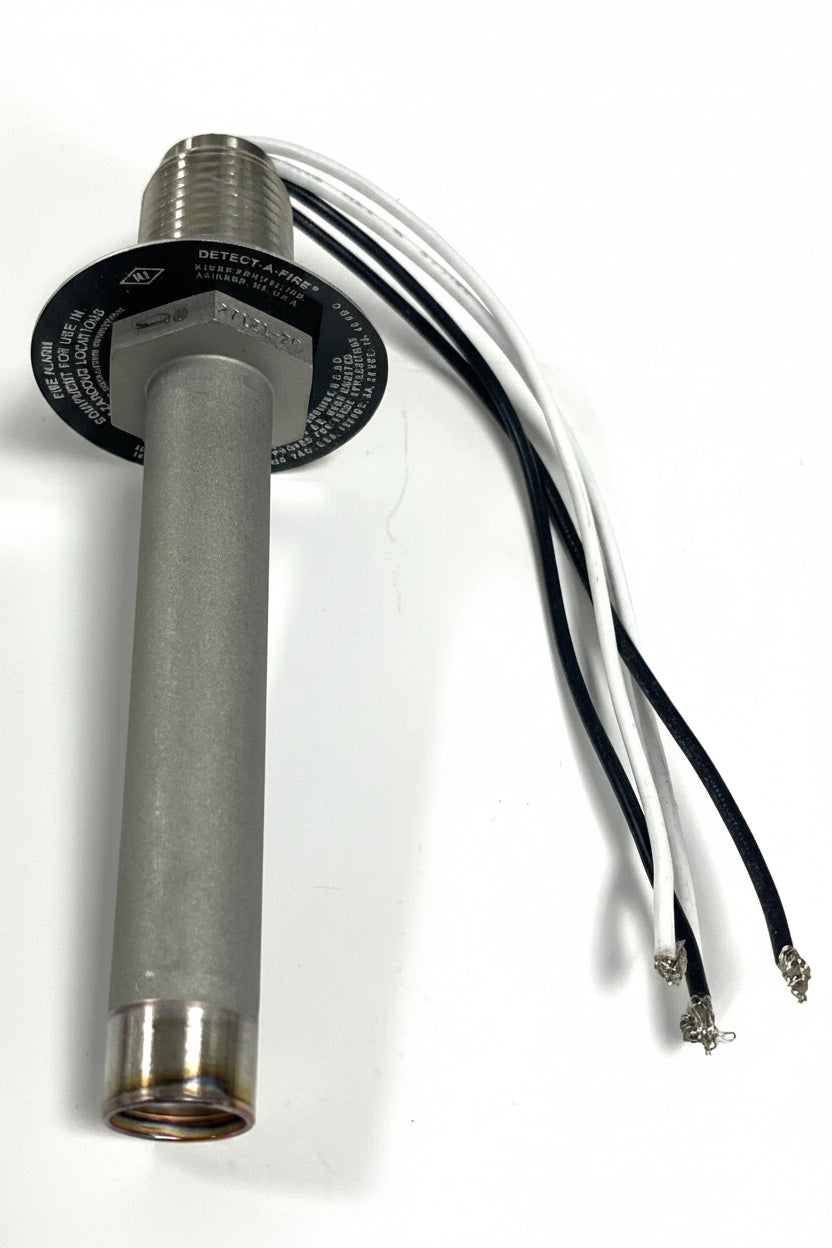

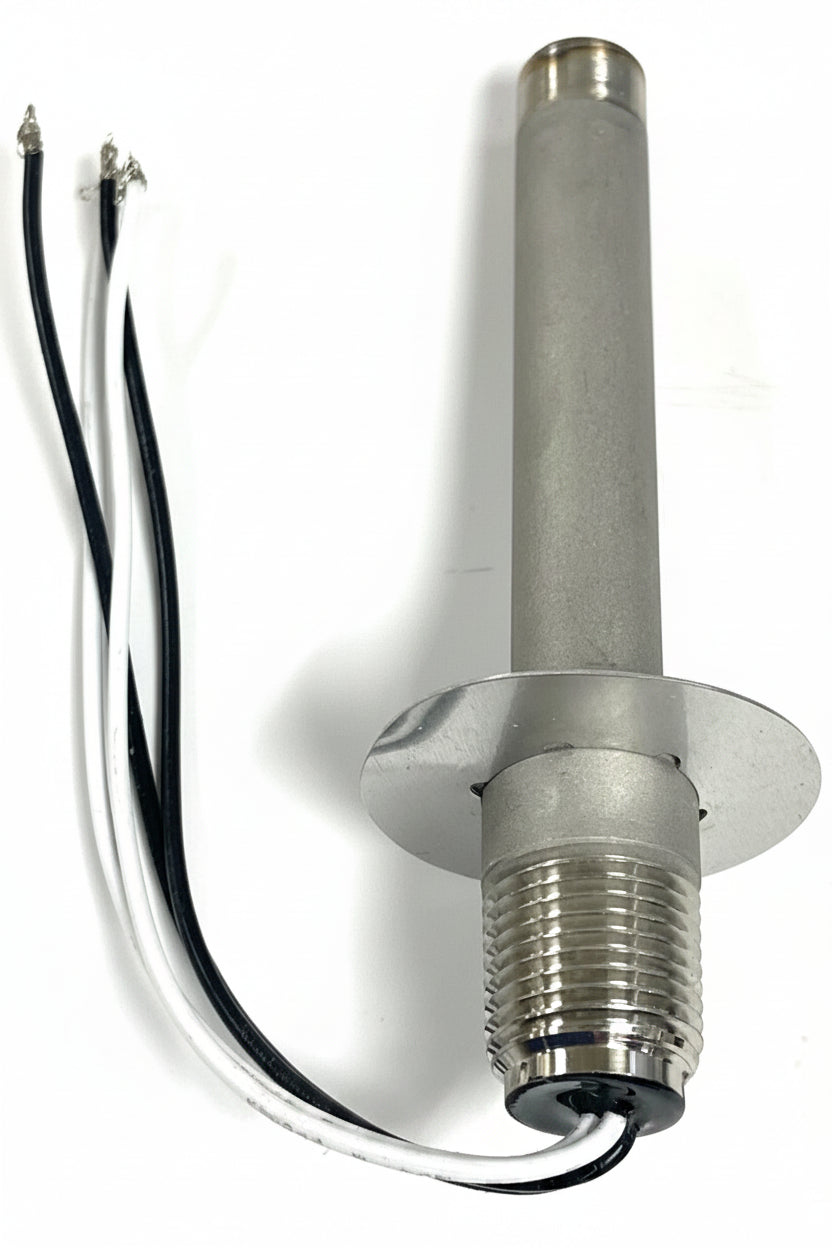

Kidde-Fenwal 12-E27121-020-02 DETECT-A-FIRE 140°F Temperature Sensor
- Regular price
- $465.00
- Sale price
- $465.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 12-E27121-020-02
Description
The Kidde-Fenwal 12-E27121-020-02 is a DETECT-A-FIRE rate-compensated temperature sensor with a fixed 140°F (60°C) activation point and contacts that close on temperature rise. Designed for vertical mounting, it provides a 5 A switching interface for fire detection, alarm initiation, and compatible suppression-system release applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Detection Systems |
| Part Number | 12-E27121-020-02 |
| Subcategory | Heat Detectors |
| Product Series | DETECT-A-FIRE |
| Product Type | Rate-Compensated Temperature Sensor |
| Temperature Set Point | 140°F (60°C) |
| Contact Operation | Close on Temperature Rise |
| Contact Configuration | SPST |
| AC Contact Rating | 5 A at 125 VAC |
| DC Contact Rating | 0.5 A at 125 VDC; 2 A at 24 VDC; 1 A at 48 VDC |
| Mounting Orientation | Vertical |
| Mounting Connection | 1/2-14 NPT |
| Material | Stainless Steel |
| Approximate Dimensions | 4.9 × 0.625 in |
| Application | Fire Detection and Suppression Release |
| Approvals | UL, ULC, FM, CE |
| Weight | Approx. 0.35 lb (0.16 kg) |
Information About 12-E27121-020-02
The 12-E27121-020-02 is a Kidde-Fenwal DETECT-A-FIRE Series thermal detection and release device configured for vertical installation. Its rate-compensated operating principle responds at a predetermined temperature under both gradual and rapidly increasing heat conditions, while the 140°F set point establishes its activation threshold. The device uses single-pole, single-throw contacts configured to close when the temperature rises to the specified operating point. Its stainless-steel construction, hermetically sealed design, and resistance to shock and vibration support fire detection and suppression control applications in demanding environments.
Key Features:
- 140°F Temperature Set Point: Factory configured to operate at 140°F (60°C).
- Close-on-Rise Operation: Electrical contacts close when the detector reaches its specified temperature threshold.
- Rate-Compensated Detection: Provides temperature-responsive operation under both slow and rapid heat-rise conditions.
- SPST Contact Configuration: Uses a single-pole, single-throw switching arrangement for connection to compatible control circuits.
- 5 A Contact Rating: Supports switching loads up to 5 A at 125 VAC.
- Vertical Mounting: Designed specifically for vertical installation using a threaded mounting connection.
- Stainless-Steel Construction: Uses a stainless-steel configuration suited to industrial fire detection installations.
- Fire Protection Application: Suitable for alarm initiation and control of compatible fire suppression release equipment.
The 12-E27121-020-02 delivers the reliability and precision required for fixed-temperature fire detection and suppression-system initiation.
