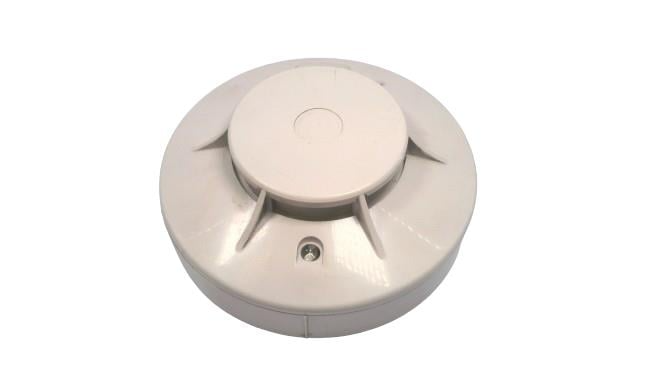

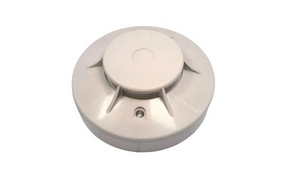

Kidde-Fenwal 70-402001-100 CPD-7052 SmartOne Ionization Smoke Detector
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 70-402001-100
Description
The Kidde-Fenwal 70-402001-100 is a SmartOne CPD-7052 intelligent ionization smoke detector head designed for addressable fire alarm and suppression systems. Its dual-chamber ionization sensing technology detects visible and invisible combustion products, with particular sensitivity to smaller particles commonly associated with flaming fires.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 70-402001-100 |
| Subcategory | Ionization Smoke Detectors |
| Model | CPD-7052 |
| Product Series | SmartOne |
| Product Type | Intelligent Ionization Smoke Detector Head |
| Detection Technology | Dual-Chamber Ionization |
| Input Voltage | 16.5–27.5 VDC |
| Standby Current | 350 µA Typical |
| Alarm Current | 425 µA Typical |
| Open-Area Sensitivity | 0.5–1.5%/ft |
| Nominal Alarm Setting | 1.0%/ft |
| Nominal Pre-Alarm Setting | 0.8%/ft |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Smoke Entry | 360 Degrees |
| Maximum Detectors per SLC | 255 |
| Weight | 0.11 kg (0.24 lb) |
Information About 70-402001-100
The 70-402001-100 is a Kidde-Fenwal SmartOne Series smoke detector identified as model CPD-7052. Its addressable architecture combines dual-chamber ionization sensing with onboard microprocessor processing, nonvolatile memory, and electronically programmable operating parameters. The sensing chamber permits 360-degree smoke entry, while detector memory stores its address, calibration information, pre-alarm and alarm sensitivity settings, and drift-compensation data. The detector operates on compatible SmartOne SLC systems and can be installed for open-area detection or appropriate duct applications.
Key Features:
- Dual-Chamber Ionization: Uses an analog dual-chamber ionization sensing arrangement for smoke detection.
- Intelligent Addressability: Provides individual electronic addressing for identification by a compatible fire alarm control system.
- 360-Degree Smoke Entry: Chamber construction allows combustion products to enter and be detected from all directions.
- Microprocessor Processing: Incorporates onboard processing for localized analysis of detector conditions.
- Programmable Sensitivity: Supports field-programmable alarm and pre-alarm sensitivity thresholds.
- Nonvolatile Memory: Retains address, calibration, sensitivity, and drift-compensation information within the detector.
- Low Current Demand: Draws approximately 350 µA in standby and 425 µA in alarm.
- Status LED Operation: LED pulses approximately every nine seconds during normal operation and every two seconds during alarm.
The 70-402001-100 delivers the reliability and precision required for intelligent addressable smoke detection in fire alarm and suppression systems.
Description
The Kidde-Fenwal 70-402001-100 is a SmartOne CPD-7052 intelligent ionization smoke detector head designed for addressable fire alarm and suppression systems. Its dual-chamber ionization sensing technology detects visible and invisible combustion products, with particular sensitivity to smaller particles commonly associated with flaming fires.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 70-402001-100 |
| Subcategory | Ionization Smoke Detectors |
| Model | CPD-7052 |
| Product Series | SmartOne |
| Product Type | Intelligent Ionization Smoke Detector Head |
| Detection Technology | Dual-Chamber Ionization |
| Input Voltage | 16.5–27.5 VDC |
| Standby Current | 350 µA Typical |
| Alarm Current | 425 µA Typical |
| Open-Area Sensitivity | 0.5–1.5%/ft |
| Nominal Alarm Setting | 1.0%/ft |
| Nominal Pre-Alarm Setting | 0.8%/ft |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Smoke Entry | 360 Degrees |
| Maximum Detectors per SLC | 255 |
| Weight | 0.11 kg (0.24 lb) |
Information About 70-402001-100
The 70-402001-100 is a Kidde-Fenwal SmartOne Series smoke detector identified as model CPD-7052. Its addressable architecture combines dual-chamber ionization sensing with onboard microprocessor processing, nonvolatile memory, and electronically programmable operating parameters. The sensing chamber permits 360-degree smoke entry, while detector memory stores its address, calibration information, pre-alarm and alarm sensitivity settings, and drift-compensation data. The detector operates on compatible SmartOne SLC systems and can be installed for open-area detection or appropriate duct applications.
Key Features:
- Dual-Chamber Ionization: Uses an analog dual-chamber ionization sensing arrangement for smoke detection.
- Intelligent Addressability: Provides individual electronic addressing for identification by a compatible fire alarm control system.
- 360-Degree Smoke Entry: Chamber construction allows combustion products to enter and be detected from all directions.
- Microprocessor Processing: Incorporates onboard processing for localized analysis of detector conditions.
- Programmable Sensitivity: Supports field-programmable alarm and pre-alarm sensitivity thresholds.
- Nonvolatile Memory: Retains address, calibration, sensitivity, and drift-compensation information within the detector.
- Low Current Demand: Draws approximately 350 µA in standby and 425 µA in alarm.
- Status LED Operation: LED pulses approximately every nine seconds during normal operation and every two seconds during alarm.
The 70-402001-100 delivers the reliability and precision required for intelligent addressable smoke detection in fire alarm and suppression systems.
