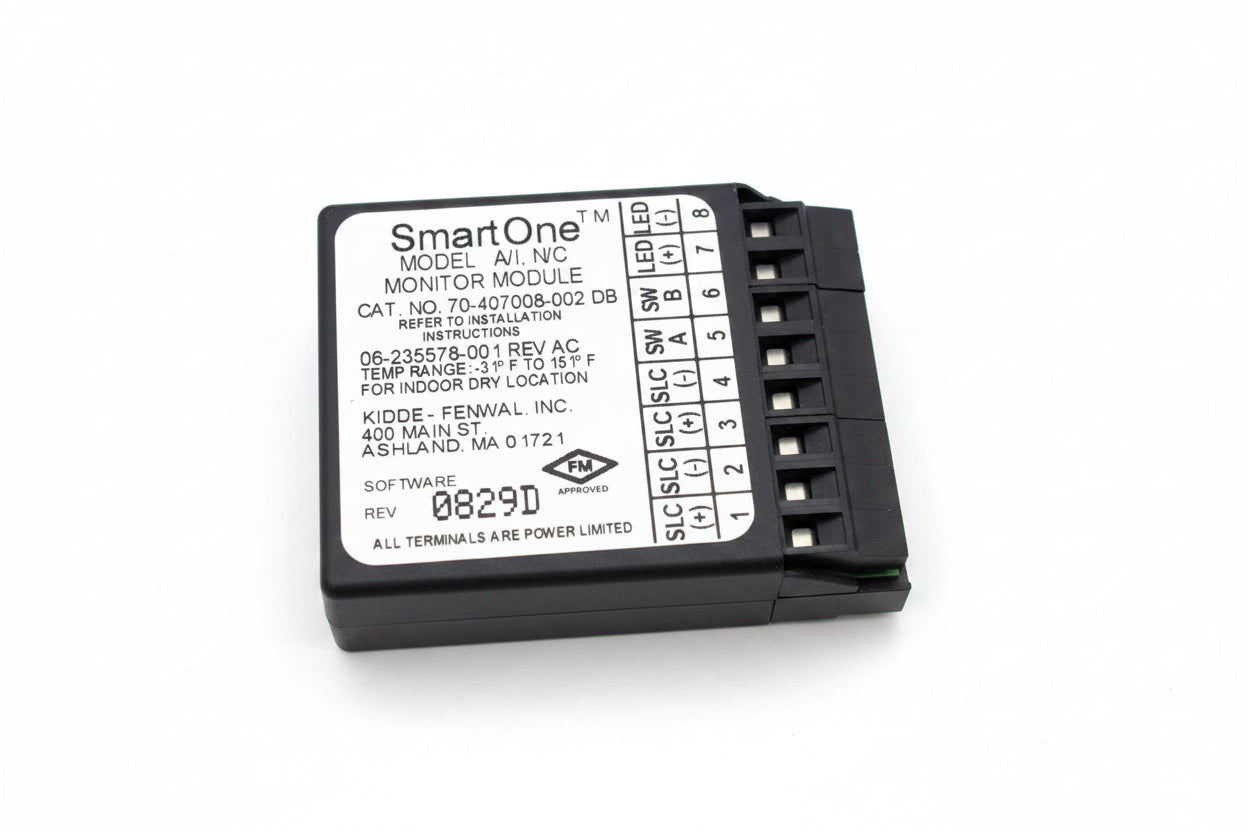

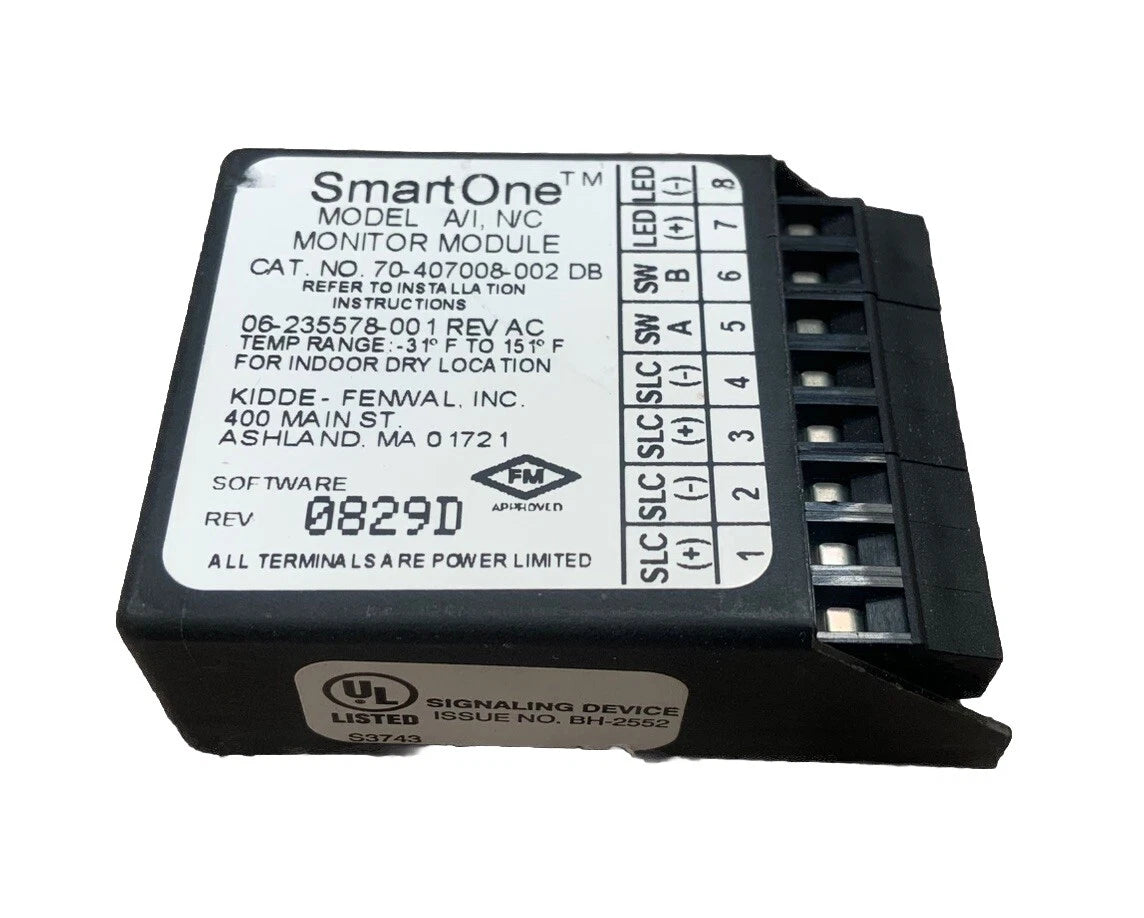

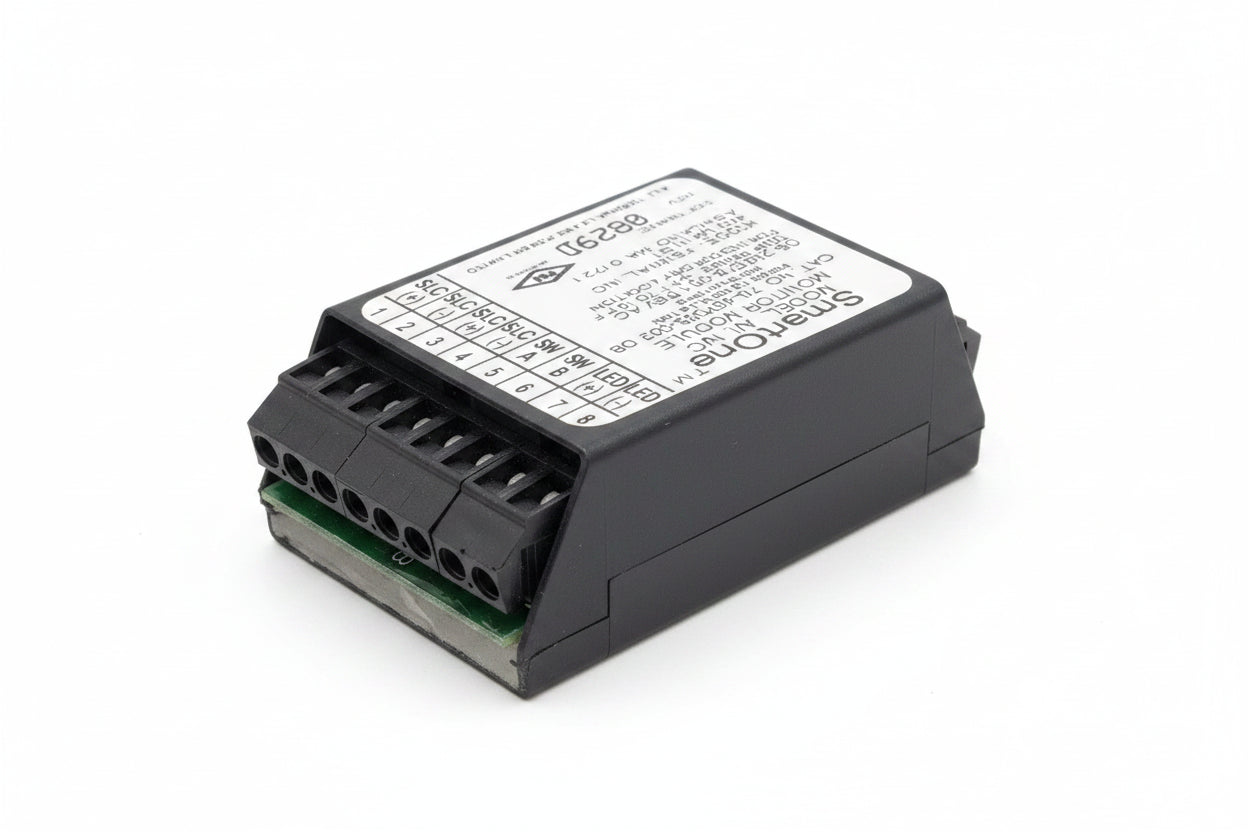

Kidde-Fenwal 70-407008-002 SmartOne AI Normally-Closed Monitor Module
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 70-407008-002
Description
The Kidde-Fenwal 70-407008-002 is a SmartOne AI addressable monitor module designed to monitor conventional, unpowered, normally-closed contact devices. It provides an individually addressable interface between compatible contact equipment and Kidde-Fenwal intelligent fire protection control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 70-407008-002 |
| Subcategory | Addressable Monitor Modules |
| Product Series | SmartOne |
| Model | AI N.C. |
| Product Type | Addressable Monitor Module |
| Contact Type | Normally Closed |
| Monitored Device Type | Conventional Unpowered Contact Devices |
| Input Voltage | 16.5–27.5 VDC |
| Standby Current | 450 µA Maximum |
| Active Current | 450 µA Maximum |
| Maximum Devices per Communication Circuit | 255 |
| Operating Temperature | -31°F to 151°F (-35°C to 66°C) |
| Operating Humidity | 0–95% RH |
| Compatible Wire Sizes | 14, 16 and 18 AWG |
| Mounting | Single-Gang or 4-Inch Square Electrical Box |
| Weight | 0.5 lb (0.2 kg) |
Information About 70-407008-002
The 70-407008-002 is a Kidde-Fenwal SmartOne Series AI monitor module specifically configured for normally-closed contact monitoring. Its addressable electronics communicate device status over the signaling line circuit while monitoring the connected dry-contact input. The module operates from 16.5 to 27.5 VDC, draws a maximum of 450 µA, and supports connection of up to 255 addressable devices on a compatible communication circuit. Kidde-Fenwal documentation notes that the N.C. version is intended for normally-closed trouble or supervisory contact applications and is not considered an initiating device circuit for fire alarm initiation.
Key Features:
- Normally-Closed Monitoring: Designed specifically for conventional, unpowered, normally-closed contact devices.
- SmartOne Addressability: Provides an individually identifiable input point on compatible Kidde-Fenwal intelligent systems.
- Low Current Demand: Requires a maximum of 450 µA during standby and active operating conditions.
- Wide DC Input Range: Operates from a signaling circuit voltage of 16.5 to 27.5 VDC.
- High Device Capacity: Compatible communication circuits can support up to 255 addressable devices.
- Status LED: Provides operating indication with defined normal, trouble, and active-state LED behavior.
- Electrical Box Installation: Fits a 2.5-inch-deep single-gang box or a standard 4-inch square box with cover.
- Power-Limited Interface: Module terminals are designed for power-limited system wiring.
The 70-407008-002 delivers the reliability and precision required for addressable monitoring of normally-closed contacts in compatible fire protection control systems.
