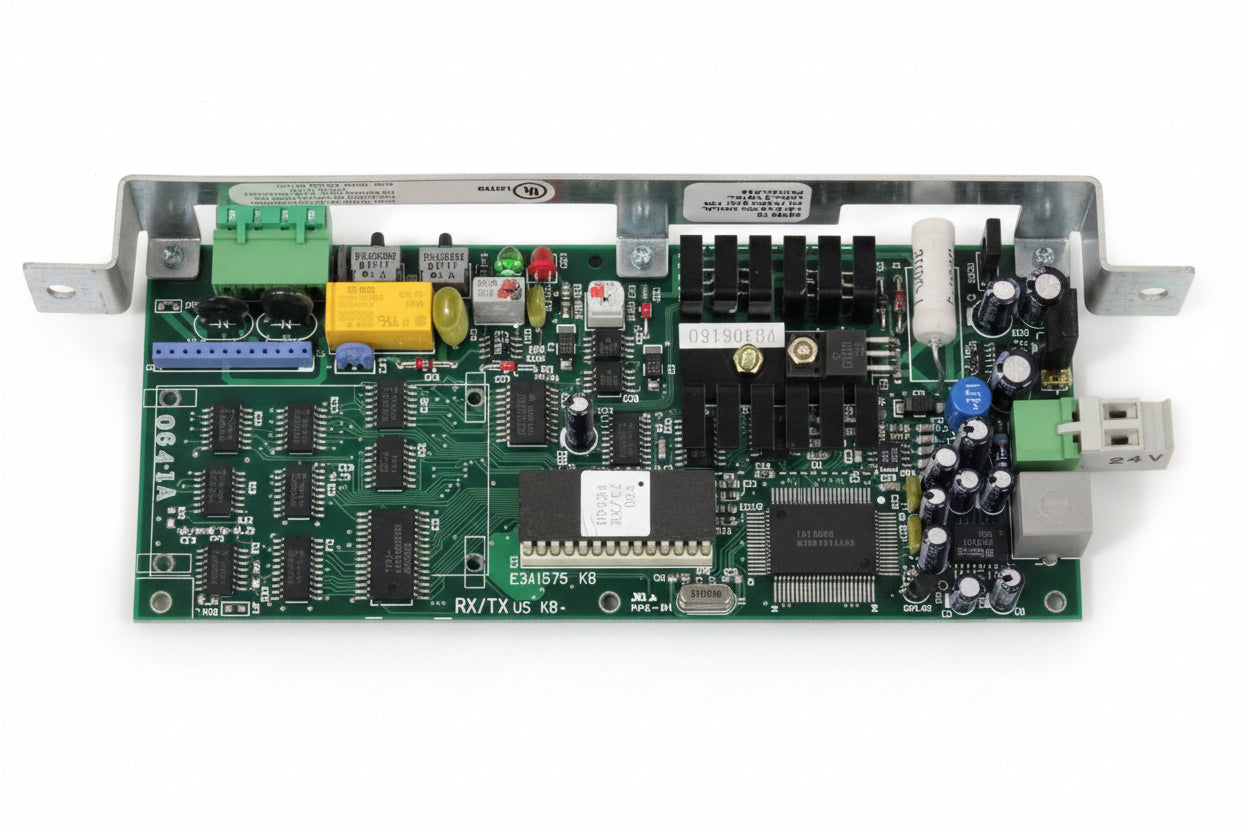

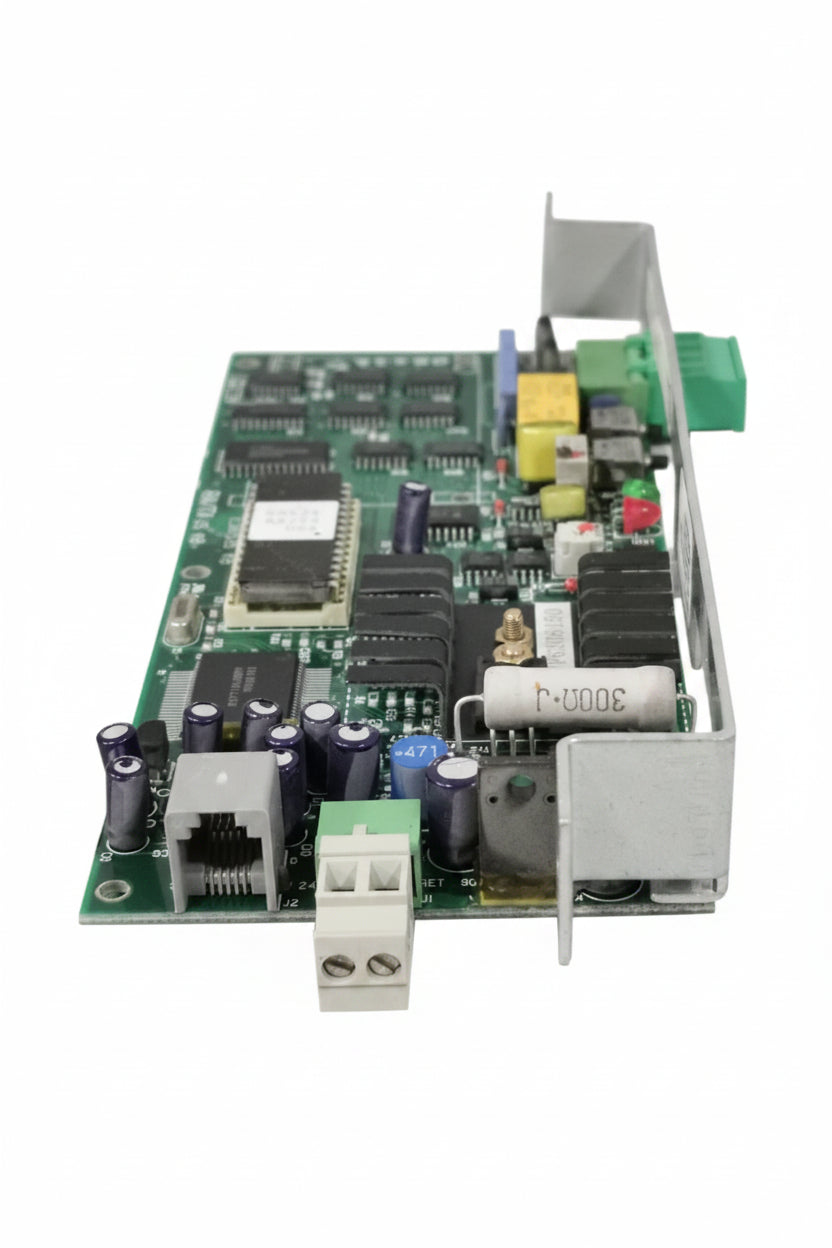

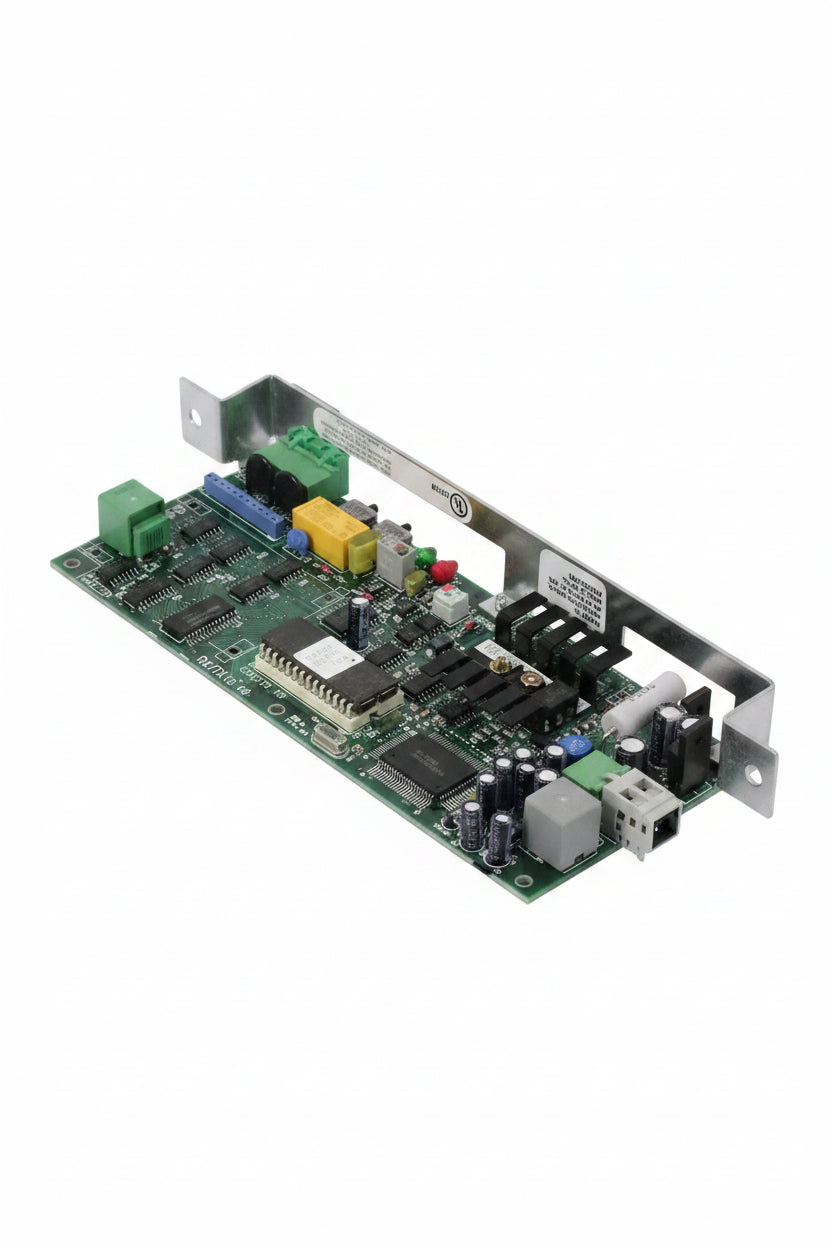

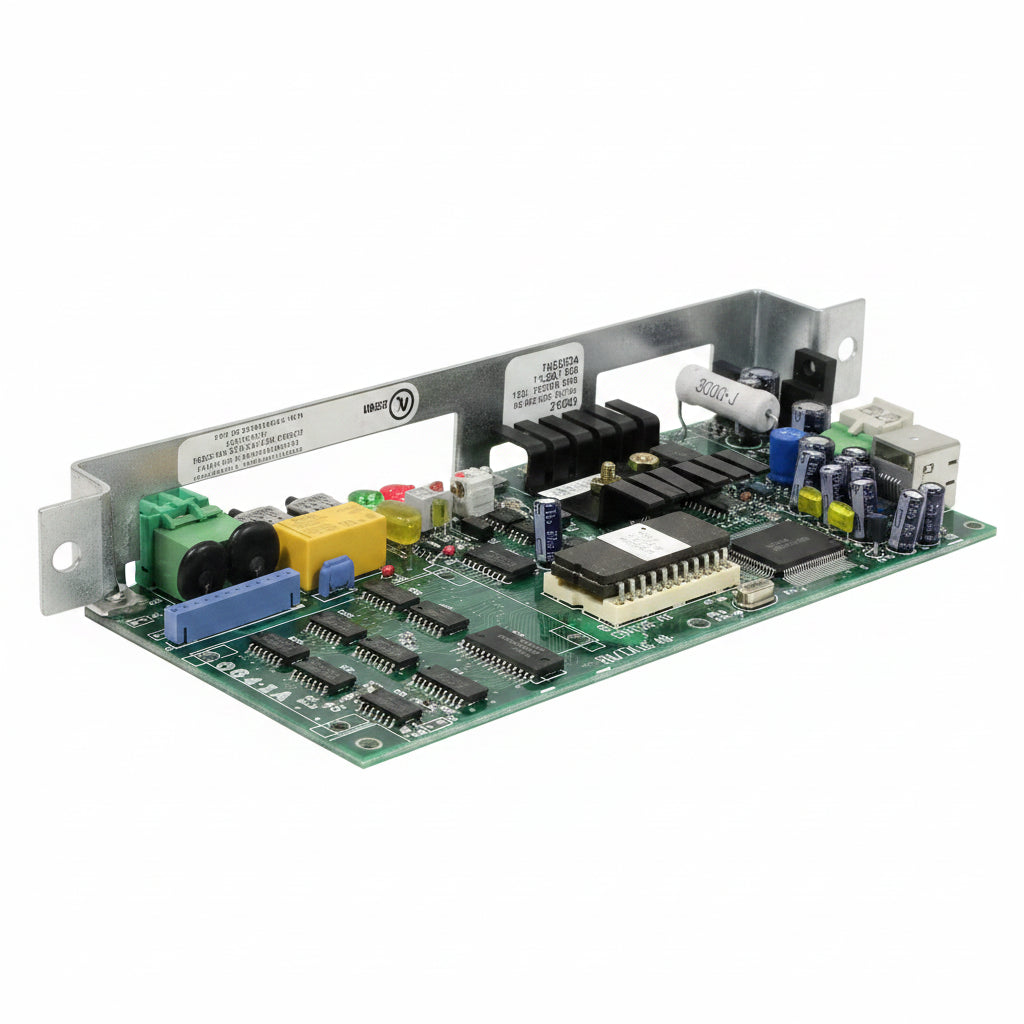

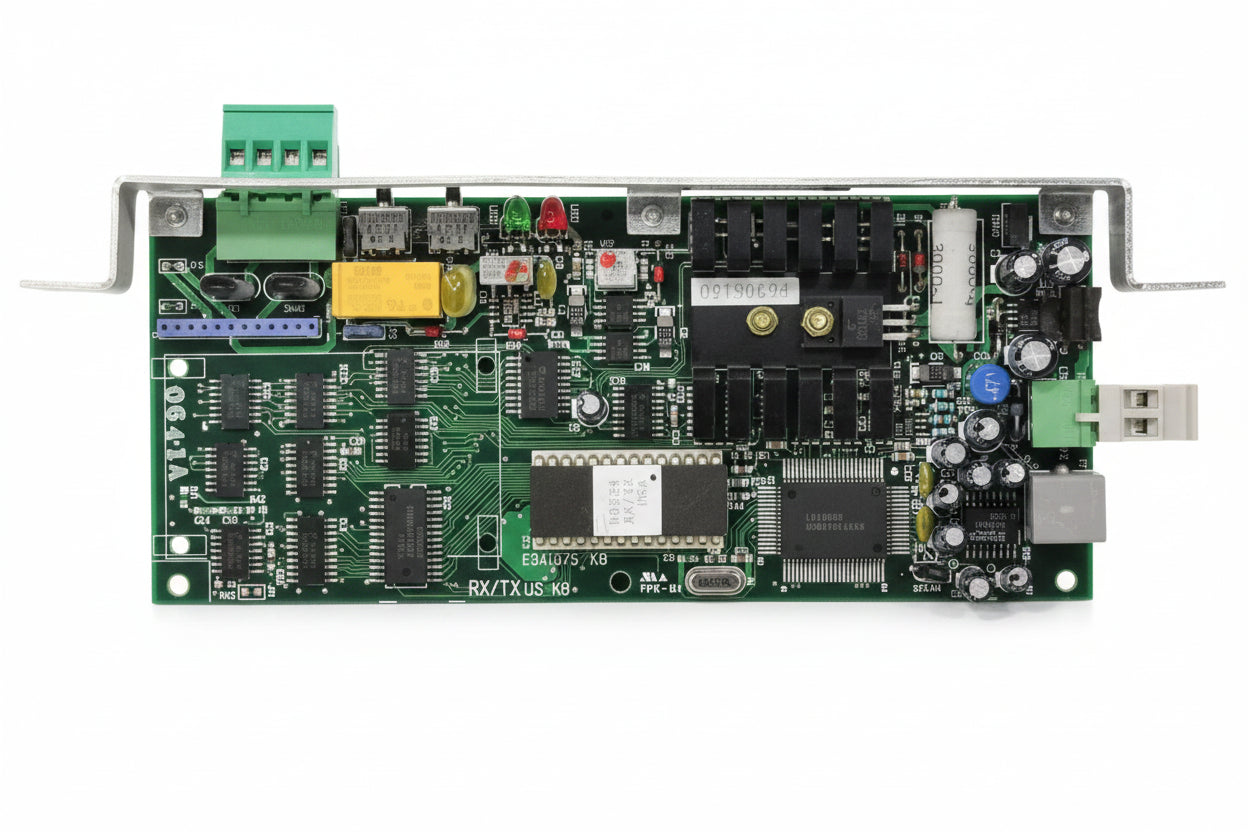

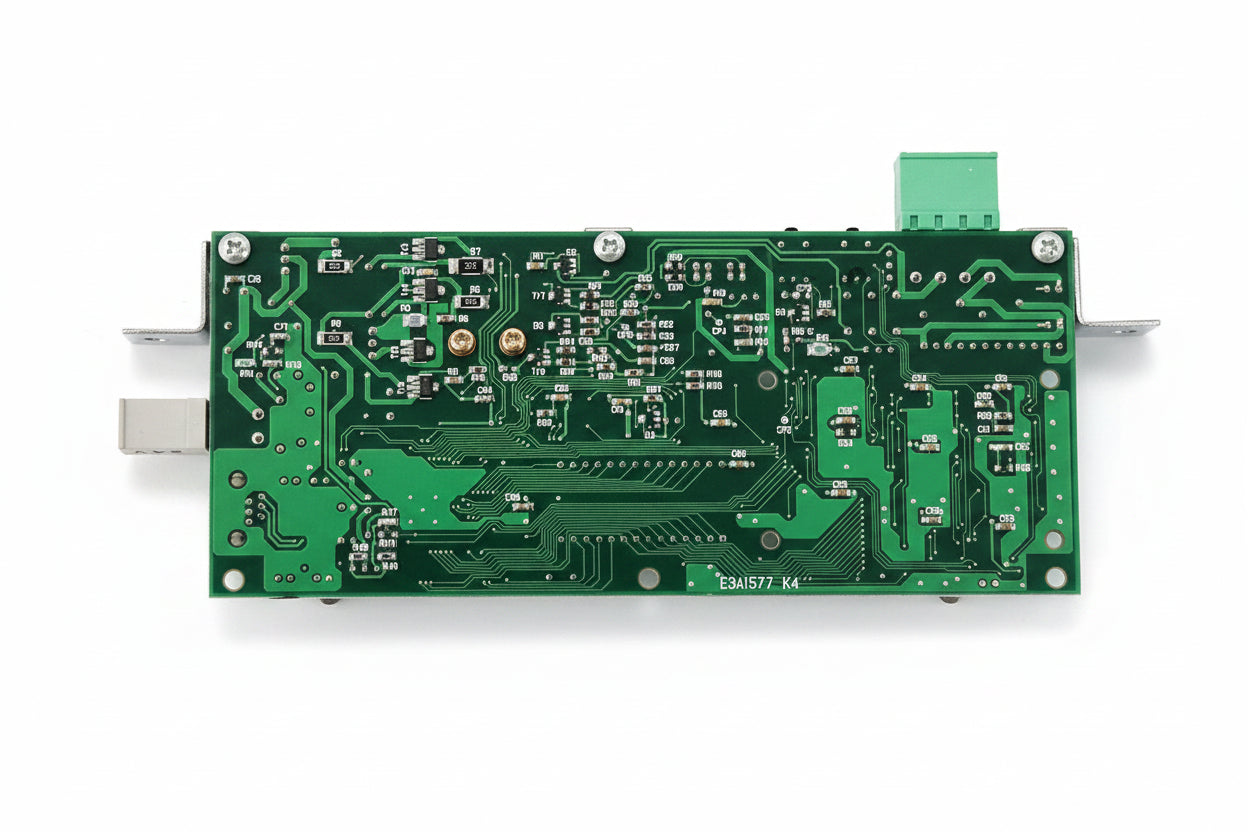

Kidde-Fenwal 74-200005-001 RX/TX Fire Alarm Communication Module
- Regular price
- $492.00
- Sale price
- $492.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 74-200005-001
Description
The Kidde-Fenwal 74-200005-001 is an RX/TX receiver/transmitter module designed for PEGAsys and FenwalNET fire alarm control applications. It provides the communication interface for compatible intelligent detectors and addressable devices while supporting supervised signaling line circuit configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 74-200005-001 |
| Subcategory | RX/TX Communication Modules |
| Product Type | Receiver/Transmitter Module |
| Module Type | RX/TX |
| System Compatibility | PEGAsys / Compatible FenwalNET Equipment |
| Primary Function | Addressable Device Communication |
| Supported Devices | Intelligent Detectors and Addressable Devices |
| Circuit Configuration | NFPA Style 4, 6 and 7 |
| Loop Isolator Support | Yes |
| Power Interface | 24 VDC |
| Module Reset | CPU Reset |
| Circuit Reset | PC Line Reset |
| Application | Addressable Fire Alarm Communication |
| Weight | 0.40 lb (0.18 kg) |
Information About 74-200005-001
The 74-200005-001 is a Kidde-Fenwal RX/TX module used within compatible PEGAsys/FenwalNET fire alarm system architectures. Its receiver/transmitter circuitry provides communication between the control equipment and connected intelligent detectors or addressable field devices. The module supports NFPA Style 4, Style 6, and Style 7 circuit arrangements, with loop isolator devices used where required by the selected wiring configuration. Kidde-Fenwal documentation identifies 74-200005-001 as the RX/TX assembly and distinguishes it from 74-200005-002, which is specifically designated for multi-loop systems.
Key Features:
- RX/TX Communication: Provides receiver and transmitter functions for compatible addressable fire alarm devices.
- Intelligent Device Interface: Supports communication with compatible detectors and addressable field modules.
- Style 4 Support: Accommodates NFPA Style 4 signaling line circuit configurations.
- Style 6 Support: Supports Style 6 wiring arrangements for compatible system installations.
- Style 7 Support: Can be configured for Style 7 operation with appropriate loop isolation hardware.
- Loop Isolator Compatibility: Supports compatible loop isolator devices for circuit fault isolation.
- 24 VDC System Interface: Manufacturer wiring documentation shows a 24 VDC power connection to the RX/TX assembly.
- PEGAsys Integration: Identified in Kidde-Fenwal documentation as an RX/TX assembly for the PEGAsys fire alarm platform.
The 74-200005-001 delivers the reliability and precision required for addressable device communication within compatible fire alarm control systems.
