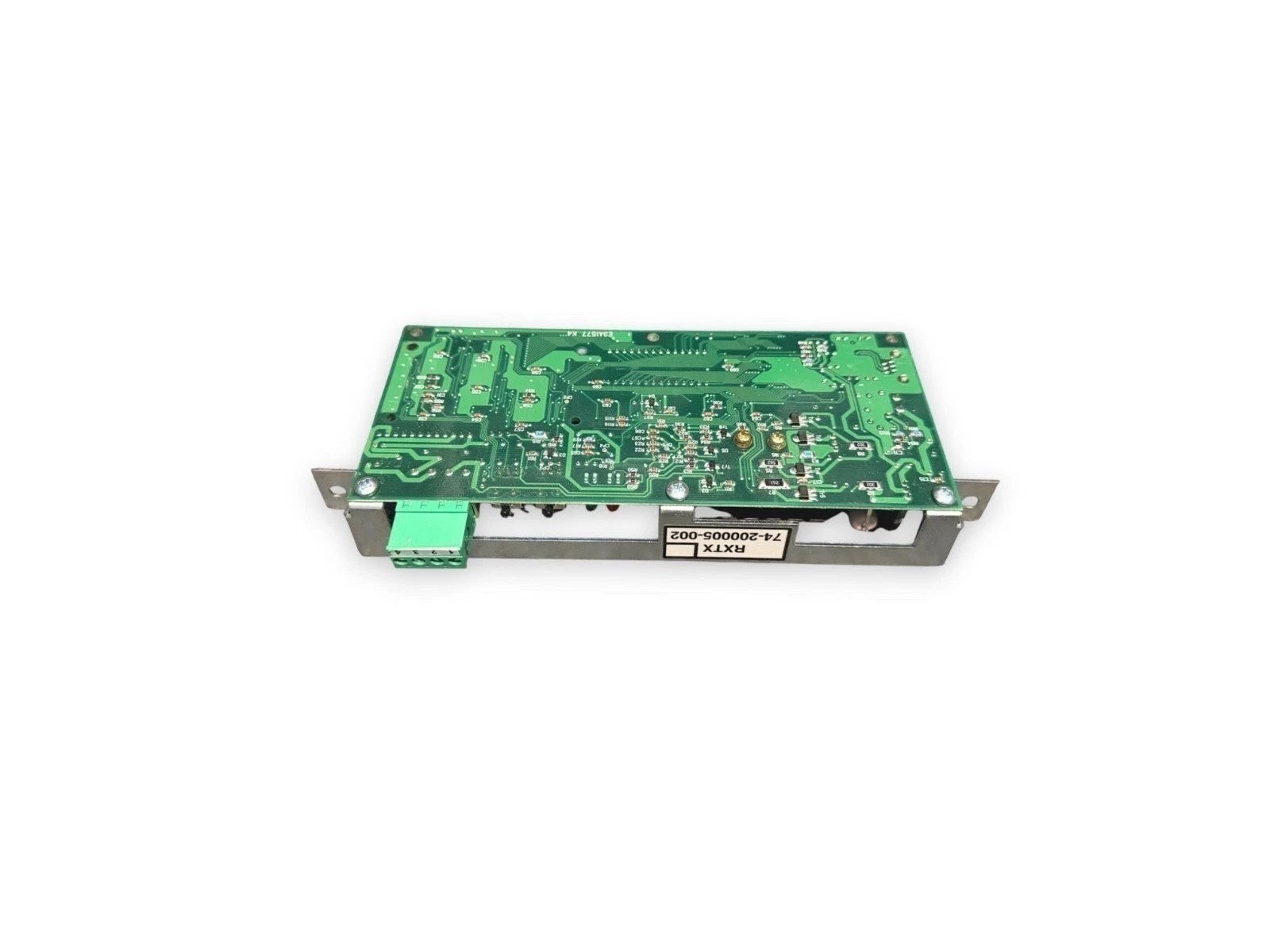

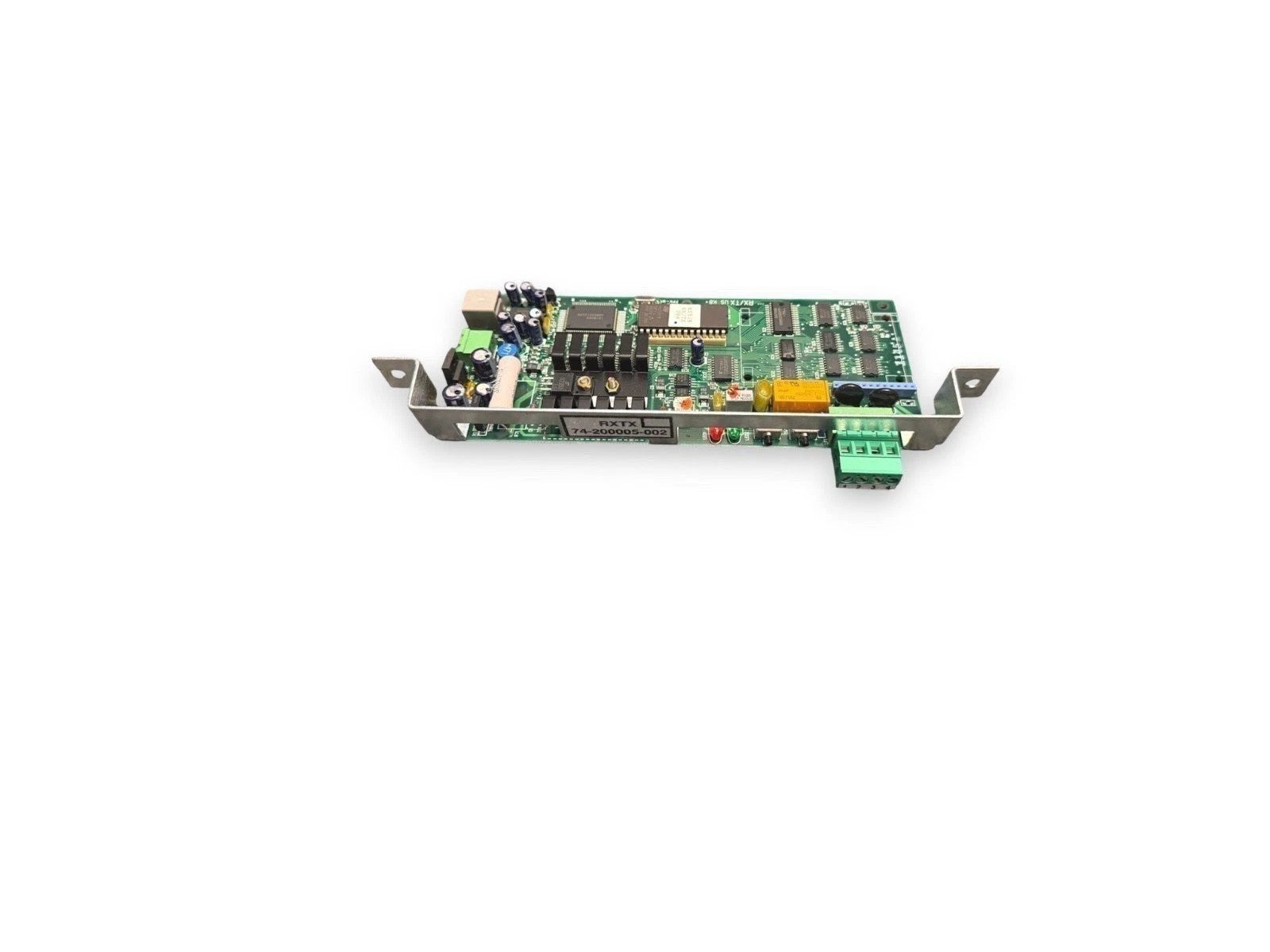

Kidde-Fenwal 74-200005-002 PEGAsys Multi-Loop RX/TX Communication Module
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 74-200005-002
Description
The Kidde-Fenwal 74-200005-002 is a PEGAsys/FenwalNET 2000 RX/TX module designed as the data interface between addressable field devices and the central control module in multi-loop fire alarm systems. It receives device status changes and manages bidirectional communication and power over compatible signaling circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 74-200005-002 |
| Subcategory | RX/TX Communication Modules |
| Product Type | Receiver/Transmitter Module |
| Module Format | Printed Circuit Board |
| System Compatibility | PEGAsys / FenwalNET 2000 Multi-Loop Systems |
| Primary Function | Addressable Field Device Data Interface |
| Maximum Input Devices | 255 Addressable Devices per Module |
| Maximum Output Devices | 255 Addressable Devices per Module |
| Maximum RX/TX Modules | 8 per Multi-Loop I/O Motherboard |
| Supported Circuit Styles | NFPA Style 4, Style 6, Style 7 |
| Factory Configuration | Style 6 |
| Circuit Configuration | Onboard Jumper Selectable |
| Communication | Bidirectional Data and Power |
| Application | Intelligent Multi-Loop Fire Alarm Control |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About 74-200005-002
The 74-200005-002 is a Kidde-Fenwal receiver/transmitter module specifically configured for PEGAsys/FenwalNET multi-loop control systems. Its circuitry interfaces intelligent field devices with the central control module through the system's multi-loop I/O motherboard, which can accommodate up to eight RX/TX modules. Each module can communicate with up to 255 addressable input devices and 255 addressable output devices while supporting NFPA Style 4, Style 6, or Style 7 supervision. The module is factory configured for Style 6 operation and can be adapted to the required circuit style through its onboard jumper configuration.
Key Features:
- Multi-Loop RX/TX Interface: Designed specifically for receiver/transmitter operation in compatible multi-loop fire alarm control systems.
- Addressable Device Communication: Transfers status and control data between field devices and the system central control module.
- High Device Capacity: Supports communication with up to 255 addressable input and 255 addressable output devices per RX/TX module.
- Eight-Module Architecture: The multi-loop I/O motherboard can accommodate as many as eight RX/TX modules.
- Style 4 Support: Allows compatible T-tapped or branched signaling line circuit arrangements.
- Style 6 Support: Provides bidirectional transmission of data and power if an open occurs in the communication line.
- Style 7 Support: Supports Style 7 supervised circuit arrangements when configured with appropriate isolation equipment.
- Configurable Jumpers: Onboard jumper settings allow the RX/TX circuit configuration to be matched to the required wiring style.
The 74-200005-002 delivers the reliability and precision required for multi-loop addressable device communication in intelligent fire alarm systems.
