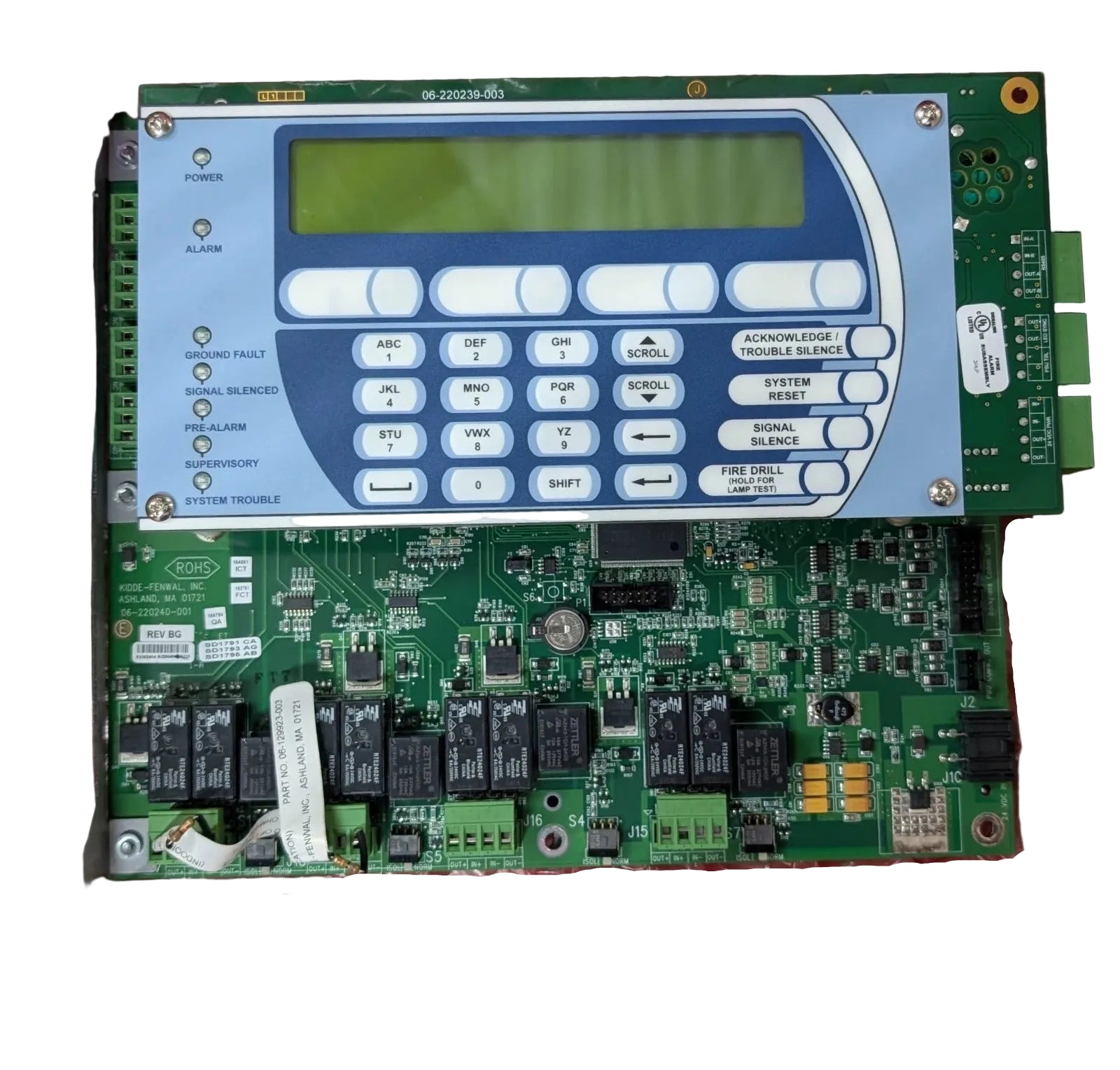

Kidde Fenwal 76-800020-001 ARIES NETLink Main Control Board with User Interface Display
- Regular price
- $4,099.00
- Sale price
- $4,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 76-800020-001
Description
The Kidde Fenwal 76-800020-001 is an ARIES NETLink multi-loop main control board designed to provide intelligent fire alarm system control, monitoring, and communication for commercial life safety installations. Integrating the main control board and user interface display, it supports multiple signaling loops, notification circuits, programmable relays, and communication interfaces for scalable addressable fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde Fenwal |
| Category | Fire Alarm Systems |
| Part Number | 76-800020-001 |
| Subcategory | Fire Alarm Control Board |
| Series | ARIES NETLink |
| Product Type | Main Control Board with User Interface Display |
| Configuration | Supplied without enclosure |
| Signaling Line Circuits | 2 SLC loops |
| Notification Appliance Circuits | 2 NACs |
| Remote Notification Circuits | 2 R-NACs |
| Programmable Relays | 3 |
| USB Ports | 1 |
| RS-232 Ports | 2 |
| Device Type | Intelligent addressable fire alarm controller |
| System Functions | Alarm monitoring, supervisory monitoring, releasing logic, event logging, diagnostics |
| Compatibility | Kidde Fire Systems ARIES NETLink fire alarm systems |
| Mounting | Compatible ARIES control panel enclosure |
| Application | Commercial addressable fire alarm and life safety systems |
| Weight | Approximately 3.5 lb (1.6 kg) |
Information About 76-800020-001
The 76-800020-001 is part of the Kidde Fire Systems ARIES NETLink series, engineered for advanced addressable fire alarm and emergency communication applications. Supplied without an enclosure, the assembly combines the main control board with an integrated user interface display, simplifying installation into compatible ARIES control panel cabinets. It supports two Signaling Line Circuits (SLCs), remote notification appliance circuits, standard NACs, programmable relay outputs, and multiple communication ports for system integration and diagnostics. Designed for high reliability and flexible system expansion, the controller provides intelligent device management, event processing, and network-ready operation for commercial fire protection systems.
Key Features:
- ARIES NETLink Platform: Designed for intelligent addressable fire alarm system control.
- Integrated Main Control Board: Combines system controller and user interface display in one assembly.
- Dual SLC Loops: Supports two intelligent signaling line circuits for addressable devices.
- Notification Appliance Circuits: Includes two NACs for audible and visual notification appliances.
- Remote NAC Outputs: Provides two remote notification appliance circuits for distributed system layouts.
- Programmable Relay Outputs: Three configurable relays for HVAC shutdown, elevator recall, and auxiliary control.
- USB Interface: Supports local programming, diagnostics, and firmware maintenance.
- Dual RS-232 Ports: Enables communication with compatible peripherals and service equipment.
- Intelligent Device Management: Continuously supervises connected addressable devices and system status.
- Expandable Architecture: Supports system growth through compatible ARIES NETLink expansion modules.
- Event Monitoring: Records alarms, supervisory conditions, troubles, and operator actions.
- Commercial Reliability: Engineered for continuous operation in demanding life safety environments.
The 76-800020-001 delivers the reliability and precision required for intelligent addressable fire alarm control and networked life safety applications.
