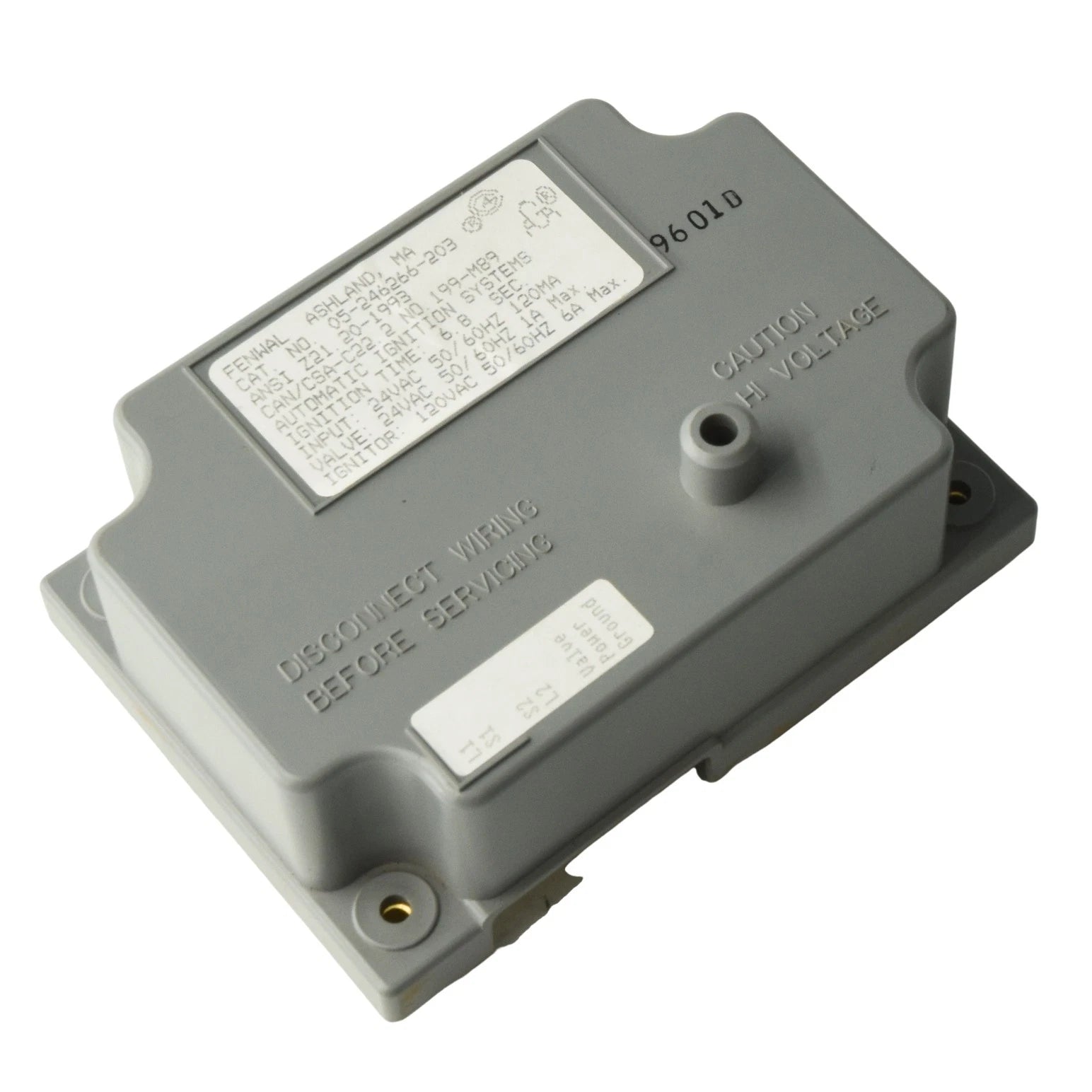

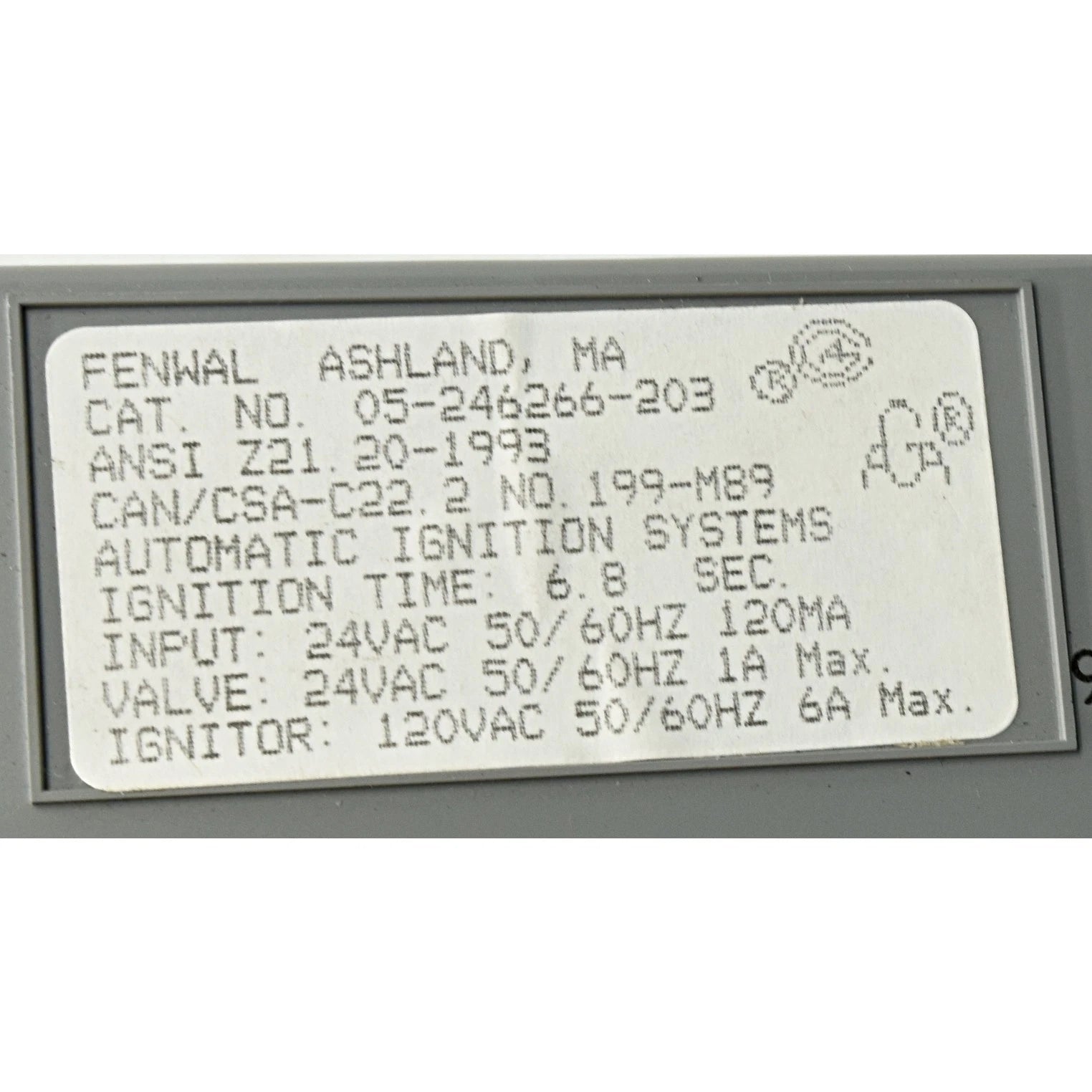

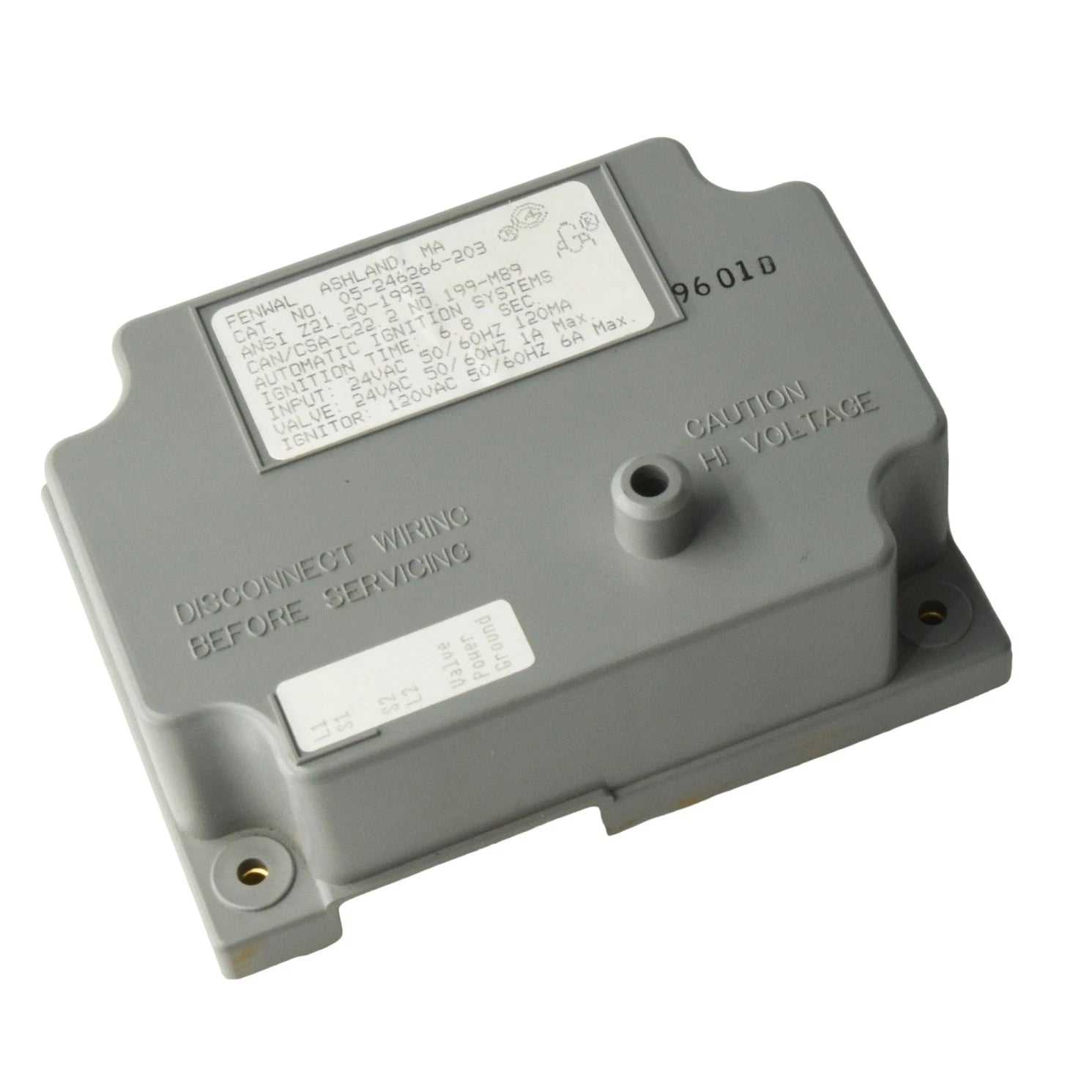

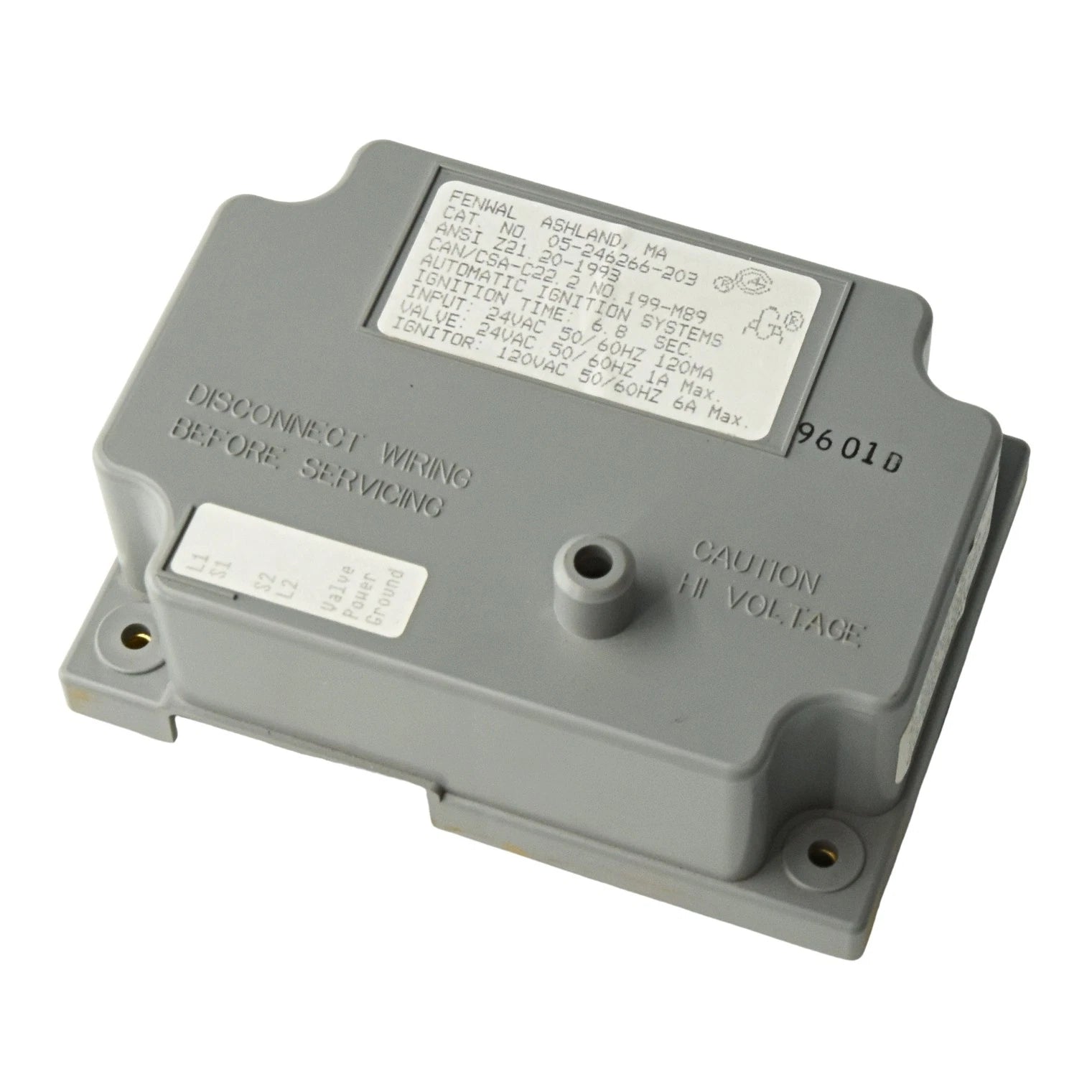

Kidde-Fenwal Controls 05-246266-203 24 VAC Ignition Control Module with 6.8 Second Ignition Timing
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 05-246266-203
Description
The Kidde-Fenwal Controls 05-246266-203 is a 24 VAC ignition control module designed to manage safe ignition sequencing and flame supervision in gas-fired heating equipment. This module provides a fixed 6.8-second ignition trial, ensuring reliable burner ignition while monitoring system safety during appliance operation. It is commonly used in commercial and industrial HVAC and combustion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde-Fenwal Controls |
| Category | Controls & Indicators |
| Part Number | 05-246266-203 |
| Subcategory | Ignition Module |
| Manufacturer Part Number | 05246266203 |
| Product Type | Ignition Control Module |
| Status | Discontinued by Manufacturer |
| Input Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Input Current | 120 mA |
| Ignition Trial Time | 6.8 Seconds |
| Ignition Load Rating | 1–6 Amp |
| Primary Function | Automatic gas ignition and flame supervision |
| Typical Applications | Gas-fired furnaces, boilers, rooftop units, HVAC equipment |
| Replacement Information | Replaced by compatible Fenwal Series 35-65 replacement control |
| Weight | 0.17 kgs |
Information About 05-246266-203
The 05-246266-203 is a discontinued Fenwal ignition control module engineered for automatic gas ignition systems requiring a 24 VAC power supply and a 6.8-second ignition timing sequence. It belongs to the Fenwal family of ignition controls developed for dependable burner management, flame sensing, and safety lockout functions used in furnaces, boilers, rooftop units, and other gas-fired equipment. The module operates on 24 VAC at 50/60 Hz with a nominal current draw of 120 mA and supports ignition loads from 1 to 6 amps. Although this original model has been discontinued, it has recognized replacement solutions within the Fenwal Series 35-65 platform while maintaining equivalent ignition timing and operating characteristics.
Key Features:
- Fixed Ignition Timing: Provides a precise 6.8-second ignition trial for consistent burner startup.
- 24 VAC Operation: Designed for standard 24 VAC control circuits operating at 50/60 Hz.
- Automatic Ignition Control: Manages ignition sequencing and flame monitoring for gas-fired appliances.
- Safety Lockout Function: Helps protect equipment by initiating shutdown during ignition failure conditions.
- Low Power Consumption: Operates with an approximate input current of 120 mA for efficient control performance.
- Ignition Load Capacity: Supports ignition current requirements from 1 to 6 amps.
- OEM HVAC Compatibility: Suitable for numerous commercial and industrial heating systems utilizing Fenwal ignition controls.
- Discontinued Original Model: Factory-discontinued module with documented replacement options available through newer Fenwal control series.
The 05-246266-203 delivers the reliability and precision required for safe automatic ignition control in commercial and industrial gas-fired heating equipment.
