Kidde FX-64R | Intelligent Fire Alarm Control Panel, 64 Points, 2 NACs, Red
- Regular price
- $938.00
- Sale price
- $938.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FX-64R
Description

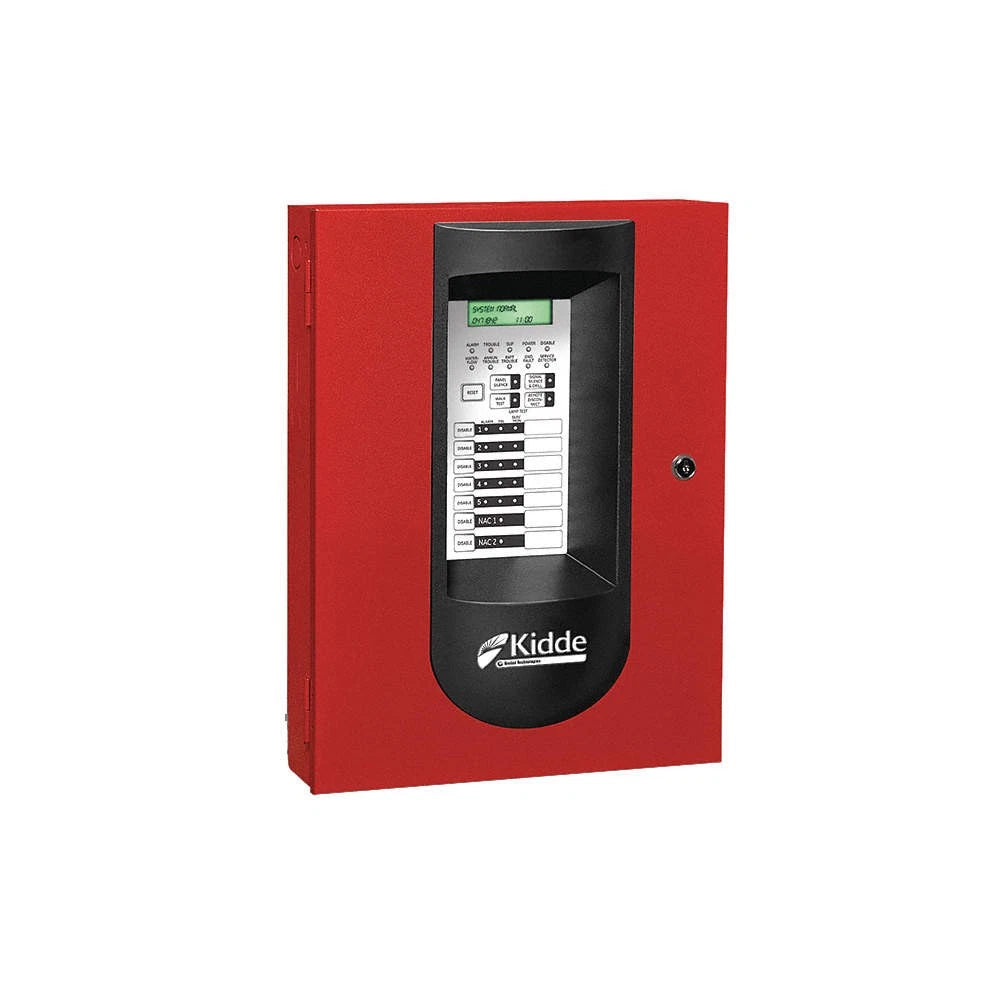

The Kidde FX-64R is a one-loop intelligent fire alarm control panel supporting up to 64 addressable devices. Designed for small to mid-sized applications, it provides advanced intelligent processing, rotary addressing, automatic device mapping, and built-in NACs for reliable life safety performance. With optional Ethernet connectivity, expansion modules, and strobe synchronization, the FX-64R offers scalable fire protection in a surface-mount red enclosure.
Technical Specifications
| Condition | New |
| Brand | Kidde (Carrier) |
| Series | FX Series |
| Model / Part Number | FX-64R / ED-FX64R |
| Category | Fire Alarm Control Panels |
| Type | Intelligent Addressable Control Panel |
| Capacity | 1 loop, up to 64 device addresses |
| Zones | 8 to 63 software zones |
| NAC Circuits | 2 Class B NACs (expandable to Class A with module) |
| Addressing | Rotary addressing |
| Relays | Form C contacts (alarm, trouble), Form A contacts (supervisory) |
| Communication | Optional Ethernet port; upload/download locally or remotely |
| Annunciators | Supports up to 8 serial annunciators |
| Display | 4x20 character backlit LCD |
| Strobe Synchronization | UL 1971-compliant, horn silence support |
| Wiring | Class B standard, optional Class A with module |
| Power | Supports auxiliary power expansion via modules |
| Ground Fault Detection | By module |
| Features | Auto-programming, pre-alarm/alarm verification, adjustable sensitivity |
| Dimensions | 14.25" W × 3.85" D × 21.5" H |
| Weight | 16 lbs |
| Color | Red (surface mount enclosure) |
| Standards | NFPA compliant, UL 864 Listed |
| Country of Origin | China (subject to change) |
Information About FX-64R
The FX-64R is part of the Kidde FX Series intelligent life safety systems, delivering high-end processing power in a simplified, easy-to-configure platform. This panel supports a single Class B device loop (expandable to Class A with a module), two NAC circuits, and optional expansion for added versatility. Built with contractors and building owners in mind, the FX-64R combines ease of programming with UL-compliant notification, optional Ethernet reporting, and compatibility with a wide range of Kidde modules. It is ideal for small to medium installations requiring dependable addressable fire protection.
Key Features:
- Device Support: 1 intelligent loop with up to 64 addressable points
- Notification Circuits: 2 Class B NACs (expandable to Class A with module)
- Auto-Programming: Fast installation setup with automatic device mapping
- Addressing: Easy rotary addressing for field devices
- Communication: Optional Ethernet port for programming, diagnostics, and reporting
- Annunciators: Supports up to 8 serial annunciators (LCD, LED, or graphic)
- Controls: Two programmable switches with LEDs and custom labeling
- Strobe Synchronization: UL 1971-compliant, multi-brand compatibility
- Compliance: NFPA standards, UL listed, ground fault detection supported
- User Interface: 4x20 backlit LCD display with intuitive navigation
