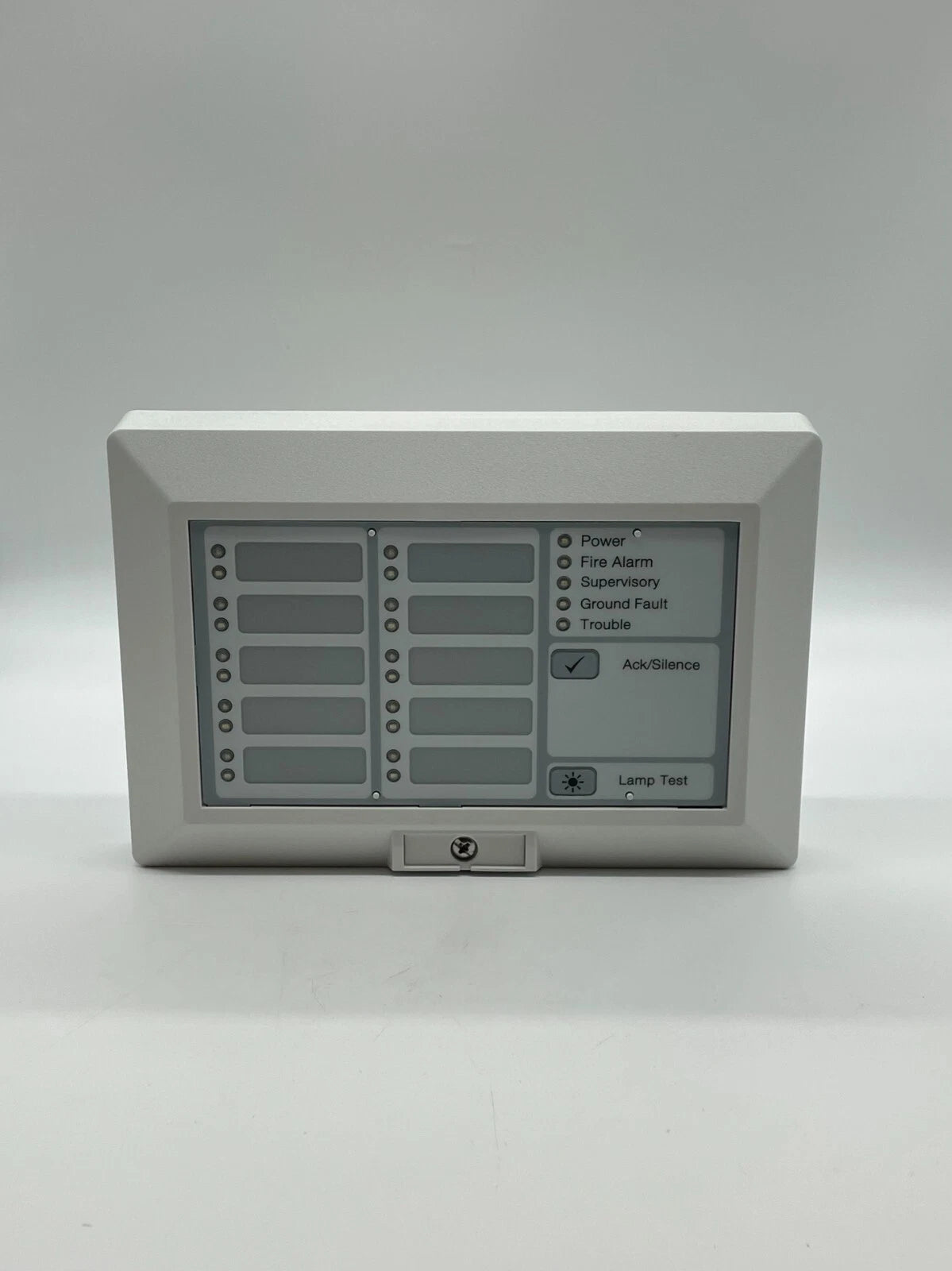

Kidde K-FSRA10 FX-Series 10-Zone LED Remote Fire Alarm Annunciator
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: K-FSRA10
Description
The Kidde K-FSRA10 is an FX-Series 10-zone remote LED annunciator designed to provide remote visual status indication for compatible 10-zone conventional fire alarm control panels. Kidde part number K-FSRA10 uses dedicated zone and system-status LEDs to identify alarm, supervisory, monitor, trouble, power, and ground-fault conditions from a convenient secondary location.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Alarm & Life Safety |
| Part Number | K-FSRA10 |
| Subcategory | Remote Annunciators |
| Series | FX-Series |
| Product Type | 10-Zone Remote LED Annunciator |
| Zone Capacity | 10 Zones |
| Zone Active Indicators | 10 Bi-Color Red/Yellow LEDs |
| Zone Trouble Indicators | 10 Yellow LEDs |
| System Indicators | Power, Fire Alarm, Supervisory, Ground Fault, Trouble |
| Alarm Zone Indication | Red LED |
| Supervisory Zone Indication | Yellow LED |
| Monitor Zone Indication | Flashing Yellow LED |
| Communication | Serial Remote Annunciator Bus |
| Maximum Annunciator Bus Length | Up to 1,000 ft (305 m) |
| Bus Wiring | 18 AWG Untwisted, Non-Shielded Cable |
| Input Voltage Range | Approximately 18.8–27.3 VDC |
| Local Function | Lamp Test / Local Buzzer Silence |
| Common Reset / Signal Silence Controls | Not Included; Available on K-FSRA10C Version |
| Mounting | Standard North American 4-Inch-Square Electrical Box |
| Color | White |
| Compatible Panel Type | Kidde 10-Zone Conventional Fire Alarm Control Panel |
| Primary Compatibility | FSP1004RD / FX-10 Series |
| UPC | 793016052070 |
| Weight | Approx. 0.4 lb (0.2 kg) |
Information About K-FSRA10
The K-FSRA10 is an FX-Series remote annunciator specifically designed for use with compatible 10-zone Kidde fire alarm systems, including the FSP1004RD/FX-10 platform. Its front panel provides ten red/yellow bi-color zone-active LEDs, ten yellow zone-trouble LEDs, and dedicated indicators for power, fire alarm, supervisory, ground fault, and system trouble conditions. The annunciator communicates through the system remote annunciator bus and mounts to a standard North American 4-inch-square electrical box, with a surface-mount box available for installations where recessed mounting is impractical. Unlike the K-FSRA10C version, the standard K-FSRA10 is primarily an indication unit and does not provide the common Reset and Signal Silence controls found on the “C” model.
Key Features:
- 10-Zone Annunciation: Provides individual status indication for all ten zones of a compatible 10-zone fire alarm control panel.
- Bi-Color Zone LEDs: Ten red/yellow LEDs identify active alarm, supervisory, and monitor conditions by zone.
- Zone Trouble Indicators: Ten separate yellow LEDs provide individual indication of zone trouble conditions.
- System Status Indicators: Dedicated LEDs display power, fire alarm, supervisory, ground fault, and general trouble status.
- Multiple Condition Display: Red indicates an active alarm zone, yellow indicates supervisory activity, and flashing yellow identifies an active monitor zone.
- Remote Annunciator Bus: Communicates with the host fire alarm panel through the dedicated serial remote annunciation interface.
- Extended Bus Wiring: The system remote annunciator bus supports cable runs up to approximately 1,000 ft (305 m) using specified wiring.
- Lamp Test Function: Allows the annunciator LEDs to be illuminated for verification of indicator operation.
- Standard Box Mounting: Designed for installation on a standard North American 4-inch-square electrical box.
- Surface-Mount Option: Can be installed using an available surface box where flush electrical-box mounting is unsuitable.
- Compact Remote Monitoring: Places detailed zone and system information at entrances, control rooms, or other locations away from the main panel.
- Dedicated 10-Zone Compatibility: Intended specifically for compatible 10-zone panels rather than 5-zone configurations.
The K-FSRA10 delivers the reliability and precision required for remote zone and system-status annunciation in conventional commercial fire alarm installations.
