K-RLCD-CR | Kidde R-Series LCD Annunciator with 4x20 Backlit Display
- Regular price
- $582.00
- Sale price
- $582.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: K-RLCD-CR
Description

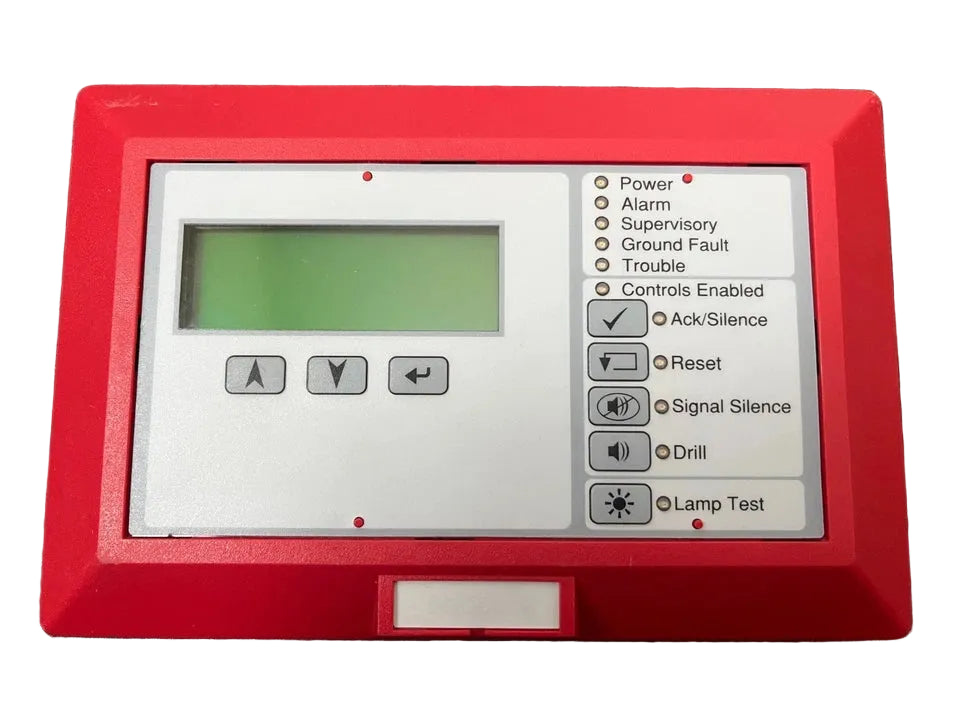

The Kidde K-RLCD-CR is an R-Series LCD remote annunciator featuring a 4 × 20 character backlit display for fire system status indication. It provides operators with clear, real-time text-based annunciation and optional common controls when connected to compatible Kidde fire alarm panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Safety |
| Part Number | K-RLCD-CR |
| Subcategory | Annunciator |
| Series | R-Series |
| Display | 4 × 20 character backlit LCD |
| Indicators | Standard status LEDs and internal buzzer |
| LED Annunciation | 16 pairs of LEDs (with LED model) |
| Expander | 24 pairs of LEDs per expander, max. 2 expanders |
| Controls | Optional common controls |
| Keyswitch | Available for enabling/disabling controls |
| Graphic Interface | Supports 32 LEDs and 16 switches |
| Communication | Class A or Class B RS-485 |
| Mounting | 4-inch square box or enclosure (1-, 2-, 3-position) |
| Color | Red |
| Dimensions | 5.6" H × 0.6" W × 1.5" D |
| Operating Temperature | 32°F (0°C) to 120.2°F (49°C) |
| Input Voltage | 24 VDC |
| Country of Origin | China |
| Weight | 1.0 lbs (approx.) |
Information About K-RLCD-CR

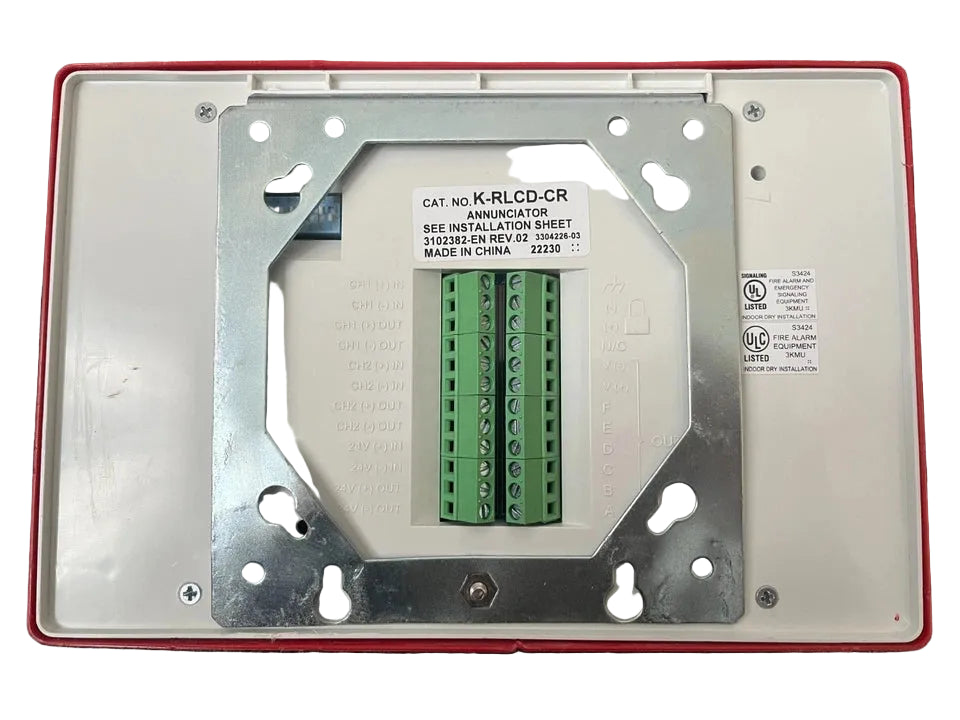

The K-RLCD-CR is part of the Kidde R-Series annunciator family, designed for integration with Kidde intelligent fire alarm control systems. It provides a user-friendly interface with text annunciation via a backlit LCD, complemented by standard status LEDs and an internal buzzer. The unit supports expander modules, enabling additional LED annunciation when required. It can be mounted on a standard 4-inch square electrical box or within available one-, two-, or three-position steel enclosures for secure installation.
Key Features:
- Backlit LCD Display: Large 4 × 20 character LCD ensures clear status messaging.
- LED Zone Annunciation Option: Supports LED models with 16 pairs of LEDs for simplified zone display.
- Expandable Capacity: Optional expander adds 24 pairs of LEDs for extended annunciation.
- Dual Expander Support: Up to two expanders can be connected per annunciator.
- Standard Indicators: Includes status LEDs and internal buzzer on all models.
- Common Controls: Available in select models for direct operator interaction.
- Keyswitch Security: Optional keyswitch enables or disables common controls.
- Mounting Flexibility: Fits a standard 4-inch electrical box or dedicated enclosures.
- Graphic Interface Support: Compatible with graphic annunciator interface cards supporting 32 LEDs and 16 switches.
- Wiring Standards: Operates with Class A or Class B RS-485 connections.
- No Programming Required: Simple addressing setup allows direct communication with panel.
The K-RLCD-CR delivers reliable annunciation and operator interface capability for Kidde intelligent fire alarm systems.
