Kidde MIRBPS10A 10A Remote Booster Power Supply for Fire Systems
- Regular price
- $859.00
- Sale price
- $859.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MIRBPS10A
Description

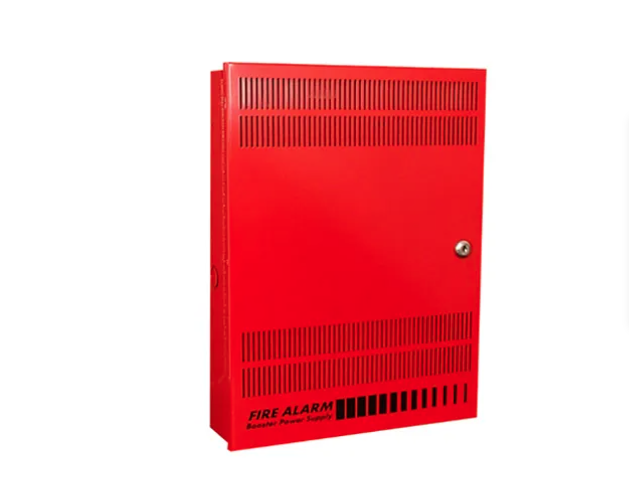

The Kidde MIRBPS10A is a 10 A remote booster power supply designed for fire alarm notification and auxiliary power applications. It provides a supervised 24 VDC power source with four Class B notification appliance circuits that can be configured as two Class A circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Systems |
| Part Number | MIRBPS10A |
| Subcategory | Booster Power Supplies |
| Product Type | Remote Booster Power Supply |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A |
| Input Voltage | 120 VAC |
| Input Frequency | 50/60 Hz |
| NAC Outputs | 4 Class B / 2 Class A |
| NAC Capacity | 3 A per circuit |
| Battery Capacity | Up to two 10 Ah batteries |
| Battery Function | Monitoring and charging |
| Input Circuits | 2 controlling inputs |
| Enclosure Material | Steel |
| Dimensions | 17 × 8 × 5 in |
| Applications | Fire Alarm, MNEC, Access Control, Security |
| Listing | UL 864, 10th Edition |
| Weight | 5.90 kg |
Information About MIRBPS10A
The MIRBPS10A is part of the Kidde MIRBPS remote booster power supply series. The unit provides filtered and regulated 24 VDC power for notification appliances, mass notification systems, access control, security, and other life-safety applications. It includes circuitry for battery monitoring and charging and accommodates up to two 10 Ah batteries. The power supply also supports Genesis notification appliance synchronization and dual-input circuit activation.
Key Features:
- 10 A Output: Provides up to 10 A of rated output current for connected fire alarm loads.
- 24 VDC Supply: Provides filtered and regulated DC power for compatible life-safety equipment.
- Four Class B NACs: Includes four independent Class B notification appliance circuits.
- Class A Conversion: Two Class B circuit pairs can be configured as two Class A circuits.
- Battery Support: Includes circuitry for monitoring and charging connected standby batteries.
- Dual Inputs: Allows notification circuits to be activated in one or two groups.
- Genesis Synchronization: Supports synchronization of compatible Genesis notification appliances.
- Auxiliary Applications: Can provide power for MNEC, access control, and security equipment.
The MIRBPS10A delivers the reliability and precision required for fire alarm notification, auxiliary power, and life-safety control systems.
