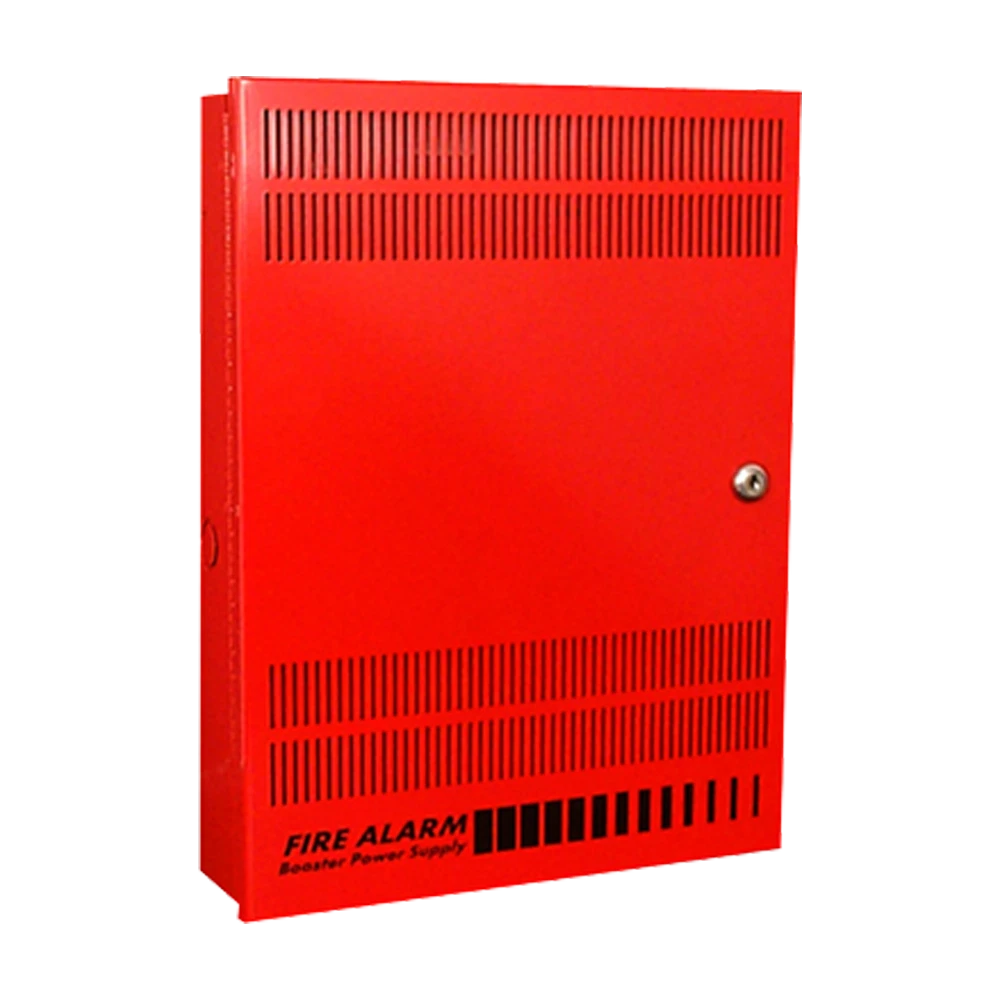

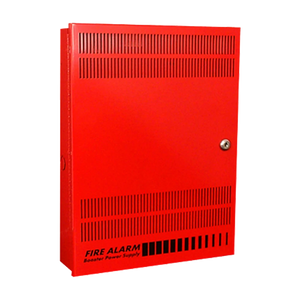

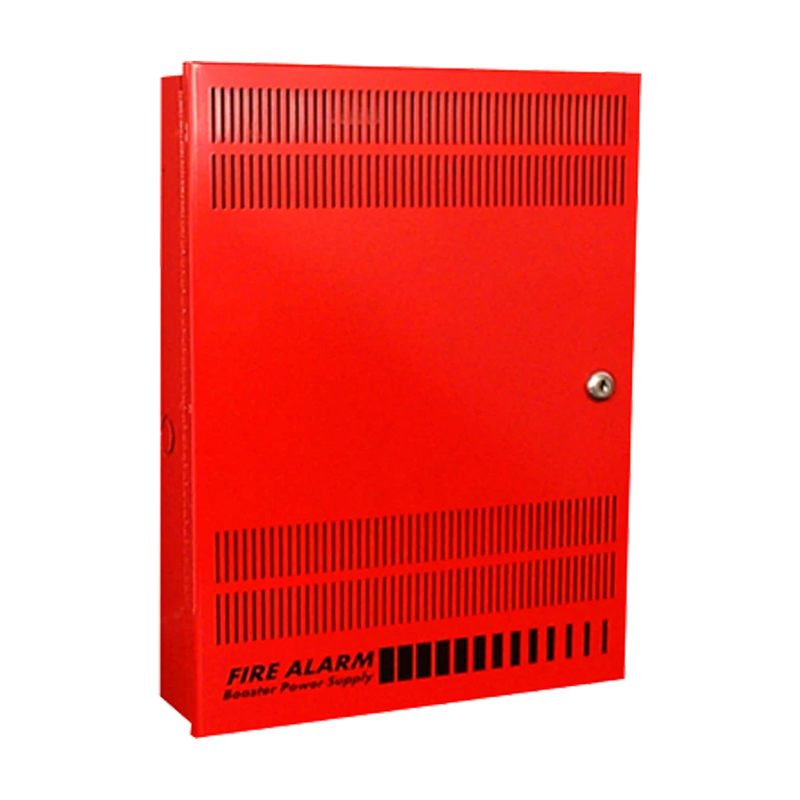

Kidde MIRBPS6A 6.5A Remote Booster Power Supply for Fire Systems
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MIRBPS6A
Description
The Kidde MIRBPS6A is a 6.5 A remote booster power supply designed to expand available power for fire alarm notification and auxiliary life-safety circuits. It provides regulated 24 VDC power with four configurable notification appliance circuits that can be arranged as Class A or Class B circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Systems |
| Part Number | MIRBPS6A |
| Subcategory | Booster Power Supplies |
| Product Type | Remote Booster Power Supply |
| Output Voltage | 24 VDC nominal |
| Maximum Output Current | 6.5 A |
| AC Input Voltage | 120 VAC or 220–240 VAC |
| Input Frequency | 50/60 Hz |
| NAC Circuits | 4 |
| NAC Configuration | Class A or Class B |
| Maximum Circuit Current | 3 A per circuit |
| Battery Capacity | Up to 2 × 10 Ah in enclosure |
| Battery Function | Monitoring and charging |
| Auxiliary Output | Up to 8 A configurable |
| Wire Gauge | 18–12 AWG |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0–93% non-condensing at 32°C |
| Weight | 13 lb |
Information About MIRBPS6A
The MIRBPS6A belongs to the Kidde MIRBPS remote booster power supply series. It operates from 120 VAC or 220–240 VAC at 50/60 Hz and provides a nominal 6.5 A maximum total output across its notification circuits. The unit includes battery monitoring and charging functions and supports up to two 10 Ah batteries within the enclosure. Its configurable outputs can provide notification appliance circuits or auxiliary 24 VDC power for compatible fire alarm, life-safety, security, and access-control applications.
Key Features:
- 6.5 A Output: Provides up to 6.5 A total output for compatible notification and auxiliary loads.
- 24 VDC Supply: Provides nominal 24 VDC power for fire alarm and life-safety equipment.
- Four NAC Circuits: Provides four configurable notification appliance circuits.
- Class A/B Configuration: Allows the NAC circuits to be configured as Class A or Class B.
- Battery Charging: Includes circuitry for monitoring and charging standby batteries.
- Dual Input Monitoring: Supports two external controlling inputs for system activation.
- Auxiliary Power: Configurable outputs can provide auxiliary 24 VDC power for compatible equipment.
- Ground Fault Detection: Includes selectable ground-fault monitoring for system supervision.
The MIRBPS6A delivers the reliability and precision required for fire alarm notification, auxiliary power, and life-safety control systems.
