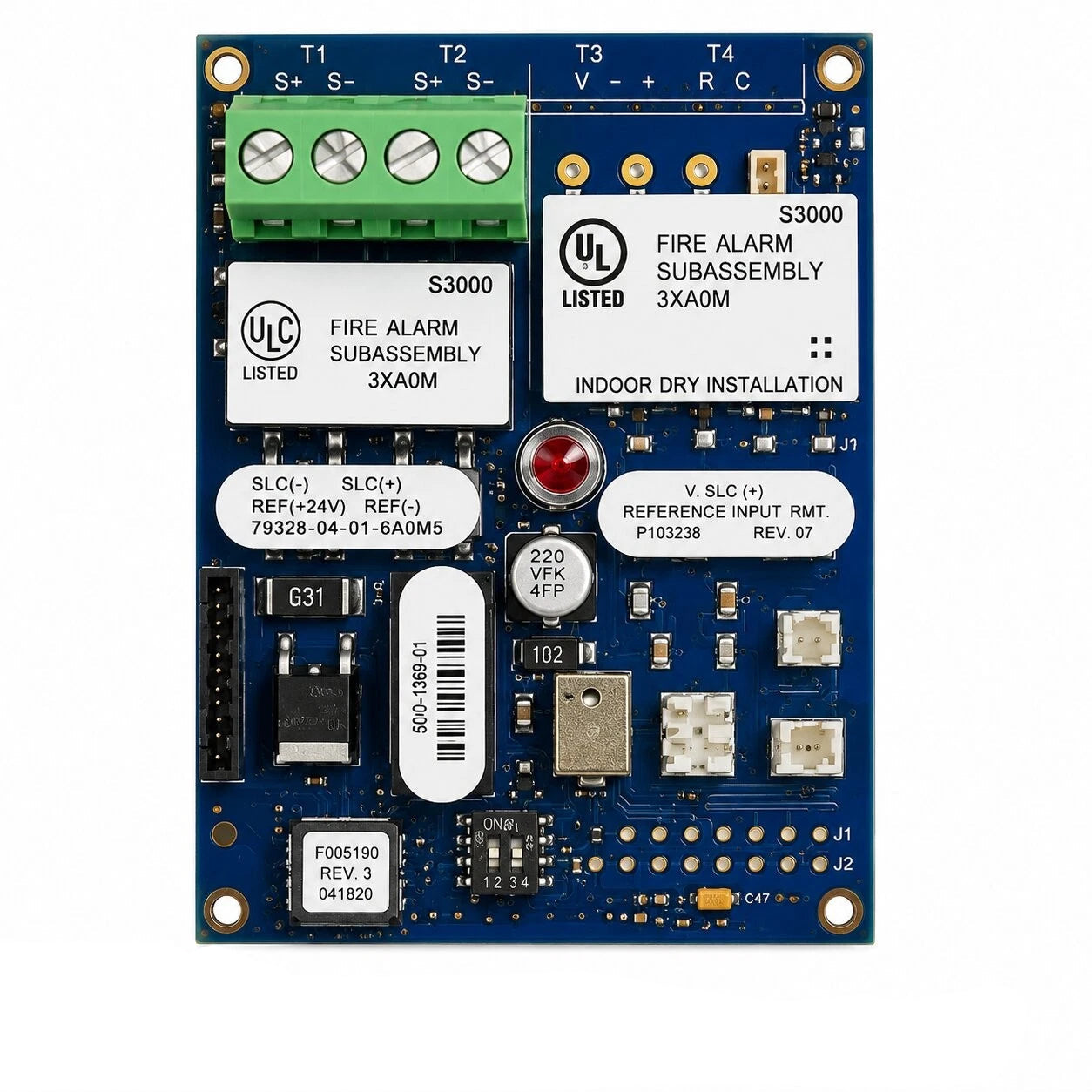

Kidde V-SLC2-1 Single Loop Controller Card for VS4 Addressable Fire Alarm Control Panels
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: V-SLC2-1
Description
The Kidde V-SLC2-1 is a single-loop controller card designed to expand the addressable signaling line circuit capacity of Kidde VS4 fire alarm control panels and serve as a replacement loop card for compatible VS1 systems. This expansion module provides reliable communication with addressable field devices while supporting flexible Class A or Class B wiring configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Alarm Systems |
| Part Number | V-SLC2-1 |
| Subcategory | Loop Controller Cards |
| Product Series | VS4 |
| Product Type | Addressable Loop Expander / Single Loop Controller Card |
| Compatible Panels | Kidde VS4, VS1 (service replacement) |
| Maximum Loop Capacity | 250 addresses (VS4), 64 addresses (VS1) |
| Wiring Style | Class B (Style 4) or Class A (Style 6/7) |
| Operating Voltage | 24 VDC |
| Current Draw | 55 mA standby, 80 mA alarm |
| Maximum Loop Resistance | 66 Ω |
| Maximum Loop Capacitance | 0.5 µF |
| Maximum Isolators per Loop | Up to 64 |
| Conductor Size | 12–18 AWG |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 0–93% RH, non-condensing |
| Device Supported | Fire Alarm Control Panel |
| Weight | 0.4 lb (0.18 kg) |
Information About V-SLC2-1
The V-SLC2-1 is a member of the Kidde VS4 Series of addressable fire alarm expansion modules developed for scalable fire detection systems. It supports up to 250 addressable devices when installed in VS4 control panels and up to 64 addresses in compatible VS1 panels, providing efficient loop expansion for new or existing installations. The module accommodates both Class B (Style 4) and Class A (Style 6/7) signaling line circuits, allowing system designers to meet different application requirements. Built for continuous operation within commercial fire protection environments, it delivers stable communication while maintaining compatibility with Kidde Commercial addressable devices.
Key Features:
- Single Loop Expansion: Adds one addressable signaling line circuit to compatible Kidde control panels.
- High Device Capacity: Supports up to 250 addresses on VS4 systems and 64 addresses on VS1 systems.
- Flexible Wiring Options: Configurable for Class B (Style 4) or Class A (Style 6/7) installations.
- 24 VDC Operation: Powered directly from the host fire alarm control panel.
- Addressable Device Support: Communicates with compatible Kidde addressable detectors, modules, and bases.
- Low Power Consumption: Draws approximately 55 mA in standby and 80 mA during alarm conditions.
- Commercial System Integration: Designed specifically for Kidde VS Series life safety applications.
- Reliable Environmental Performance: Operates in temperatures from 0°C to 49°C with up to 93% non-condensing humidity.
The V-SLC2-1 delivers the reliability and precision required for expanding addressable fire alarm control systems in commercial and institutional facilities.
