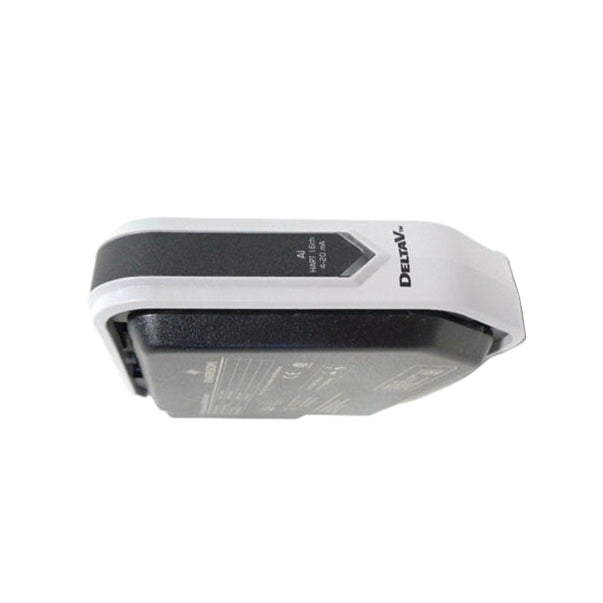

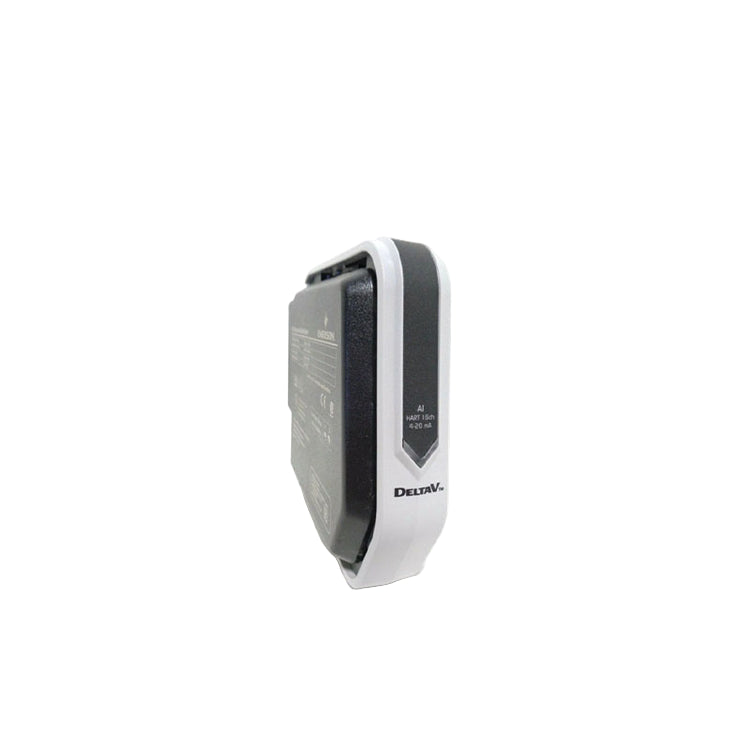

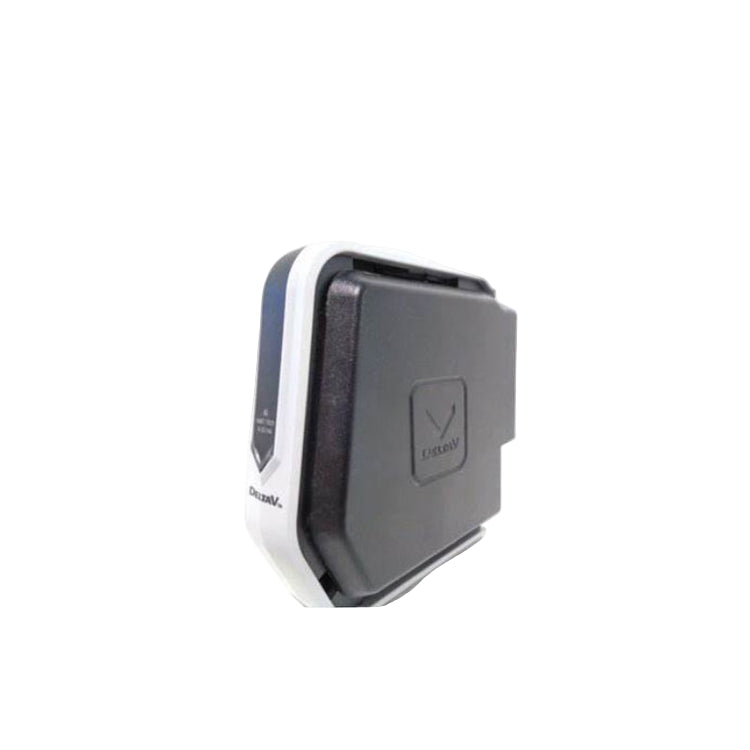

KL2001X1-BD1 | Emerson Ethernet I/O Card

Description

The Emerson KL2001X1-BD1 is an Ethernet I/O interface card designed to expand connectivity and communication capabilities in industrial automation systems.

Technical Specifications

Information About KL2001X1-BD1

The KL2001X1-BD1 is part of Emerson’s DeltaV Ethernet I/O module range, developed to provide reliable high-speed communication and flexible integration in distributed control systems. Designed for harsh industrial environments, it operates on a 24 VDC supply at 325 mA and supports robust performance across wide temperature ranges from –40 °C to +70 °C. Compact and rugged with an IP20-rated enclosure, the KL2001X1-BD1 is certified for hazardous locations, including ATEX, IECEx, FM, and UKEX standards, ensuring safe operation in demanding conditions. With resistance to shock, vibration, airborne contaminants, and humidity, it enables dependable connectivity for critical automation applications.

Key Features:

• Model / MPN: KL2001X1-BD1
• Type: Ethernet I/O Interface Module / DeltaV Series
• Power Supply: 24 VDC, 325 mA
• Enclosure Rating: IP20
• Certifications: ATEX (II 3G Ex ec IIC Gc), IECEx, FM, UKEX, Class I Div. 2, Zone 2
• Operating Temperature: –40 °C to +70 °C
• Relative Humidity: 5% to 95%, Non-Condensing
• Shock Resistance: 10 g half-sine wave, 11 ms
• Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Airborne Contaminant Rating: ISA-S71.04-1985, Class G3
• Dimensions (H x W x D): 156 × 132 × 50 mm
• Weight: ~0.66 lbs (0.3 kg)
• Application: Distributed control, process automation, hazardous environment communication modules

The Emerson KL2001X1-BD1 Ethernet I/O Card delivers rugged, reliable connectivity with comprehensive environmental and safety certifications, making it a trusted choice for industrial automation and DeltaV control systems.
