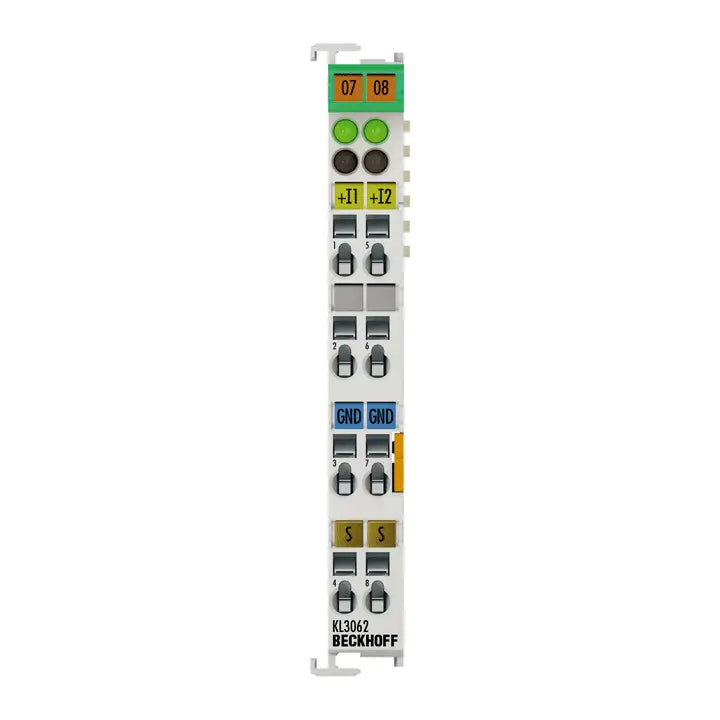

KL3062 | Beckhoff 2-Channel Analog Input Bus Terminal 0–10 V 12 Bit Single-Ended
- Regular price
- $214.00
- Sale price
- $214.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KL3062
Description
The Beckhoff KL3062 is a 2-channel analog input bus terminal for voltage measurement in automation systems. It supports 0…10 V single-ended input signals with 12-bit resolution, providing reliable and accurate data acquisition.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | I/O Terminals |
| Part Number | KL3062 |
| Subcategory | Analog Input Terminals |
| Number of Inputs | 2 |
| Signal Voltage | 0…10 V |
| Technology | Single-ended |
| Resolution | 12 bit |
| Conversion Time | ~ 2 ms |
| Internal Resistance | Typ. > 200 kΩ |
| Measurement Error | < ±0.3% (relative to full scale value) |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Power Supply | Via K-bus |
| Current Consumption (K-bus) | Typ. 60 mA |
| Bit Width in Process Image | Input: 2 × 16-bit data (2 × 8-bit control/status optional) |
| Configuration | No address or configuration setting |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…+85 °C |
| Relative Humidity | 95%, no condensation |
| Protection Rating | IP20 |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
| Weight | Approx. 60 g |
Information About KL3062
The KL3062 is a Beckhoff Bus Terminal designed for acquiring analog voltage signals directly in distributed automation systems. It offers two single-ended input channels with a measuring range of 0…10 V and a resolution of 12 bits, making it suitable for precise signal monitoring and control. With an internal resistance of >200 kΩ and galvanic isolation of 500 V between K-bus and signal voltage, it ensures stable and safe operation even in electrically noisy environments. The terminal requires no address or configuration settings and integrates seamlessly into Beckhoff’s modular I/O system via the K-bus, providing fast and efficient installation.
Key Features:
-
2-Channel Analog Input: Acquires two independent voltage signals within the 0…10 V range for flexible measurement applications.
-
12-Bit Resolution: Ensures accurate digital representation of analog signals for precise control and monitoring.
-
Fast Conversion Time (~2 ms): Enables quick data updates for dynamic automation processes.
-
High Input Resistance: Typical >200 kΩ resistance prevents signal loading and ensures accurate measurements.
-
Electrical Isolation 500 V: Protects control systems by isolating the K-bus from the signal voltage.
-
Error Margin < ±0.3%: Provides reliable readings with minimal measurement uncertainty.
-
Seamless Integration: Operates without manual configuration and connects directly via Beckhoff’s K-bus.
-
Industrial-Grade Compliance: Meets EMC, shock, and vibration standards for stable operation in harsh environments.
The KL3062 delivers the reliability and precision required for analog voltage measurement in modular I/O automation systems.
