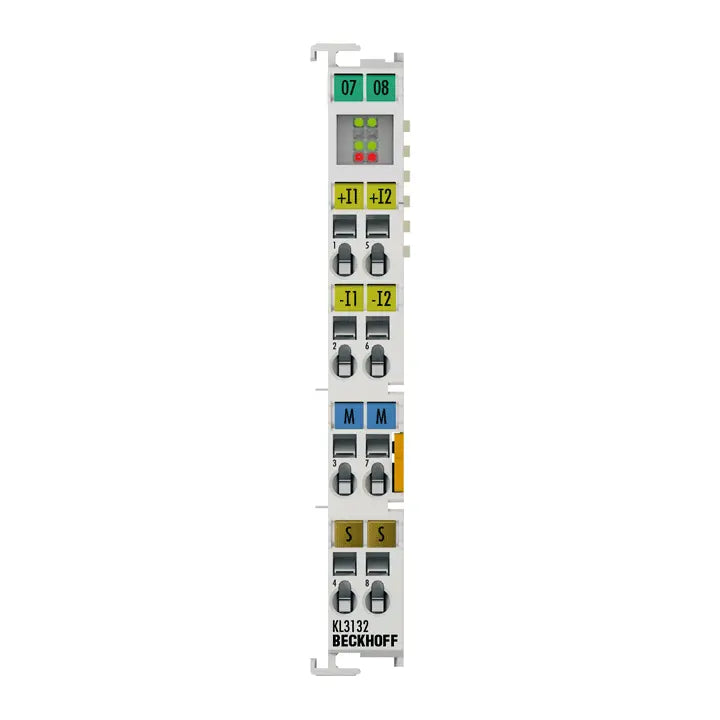

KL3132 | Beckhoff Bus Terminal 2-Channel Analog Input ±10 V 16 Bit Differential High-Precision
- Regular price
- $365.00
- Sale price
- $365.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KL3132
Description
The Beckhoff KL3132 is a 2-channel analog input bus terminal for high-precision voltage measurement in industrial automation. It supports ±10 V differential signals with 16-bit resolution and provides advanced accuracy with configurable filters.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | I/O Terminals |
| Part Number | KL3132 |
| Subcategory | Analog Input Terminals |
| Number of Inputs | 2 |
| Signal Voltage | -10…+10 V |
| Technology | Differential input |
| Internal Resistance | > 70 kΩ |
| Common-Mode Voltage UCM | Max. 10 V |
| Conversion Time | 140 ms, configurable |
| Filter | Configurable 50 Hz noise filter |
| Resolution | 16 bit (15 bit for 0…10 V range) |
| Measurement Error/Uncertainty | < ±0.05% (relative to full scale) |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Current Consumption (K-bus) | Typ. 85 mA |
| Bit Width in Process Image | 2 × 16-bit data (2 × 8-bit control/status optional) |
| Special Features | Increased measuring accuracy |
| Power Supply | Via K-bus |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…+85 °C |
| Relative Humidity | 95%, no condensation |
| Housing Material | Polycarbonate |
| Installation | DIN rail 35 mm (EN 60715) with lock |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Protection Rating | IP20 |
| Weight | Approx. 70 g |
Information About KL3132
The KL3132 is part of Beckhoff’s KL series of modular bus terminals, designed to acquire high-precision analog voltage signals in automation systems. It offers two differential input channels with a voltage range of ±10 V, a 16-bit resolution, and configurable conversion and filter settings for optimized performance. With measurement uncertainty below ±0.05% and electrical isolation of 500 V, it ensures stable and accurate signal processing even in challenging environments. Its slim 12 mm housing, polycarbonate construction, and DIN rail mounting make it a compact and durable solution for distributed control architectures.
Key Features:
-
Dual High-Precision Analog Inputs: Provides two independent channels for differential ±10 V voltage measurement with enhanced accuracy.
-
High 16-Bit Resolution: Delivers fine signal granularity for precise acquisition, with 15-bit resolution in the 0…10 V range.
-
Configurable Sampling and Filtering: Adjustable 140 ms conversion time and 50 Hz filter ensure optimized performance for specific applications.
-
Low Measurement Error: Achieves an accuracy of < ±0.05% of full scale, meeting demanding industrial precision requirements.
-
Robust Electrical Isolation: Offers 500 V separation between K-bus and signal voltage for safe and interference-free operation.
-
Industrial-Grade Durability: Designed with polycarbonate housing and IP20 protection, suitable for reliable cabinet integration.
-
Compact Modular Design: Slim 12 mm profile saves space while maintaining full analog measurement capability.
-
Flexible Integration: Seamlessly integrates into Beckhoff K-bus systems without additional configuration requirements.
The KL3132 delivers the reliability and precision required for high-accuracy voltage measurement in automation and control systems.
