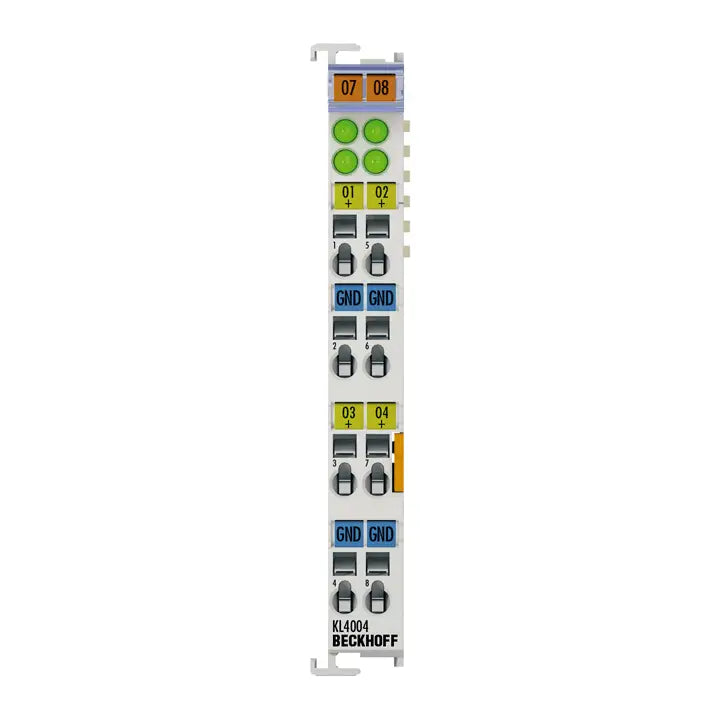

KL4004 | Beckhoff Bus Terminal 4-Channel Analog Output 0–10 V 12 Bit Single-Ended
- Regular price
- $288.00
- Sale price
- $288.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: KL4004
Description
The Beckhoff KL4004 is a 4-channel analog output bus terminal designed for generating precise voltage signals in automation systems. Supporting 0…10 V single-ended output with 12-bit resolution, it ensures reliable performance with short-circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | I/O Terminals |
| Part Number | KL4004 |
| Subcategory | Analog Output Terminals |
| Number of Outputs | 4 |
| Signal Voltage | 0…10 V |
| Technology | Single-ended |
| Resolution | 12 bit |
| Conversion Time | ~ 2 ms |
| Load Requirement | > 5 kΩ, short-circuit proof |
| Output Error | < ±0.1% (relative to end value) |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Power Supply | Via K-bus |
| Current Consumption (K-bus) | Typ. 85 mA |
| Bit Width in Process Image | 4 × 16-bit data (4 × 8-bit control/status optional) |
| Configuration | No addressing or configuration required |
| Housing Material | Polycarbonate |
| Installation | 35 mm DIN rail, EN 60715 with lock |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Operating Temperature | 0…55 °C |
| Storage Temperature | -25…+85 °C |
| Relative Humidity | 95%, no condensation |
| Protection Rating | IP20 |
| Weight | Approx. 85 g |
Information About KL4004
The KL4004 is part of Beckhoff’s KL series of analog output bus terminals, designed for distributed signal generation in automation environments. It provides four independent channels with a voltage range of 0…10 V, offering precise control with a 12-bit resolution and an output error of less than ±0.1%. Each channel is short-circuit proof and ensures reliable signal generation for loads greater than 5 kΩ. Compact and easily installed on a DIN rail, the KL4004 integrates seamlessly into modular K-bus systems with no manual configuration required.
Key Features:
-
Four Analog Outputs: Supplies four independent voltage outputs within the 0…10 V range for versatile signal generation.
-
12-Bit Resolution: Provides fine signal gradation for accurate control in automation processes.
-
Short-Circuit Proof Design: Ensures output safety by protecting channels from electrical faults.
-
Fast Conversion Time: Updates outputs within ~2 ms for responsive system performance.
-
Low Output Error (< ±0.1%): Guarantees precise voltage output relative to the full-scale value.
-
Strong Electrical Isolation: 500 V isolation between K-bus and signal voltage ensures safe and interference-free operation.
-
Compact Modular Housing: Slim 12 mm profile saves space while delivering four output channels.
-
Seamless System Integration: Requires no addressing or configuration, working directly within Beckhoff’s K-bus architecture.
The KL4004 delivers the reliability and precision required for high-quality analog signal generation in distributed automation systems.
