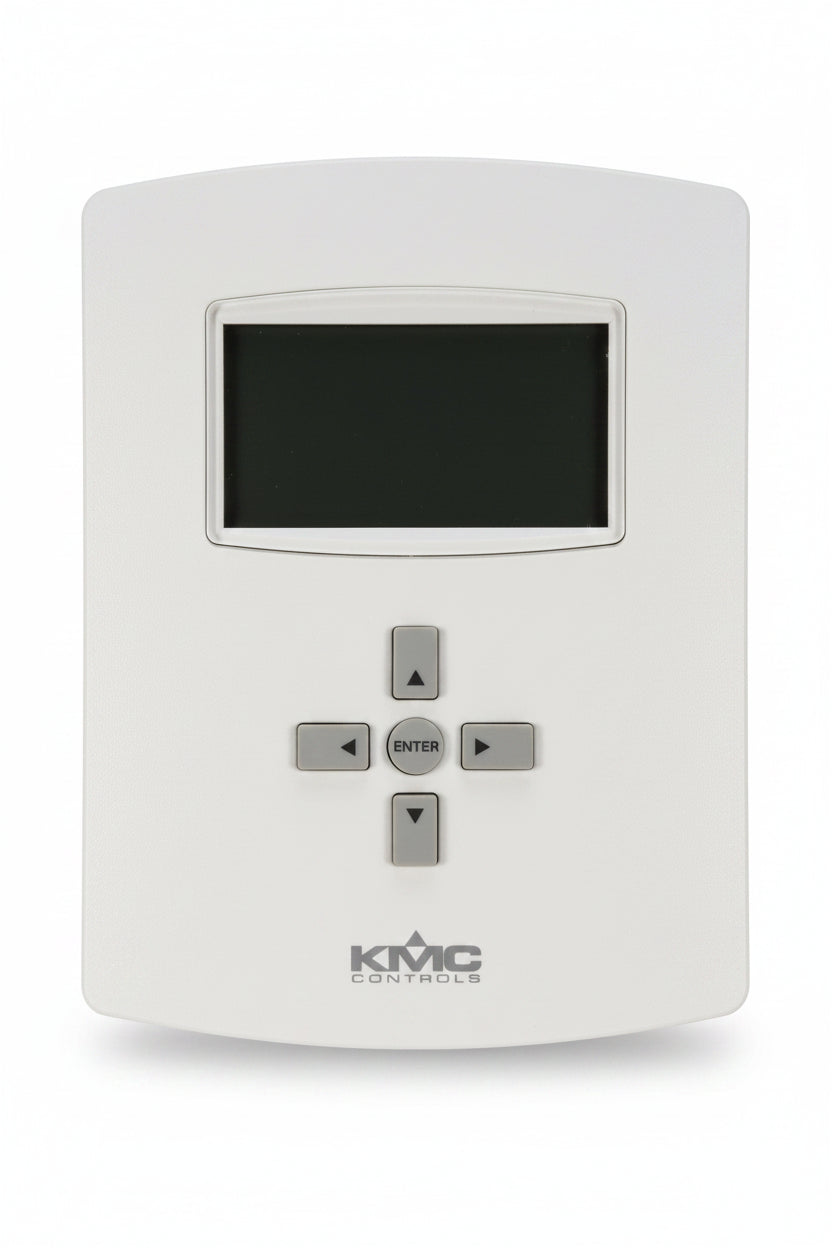

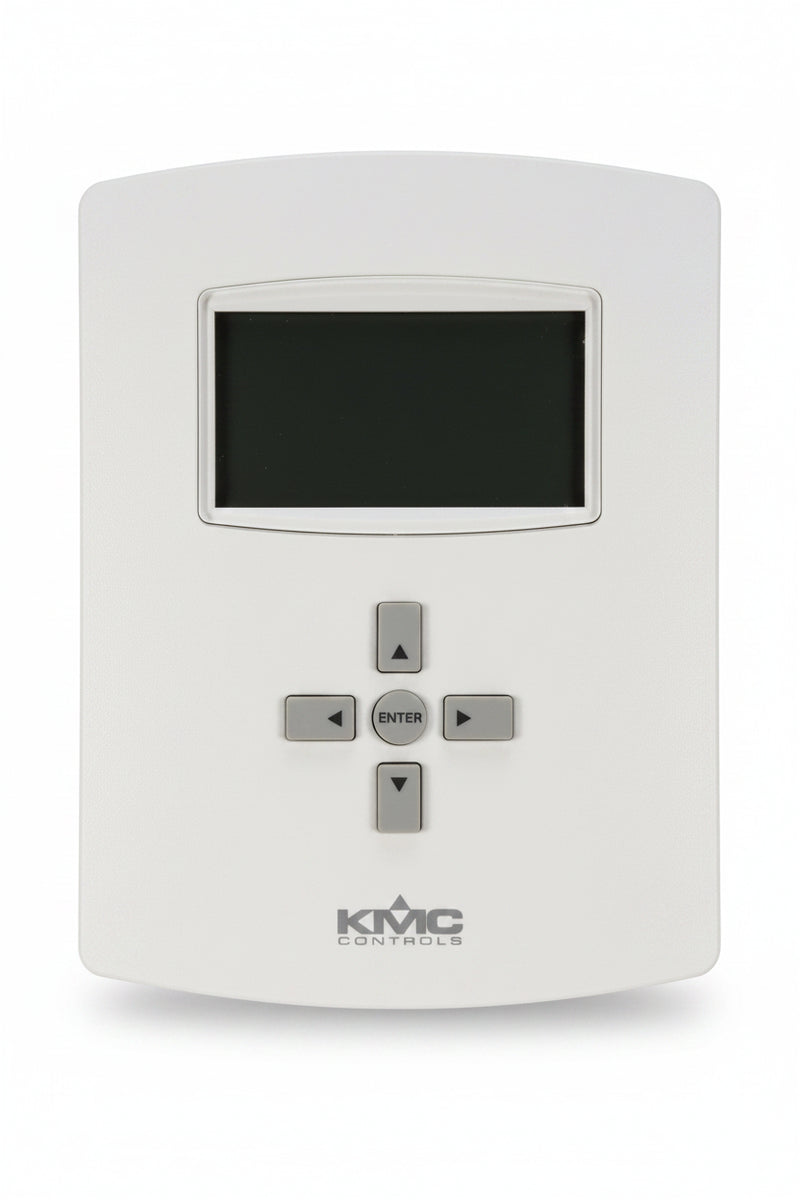

KMC Controls BAC-120063CW FlexStat 6-Relay 3-Output BACnet Thermostat
- Regular price
- $624.00
- Sale price
- $624.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAC-120063CW
Description
The KMC Controls BAC-120063CW FlexStat is a programmable BACnet thermostat and advanced application controller designed for commercial HVAC applications, including heat pump systems. It provides six relay outputs, three analog outputs, LCD display functionality, and 24 VAC operation for integrated temperature control and building automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Category | Controls & Indicators |
| Part Number | BAC-120063CW |
| Subcategory | Thermostat |
| Series | FlexStat |
| Product Type | Thermostat / BACnet Advanced Application Controller |
| Application | Heat Pump |
| Display | LCD |
| Power Supply | 24 VAC |
| Relay Outputs | 6 |
| Analog Outputs | 3 |
| Relay Type | Normally Open, SPST (Form A) |
| Maximum Relay Current | 1 A per relay; 1.5 A total per bank of 3 relays |
| Maximum Analog Output Current | 20 mA at 12 VDC per output |
| Network | BACnet MS/TP |
| Control Applications | Heat Pumps, RTUs, AHUs, Fan Coil Units |
| Weight | 1.00 lb |
Information About BAC-120063CW

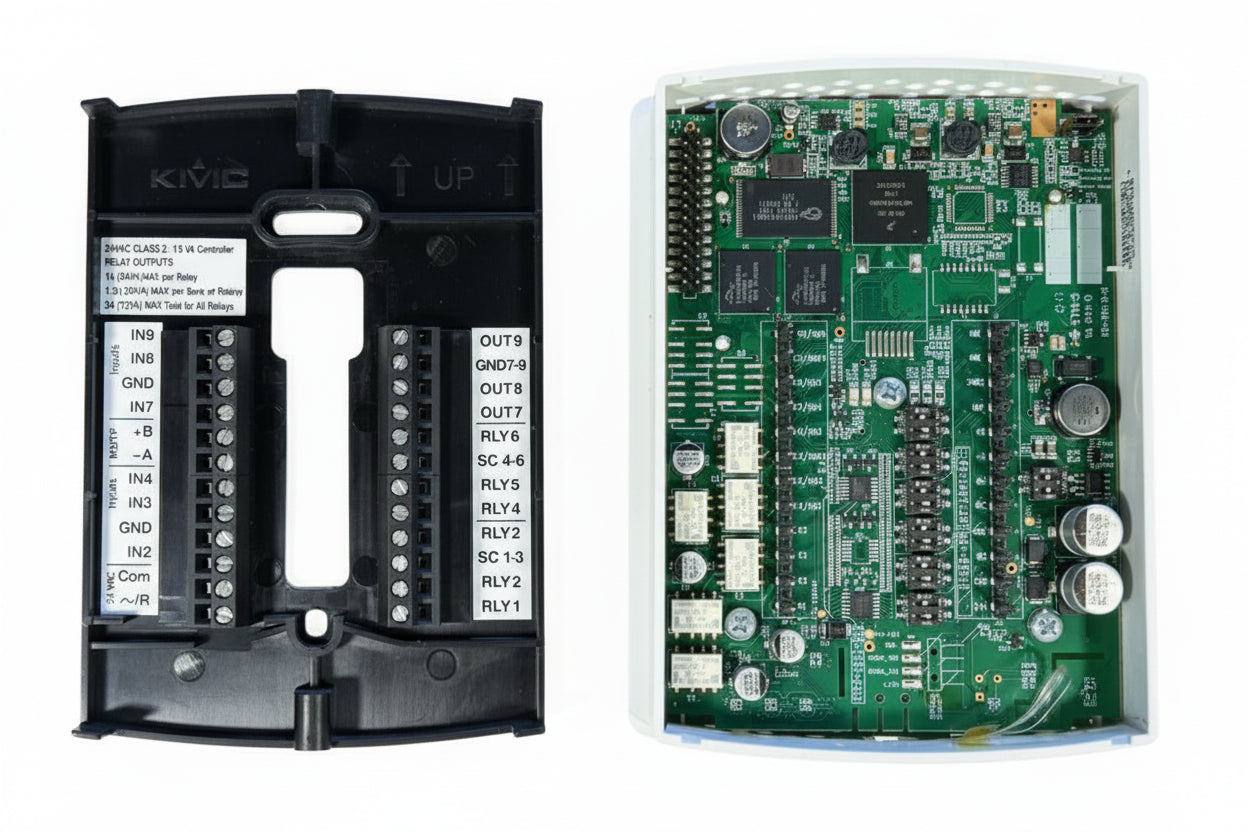

The BAC-120063CW is part of the KMC Controls FlexStat series of BACnet programmable thermostats and room controllers. It combines a thermostat, temperature sensor, and BACnet advanced application controller in a single wall-mounted device. The controller is designed for standalone operation or connection to a BACnet/MS/TP network and supports applications such as heat pumps, rooftop units, air handlers, and fan coil units. Its six relay outputs and three analog outputs provide configurable control of HVAC equipment and related devices.
Key Features:
- BACnet Controller: Functions as a BACnet Advanced Application Controller for standalone or networked HVAC control.
- Heat Pump Application: Supports heat pump control applications and other compatible commercial HVAC configurations.
- Six Relay Outputs: Provides six Class 2 relay outputs for discrete HVAC equipment control.
- Three Analog Outputs: Provides three configurable analog outputs for modulating control applications.
- 24 VAC Operation: Requires an external 24 VAC AC power source for operation.
- LCD Display: Provides local display functionality for thermostat and controller operation.
- MS/TP Connectivity: Supports BACnet MS/TP network communication for building automation integration.
- Flexible Applications: Supports heat pumps, rooftop units, air handlers, and fan coil units.
The BAC-120063CW delivers the reliability and precision required for programmable commercial HVAC and BACnet control applications.
