KMC Controls BAC-5051E Conquest BACnet Multi-Port Router
- Regular price
- $812.00
- Sale price
- $812.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAC-5051E
Description
The KMC Controls BAC-5051E is a Conquest Series multi-port BACnet router designed to connect and route communications between BACnet MS/TP, BACnet Ethernet, and BACnet/IP networks. Supporting 24 VAC/DC power and DIN rail or surface mounting, it provides reliable integration for building automation and HVAC control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Part Number | BAC-5051E |
| Category | Computer |
| Subcategory | Networking Router |
| Series | Conquest |
| Product Type | BACnet Router |

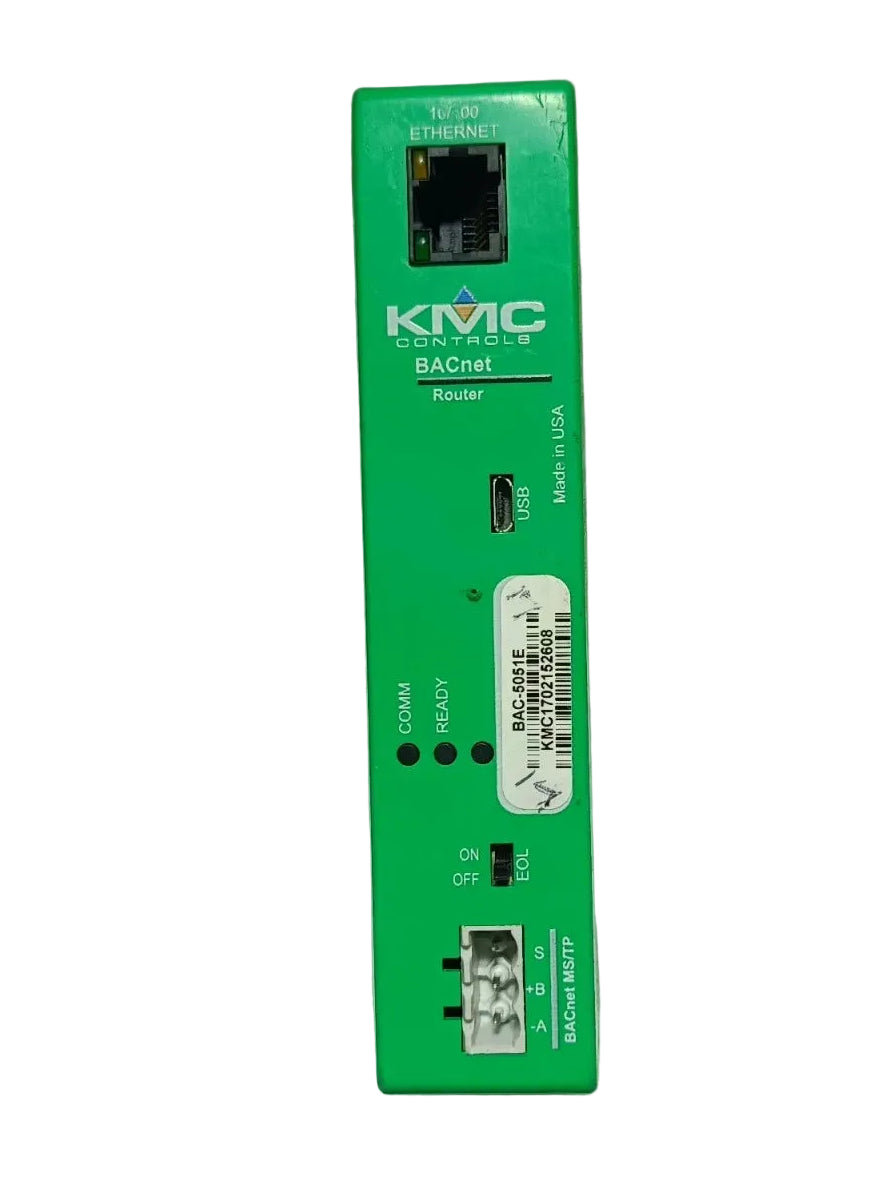

| Supported Networks | 1 × BACnet MS/TP, 1 × BACnet Ethernet, 2 × BACnet/IP |
| Power Supply | 24 VAC/DC |
| Frequency | 50/60 Hz |
| Configuration | Browser-Based |
| Mounting | DIN Rail or Surface Mount |
| Certifications | BTL Listed |
| Weight | 0.30 lb |
Information About BAC-5051E
The BAC-5051E is part of the KMC Controls Conquest Series, developed to simplify communication between multiple BACnet network types in building automation systems. Equipped with one MS/TP network, one BACnet Ethernet port, and two BACnet/IP ports, it enables efficient routing between field devices and supervisory controllers. Browser-based configuration eliminates the need for dedicated software, while integrated diagnostics provide valuable network performance information for installation and troubleshooting. Its compact design and flexible mounting options make it suitable for both permanent installations and portable service applications.
Key Features:
- Multi-Port BACnet Routing: Connects BACnet MS/TP, BACnet Ethernet, and BACnet/IP networks.
- Browser-Based Configuration: Configures the router using a standard web browser without additional software.
- Automatic Network Discovery: Detects and configures routing based on discovered BACnet networks.
- Built-In Diagnostics: Monitors network traffic, frame counts, duplicate MAC addresses, and token passing.
- Routing Control: Allows routing to be enabled or disabled for troubleshooting and diagnostics.

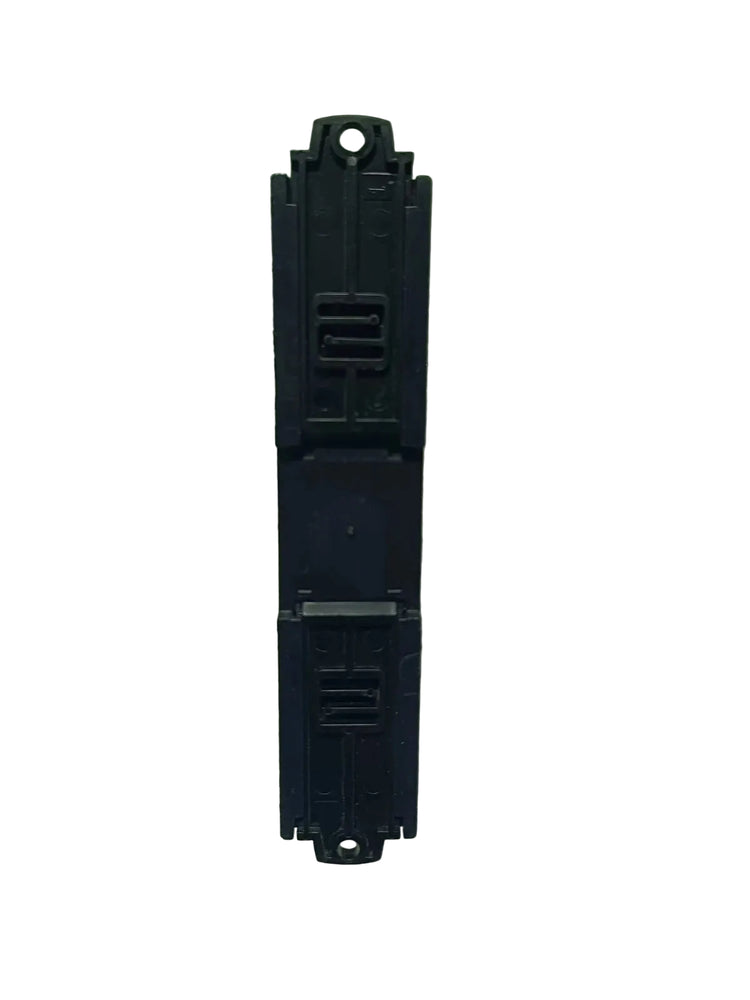

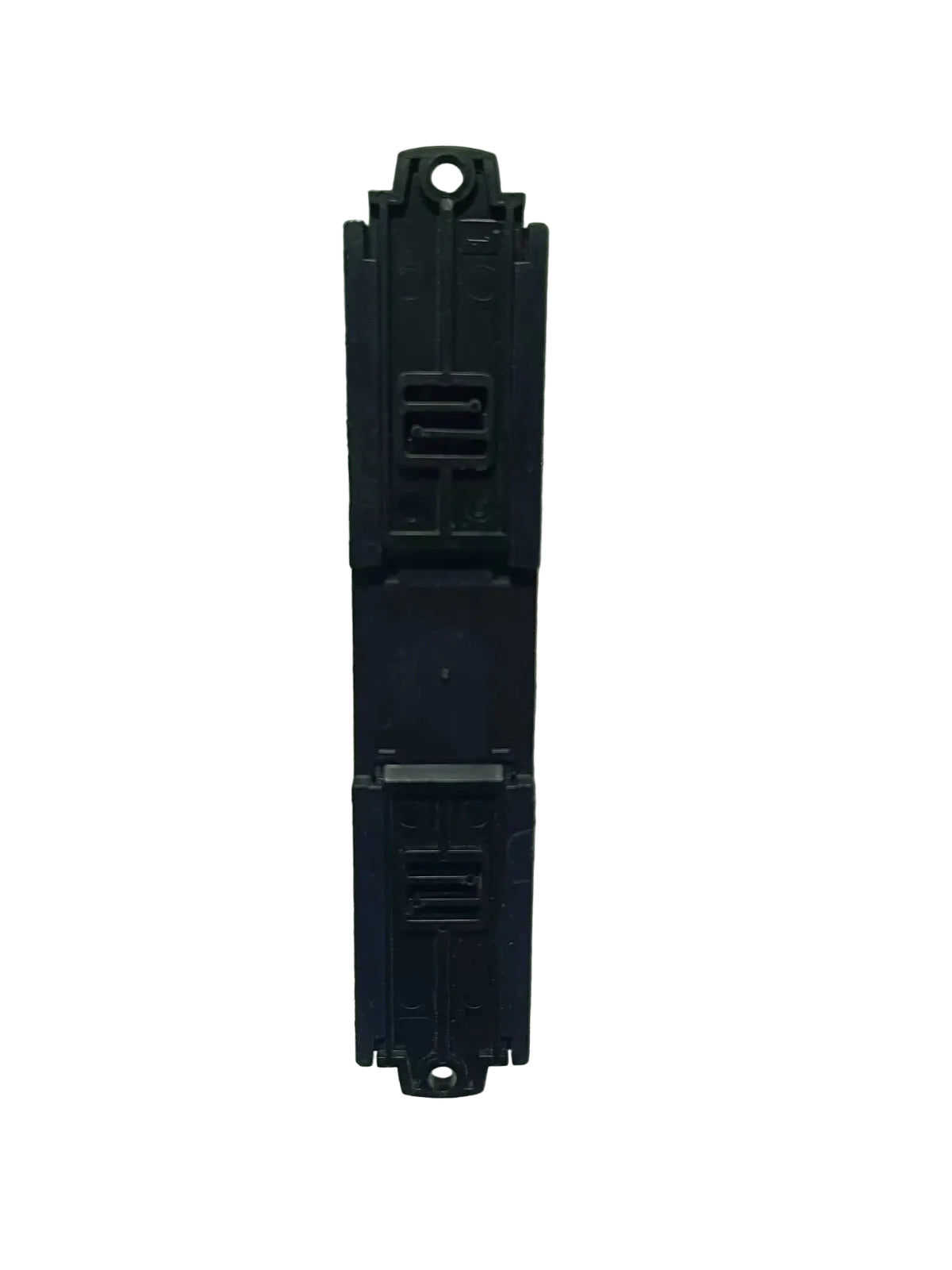

- Flexible Installation: Supports DIN rail and surface mounting options.

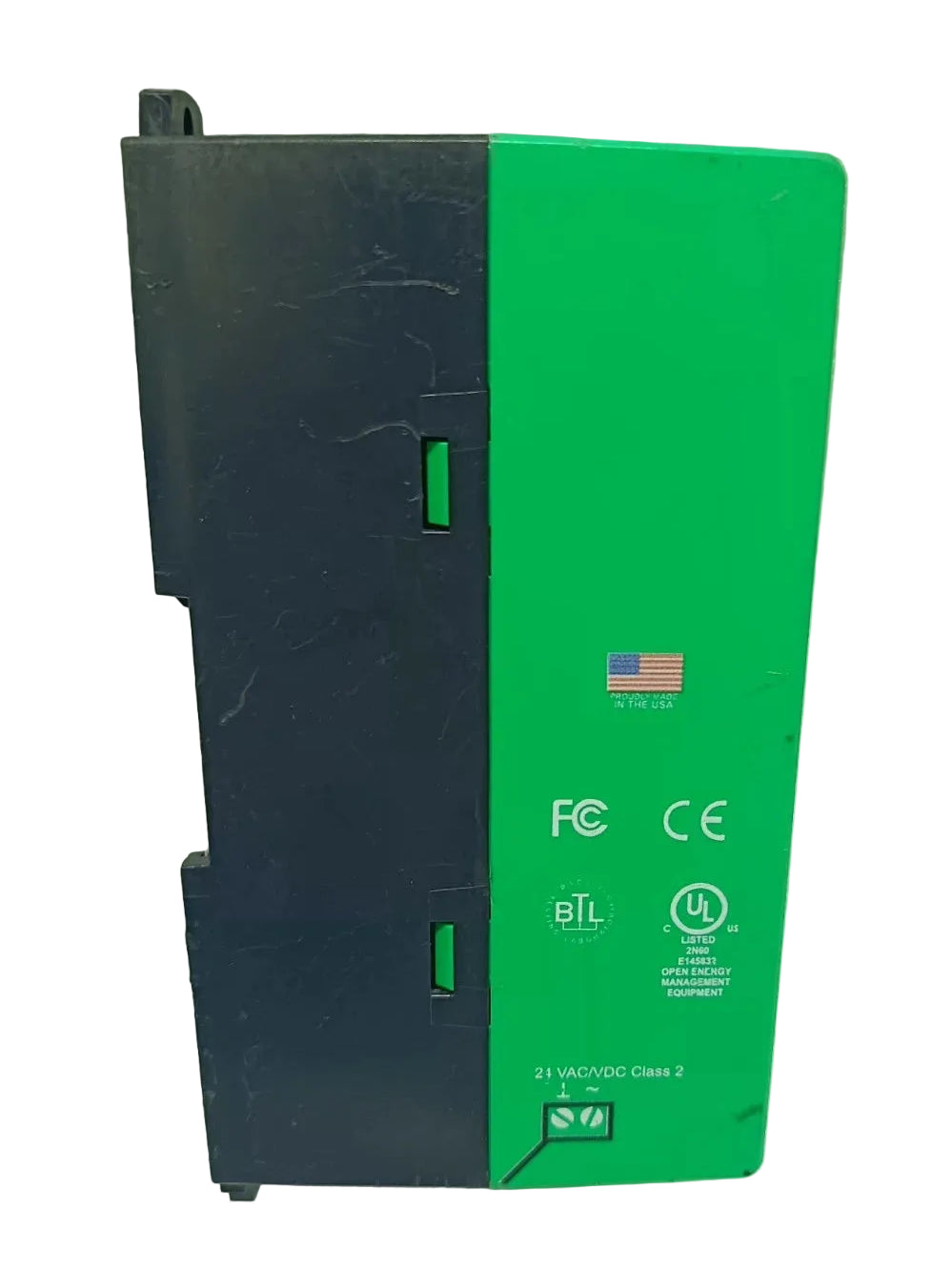

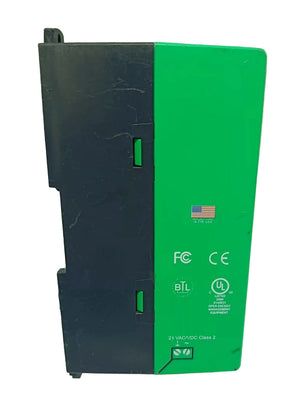

- 24 VAC/DC Power Input: Compatible with standard building automation power supplies.
- BTL Listed: Certified for compliance with BACnet interoperability standards.
The BAC-5051E delivers the reliability and performance required for building automation, HVAC integration, industrial networking, and BACnet communication systems.
