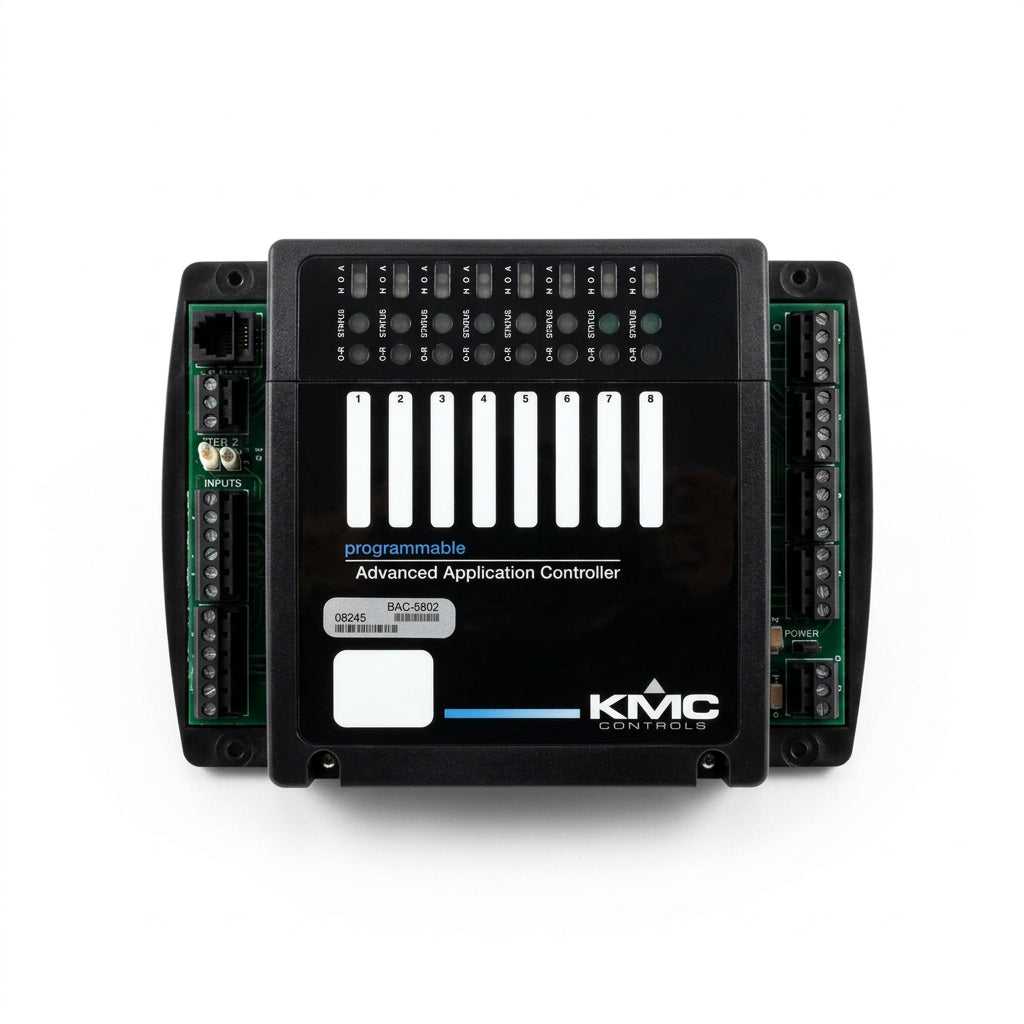

KMC Controls BAC-5802 BACnet Programmable Advanced Application Controller
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAC-5802
Description
The KMC Controls BAC-5802 is a programmable BACnet Advanced Application Controller for HVAC and building automation. It provides eight universal inputs and eight universal outputs for monitoring sensors and controlling connected equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Category | HVAC Controls |
| Part Number | BAC-5802 |
| Subcategory | BACnet Programmable Controllers |
| Controller Classification | Advanced Application Controller (AAC) |
| Network Protocol | BACnet MS/TP |
| Supply Voltage | 24 VAC −15%/+20%, Class 2 |
| Supply Frequency | 50–60 Hz |
| Specified Power Requirement | 36 VA |
| Universal Inputs | 8 |
| Analog Input Range | 0–5 VDC |
| Input Conversion | 10-bit analog-to-digital |
| Universal Outputs | 8 |
| Output Signals | Analog: 0–10 VDC; binary: 0 or 12 VDC |
| Hardware Real-Time Clock | Not included |
| Configuration Software | Compatible BACstage or TotalControl version |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 0–95% RH, non-condensing |
| Weight | 14 oz (395 g / 0.875 lb) |
Information About BAC-5802
The BAC-5802 is part of the KMC BAC-5801/5802 controller family. It supports standalone operation or connection to a BACnet MS/TP network. This model uses a software-based clock rather than a hardware real-time clock. Removable terminal blocks simplify field wiring and controller replacement.
Key Features:
- Programmable Control: Provides ten Control Basic program areas for application logic.
- Universal Inputs: Includes eight channels configurable for analog, binary, or supported accumulator objects.
- Universal Outputs: Provides eight channels configurable for analog or binary operation.
- BACnet Networking: Supports MS/TP communication at speeds up to 76.8 kbaud.
- Automatic Addressing: Assigns MAC addresses and device instance numbers automatically.
- PID Regulation: Includes eight PID loop objects for closed-loop control.
- Retained Programming: Stores programs and parameters in nonvolatile memory.
- Output Options: Accepts compatible HPO-6700 series override boards, purchased separately.
The BAC-5802 delivers the reliability and precision required for programmable equipment monitoring and control in building automation systems.
