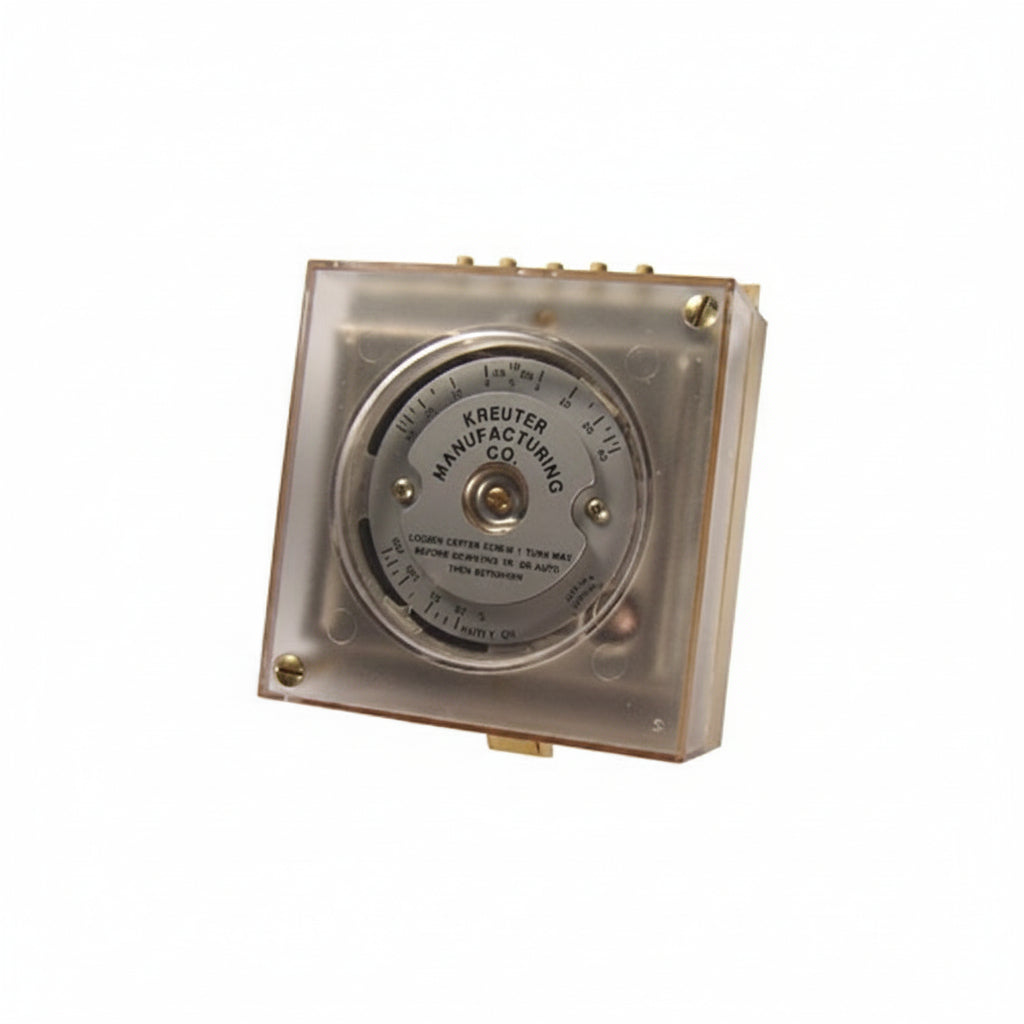

KMC Controls CCC-1001 Pneumatic Proportional Receiver Controller for HVAC
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CCC-1001
Description
The KMC Controls CCC-1001 is a pneumatic proportional receiver controller designed to regulate HVAC valves and actuators using 3–15 psi pneumatic signals. It supports single or dual inputs, adjustable proportional action, and optional remote setpoint adjustment for low-volume HVAC control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Category | Controls & Indicators |
| Part Number | CCC-1001 |
| Subcategory | Control |
| Product Type | Pneumatic Proportional Receiver Controller |
| Input Configuration | Single or Dual Input |
| Input Signal | 3–15 psi (21–103 kPa) |
| Main Control Air | 20 psi recommended; 30 psi maximum |
| Action | Direct or Reverse, field selectable |
| Throttling Range | 4–40% |
| Authority Adjustment | 20–200% of primary input signal |
| Remote Setpoint | 3–15 psi with ±10% offset |
| Ports | Five 3/16 in. (5 mm) ports |
| Tubing Compatibility | 1/4 in. (6 mm) O.D. polyethylene tubing |
| Output Application | Valves and actuators |
| Mounting | Surface mounting |
| Dimensions | 5-1/4 in. W × 4-3/8 in. H × 2-3/16 in. D |
| Weight | 2.00 lbs |
Information About CCC-1001
The CCC-1001 is a low-volume receiver controller within the KMC Controls pneumatic control product line. Its single or dual inputs accept 3–15 psi signals from compatible pneumatic transmitters and devices. The controller provides field-selectable direct or reverse action, adjustable throttling range, and adjustable authority from 20% to 200% of the primary input signal. It is intended for controlling valves and actuators and can interface with pressure switches, receiver gauges, relays, and temperature transmitters.
Key Features:
- Pneumatic Proportional Control: Regulates HVAC devices using pneumatic input signals.
- Dual Input Capability: Accepts primary and optional secondary 3–15 psi inputs.
- Remote Setpoint: Supports an optional pneumatic remote setpoint adjustment.
- Direct/Reverse Action: Field-selectable direct or reverse operating action.
- Adjustable Throttling: Provides a configurable throttling range from 4% to 40%.
- Adjustable Authority: Allows authority adjustment from 20% to 200% of the primary input signal.
- Low-Volume Design: Intended for applications requiring low-volume pneumatic output.
- HVAC Compatibility: Designed to control compatible valves and actuators in HVAC systems.
The CCC-1001 delivers the reliability and precision required for pneumatic HVAC control applications.
