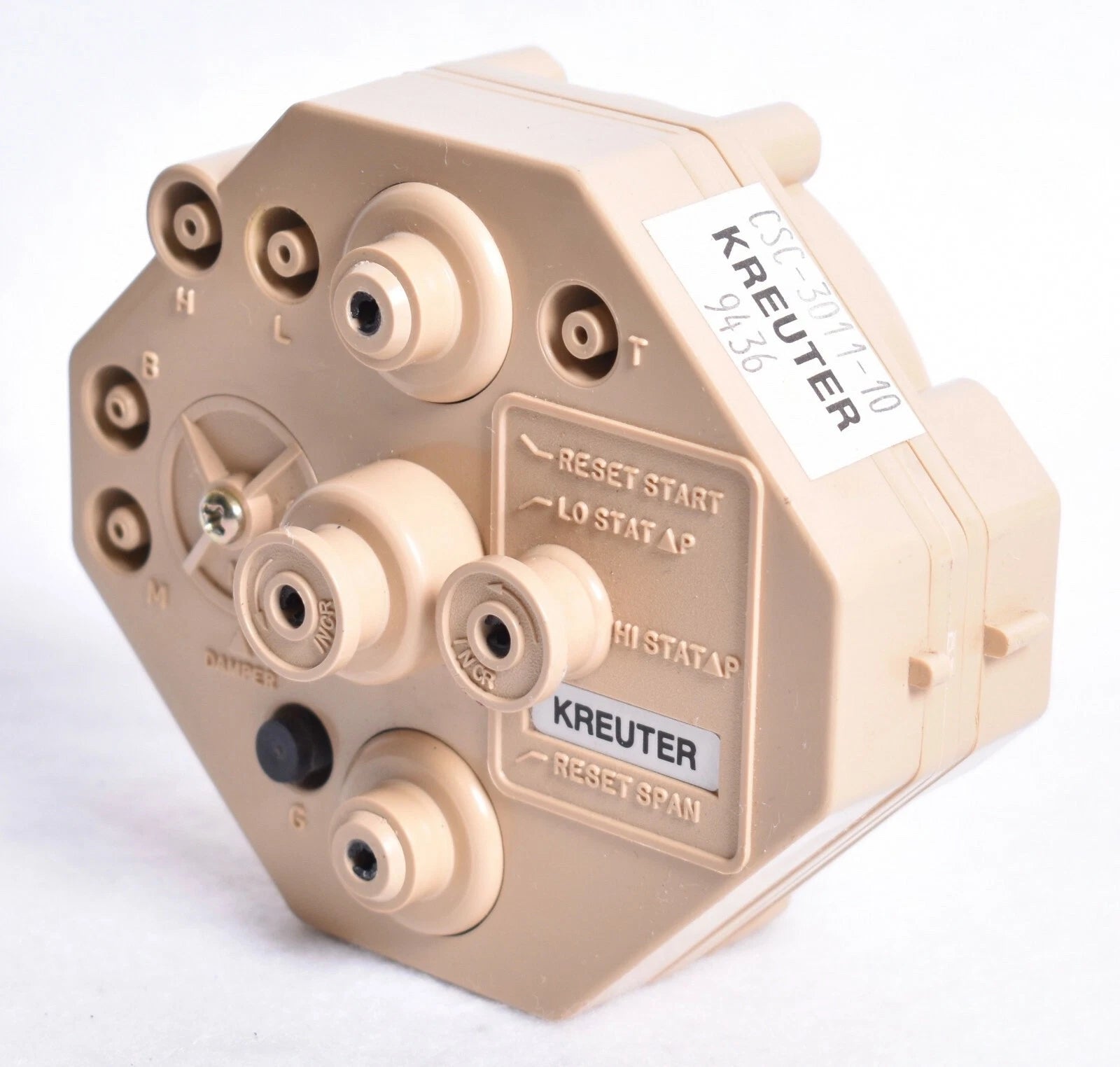

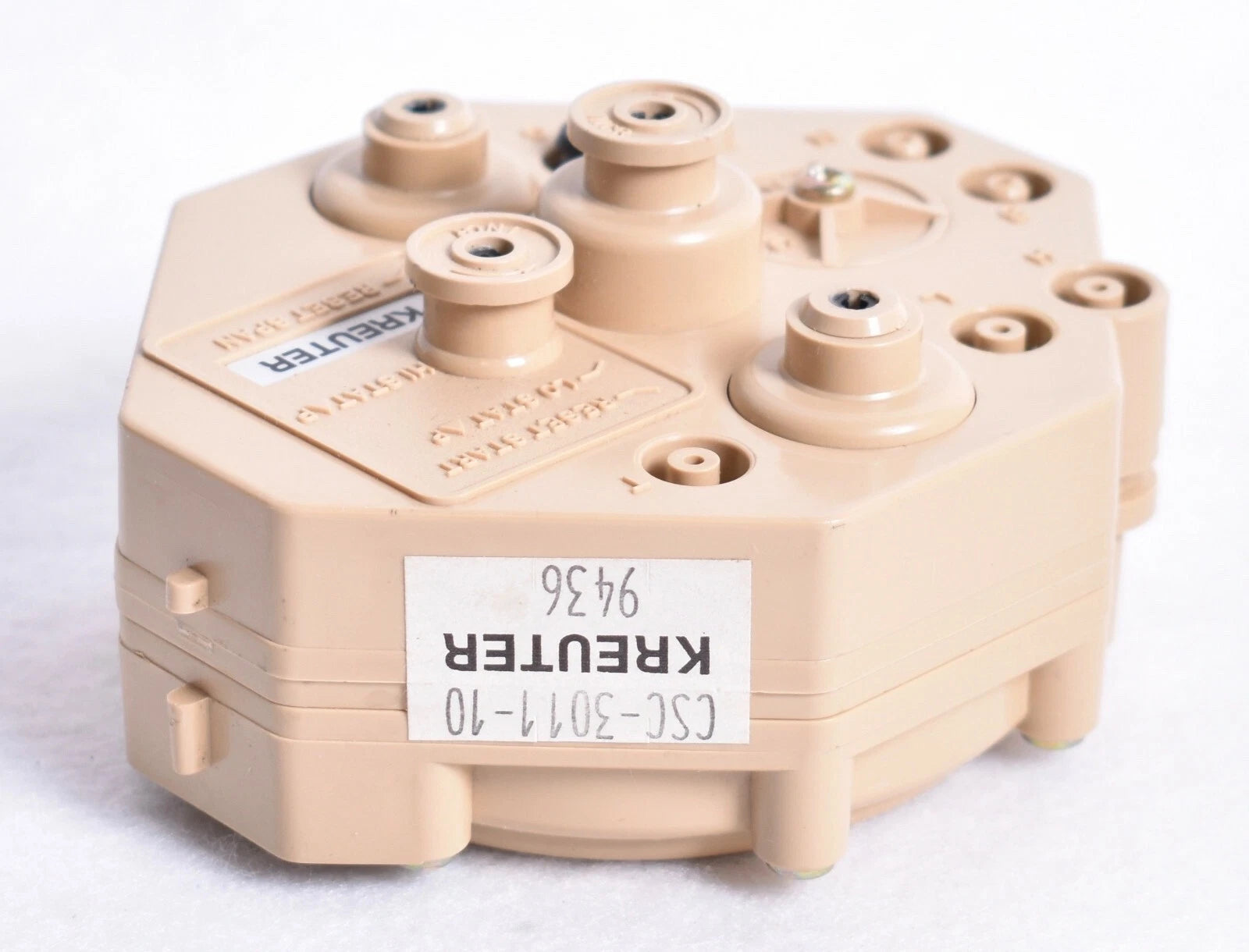

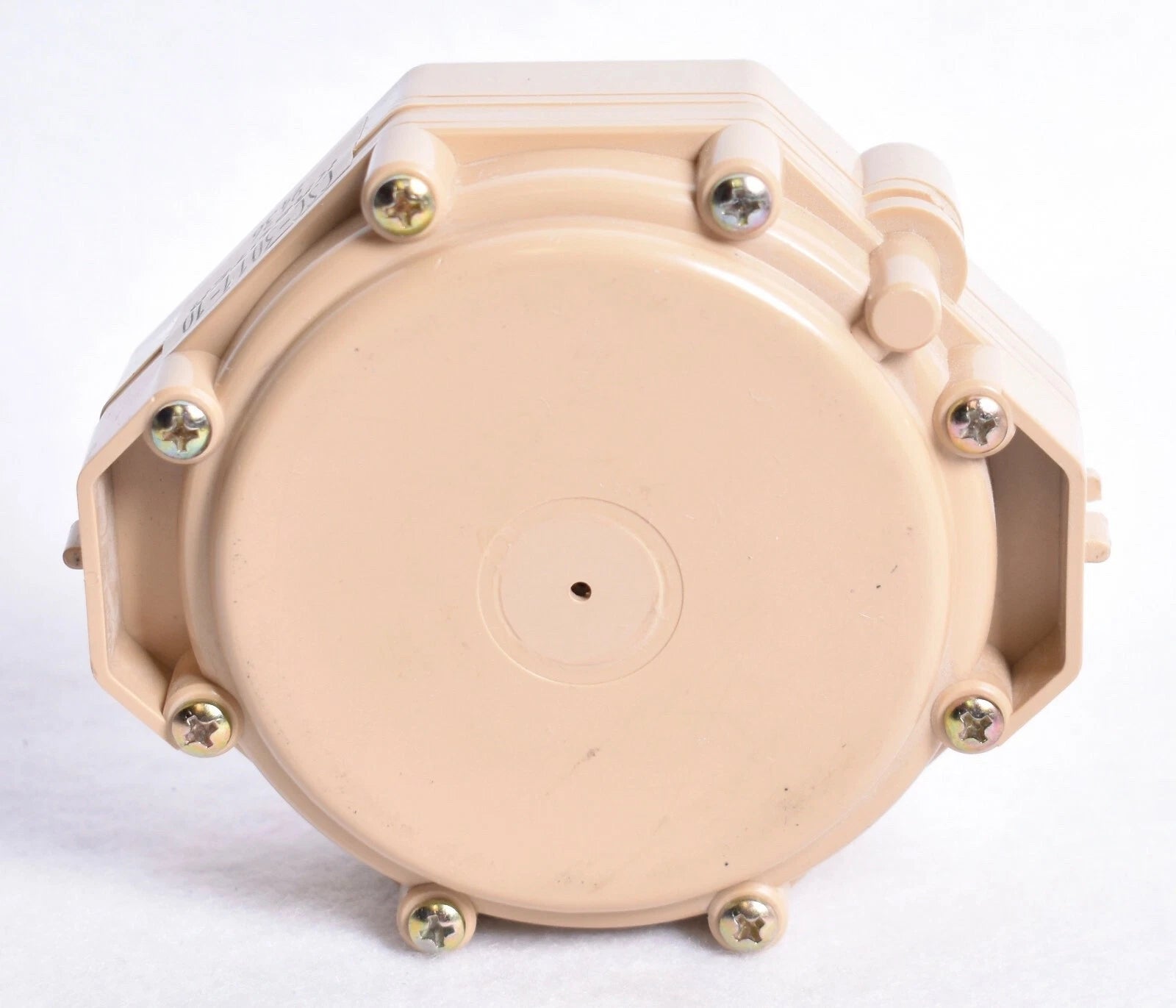

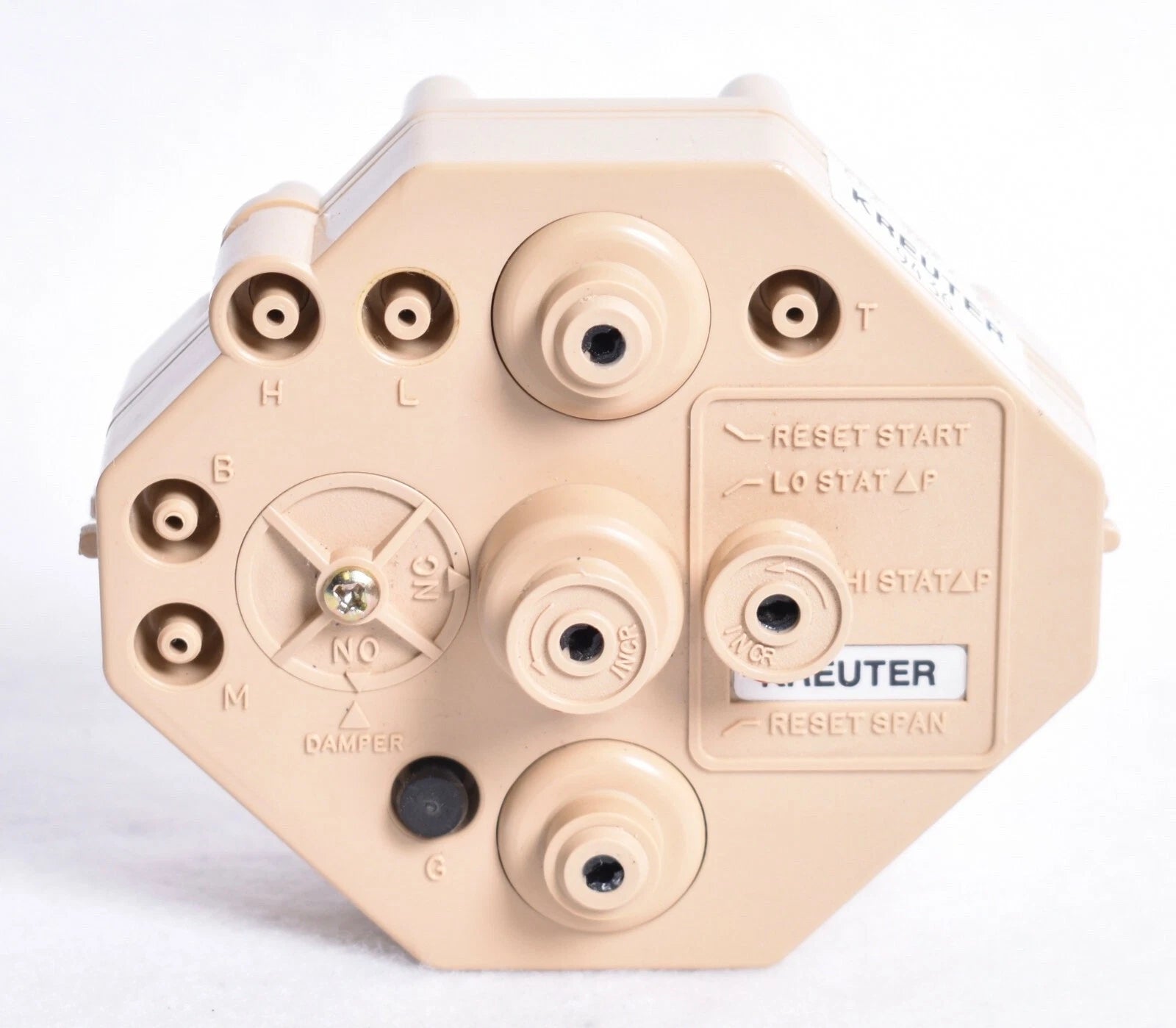

KMC Controls CSC-3011-10 Reset Volume Controller
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CSC-3011-10
Description
The KMC Controls CSC-3011-10 is a pneumatic reset volume controller designed for Variable Air Volume (VAV) terminal units in commercial HVAC systems. It provides precise airflow regulation with adjustable minimum and maximum setpoints, making it ideal for heating and cooling applications requiring reliable air velocity control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Part Number | CSC-3011-10 |
| Category | Controls & Indicators |
| Subcategory | Control |
| Product Type | Reset Volume Controller |
| Series | CSC-3000 |
| Application | Variable Air Volume (VAV) Systems |
| Damper Configuration | Normally Open or Normally Closed (Field Adjustable) |
| Thermostat Action | Direct or Reverse Acting |
| Main Air Pressure | 15–30 psi (103–207 kPa) |
| Maximum Signal Pressure | 6 in. WC (1493 Pa) |
| Reset Span | Factory Set at 5 psi, Adjustable 0–10 psi |
| Reset Start Point | Factory Set at 10 psi |
| Differential Pressure Range | 0–1 in. WC or 0–2 in. WC |
| Housing Material | Flame-Retardant Plastic |
| Weight | 2.22 lb |
Information About CSC-3011-10
The CSC-3011-10 is part of the KMC Controls CSC-3000 Series of pneumatic reset volume controllers developed for VAV terminal units. Designed for both normally open and normally closed dampers, it supports direct or reverse acting thermostats for flexible HVAC control strategies. The controller operates as a sub-master air velocity controller, using a master thermostat to modulate airflow between adjustable minimum and maximum setpoints. Its universal design makes it suitable for both new installations and replacement projects in commercial building automation systems.
Key Features:
- Pneumatic Reset Control: Delivers accurate airflow regulation for VAV terminal units.
- Adjustable Airflow Setpoints: Independent minimum and maximum airflow adjustments.
- Direct or Reverse Acting: Supports heating and cooling applications with flexible thermostat operation.
- Normally Open or Closed Dampers: Field configurable for multiple damper control strategies.
- Adjustable Reset Span: Factory preset with field adjustment from 0 to 10 psi.
- Multiple Pressure Ranges: Available for 0–1 in. WC and 0–2 in. WC differential pressure applications.
- Universal Replacement Design: Suitable for retrofit and new HVAC installations.
- Durable Construction: Flame-retardant plastic housing for long-term reliability.
The CSC-3011-10 delivers the reliability and precision required for VAV airflow control and commercial HVAC system performance.
