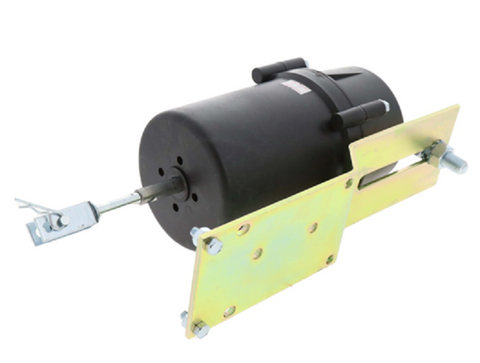

KMC Controls MCP-1140-5520 4in Pneumatic Spring Return Actuator
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MCP-1140-5520
Description
The KMC Controls MCP-1140-5520 is a pneumatic actuator assembly designed for accurate damper and valve positioning in commercial HVAC and building automation systems. Featuring a 4-inch stroke, 8–13 PSI spring range, and clevis linkage, the MCP-1140-5520 delivers dependable modulation, fail-safe spring return, and reliable performance in demanding ventilation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Category | Building Automation |
| Part Number | MCP-1140-5520 |
| Subcategory | Pneumatic Actuator |
| Series | MCP Series |
| Product Type | Pneumatic Actuator Assembly |
| Actuator Type | Spring-return pneumatic |
| Stroke | 4 in (101.6 mm) |
| Spring Range | 8–13 PSI |
| Maximum Torque | Up to 176 in-lb |
| End Fitting | Clevis |
| Mounting Configuration | Post mount |
| Control Medium | Pneumatic air pressure |
| Fail-Safe Operation | Spring return |
| Compatible Replacement Models | M574-5105, M574-5520 |
| Applications | HVAC dampers, control valves, air handling units, ventilation systems |
| Construction | Heavy-duty industrial housing |
| Weight | Approximately 3.5 lb (1.59 kg) |
Information About MCP-1140-5520
The MCP-1140-5520 is part of the KMC Controls MCP series of pneumatic actuators developed for commercial and industrial HVAC control systems. It utilizes a spring-return pneumatic design with a 4-inch travel distance, making it suitable for large dampers, control valves, and air handling equipment that require extended actuator movement. The actuator features a factory-installed clevis and post-mount configuration for simplified installation and serves as a direct replacement for legacy KMC M574-5105 and M574-5520 actuator models. Designed for long-term durability, it provides consistent pneumatic positioning and dependable fail-safe operation during loss of control pressure.
Key Features:
- 4-Inch Stroke: Provides extended actuator travel for large dampers and valves.
- 8–13 PSI Spring Range: Delivers smooth pneumatic modulation and reliable positioning.
- Spring Return Design: Automatically returns to the designated fail-safe position when air pressure is lost.
- Clevis Linkage: Factory-installed clevis simplifies mechanical connection.
- Heavy-Duty Construction: Engineered for continuous commercial HVAC operation.
- High Torque Output: Produces up to 176 in-lb of torque for demanding applications.
- Direct Replacement: Compatible with legacy M574-5105 and M574-5520 actuators.
- Post-Mount Configuration: Reduces installation time during retrofit and new installations.
- Pneumatic Operation: Ideal for building automation systems using pneumatic control.
- Commercial HVAC Compatibility: Suitable for air handlers, ventilation systems, dampers, and hydronic valve applications.
The MCP-1140-5520 delivers the reliability and precision required for pneumatic damper and valve control in commercial and industrial HVAC systems.
