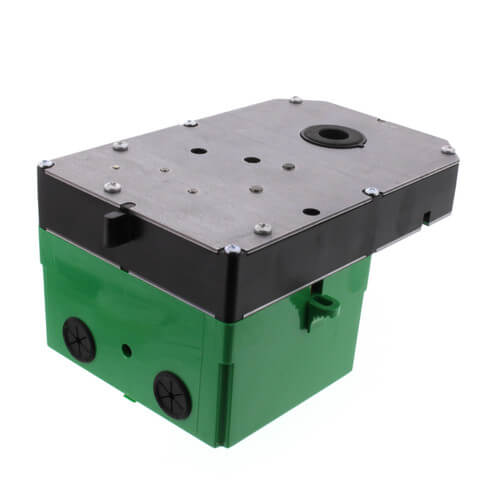

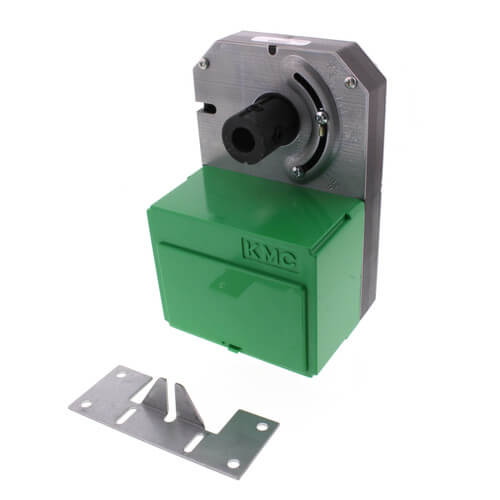

KMC Controls MEP-5223 Direct-Coupled Replacement Actuator for Residential Round Zone Dampers
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MEP-5223
Description
The KMC Controls MEP-5223 is a direct-coupled replacement actuator for compatible residential round zone dampers. It uses 24 VAC tri-state control to deliver 10 lb-in of running torque through a 45° stroke, with non-spring-return operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | KMC Controls |
| Category | HVAC |
| Part Number | MEP-5223 |
| Subcategory | Zone Damper Actuators |
| Product Type | Direct-coupled replacement damper actuator |
| Application | Compatible residential round zone dampers |
| Control Signal | Tri-state / floating |
| Supply Voltage | 24 VAC +20%/−15%, Class 2 only |
| Supply Frequency | 50/60 Hz |
| Maximum Power Consumption | 2 VA |
| Minimum Running Torque | 10 lb-in (1.1 N·m) |
| Angular Stroke | 45° |
| Operating Time | 15 seconds at 60 Hz; 18 seconds at 50 Hz |
| Angular Speed | 3° per second at 60 Hz |
| Return Type | Non-spring return / non-failsafe |
| Electrical Connections | Plated screw terminals for 14–22 AWG copper |
| Housing Material | Flame-retardant plastic |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Weight | 2 lb (0.9 kg) |
Information About MEP-5223

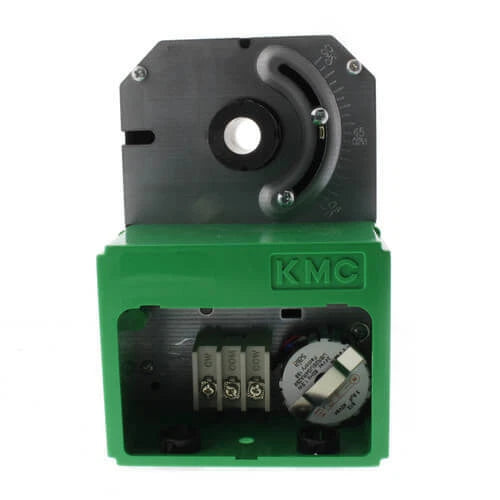

The MEP-5223 is part of the KMC Controls MEP-5223/5233 replacement damper actuator range. This version is intended for round dampers with a fully closed blade angle of 45 degrees. Its flame-retardant plastic enclosure houses the drive mechanism, with plated screw terminals providing the electrical connections. Correct replacement selection requires matching the damper geometry, shaft connection, and control wiring.
Key Features:
- Residential Zone Application: Replaces actuators on compatible round zone dampers.
- Tri-State Control: Uses floating control commands to drive or stop damper movement.
- Running Torque: Provides a minimum output torque of 10 lb-in (1.1 N·m).
- Defined Angular Travel: Operates through a 45° stroke for the specified round-damper arrangement.
- Operating Speed: Completes travel in 15 seconds at 60 Hz or 18 seconds at 50 Hz.
- Non-Spring-Return Design: Operates without an automatic spring-return mechanism.
- Direct-Coupled Mounting: Transfers motor movement directly to the compatible damper shaft.
- Screw-Terminal Connections: Accepts 14–22 AWG copper conductors.
The MEP-5223 delivers the reliability and precision required for controlled airflow distribution through compatible residential zone dampers.
